55573-0332 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 55573-0332

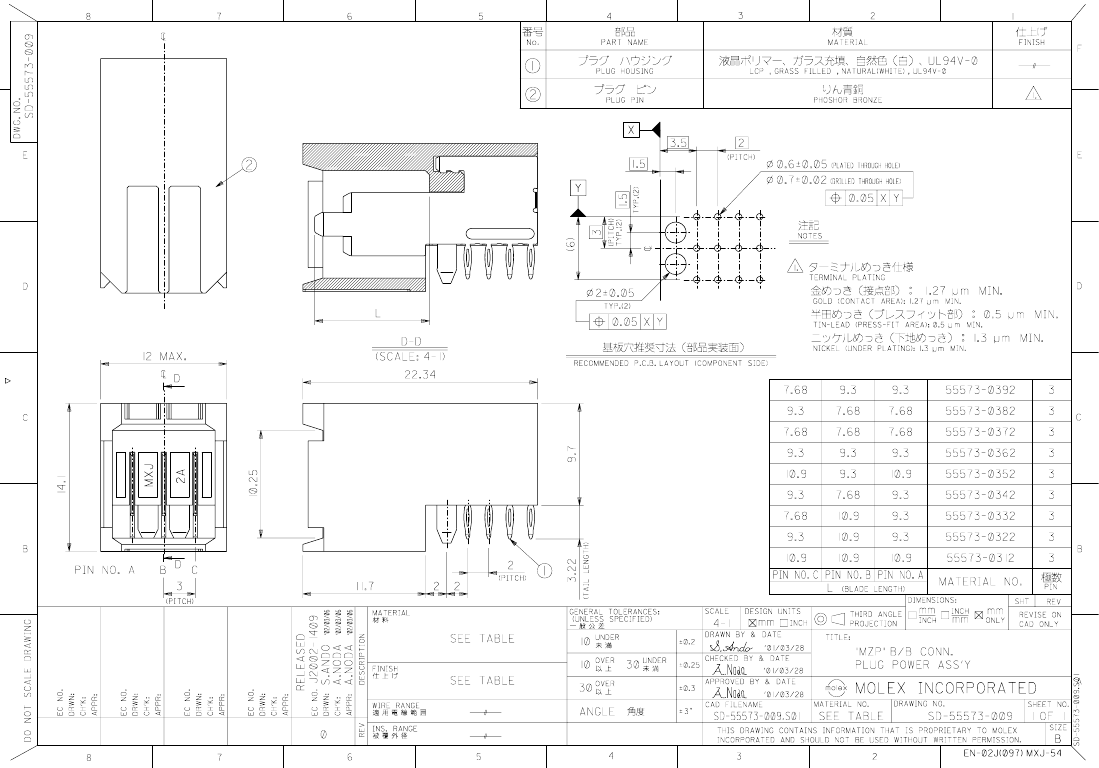

55573-0332: DescriptionBoard Connector, 3 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal, Guide Slot, White Insulator, Plug; CategoryThe connector; File Size82KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

55573-0332 Overview

Board Connector, 3 Contact(s), 3 Row(s), Male, Straight, Press Fit Terminal, Guide Slot, White Insulator, Plug

55573-0332 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TRAY PACKAGING
Board mount options	PEG
body width	0.555 inch
subject depth	0.879 inch
body length	0.472 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S0P3
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	30 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	125 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7506 N
Insulation resistance	10000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	55573
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	3
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1
