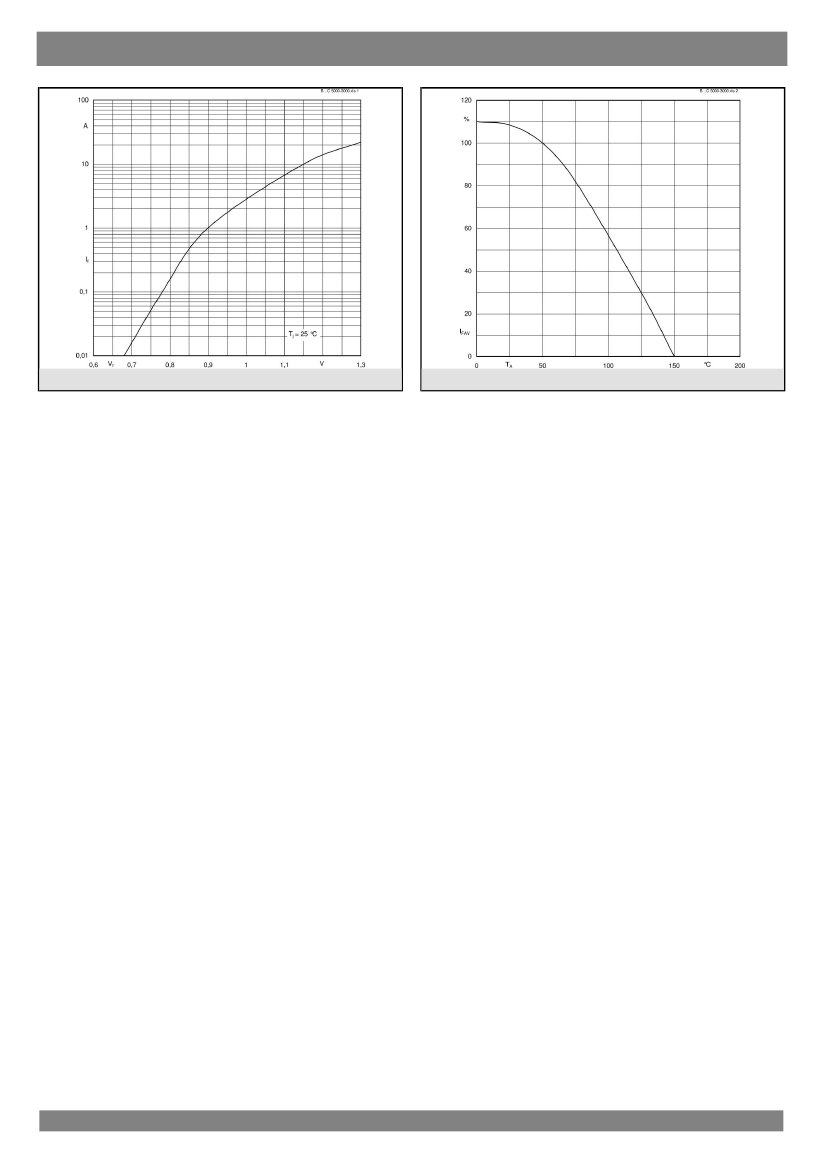

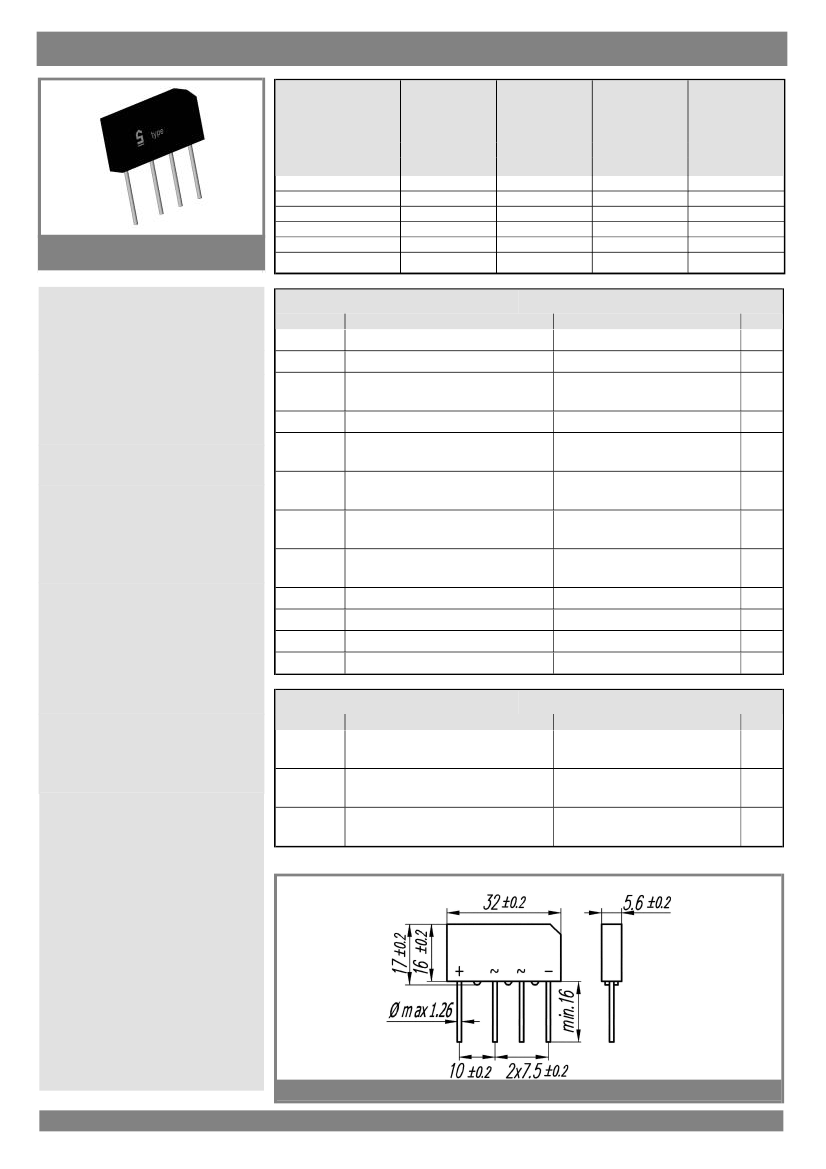

Silicon-Bridge Rectifiers
| B40C5000-3000_06 | B40C5000-3000 | B80C5000-3000 | B500C5000-3000 | B380C5000-3000 | B250C5000-3000 | |
|---|---|---|---|---|---|---|
| Description | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers |
| Is it lead-free? | - | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | - | conform to | conform to | conform to | conform to | conform to |
| Maker | - | SEMIKRON | SEMIKRON | SEMIKRON | SEMIKRON | SEMIKRON |
| package instruction | - | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 |
| Contacts | - | 4 | 4 | 4 | 4 | 4 |
| Reach Compliance Code | - | compli | compli | compli | compli | compli |
| Other features | - | UL RECOGNIZED | UL RECOGNIZED | UL RECOGNIZED | UL RECOGNIZED | UL RECOGNIZED |
| Configuration | - | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS |
| Diode component materials | - | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | - | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE |
| JESD-30 code | - | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 |
| JESD-609 code | - | e2 | e2 | e2 | e2 | e2 |
| Maximum non-repetitive peak forward current | - | 150 A | 150 A | 150 A | 150 A | 150 A |
| Number of components | - | 4 | 4 | 4 | 4 | 4 |
| Phase | - | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | - | 4 | 4 | 4 | 4 | 4 |
| Maximum operating temperature | - | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | - | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C |
| Maximum output current | - | 3.5 A | 3.5 A | 3.5 A | 3.5 A | 3.5 A |
| Package body material | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | - | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | - | 80 V | 160 V | 1000 V | 800 V | 600 V |
| surface mount | - | NO | NO | NO | NO | NO |
| Terminal surface | - | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) |
| Terminal form | - | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | - | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
