DB25-01

Description
3 PHASE, 25 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE
CategoryDiscrete semiconductor    diode
File Size224KB，2 Pages
ManufacturerSEMIKRON
Websitehttp://www.semikron.com
Environmental Compliance
Download Datasheet Parametric Compare View All

DB25-01 Online Shopping

Suppliers Part Number Price MOQ In stock
DB25-01 - - View Buy Now

DB25-01 Overview

3 PHASE, 25 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE

DB25-01 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSEMIKRON
package instructionS-PUFM-D5
Contacts5
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresUL RECOGNIZED
Shell connectionISOLATED
ConfigurationBRIDGE, 6 ELEMENTS
Diode component materialsSILICON
Diode typeBRIDGE RECTIFIER DIODE
JESD-30 codeS-PUFM-D5
JESD-609 codee2
Maximum non-repetitive peak forward current350 A
Number of components6
Phase3
Number of terminals5
Maximum output current25 A
Package body materialPLASTIC/EPOXY
Package shapeSQUARE
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage100 V
surface mountNO
Terminal surfaceTin/Silver (Sn/Ag)
Terminal formSOLDER LUG
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED

Preview

Download Datasheet

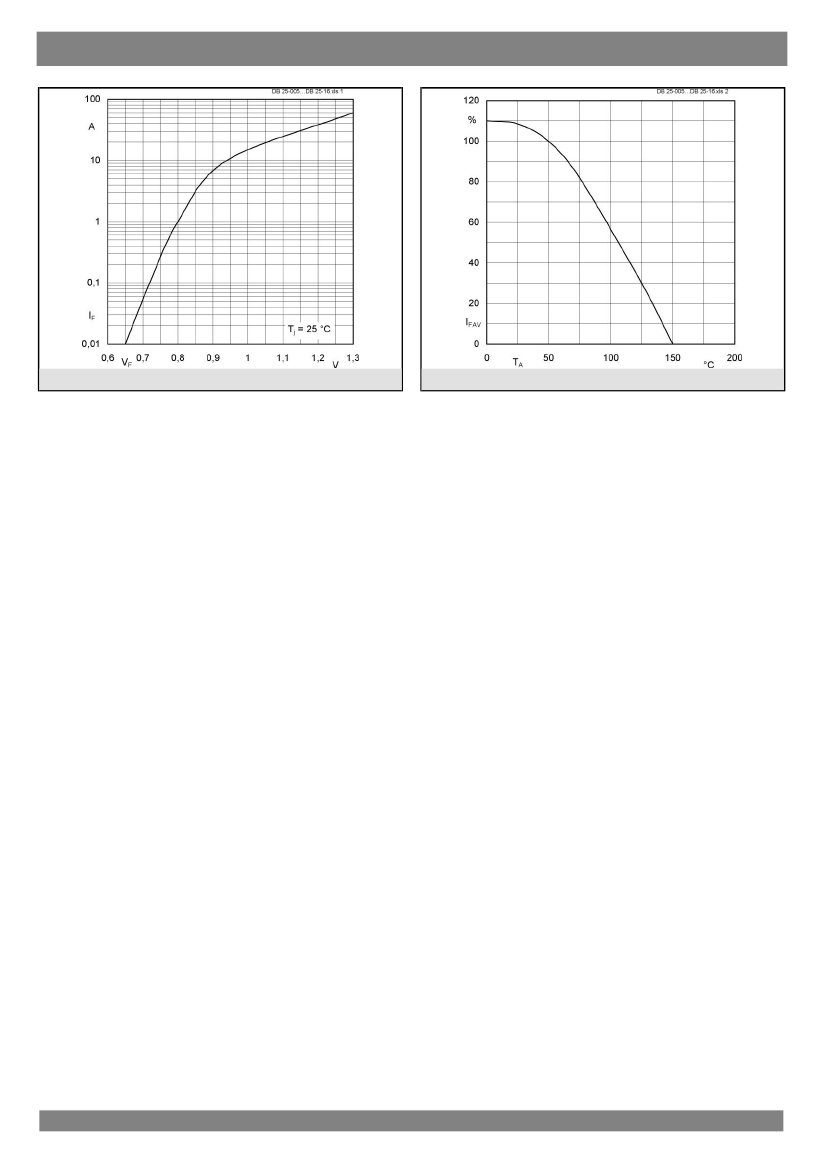

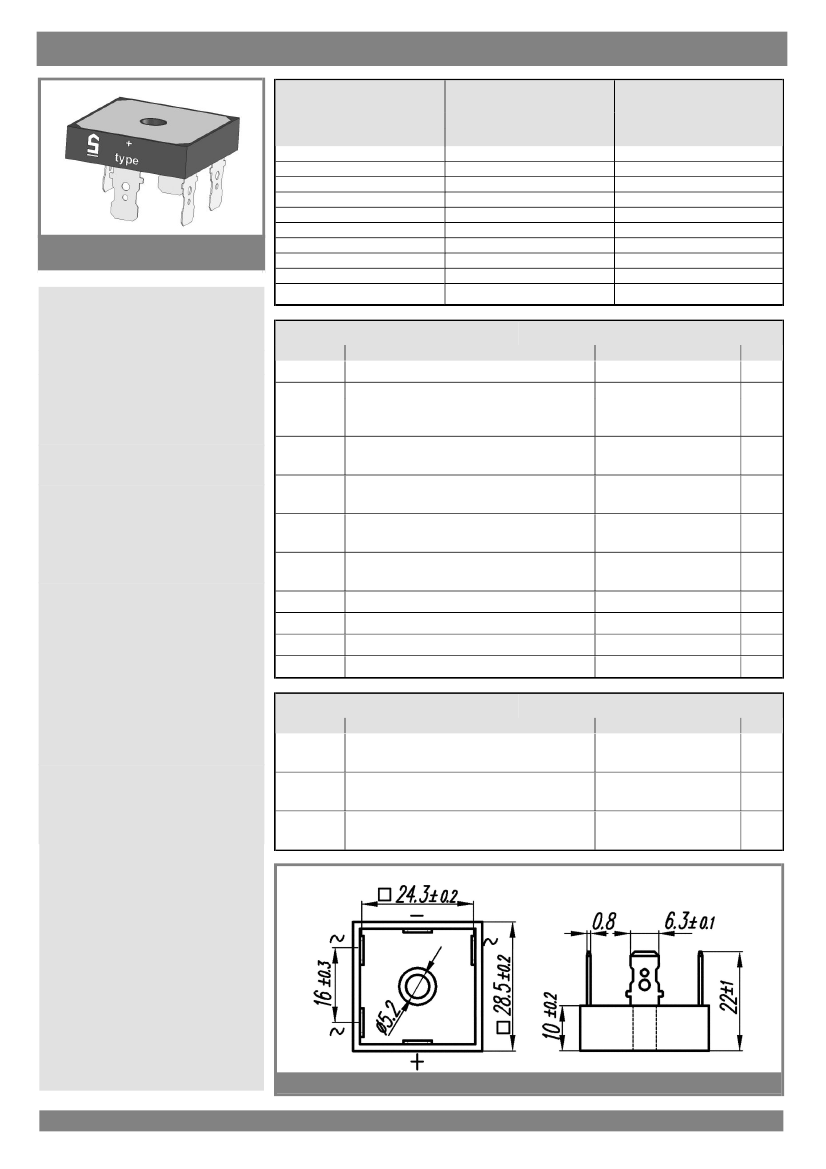

DB 25-005 ... DB 25-16
Square bridge
Three-Phase Si-Bridge
Rectifiers
DB 25-005 ... DB 25-16
Forward Current: 25 A
Reverse Voltage: 50 to 1600 V
Absolute Maximum Ratings
Symbol Conditions
Values
Units
Publish Data
Features
Mechanical Data
Characteristics
Symbol Conditions
Values
Units
Dimensions in mm
1
10-04-2006 SCT
© by SEMIKRON
