SKKT57/14E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> SKKT57/14E

SKKT57/14E: Description95 A, 1200 V, SCR, TO-240AA; CategoryAnalog mixed-signal IC Trigger device; File Size970KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKKT57/14E Overview

95 A, 1200 V, SCR, TO-240AA

SKKT57/14E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	TO-240AA
package instruction	FLANGE MOUNT, R-CUFM-X7
Contacts	7
Manufacturer packaging code	CASE A46
Reach Compliance Code	compliant
Other features	UL RECOGNIZED, HIGH RELIABILITY
Shell connection	ISOLATED
Nominal circuit commutation break time	80 µs
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	2G-2GR
Description of screw terminals	A-K-AK
Maximum holding current	250 mA
JEDEC-95 code	TO-240AA
JESD-30 code	R-CUFM-X7
JESD-609 code	e2
Maximum leakage current	15 mA
On-state non-repetitive peak current	1500 A
Number of components	2
Number of terminals	7
Maximum on-state current	55000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	95 A
Maximum repetitive peak off-state leakage current	15000 µA
Off-state repetitive peak voltage	1400 V
Repeated peak reverse voltage	1400 V
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

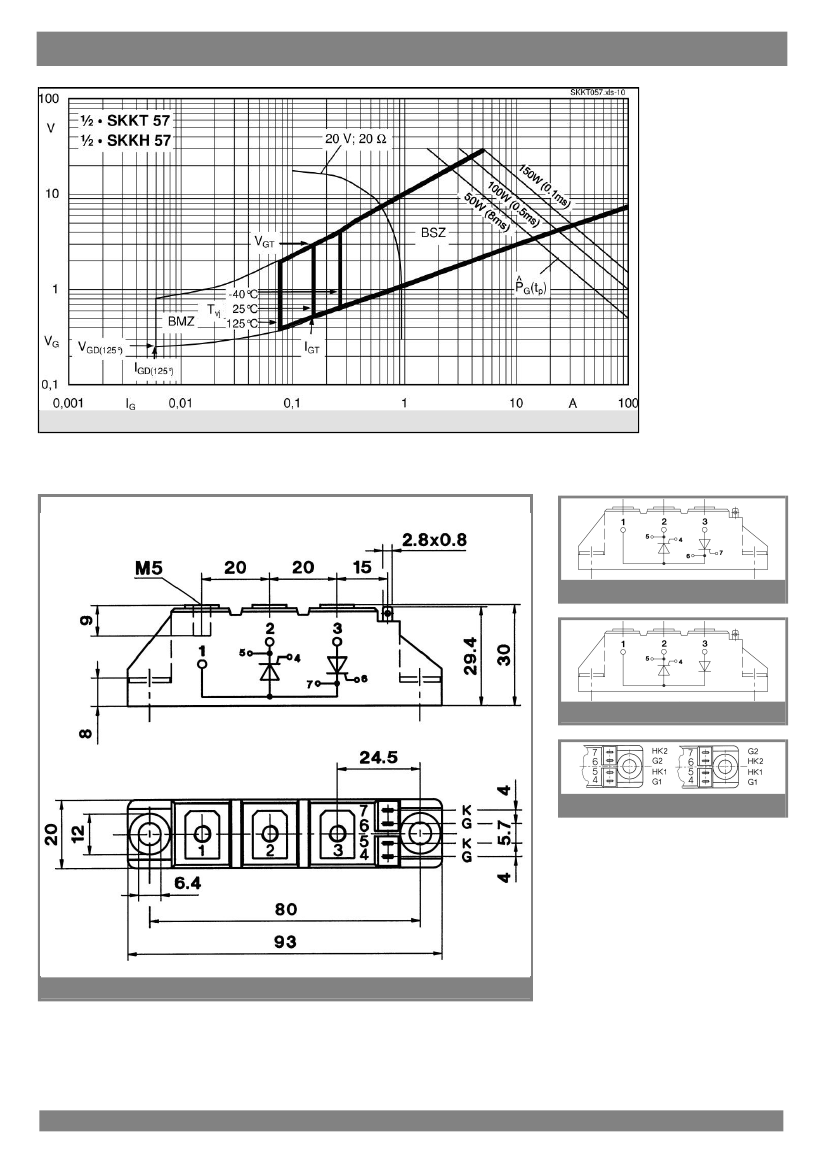

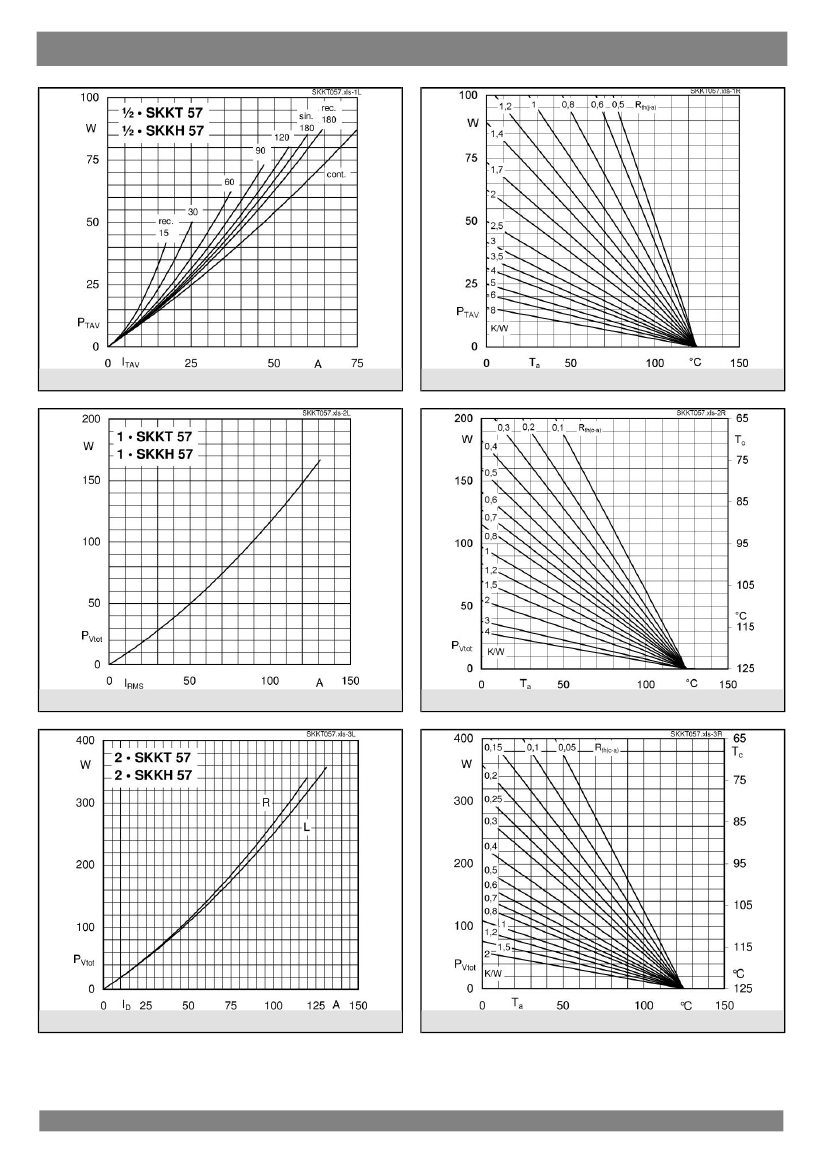

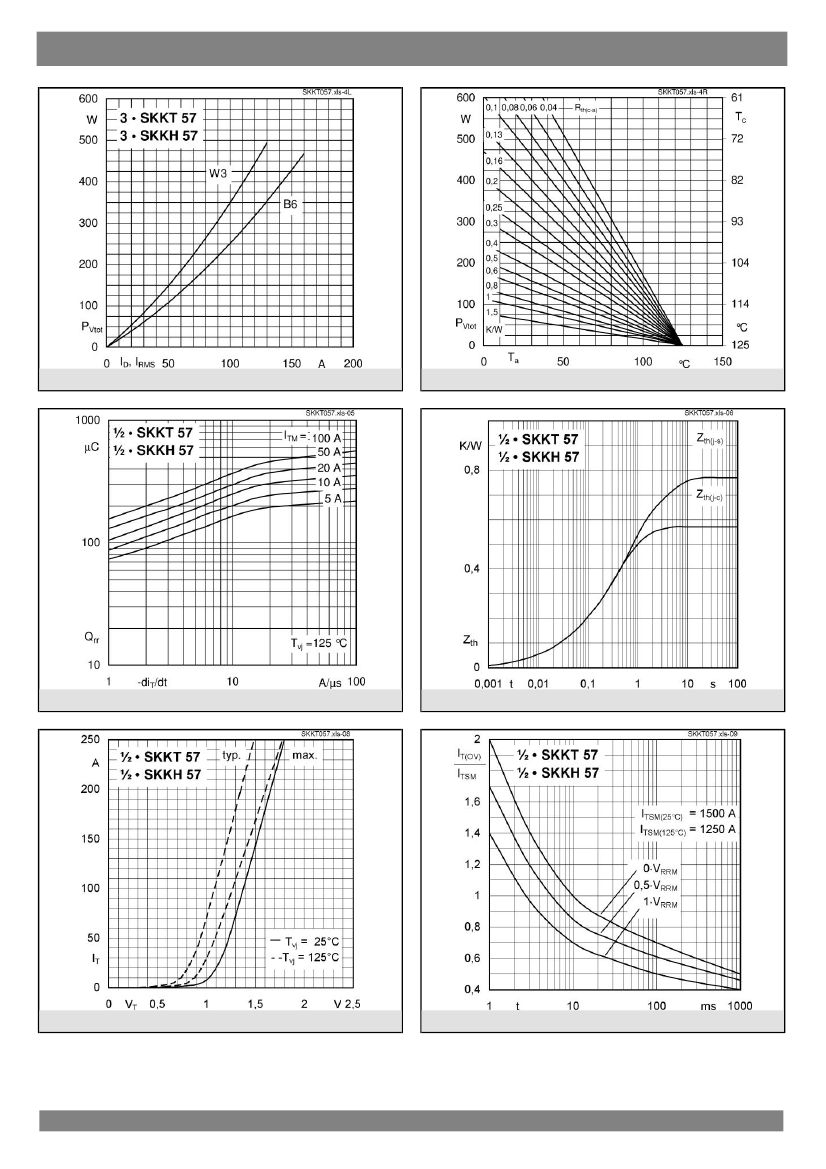

Preview

Download Datasheet

View All

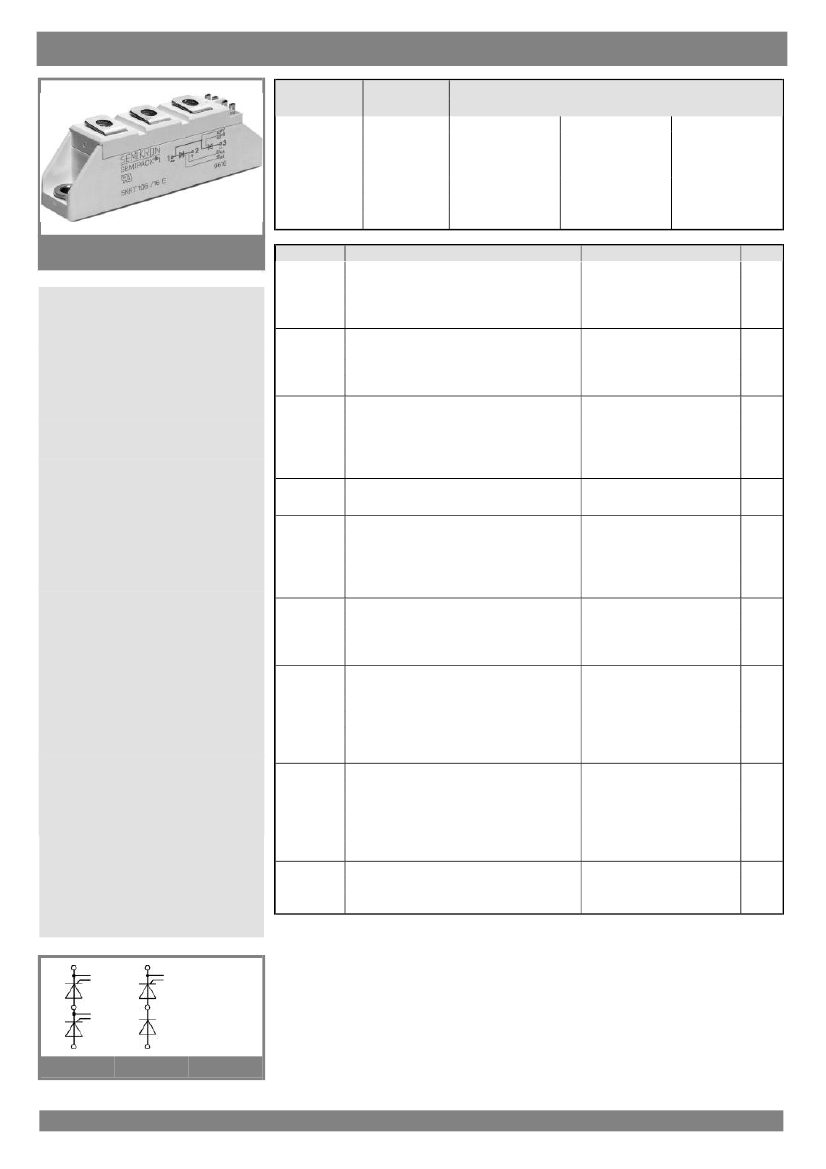

SKKT 57, SKKH 57, SKKT 57B

THYRISTOR

SEMIPACK

Thyristor / Diode Modules

SKKT 57

SKKH 57

SKKT 57B

Symbol

Conditions

Values

Units

Features

Typical Applications

SKKT

SKKH

02-08-2004 NOS

SKKT57/14E Related Products

	SKKT57/14E	SKKT57_04	SKKT57/08E	SKKT57/12E	SKKT57B16E	SKKT57B14E	SKKT57B12E	SKKT57B08E	SKKT57/16E
Description	95 A, 1200 V, SCR, TO-240AA	95 A, 1200 V, SCR, TO-240AA	95 A, 1200 V, SCR, TO-240AA	95 A, 1200 V, SCR, TO-240AA	95 A, 1600 V, SCR	95 A, 1200 V, SCR, TO-240AA	95 A, 1200 V, SCR	95 A, 1200 V, SCR, TO-240AA	95 A, 1600 V, SCR, TO-240AA
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Number of components	2	2	2	2	2	2	2	2	2
Number of terminals	7	7	7	7	7	7	7	7	7
Off-state repetitive peak voltage	1400 V	1200 V	800 V	1200 V	1600 V	1400 V	1200 V	800 V	1600 V
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SEMIKRON	-	SEMIKRON	-	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON
Parts packaging code	TO-240AA	-	TO-240	TO-240AA	TO-240	TO-240	TO-240	TO-240	TO-240AA
package instruction	FLANGE MOUNT, R-CUFM-X7	-	FLANGE MOUNT, R-CUFM-X7	FLANGE MOUNT, R-CUFM-X7	FLANGE MOUNT, R-CUFM-X7	FLANGE MOUNT, R-CUFM-X7	FLANGE MOUNT, R-CUFM-X7	FLANGE MOUNT, R-CUFM-X7	FLANGE MOUNT, R-CUFM-X7
Contacts	7	-	3	7	3	3	3	3	7
Manufacturer packaging code	CASE A46	-	CASE A46	CASE A46	CASE A48	CASE A48	CASE A48	CASE A48	CASE A46
Reach Compliance Code	compliant	-	compliant	compli	compli	compli	compli	compli	compliant
Other features	UL RECOGNIZED, HIGH RELIABILITY	-	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	-	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum DC gate trigger current	150 mA	-	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	3 V	-	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Quick connection description	2G-2GR	-	2G-2GR	2G-2GR	2G-2GR	2G-2GR	2G-2GR	2G-2GR	2G-2GR
Description of screw terminals	A-K-AK	-	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK
Maximum holding current	250 mA	-	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA
JESD-30 code	R-CUFM-X7	-	R-CUFM-X7	R-CUFM-X7	R-CUFM-X7	R-CUFM-X7	R-CUFM-X7	R-CUFM-X7	R-CUFM-X7
JESD-609 code	e2	-	e2	e2	e2	e2	e2	e2	e3/e4
Maximum leakage current	15 mA	-	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
On-state non-repetitive peak current	1500 A	-	1500 A	1500 A	1500 A	1500 A	1500 A	1500 A	1500 A
Maximum on-state current	55000 A	-	50000 A	55000 A	60000 A	60000 A	60000 A	50000 A	55000 A
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	95 A	-	95 A	95 A	95 A	95 A	95 A	95 A	95 A
Repeated peak reverse voltage	1400 V	-	800 V	1200 V	1600 V	1400 V	1200 V	800 V	1600 V
surface mount	NO	-	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Silver (Sn/Ag)	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	TIN/SILVER
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	-	SCR	SCR	SCR	SCR	SCR	SCR	SCR
