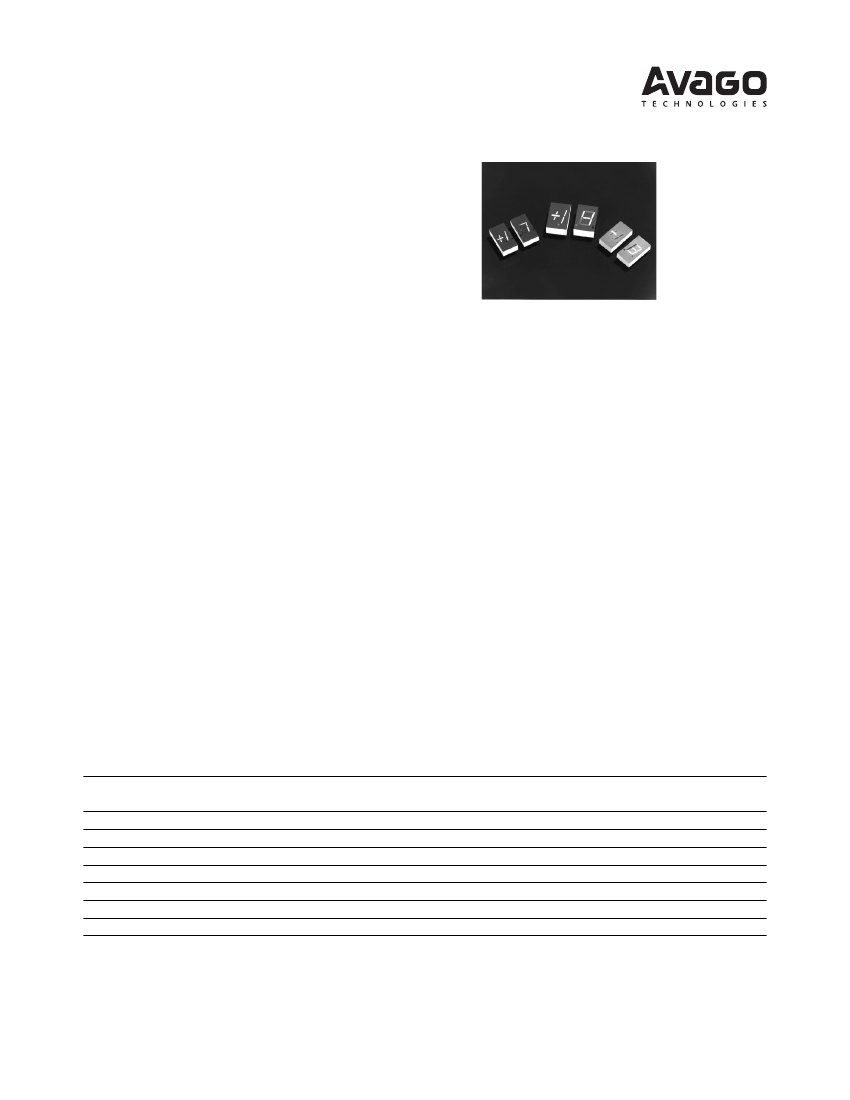

5082-761x Series, 5082-762x Series, 5082-765x Series,
5082-766x Series, HDSP-360x Series/-460x Series
7.6 mm (0.3 inch)/10.9 mm (0.43 inch)
Seven Segment Displays
Data Sheet
Description
The 7.6 mm (0.3 inch) and 10.9 mm (0.43 inch) LED seven
segment displays are designed for viewing distances up
to 3 metres (10 feet) and 5 metres (16 feet). These devices
use an industry standard size package and pinouts. All
devices are available as either common anode or common
cathode.
Features,
continued
•
Design flexibility
– Common anode or common cathode
– Single digits
– Left or right hand decimal point ±1. overflow
character
•
Categorized for luminous intensity
– Yellow and Green categorized for color
– Use of like categories yields a uniform display
•
High light output
•
High peak current
•
Excellent for long digit string multiplexing
•
Intensity and color selection available
– See Intensity and Color Selected Displays Data Sheet
Features
•
Industry standard size
•
Industry standard pinout
– 7.62 mm (0.300 inch) DIP leads on 2.54 mm (0.100
inch) centers
•
Choice of colors
– High Efficiency Red, Yellow, Green
•
Excellent appearance
– Evenly lighted segments
– ±50° viewing angle
– Optimum contrast given by gray top surface for
Green devices
– Red top surface for HER devices
– Yellow top surface for yellow devices
Devices
HER
[1]
5082-
7610
7611
7613
7650
7651
7653
7656
Yellow
5082-
7620
7621
7623
7661
7663
7666
Green
HDSP-
3600
3601
3603
4600
4601
4603
4606
Description
7.6 mm Common Anode Left Hand Decimal
7.6 mm Common Anode Right Hand Decimal
7.6 mm Common Cathode Right Hand Decimal
10.9 mm Common Anode Left Hand Decimal
10.9 mm Common Anode Right Hand Decimal
10.9 mm Common Cathode Right Hand Decimal
10.9 mm Universal ± 1. Overflow Right Hand Decimal
[2]
Package Drawing
A
B
C
E
F
G
H
Notes:
1. These displays are recommended for high ambient light operation. Refer to the HDSP-335X HER data sheet for low current operation.
2. Universal pinout brings the anode and cathode of each segment’s LED out to separate pins. See internal diagram H.
Part Number
5082 – X X X X – X X X X
H DSP – X X X X – X X X X
Mechanical Option
[1]
00: No Mechanical Option
Color Bin Options
[1, 2]
0: No Color Bin Limitation
4: Color Bin 4 Only (applicable for Green devices only)
B: Color Bins 2 and 3 (applicable for Yellow devices only)
Maximum Intensity Bin
[1, 2]
0: No Maximum Intensity Bin Limitation
Minimum Intensity Bin
[1, 2]
0: No Minimum Intensity Bin Limitation
Device Configuration/Color
[1]
0: Common Anode
1: Common Anode
3: Common Cathode
Device Specific Configuration
[1]
Refer to Respective Datasheet
Package
[1]
E: 10.9 mm (0.43 inch) Single Digit Seven Segment Display
Notes:
1. For codes not listed in the figure above, please refer to the respective datasheet or contact your nearest Avago representative for details.
2. Bin options refer to shippable bins for a part number. Color and Intensity Bins are typically restricted to 1 bin per tube (exceptions may apply).
Please refer to respective datasheet for specific bin limit information.
2
These displays are ideal for most displays are ideal for portable applications. Pin for pin equiva-applications. The high
light lent displays are also available in ambient displays are ideal for a low current or high light high light ambients or
long string ambient design. The low current lengths. For additional information see the Low Current Seven Segment
Displays, or High Light Ambient Seven Segment Displays data sheets.

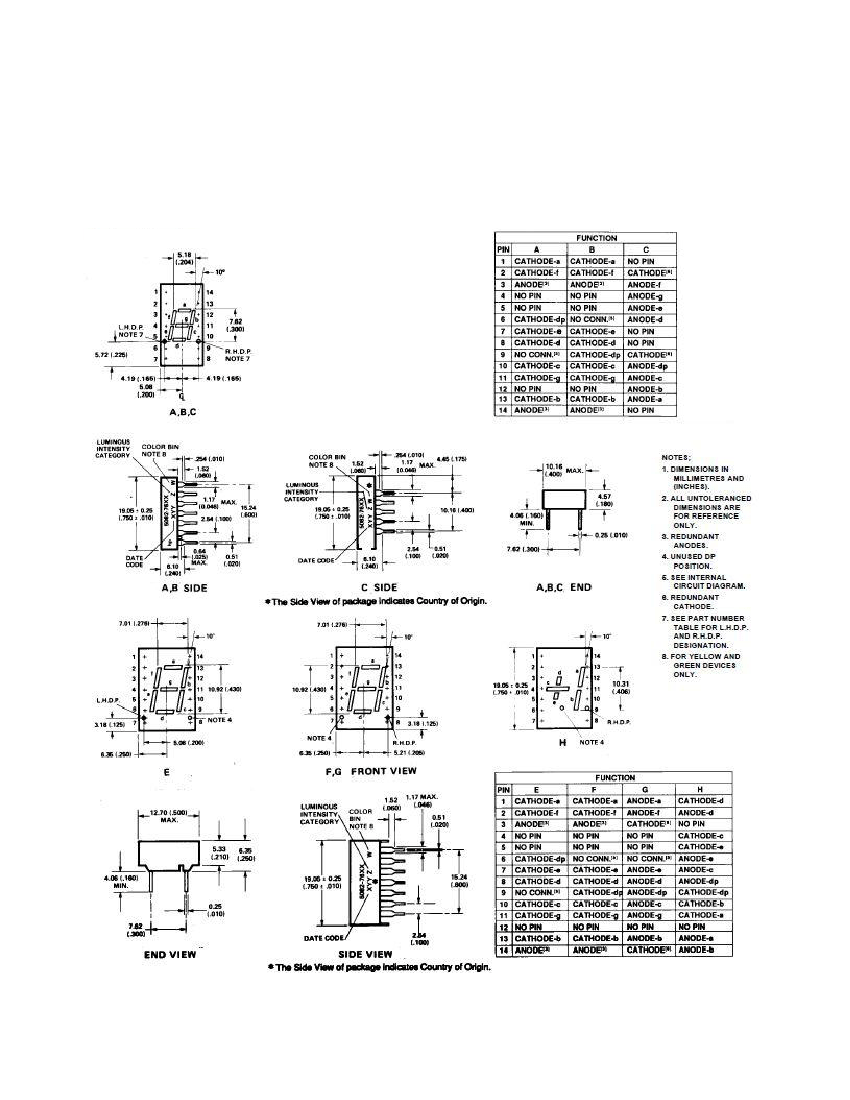

Package Dimensions
3

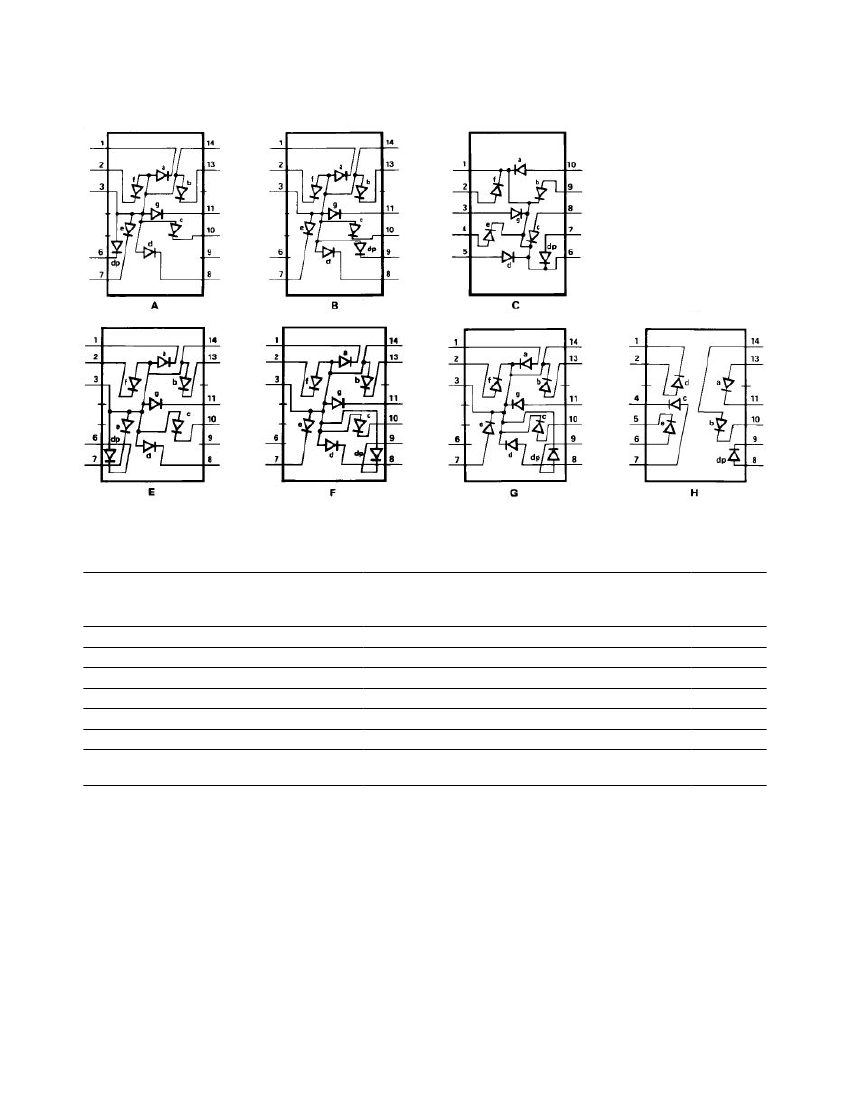

Internal Circuit Diagram
Absolute Maximum Ratings
HER
5082-7610/
7650 Series
105
90
[1]
30
[2]
Description
Average Power per Segment or DP
Peak Forward Current per Segment or DP
DC Forward Current per Segment or DP
Operating Temperature Range
Storage Temperature Range
Reverse Voltage* per Segment or DP
Wave Soldering Temperature for 3 sec
(1.59 mm [0.063 in.] below Body)
Yellow
5082-7620/
7660 Series
80
60
[3]
20[4]
-40 to +100
-55 to +100°C
3.0 V
250
Green
HDSP-3600/
4600 Series
105
90
[5]
30
[6]
Units
mW
mA
mA
°C
°C
V
°C
* reverse voltage is for LED testing purposes and is not recommended to be used as an application condition.
Notes:
1. See Figure 1 to establish pulsed conditions.
2. Derate above 46°C at 0.54 mA/°C.
1. See Figure 6 to establish pulsed conditions.
2. Derate above 53°C at 0.45 mA/°C.
3. See Figure 7 to establish pulsed conditions.
4. Derate above 81°C at 0.52 mA/°C.
5. See Figure 8 to establish pulsed conditions.
6. Derate above 39°C at 0.37 mA/°C.
4
Electrical/Optical Characteristics at T
A
= 25 °C
High Efficiency Red
Device Series
5082-761x
5082-765x
Parameter
Luminous Intensity/Segment
[1,2,5]
(Digit Average)
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3]
Symbol
I
V
V
F
λ
PEAK
λ
d
V
R
ΔV
F
/°C
Rθ
J-PIN
Min.
340
340
Typ.
800
1115
2.1
635
626
Max.
Units
μcd
μcd
Test Conditions
I
F
= 5 mA
I
F
= 5 mA
I
F
= 20 mA
2.5
V
nm
nm
V
mV/°C
°C/W
All
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of V
F
/
Segment or DP
Thermal Resistance LED Junction-to-Pin
3.0
30
-2
280
I
R
= 100
μA
Yellow
Device Series
5082-762x
5082-766x
Parameter
Luminous Intensity/Segment
[1,2]
(Digit Average)
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3,6]
Symbol
I
V
V
F
λ
PEAK
λ
d
V
R
ΔV
F
/°C
Rθ
J-PIN
Min.
205
290
Typ.
620
835
2.2
583
Max.
Units
μcd
μcd
Test Conditions
I
F
= 5 mA
I
F
= 5 mA
I
F
= 20 mA
2.5
592.5
V
nm
nm
V
mV/°C
°C/W/Seg
581.5
3.0
586
40
-2
280
All
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of V
F
/
Segment or DP
Thermal Resistance LED Junction-to-Pin
I
R
= 100
μA
High Performance Green
Device Series
HDSP-360x
HDSP-460x
Parameter
Luminous Intensity/Segment
[1,2]
(Digit Average)
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3,6]
Symbol
I
V
V
F
λ
PEAK
λ
d
V
R
ΔV
F
/°C
Rθ
J-PIN
Min.
860
1030
Typ.
2700
4000
2.1
566
571
Max.
Units
μcd
μcd
Test Conditions
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
2.5
577
V
nm
nm
V
mV/°C
°C/W/Seg
All
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of V
F
/
Segment or DP
Thermal Resistance LED Junction-to-Pin
3.0
50
-2
280
I
R
= 100
μA
Notes:
1. Device case temperature is 25 °C prior to the intensity measurement.
2. The digits are categorized for luminous intensity. The intensity category is designated by a letter on the side of the package.
3. The dominant wavelength,
λ
d
, is derived from the CIE chromaticity diagram and is that single wavelength which defines the color of the device.
4. Typical specification for reference only. Do not exceed absolute maximum ratings.
5. For low current operation, the HER HDSP-335X series displays are recommended. They are tested at 2 mA dc/segment and are pin for pin compatible
with the 5082-7650 series.
6. The Yellow (5082-7620/7660) and Green (HDSP-3600/4600) displays are categorized for dominant wavelength. The category is designated by a
number adjacent to the luminous intensity category letter.
