FEATURES AND SPECIFICATIONS

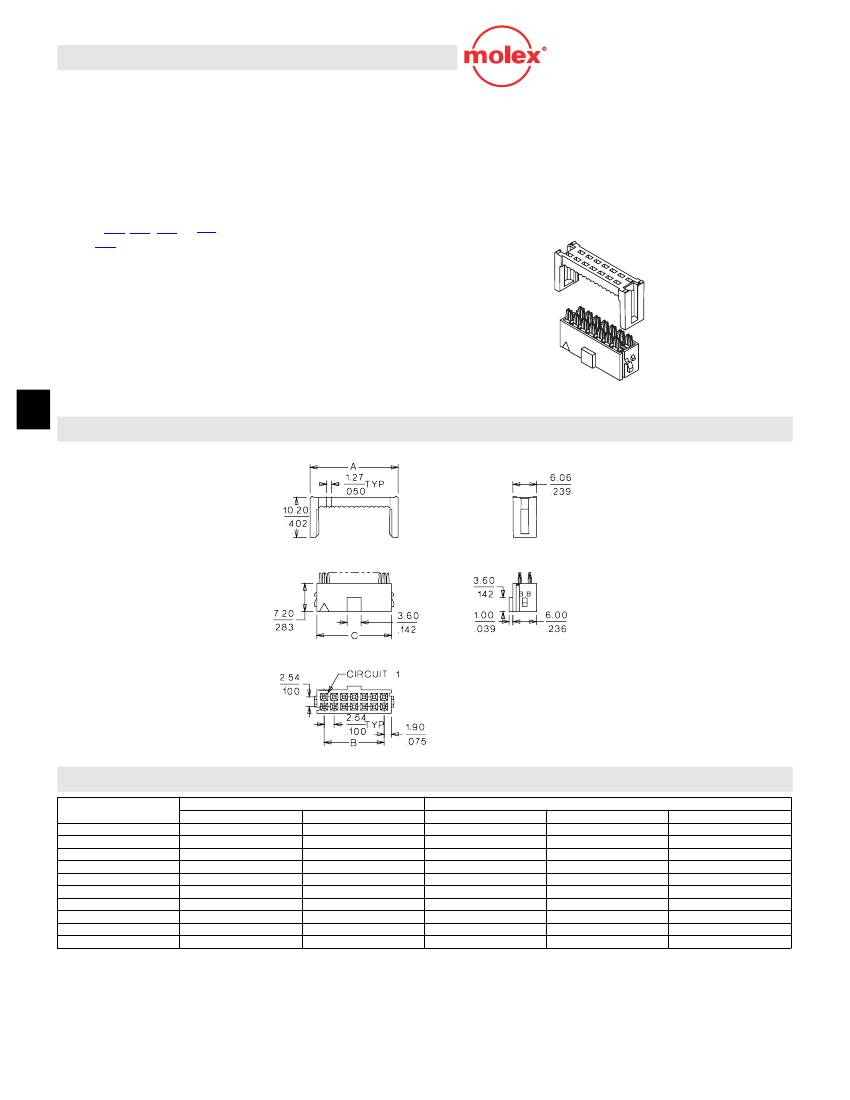

Features and Benefits
s
Sizes 10 to 60 circuits
s
For 1.27mm (.050") ribbon cable
s
Single polarization
Reference Information
Packaging: Tray
Tooling Information: See end of section
UL File No.: E29179
CSA File No.: LR19980
Mates With:
5330, 5332, 5340
and
5342
Use With:
5328
strain relief
Designed In: Millimeters
Electrical
Current: 1.0A
Contact Resistance: 20m
Ω
max.
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 1000 M
Ω
min.
Physical
Housing: Black glass-filled polyester, UL 94V-0
Contact: Phosphor Bronze Alloy
Plating: See Table
Operating Temperature: -40 to +105˚C
Cable Accommodation: 26 AWG stranded and 28 AWG
stranded and solid
Insulation Range: 1.14mm (.045") diameter max.
2.54mm (.100") Pitch
QF 50
™
Receptacle
5320-NA
Dual Row
Unloaded Upper Housing
H
Ribbon Cable Systems

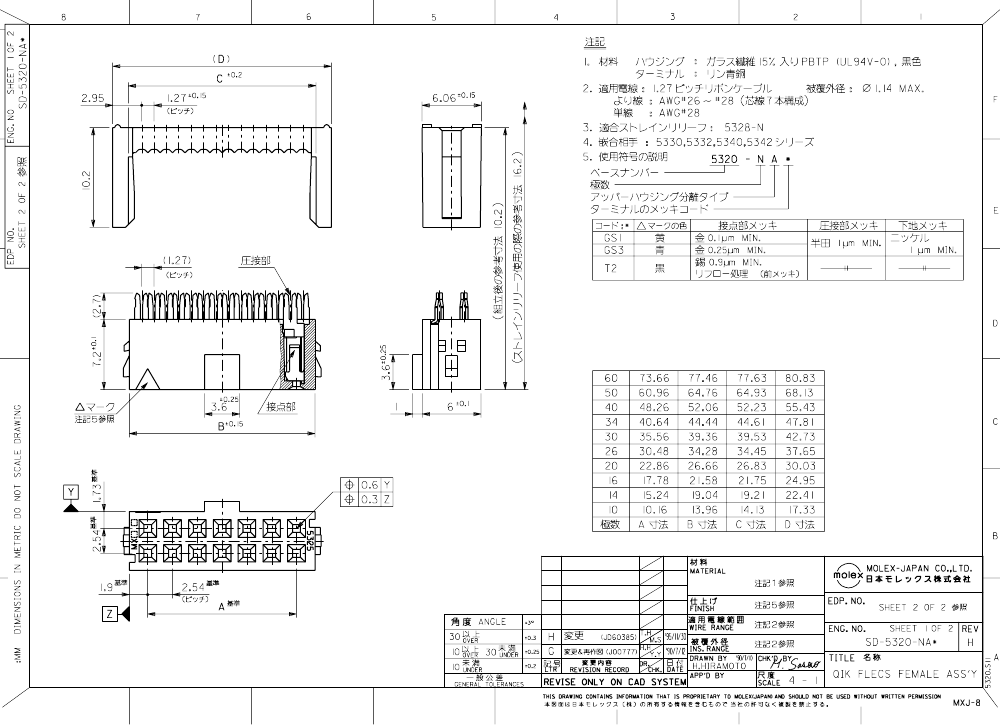

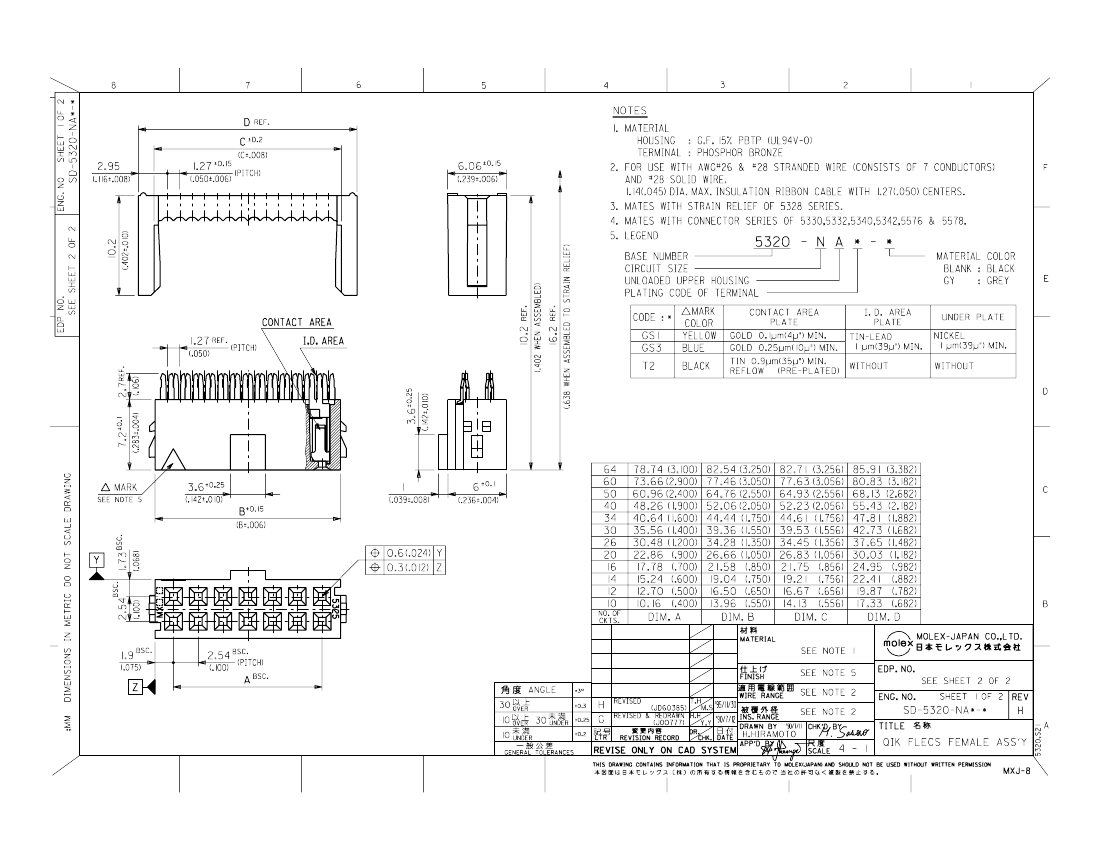

CATALOG DRAWING (FOR REFERENCE ONLY)

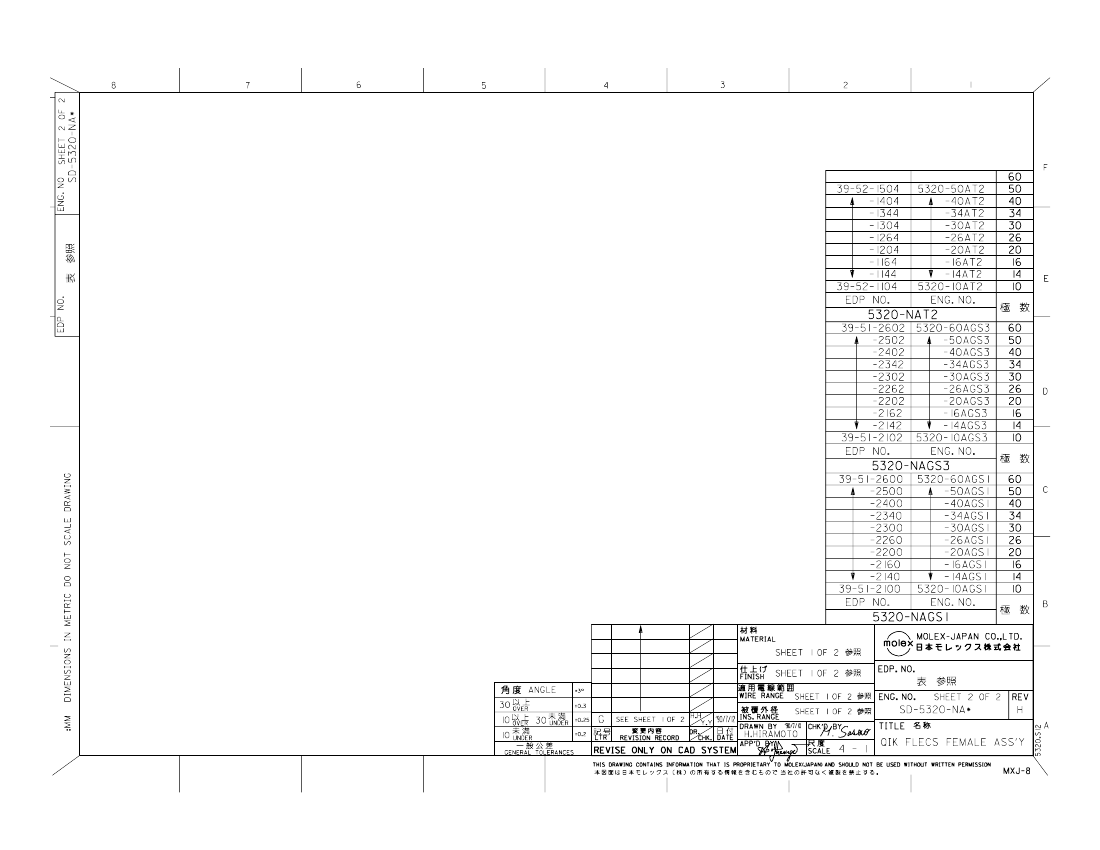

ORDERING INFORMATION AND DIMENSIONS
Circuits
10
14
16
20
26
30
34
40
50
60
Order No.
Plating NAGS1
39-51-2100
39-51-2140
39-51-2160
39-51-2200
39-51-2260
39-51-2300
39-51-2340
39-51-2400
39-51-2500
39-51-2600
Plating NAT2
39-52-1104
39-52-1144
39-52-1164
39-52-1204
39-52-1264
39-52-1304
39-52-1344
39-52-1404
39-52-1504
17.33
22.41
24.95
30.03
37.65
42.73
47.81
55.43
68.13
80.83
A
(.682)
(.882)
(.982)
(1.182)
(1.482)
(1.682)
(1.882)
(2.182)
(2.682)
(3.182)
Dimension
B
10.16 (.400)
15.24 (.600)
17.78 (.700)
22.86 (.900)
30.48 (1.200)
38.10 (1.500)
40.64 (1.600)
48.26 (1.900)
60.96 (2.400)
73.66 (2.900)
C
(.550)
(.750)
(.850)
(1.050)
(1.350)
(1.550)
(1.750)
(2.050)
(2.550)
(3.050)
13.96
19.04
21.58
26.66
34.28
39.36
44.44
52.06
64.76
77.46
Plating NAGS1: 39
µ
" (1
µ
m) min. Tin/Lead. Nickel underplate. Contact area: 4
µ
" (0.1
µ
m) min. Gold. ID area: 39
µ
"
(1
µ
m) min. Tin/Lead.
Plating NAT2: 35
µ
" (0.9
µ
m) min. Tin overall
H-14
MX01
