SKT1000/16E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> SKT1000/16E

SKT1000/16E: DescriptionLine Thyristor; CategoryAnalog mixed-signal IC Trigger device; File Size835KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKT1000/16E Overview

Line Thyristor

SKT1000/16E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	BUTTON
package instruction	DISK BUTTON, O-MXDB-X4
Contacts	2
Manufacturer packaging code	CASE B 14
Reach Compliance Code	compli
Shell connection	ISOLATED
Nominal circuit commutation break time	250 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	250 mA
Maximum DC gate trigger voltage	5 V
Maximum holding current	500 mA
JEDEC-95 code	TO-200AD
JESD-30 code	O-MXDB-X4
JESD-609 code	e2
Maximum leakage current	100 mA
On-state non-repetitive peak current	19000 A
Number of components	1
Number of terminals	4
Maximum on-state current	1000000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	DISK BUTTON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	2300 A
Maximum repetitive peak off-state leakage current	100000 µA
Off-state repetitive peak voltage	1600 V
Repeated peak reverse voltage	1600 V
surface mount	YES
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

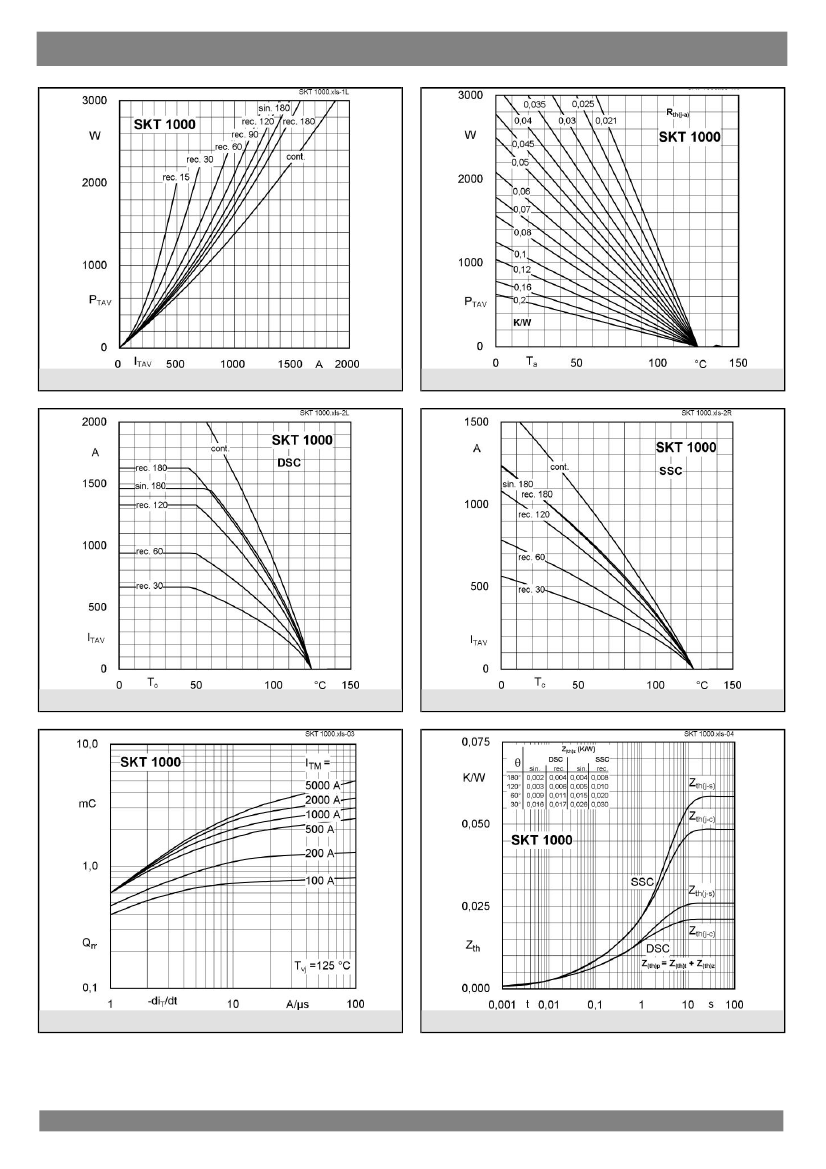

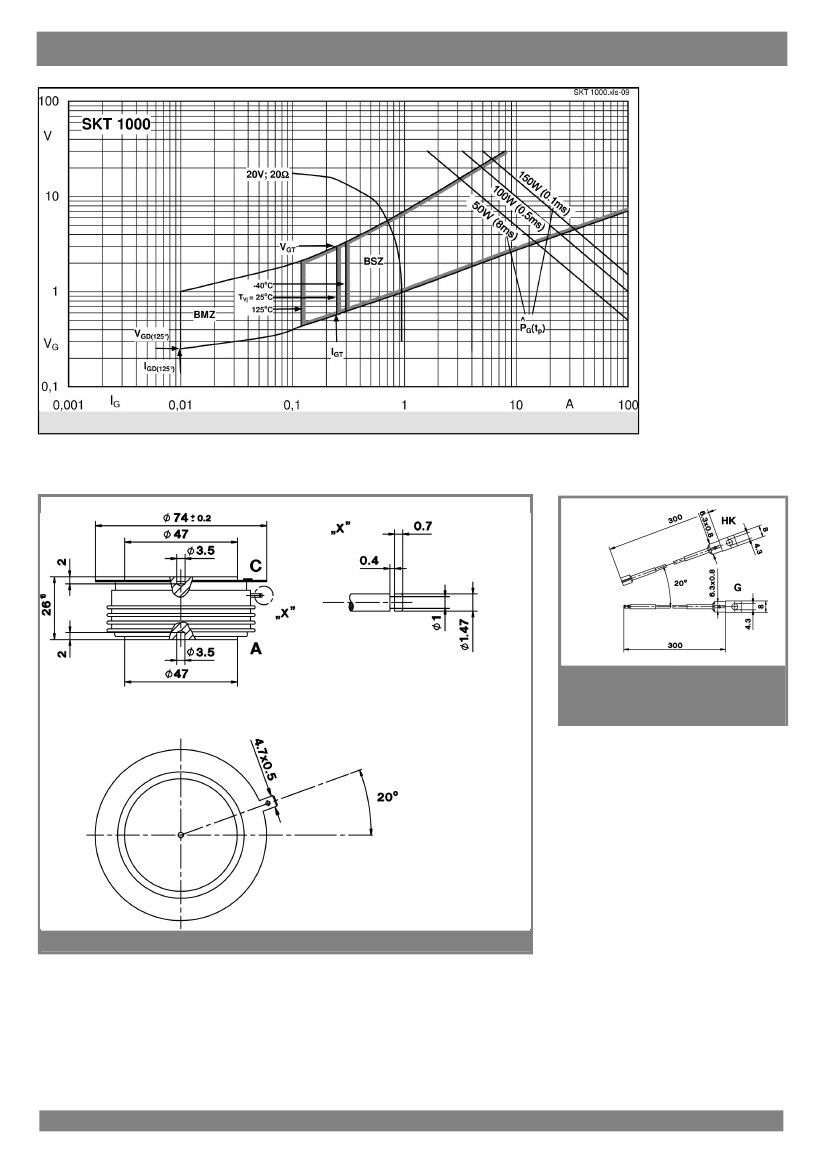

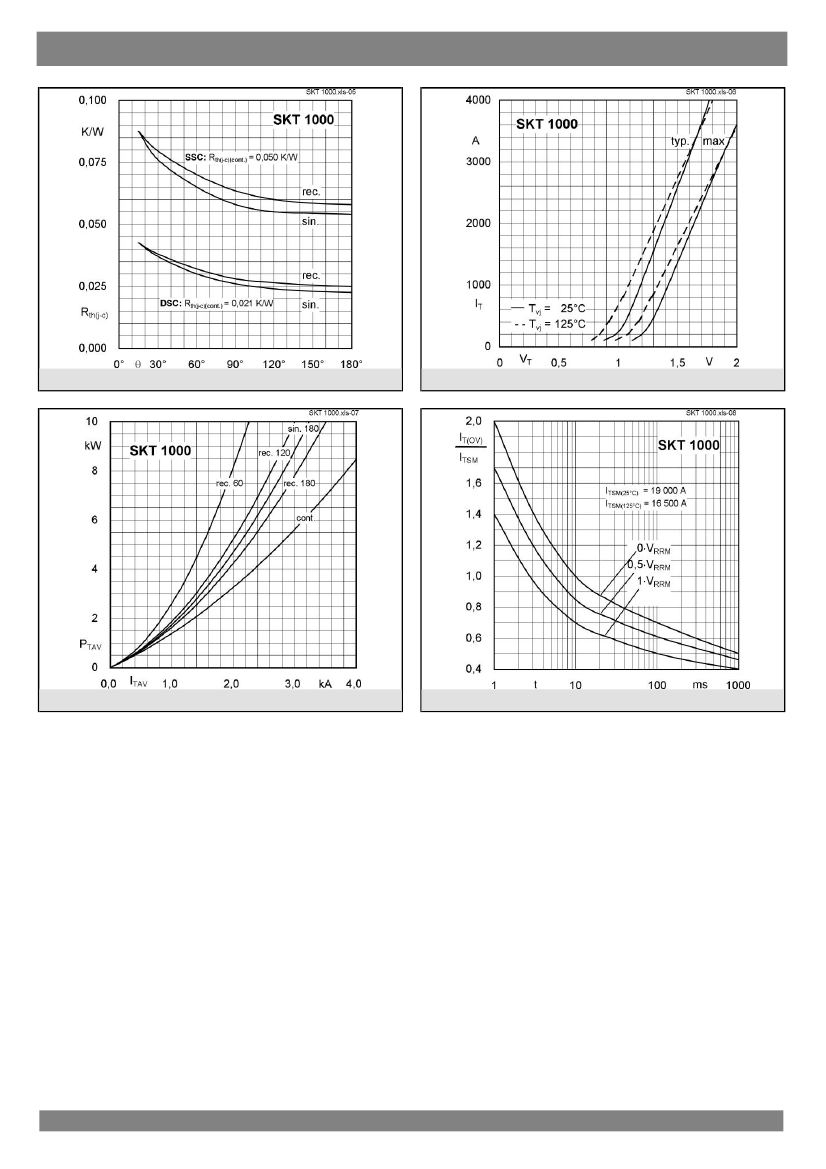

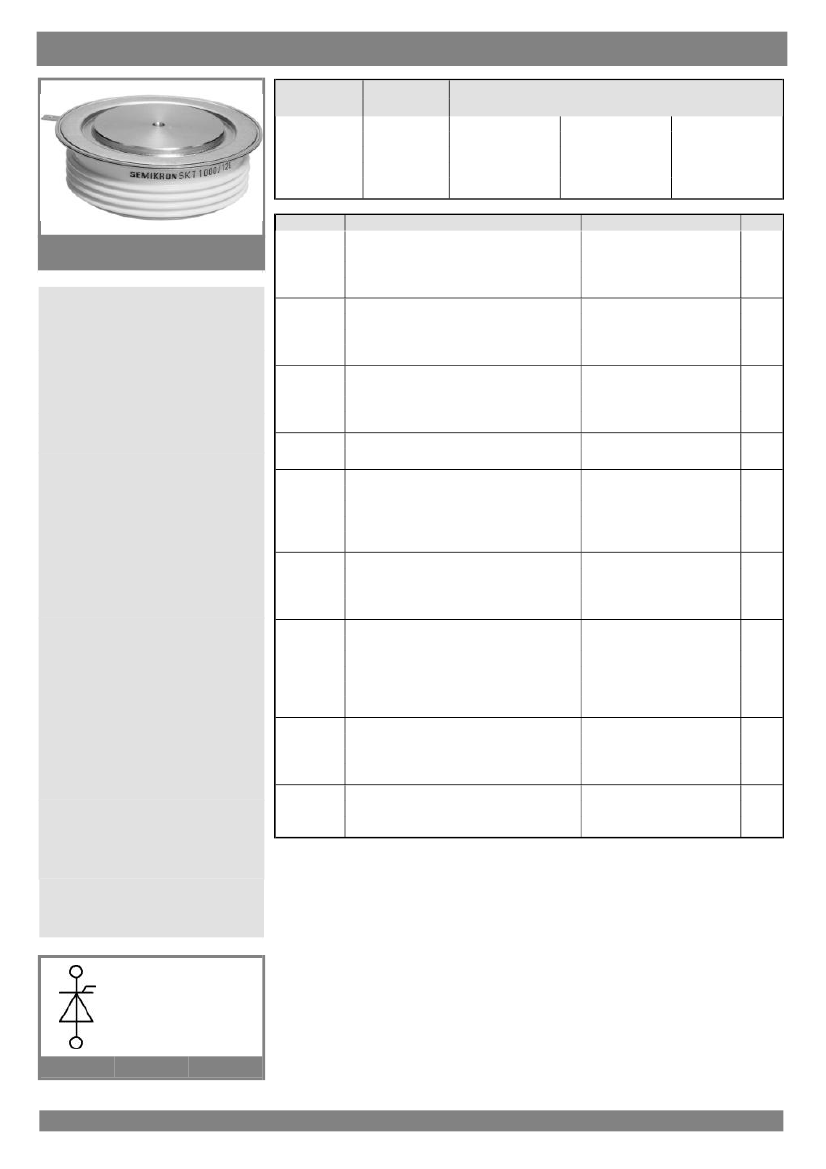

SKT 1000

THYRISTOR BRIDGE,SCR,BRIDGE

Symbol

Conditions

Values

Units

Capsule Thyristor

Line Thyristor

SKT 1000

Features

Typical Applications

SKT

06-08-2007 MAJ

SKT1000/16E Related Products

	SKT1000/16E	SKT1000/12E	SKT1000/22EL2	SKT1000/28EL2	SKT1000/26EL2
Description	Line Thyristor	Line Thyristor	Line Thyristor	Line Thyristor	Line Thyristor
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Parts packaging code	BUTTON	BUTTON	BUTTON	BUTTON	BUTTON
package instruction	DISK BUTTON, O-MXDB-X4	DISK BUTTON, O-MXDB-X4	DISK BUTTON, O-MXDB-X4	DISK BUTTON, O-MXDB-X4	DISK BUTTON, O-MXDB-X4
Contacts	2	2	2	2	2
Manufacturer packaging code	CASE B 14	CASE B 14	CASE B 14	CASE B 14	CASE B 14
Reach Compliance Code	compli	compli	compli	compli	compli
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Nominal circuit commutation break time	250 µs	250 µs	250 µs	250 µs	250 µs
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us
Maximum DC gate trigger current	250 mA	250 mA	250 mA	250 mA	250 mA
Maximum DC gate trigger voltage	5 V	5 V	5 V	5 V	5 V
Maximum holding current	500 mA	500 mA	500 mA	500 mA	500 mA
JEDEC-95 code	TO-200AD	TO-200AD	TO-200AD	TO-200AD	TO-200AD
JESD-30 code	O-MXDB-X4	O-MXDB-X4	O-MXDB-X4	O-MXDB-X4	O-MXDB-X4
JESD-609 code	e2	e2	e2	e2	e2
Maximum leakage current	100 mA	100 mA	100 mA	100 mA	100 mA
On-state non-repetitive peak current	19000 A	19000 A	19000 A	19000 A	19000 A
Number of components	1	1	1	1	1
Number of terminals	4	4	4	4	4
Maximum on-state current	1000000 A	1000000 A	1000000 A	1000000 A	1000000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	2300 A	2300 A	2300 A	2300 A	2300 A
Maximum repetitive peak off-state leakage current	100000 µA	100000 µA	100000 µA	100000 µA	100000 µA
Off-state repetitive peak voltage	1600 V	1200 V	2200 V	2800 V	2600 V
Repeated peak reverse voltage	1600 V	1200 V	2200 V	2800 V	2600 V
surface mount	YES	YES	YES	YES	YES
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1
