Datasheet> All Categories > Analog mixed-signal IC> Trigger device> SKT24/04D

Preview

SKT24/04D: DescriptionSilicon Controlled Rectifier, 50A I(T)RMS, 24000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-208AA, HERMETIC SEALED, METAL, CASE B 2, TO-48, 2 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size541KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKT24/04D Overview

Silicon Controlled Rectifier, 50A I(T)RMS, 24000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-208AA, HERMETIC SEALED, METAL, CASE B 2, TO-48, 2 PIN

SKT24/04D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1490617341
Parts packaging code	TO-48
package instruction	POST/STUD MOUNT, O-MUPM-D2
Contacts	2
Manufacturer packaging code	CASE B 2
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	5.95
Shell connection	ANODE
Nominal circuit commutation break time	80 µs
Configuration	SINGLE
Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	150 mA
JEDEC-95 code	TO-208AA
JESD-30 code	O-MUPM-D2
JESD-609 code	e2
Maximum leakage current	8 mA
On-state non-repetitive peak current	450 A
Number of components	1
Number of terminals	2
Maximum on-state current	24000 A
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	50 A
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal surface	TIN SILVER
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR

Preview

Download Datasheet

View All

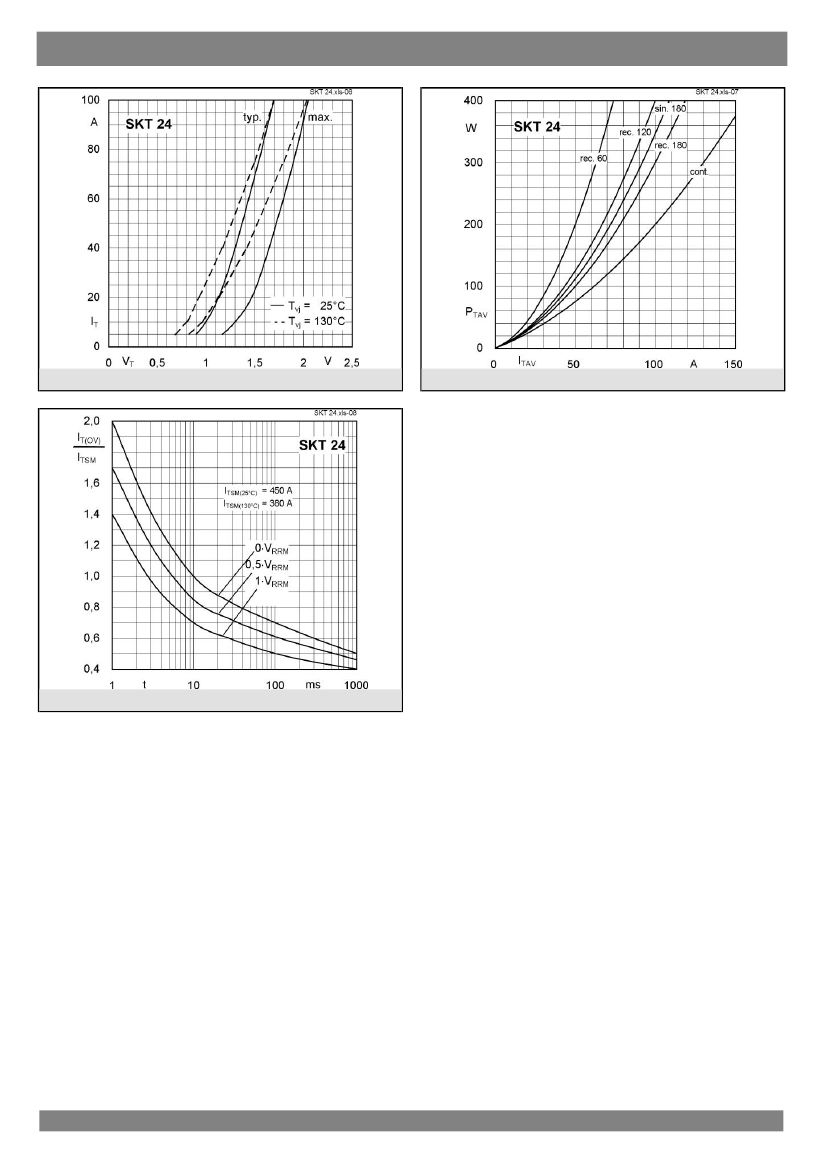

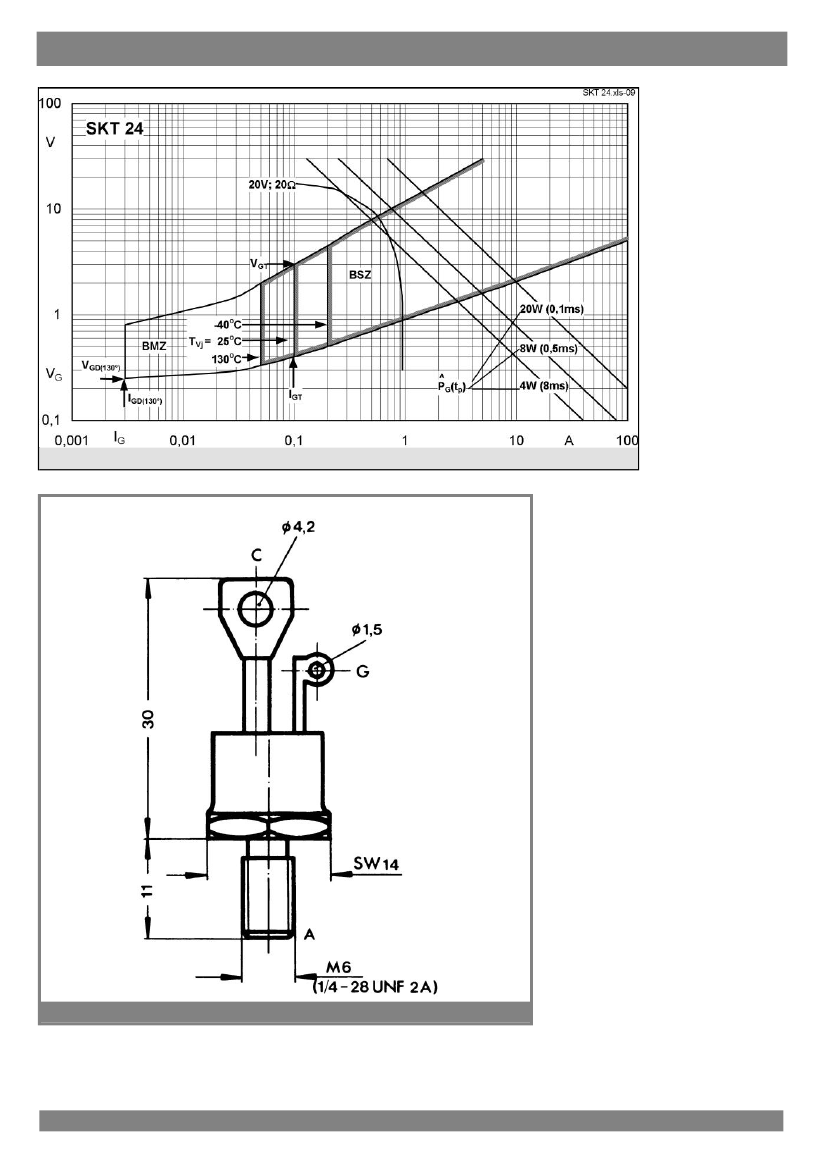

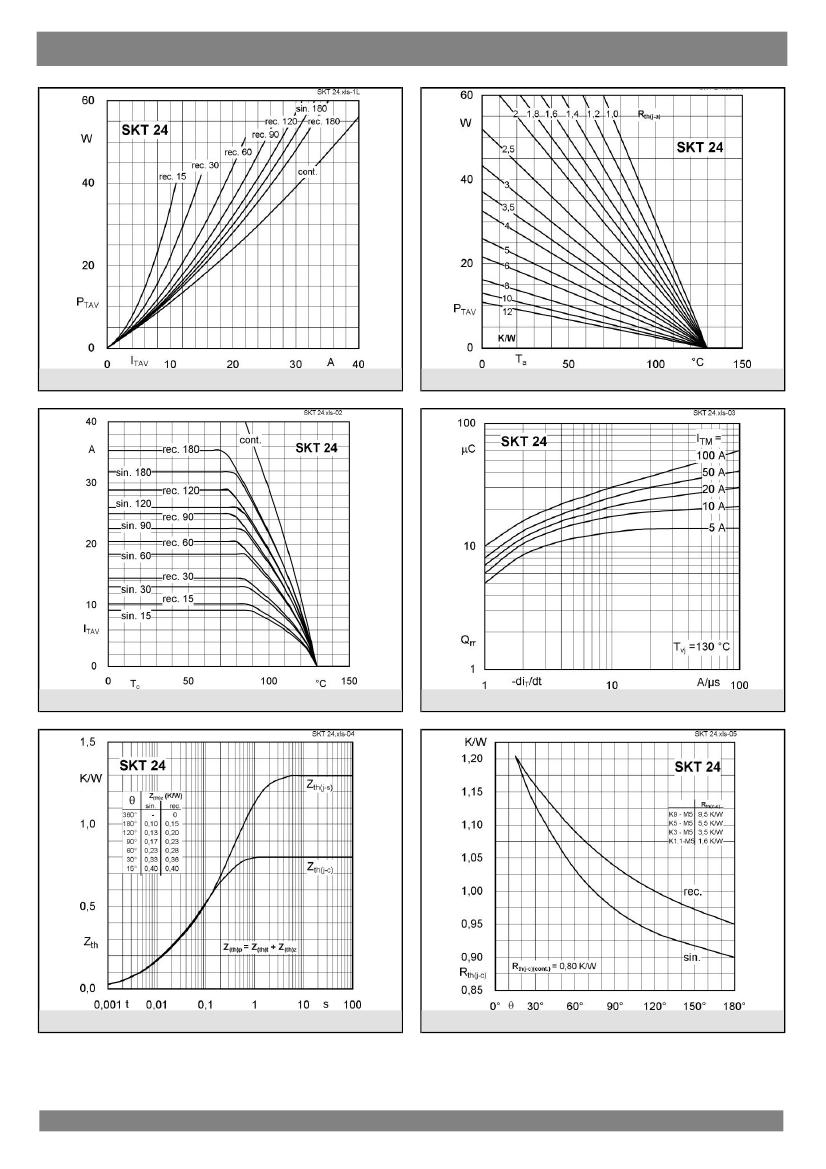

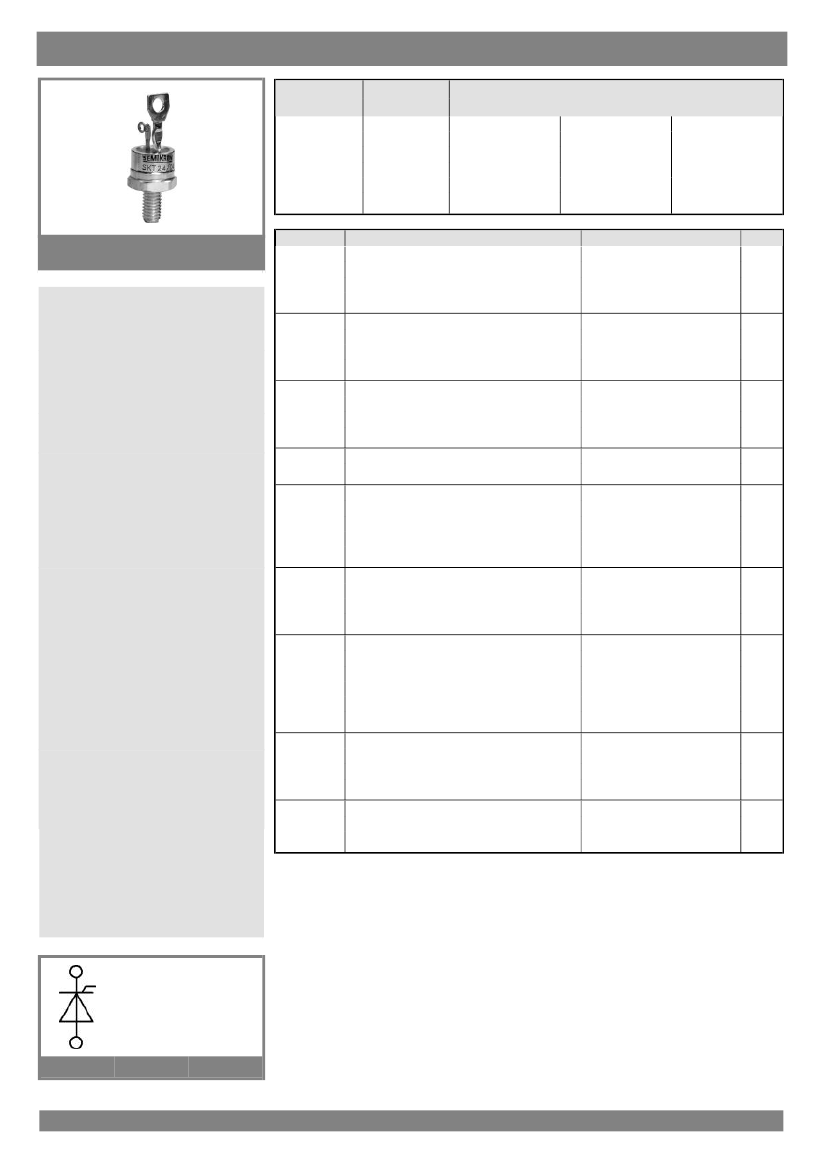

SKT 24

THYRISTOR BRIDGE,SCR,BRIDGE

Symbol

Conditions

Values

Units

Stud Thyristor

Line Thyristor

SKT 24

Features

Typical Applications

1)

SKT

1

27-08-2003 IMP

SKT24/04D Related Products

	SKT24/04D	SKT24	SKT24/08D	SKT24/12E	SKT24/18E	SKT24/14E	SKT24/16E
Description	Silicon Controlled Rectifier, 50A I(T)RMS, 24000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-208AA, HERMETIC SEALED, METAL, CASE B 2, TO-48, 2 PIN	50A, 1600V, SCR, TO-208AA	50A, 1600V, SCR, TO-208AA	50A, 1600V, SCR, TO-208AA	50A, 1600V, SCR, TO-208AA	Silicon Controlled Rectifier, 50A I(T)RMS, 24000mA I(T), 1400V V(DRM), 1400V V(RRM), 1 Element, TO-208AA, HERMETIC SEALED, METAL, CASE B 2, TO-48, 2 PIN	Silicon Controlled Rectifier, 50A I(T)RMS, 24000mA I(T), 1600V V(DRM), 1600V V(RRM), 1 Element, TO-208AA, HERMETIC SEALED, METAL, CASE B 2, TO-48, 2 PIN
Shell connection	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE	ANODE
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Off-state repetitive peak voltage	400 V	1600 V	1600 V	1200 V	1600 V	1400 V	1600 V
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Is it lead-free?	Lead free	-	-	Lead free	-	Lead free	Lead free
Is it Rohs certified?	conform to	-	-	conform to	-	conform to	conform to
Parts packaging code	TO-48	-	-	TO-48	-	TO-48	TO-48
package instruction	POST/STUD MOUNT, O-MUPM-D2	-	-	POST/STUD MOUNT, O-MUPM-D2	-	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2
Contacts	2	-	-	2	-	2	2
Manufacturer packaging code	CASE B 2	-	-	CASE B 2	-	CASE B 2	CASE B 2
Reach Compliance Code	compliant	-	-	compli	-	compliant	compliant
Nominal circuit commutation break time	80 µs	-	-	80 µs	-	80 µs	80 µs
Configuration	SINGLE	-	-	SINGLE	-	SINGLE	SINGLE
Maximum DC gate trigger current	100 mA	-	-	100 mA	-	100 mA	100 mA
Maximum DC gate trigger voltage	3 V	-	-	3 V	-	3 V	3 V
Maximum holding current	150 mA	-	-	150 mA	-	150 mA	150 mA
JEDEC-95 code	TO-208AA	-	-	TO-208AA	-	TO-208AA	TO-208AA
JESD-30 code	O-MUPM-D2	-	-	O-MUPM-D2	-	O-MUPM-D2	O-MUPM-D2
JESD-609 code	e2	-	-	e2	-	e2	e3/e4
Maximum leakage current	8 mA	-	-	8 mA	-	8 mA	8 mA
On-state non-repetitive peak current	450 A	-	-	450 A	-	450 A	450 A
Maximum on-state current	24000 A	-	-	24000 A	-	24000 A	24000 A
Maximum operating temperature	130 °C	-	-	130 °C	-	130 °C	130 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-	-40 °C	-40 °C
Package body material	METAL	-	-	METAL	-	METAL	METAL
Package shape	ROUND	-	-	ROUND	-	ROUND	ROUND
Package form	POST/STUD MOUNT	-	-	POST/STUD MOUNT	-	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	-	-	Not Qualified	-	Not Qualified	Not Qualified
Maximum rms on-state current	50 A	-	-	50 A	-	50 A	50 A
Repeated peak reverse voltage	400 V	-	-	1200 V	-	1400 V	1600 V
surface mount	NO	-	-	NO	-	NO	NO
Terminal surface	TIN SILVER	-	-	Tin/Silver (Sn/Ag)	-	TIN SILVER	TIN/SILVER
Trigger device type	SCR	-	-	SCR	-	SCR	SCR
