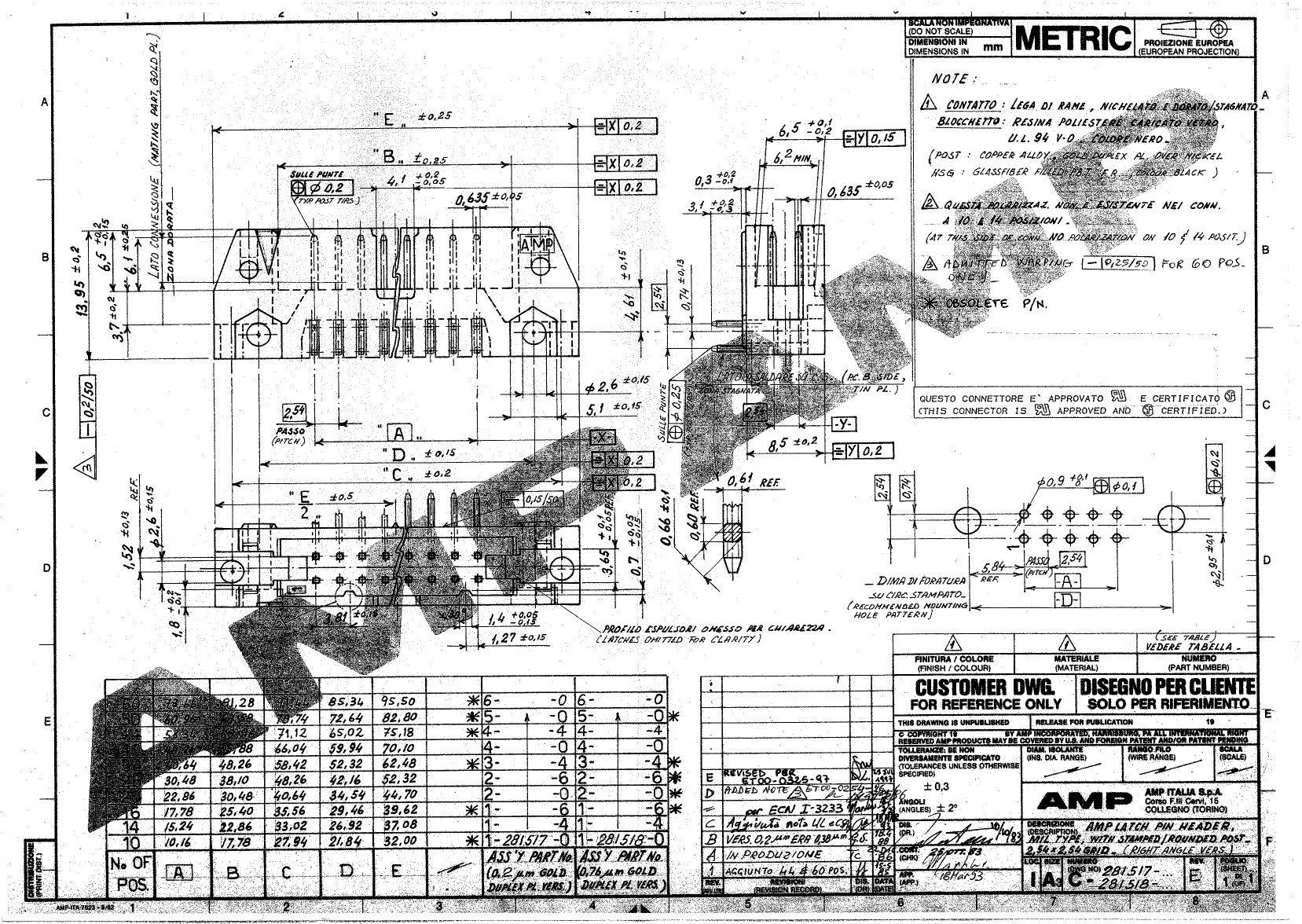

CONNECTOR, 60 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | AMP-LATCH, POLARIZED |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| MIL compliance | YES |
| Manufacturer's serial number | 281517 |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 60 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 6-281517-0 | 2-281517-6 | 4-281517-0 | M80-4T10605F2-01-301-05-301 | |
|---|---|---|---|---|
| Description | CONNECTOR, 60 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER | HEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK | HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK | Board Connector, 12 Contact(s), Female, Straight, Solder Terminal, Locking, Black Insulator, Plug |
| Is it Rohs certified? | conform to | conform to | conform to | conform to |
| Reach Compliance Code | unknown | compli | compliant | compliant |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | AU ON NI | AU ON NI | AU |
| Contact point gender | MALE | MALE | MALE | FEMALE |
| Contact material | NOT SPECIFIED | COPPER ALLOY | COPPER ALLOY | BERYLLIUM COPPER |
| Manufacturer's serial number | 281517 | 281517 | 281517 | M80 |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 60 | 26 | 40 | 12 |
| Other features | AMP-LATCH, POLARIZED | WITHOUT EJECTION LATCHES | WITHOUT EJECTION LATCHES | - |
| Number of rows loaded | 2 | 2 | 2 | - |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | - |
| Base Number Matches | 1 | 1 | 1 | - |
| body width | - | 0.346 inch | 0.346 inch | 0.219 inch |
| subject depth | - | 0.549 inch | 0.549 inch | 0.205 inch |
| body length | - | 2.06 inch | 2.76 inch | 1.575 inch |
| Body/casing type | - | RECEPTACLE | RECEPTACLE | PLUG |
| Contact style | - | SQ PIN-SKT | SQ PIN-SKT | RND PIN-SKT |
| Insulation resistance | - | 1000000000 Ω | 1000000000 Ω | 100000000 Ω |
| Insulator color | - | BLACK | BLACK | BLACK |
| insulator material | - | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYPHENYLENE SULPHIDE |
| Number of connectors | - | ONE | ONE | ONE |
| Maximum operating temperature | - | 105 °C | 105 °C | 125 °C |
| Minimum operating temperature | - | -65 °C | -65 °C | -55 °C |
| Plating thickness | - | 8u inch | 8u inch | 12u inch |
| Rated current (signal) | - | 1 A | 1 A | 3 A |
| Guideline | - | UL, CSA | UL, CSA | UL |
| reliability | - | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | - | 0.122 inch | 0.122 inch | 0.118 inch |
