50-84-2121

Description
Rectangular Power Connector, 12 Contact(s), Male and Female, Crimp Terminal, Receptacle,
CategoryThe connector    The power connector
File Size201KB，2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

50-84-2121 Overview

Rectangular Power Connector, 12 Contact(s), Male and Female, Crimp Terminal, Receptacle,

50-84-2121 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresCOMPATIBLE CONTACTS: 02-08-2003; 02-08-2007; 02-08-2004; 02-08-1001; 02-08-1002
body width1.05 inch
subject depth1.08 inch
Body/casing typeRECEPTACLE
Connector typeRECTANGULAR POWER CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE AND FEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance3.5 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Dielectric withstand voltage5000VAC V
Durability50 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force6.672 N
Minimum insulation diameter0.06 inch
Insulation resistance1000000000 Ω
Insulator colorRED
insulator materialNYLON
MIL complianceNO
Plug contact pitch0.25 inch
Match contact row spacing0.25 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1POLARIZED LCK
Installation option 2LOCKING
Installation typePANEL
Number of rows loaded3
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
polarization keyHOUSING SIDE
Rated current (signal)11 A
GuidelineCSA, UL
reliabilityCOMMERCIAL
Shell materialNYLON
Termination typeCRIMP
Total number of contacts12
UL Flammability Code94V-0
Maximum wire diameter14 AWG
Minimum wire diameter20 AWG
Evacuation force-minimum value2.1962 N
Base Number Matches1

Preview

Download Datasheet
FEATURES AND SPECIFICATIONS
Features and Benefits
s
Intermateable, intermountable and interchangeable with
industry-standard versions
s
Cross tested to assure industry compatibility
s
Positive locks
s
Fully isolated contacts
s
Circuit ID grooves to reduce assembly errors
s
Anti-stress positioning tabs to reduce breakage
Reference Information
Product Specification: PS-42022-0001
Packaging: Bag
UL File No.: E29179
CSA File No.: LR19980
Designed In: Inches
Electrical
Voltage: 600V
Current:
1
Circuit
Amperes
13.5
2
13.5
3
13.5
4
13.5
6
11.0
9
11.0
12
11.0
15
11.0
2.13mm (.084") Diameter
MLX
Pin and Socket
Receptacle
42022
Power Connectors
Dielectric Withstanding Voltage: 2900V (Header),
5000V (Wire-To-Wire)
Insulation Resistance: 1000 M
Ω
min.
Mechanical
Contact Retention to Housing: 66.88N (15 lb)
Physical
Cap Housing: Nylon, 94V-2 or 94V-0
Operating Temperature: -55 to +105˚C
F

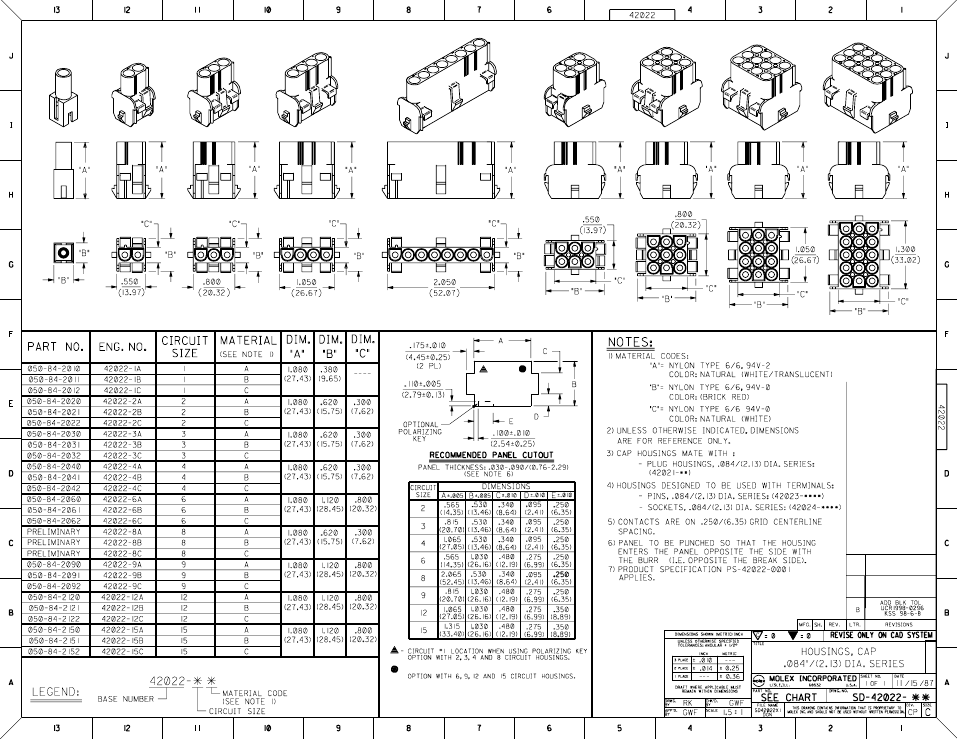

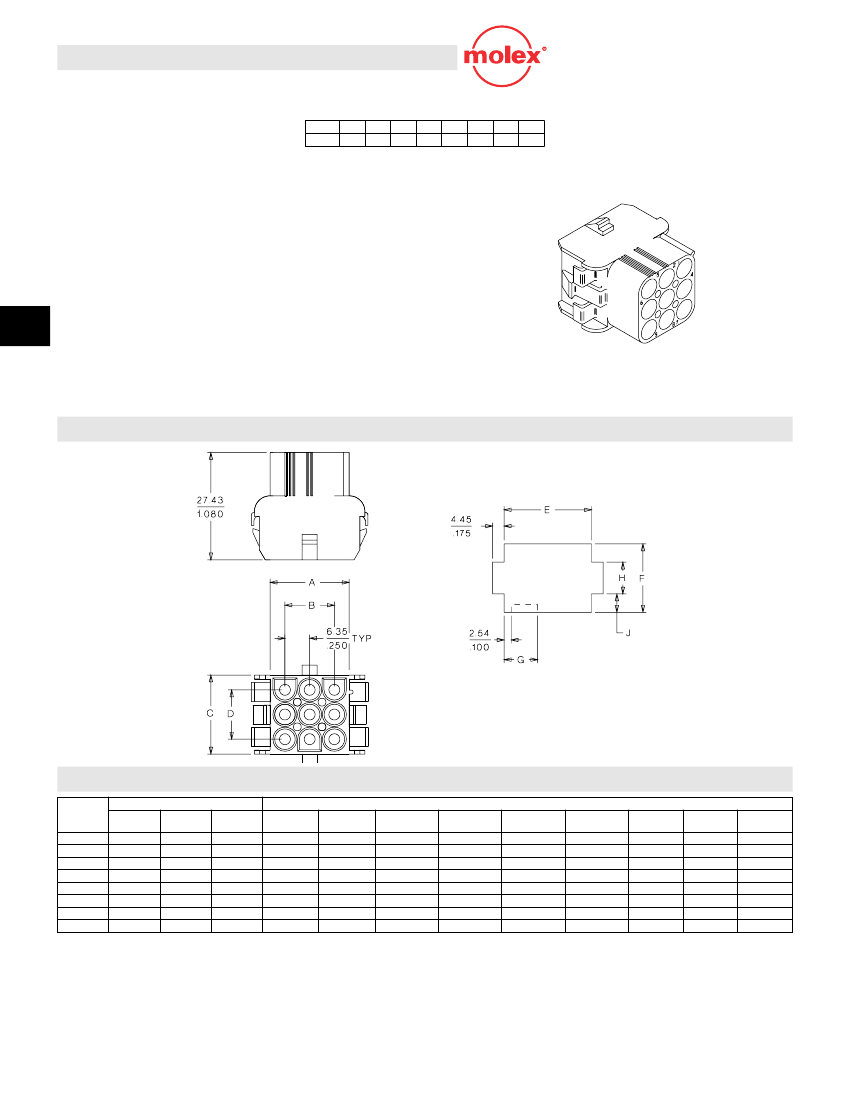

CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
Circuits
1
2
3
4
6
9
12
15
94V-2
(White)
50-84-2010
• 50-84-2020
• 50-84-2030
• 50-84-2040
• 50-84-2060
• 50-84-2090
50-84-2120
50-84-2150
Order No.
94V-0
(Brick Red)
50-84-2011
• 50-84-2021
• 50-84-2031
• 50-84-2041
• 50-84-2061
• 50-84-2091
50-84-2121
50-84-2151
Dimension
94V-0
(White)
50-84-2012
50-84-2022
50-84-2032
50-84-2042
50-84-2062
50-84-2092
50-84-2122
50-84-2152
A
9.65
7.62
7.62
7.62
20.32
20.32
20.32
20.32
(.380)
(.300)
(.300)
(.300)
(.800)
(.800)
(.800)
(.800)
B
9.65
13.97
20.32
26.67
13.97
20.32
26.67
33.02
C
(.380)
(.550)
(.800)
(1.050)
(.550)
(.800)
(1.050)
(1.300)
6.35
12.70
19.05
6.35
12.70
19.05
25.40
D
(.250)
(.500)
(.750)
(.250)
(.500)
(.750)
(1.000)
14.35
20.70
27.05
14.35
20.70
27.05
33.40
E
(.565)
(.815)
(1.065)
(.565)
(.815)
(1.065)
(1.315)
13.46
13.46
13.46
26.16
26.16
26.16
26.16
F
(.530)
(.530)
(.530)
(1.030)
(1.030)
(1.030)
(1.030)
G
6.35
6.35
6.35
6.35
6.35
8.89
8.89
(.250)
(.250)
(.250)
(.250)
(.250)
(.350)
(.350)
H
8.64
8.64
8.64
12.19
12.19
12.19
12.19
(.340)
(.340)
(.340)
(.480)
(.480)
(.480)
(.480)
2.41
2.41
2.41
6.99
6.99
6.99
6.99
J
(.095)
(.095)
(.095)
(.275)
(.275)
(.275)
(.275)
12.70
12.70
12.70
12.70
(.500)
(.500)
(.500)
(.500)
