672525021303489 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 672525021303489

Preview

672525021303489: DescriptionInterconnection Device; CategoryThe connector; File Size69KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

672525021303489 Overview

Interconnection Device

672525021303489 Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
Other features	VARIPIN, BOARD, PRESS FIT
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

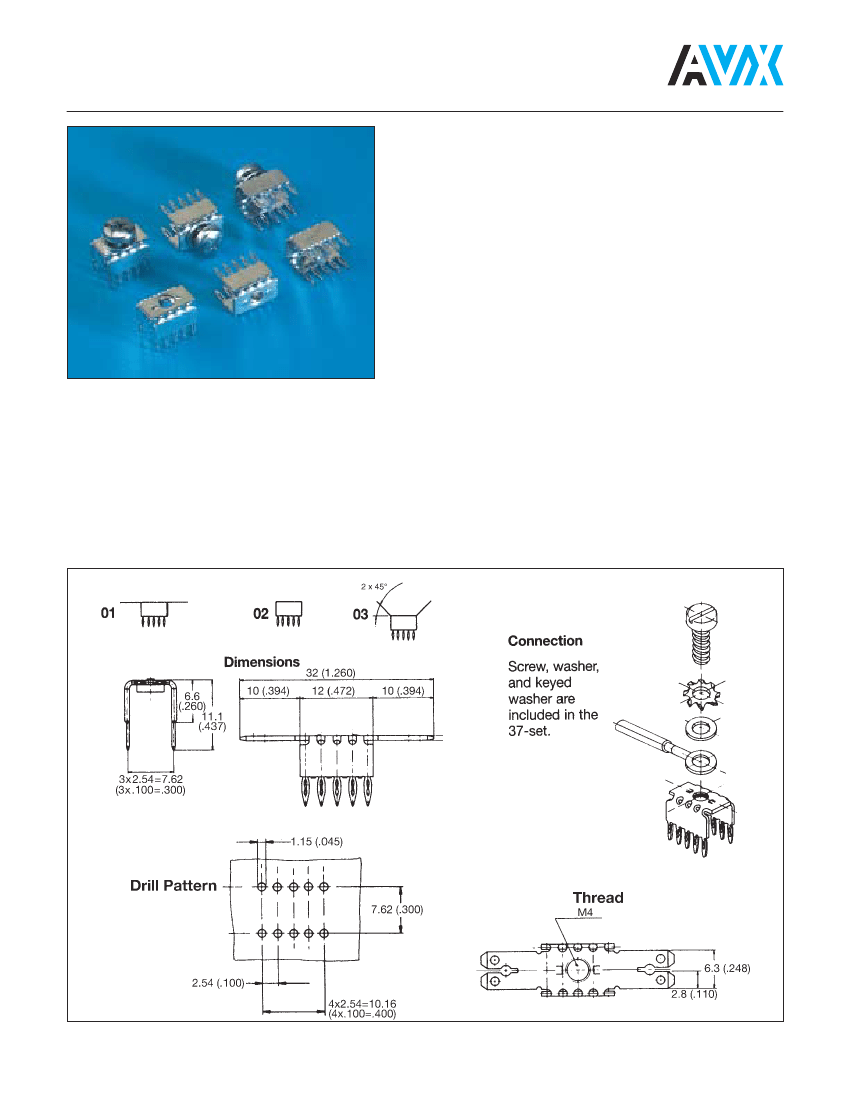

Power Pack Connectors

Series 2525

• Efficient system for high current distribution in backplane

applications

• Press-in element for power connection for P.C. boards

• VARIPIN™ press-fit design

• 30A current rating

• Several different connection versions available

• Suitable for circuit boards with .063 (1.6mm) minimum thickness

• Plating SnPb over Ni

37

67

2525

0213

01

02

03

01

02

03

001

= M 4 thread, with flat tabs, with hardware

001

= M 4 thread, without tabs, with hardware

001

= M 4 thread, with 45 degree tabs

489

= M 4 thread, with flat tabs, without hardware

489

= M 4 thread, without tabs, without hardware

489

= M 4 thread, with 45 degree tabs

ELCO

55

672525021303489 Related Products

	672525021303489	672525021301489	672525021302489
Description	Interconnection Device	Interconnection Device	Interconnection Device
Maker	AVX	AVX	AVX
Reach Compliance Code	compliant	compliant	compliant
Other features	VARIPIN, BOARD, PRESS FIT	VARIPIN, BOARD, PRESS FIT	VARIPIN, BOARD, PRESS FIT
Connector type	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE
Base Number Matches	1	1	-
