30KP30CA: DescriptionTrans Voltage Suppressor Diode, 30000W, 30V V(RWM), Bidirectional, 1 Element, Silicon, ROHS COMPLIANT, PLASTIC, D6, 2 PIN; Categorydiode; File Size91KB，3 Pages; ManufacturerEIC [EIC discrete Semiconductors]; Environmental Compliance

Download Datasheet Parametric View All

30KP30CA Overview

Trans Voltage Suppressor Diode, 30000W, 30V V(RWM), Bidirectional, 1 Element, Silicon, ROHS COMPLIANT, PLASTIC, D6, 2 PIN

30KP30CA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EIC [EIC discrete Semiconductors]
package instruction	O-PALF-W2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	EXCELLENT CLAMPING CAPABILITY
Maximum breakdown voltage	36.9 V
Minimum breakdown voltage	33.3 V
Breakdown voltage nominal value	35.1 V
Shell connection	ISOLATED
Maximum clamping voltage	50.7 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	30000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	BIDIRECTIONAL
Maximum power dissipation	7 W
Maximum repetitive peak reverse voltage	30 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

TH97/2478

TH09/2479

IATF 0113686

SGS TH07/1033

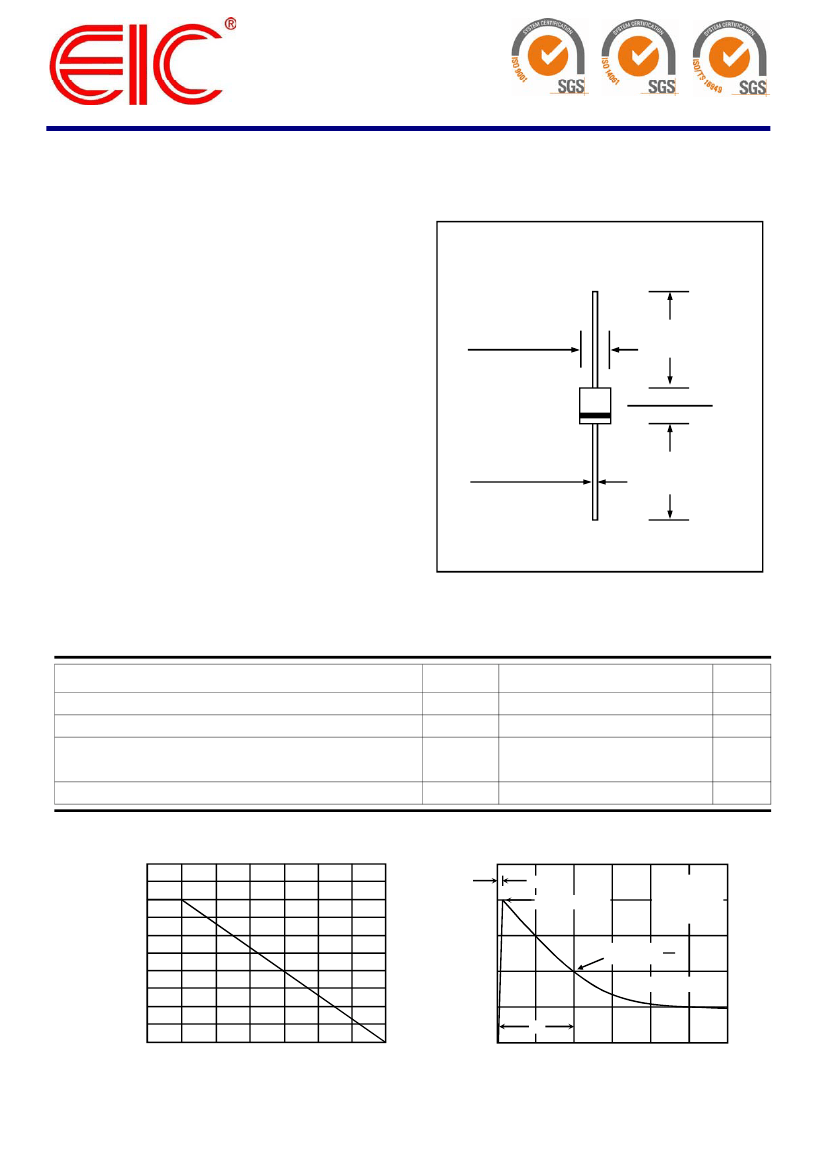

30KP SERIES

V

R

: 22 - 400 Volts

P

PK

: 30,000 Watts

FEATURES :

* Glass passivated junction chip

* Excellent Clamping Capability

* Fast Response Time

* Low Leakage Current

* Pb / RoHS Free

TRANSIENT VOLTAGE

SUPPRESSOR

D6

0.360 (9.1)

0.340 (8.6)

1.00 (25.4)

MIN.

0.360 (9.1)

0.340 (8.6)

MECHANICAL DATA

* Case : Void-free molded plastic body

* Epoxy : UL94V-0 rate flame retardant

* Lead : Axial lead solderable per MIL-STD-202,

Method 208 guaranteed

* Polarity : Color band denotes cathode end except Bipolar.

* Mounting position : Any

* Weight : 2.1 grams

0.052 (1.32)

0.048 (1.22)

1.00 (25.4)

MIN.

Dimensions in inches and ( millimeters )

MAXIMUM RATINGS

(Ta = 25

°C)

Rating

Peak Pulse Power Dissipation (10 x 1000μs, see Fig.2 )

Steady State Power Dissipation

Peak Forward Surge Current, 8.3ms Single Half Sine Wave

(Uni-directional devices only)

Operating and Storage Temperature Range

Symbol

P

PK

P

D

I

FSM

T

J

, T

STG

Value

30,000

7

250

- 55 to + 175

Unit

W

A

°C

Fig. 1 - Pulse Derating Curve

Peak Pulse Power (P

PP

) or Current

(I

PP

) Derating in Percentage %

Fig. 2 - Pulse Wave Form

Peak Pulse Current - % I

PP

125

tr

100

Peak Value - I

PP

100

Test Waveform

Paramiters

tr = 10

μs

tp = 1000

μs

75

Half Value - I

PP

2

50

10x1000

μs

Waveform

50

25

tp

0

1

2

3

0

25

50

75

100

125

150

175

Ambient Temperature , (C°)

Page 1 of 3

T, Time(ms)

Rev. 06 : February 2, 2011
