BMR4652010/001B datasheet, PDF

Datasheet> All Categories > The power supply circuit> BMR4652010/001B

BMR4652010/001B: DescriptionDC-DC Regulated Power Supply Module,; CategoryThe power supply circuit; File Size1MB，67 Pages; ManufacturerEricsson; Websitehttp://www.ericsson.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BMR4652010/001B Overview

DC-DC Regulated Power Supply Module,

BMR4652010/001B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ericsson
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

Approved

Ericsson Internal

TABLE OF SPECIFICATION

PRODUCT CONTENTS

No.

1 (1)

(4)

Prepared (also subject responsible if other)

SEC/S Marshall Wang

Stella Song

1/1301-BMR465 Uen

Checked

Date

Rev

BMR465 Series

PoL Regulators

EAB/FJB/GM Michael Hanning

Input

7.5 - 14

V, Output up to

A /

162



Small Package

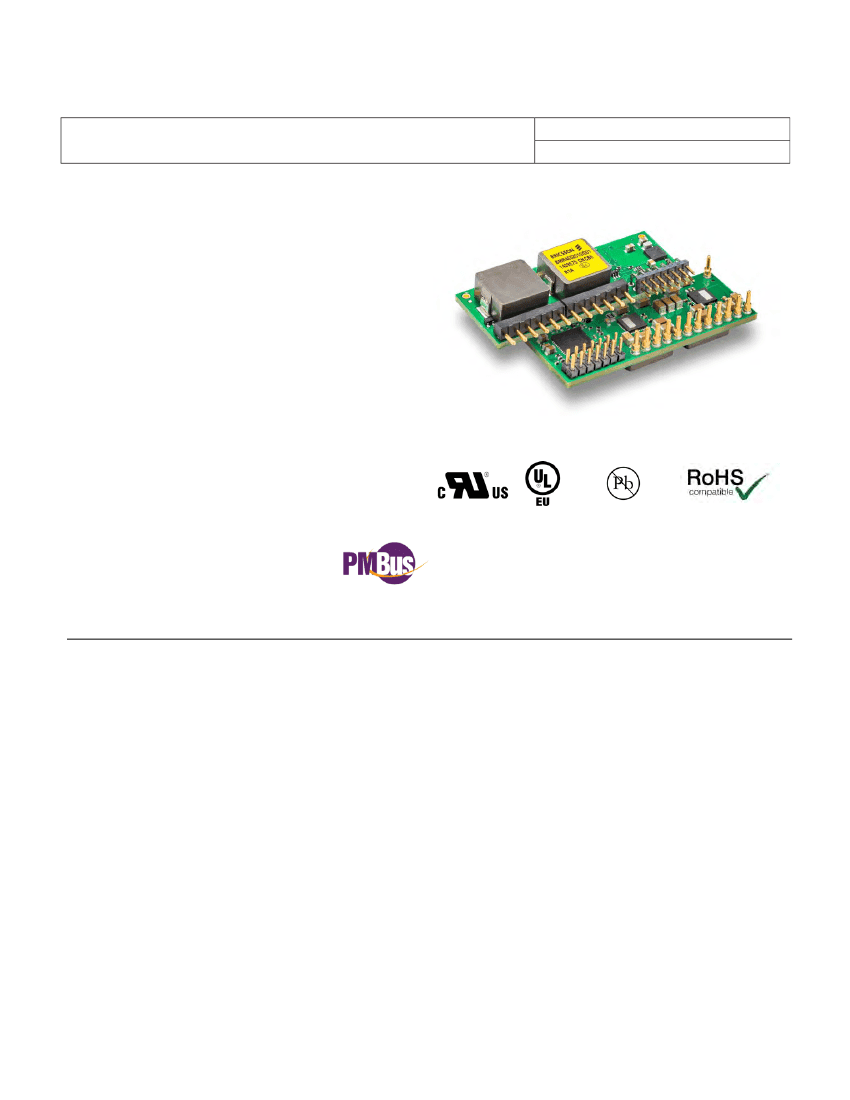

Laydown: 50.8 x 19.05 x 10.0 mm (2.0 x 0.75 x 0.39 in)

SIP: 50.8 x 9.51 x 19.05 mm (2.0 x 0.37 x 0.75 in)



Next generation Dynamic Loop Compensation (DLC)



Non-linear charge mode control with fast load transient

response.



0.6 V - 1.8 V output voltage range



High maximum output current, 90 A



Current sharing up to 4 modules, 360 A



High efficiency, typ. 94.3% at 12 Vin, 1.8 Vout, half load



Configuration and monitoring via PMBus



Phase synchronization & spreading



Voltage tracking capability



Margining up/down to +/-10%



MTBF 14.95 Mh

Technical Speciﬁcation

Reference

September

2015

2015-09-15

2015-06-19

28701

PA1

- BMR

465

Rev.

PC1

Key Features

General Characteristics



Configuration support via Ericsson Power Designer

Monotonic soft-start ramp up

Reduced external output decoupling capacitance

Input under-voltage & over-voltage shutdown

Output short-circuit & over voltage protection

Over temperature protection

Remote control & Power Good pins

Differential sense pins

Voltage setting via pin-strap or PMBus

ISO 9001/14001 certified supplier

Highly automated manufacturing ensures quality

Safety Approvals

Design for Environment

Meets requirements in high-

temperature lead-free soldering

processes.

Contents

Ordering Information

General Information

Safety Specification

Internal Circuit Diagram

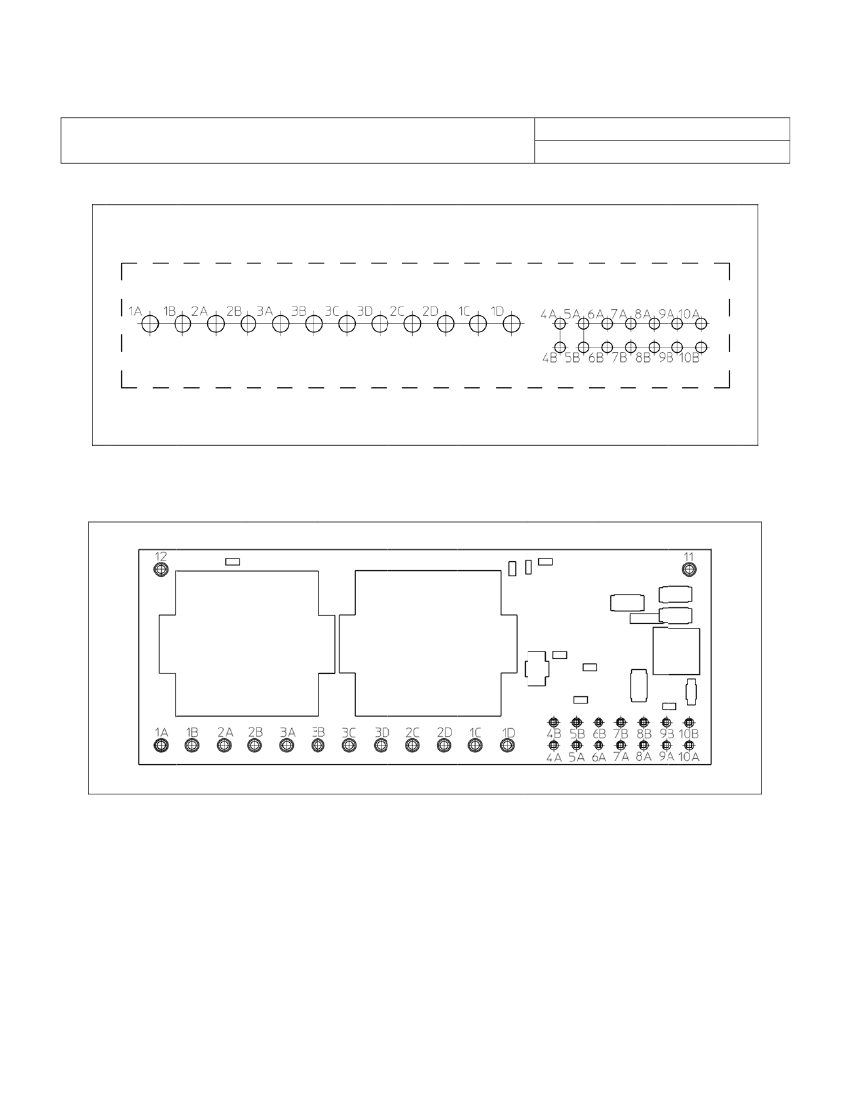

Pin Descriptions

Typical Application Circuit

Electrical Specification

90 A / 0.6-1.8 V

BMR 465 ............................................ 12

............................................................. 2

............................................................. 3

............................................................. 4

............................................................. 5

............................................................. 7

EMC Specification

Operating Information

Thermal Consideration

Mechanical Information

Soldering Information

Delivery Information

Product Qualification Specification

Appendix – PMBus Commands

........................................................... 18

........................................................... 22

........................................................... 29

........................................................... 31

........................................................... 34

........................................................... 35

........................................................... 36

........................................................... 37

BMR4652010/001B Related Products

	BMR4652010/001B	BMR4650010/001C
Description	DC-DC Regulated Power Supply Module,	DC-DC Regulated Power Supply Module,
Is it Rohs certified?	conform to	conform to
Maker	Ericsson	Ericsson
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
