74H106FCQR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74H106FCQR

74H106FCQR: DescriptionJ-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP16,; Categorylogic; File Size120KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

74H106FCQR Overview

J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP16,

74H106FCQR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL16,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDFP-F16
JESD-609 code	e0
Logic integrated circuit type	J-K FLIP-FLOP
Humidity sensitivity level	2A
Number of functions	2
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	250
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Trigger type	NEGATIVE EDGE
Base Number Matches	1

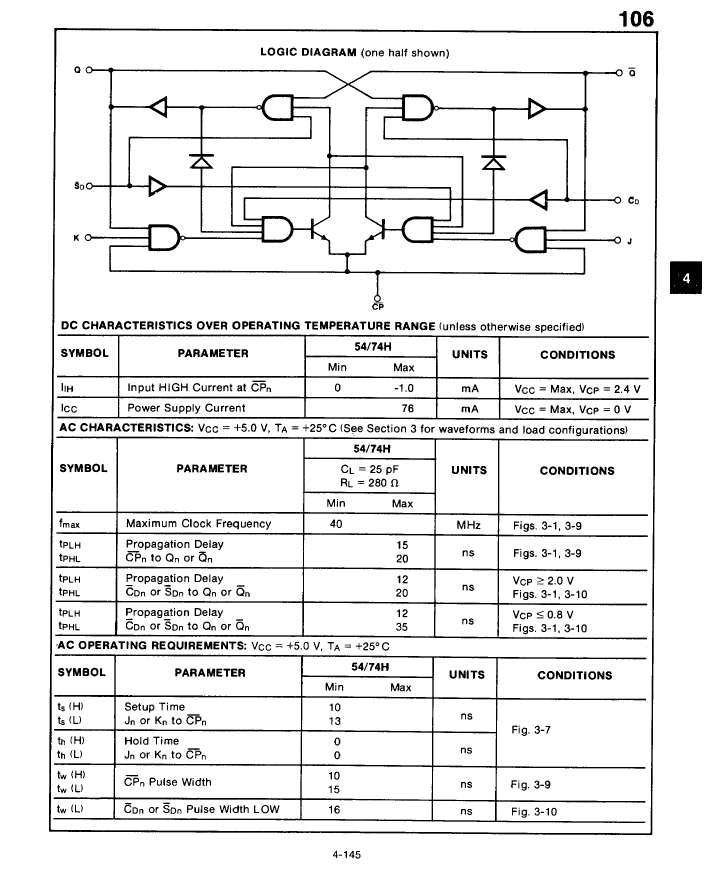

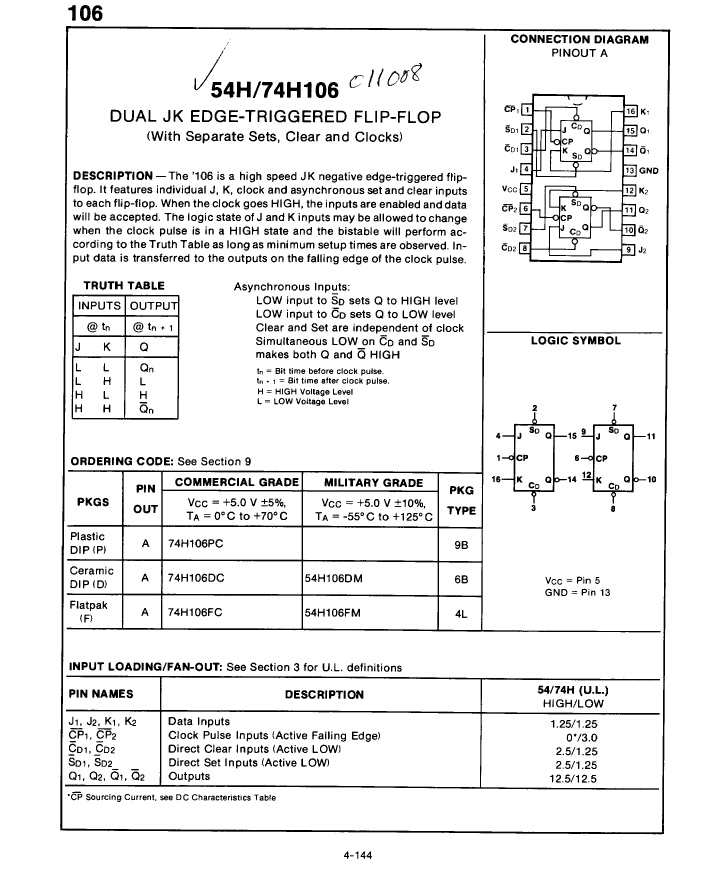

Preview

Download Datasheet

View All

74H106FCQR Related Products

	74H106FCQR	74H106FCQM	74H106PCQM	74H106PCQR
Description	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP16,	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP16,	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, PDIP16,	J-K Flip-Flop, 2-Func, Negative Edge Triggered, TTL, PDIP16,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	DFP, FL16,.3	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	compliant	compliant	compliant	compliant
JESD-30 code	R-XDFP-F16	R-XDFP-F16	R-PDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP
Humidity sensitivity level	2A	2A	2A	2A
Number of functions	2	2	2	2
Number of terminals	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DFP	DFP	DIP	DIP
Encapsulate equivalent code	FL16,.3	FL16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	250
surface mount	YES	YES	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
Base Number Matches	1	1	1	1
