8525-16R8B33PNH008 Overview

MIL Series Connector, 33 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug

8525-16R8B33PNH008 Parametric

Parameter Name	Attribute value
Maker	SOURIAU
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-26482
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	BLACK ANODIZED PLATED
Shell material	ALUMINUM ALLOY
Housing size	8
Termination type	CRIMP
Total number of contacts	33
Base Number Matches	1

Preview

Download Datasheet

View All

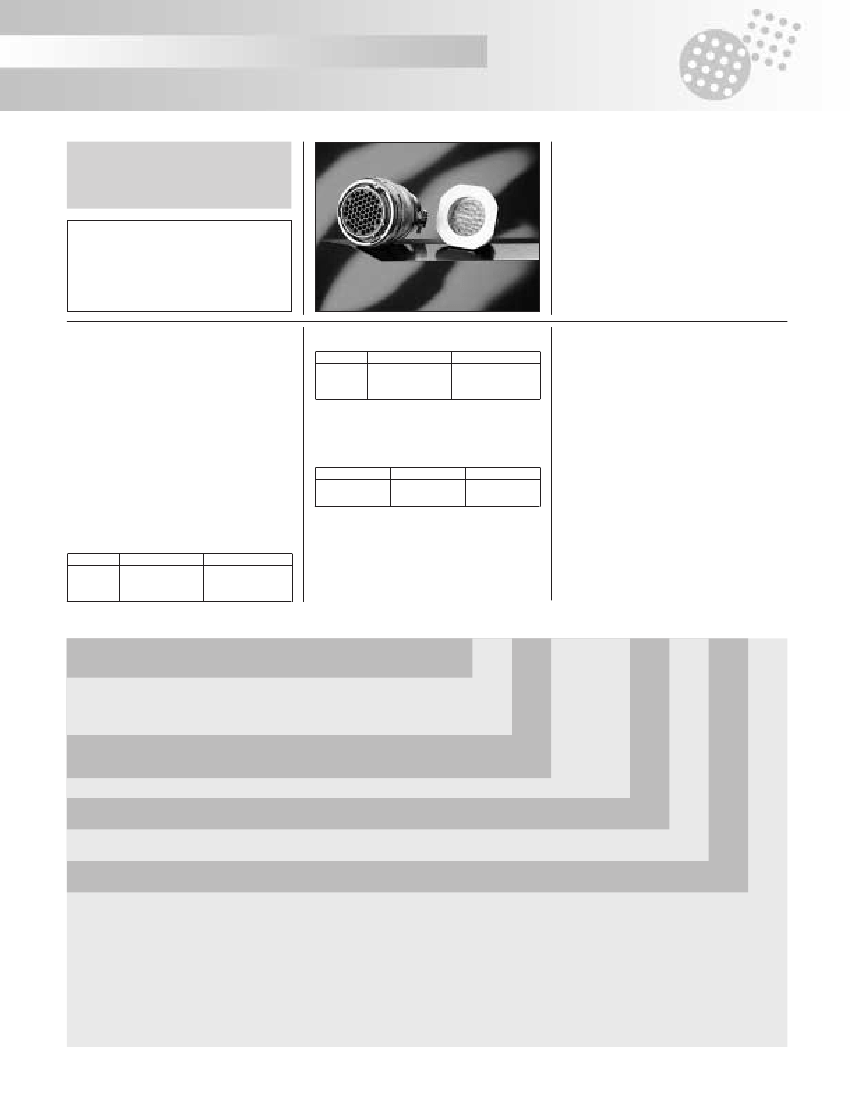

8525 Series

Applications

For all general purposes in civil aero-

nautical applications

Description

• Light weight version of MIL-C 26482 Series II

• Intermateable and interchangeable with

MIL-C 26482 Series I and II

• Environmental stainless steel version on

request

• RFI shielding plug

• Gold plating crimp contacts # 20, # 16, # 12

• Minicoax contacts # 16

• Hermetic version available

Standards

NFC 93422 - HE 302

NFL 54130 - NAS 1599

GAM T1 list

LN 29504

Characteristics

Mechanical

• Endurance :

- plug type 16 : 500 operations

- plug type 36 : 250 operations

• Shock : as per NFC 93422 - HE 302

• Vibrations :

from 10 to 2000 Hz - acceleration : 20 G

• Contact retention in insert :

- size 20 : 90 N size 16 : 115 N

- size 12 : 136 N

• Contact resistance :

size 20

size 16

size 12

environmental class

≤

mΩ

≤

0.55 mΩ

≤

0.35 mΩ

hermetic class

≤

7 mΩ

≤

3.8 mΩ

≤

2.4 mΩ

Climatic

• Operating temperatures :

-55°C to +200°C (class R and N)

-55°C to +175°C (class G)

• Damp heat :

56 days

• Salt spray :

48 hours

• Leakage :

environmental version

- low pressure immersion : 33 mbar

hermetic version

- differential pressure of 1 bar air/helium,

leakage is

≤

2,8 mm

/ hr

• Insulation resistance :

≥

5000 MΩ at 500 Vdc

• Dielectric withstanding voltage 2 classes :

services I and II

Service

at ground

at 21000 m

1500 Vrms

375 Vrms

2300 Vrms

550 Vrms

Electrical

• Max current rating per contact :

size 20

size 16

size 12

environmental class

7,5 A

13 A

23 A

hermetic class

10 A

17 A

• Shell continuity with plug type 36 :

- environmental receptacle

≤

5 mΩ

- hermetic receptacle

≤

50 mΩ

• Resistance to fluids :

- fuel : Air 3405

- hydraulic fluid : Oronite M2V

- lubricant : Air 3517

Ordering information

sealed connectors aluminum version

basic series

shell type

square flange receptacle

jam nut receptacle

plug

RFI shielded plug

8525 - 10

18 B 32

•••

plating

- black anodized (non conductive plating)

- nickel (conductive plating)

- yellow cadmium (conductive plating)

- see table p 45

- male contact

- female contact

- normal

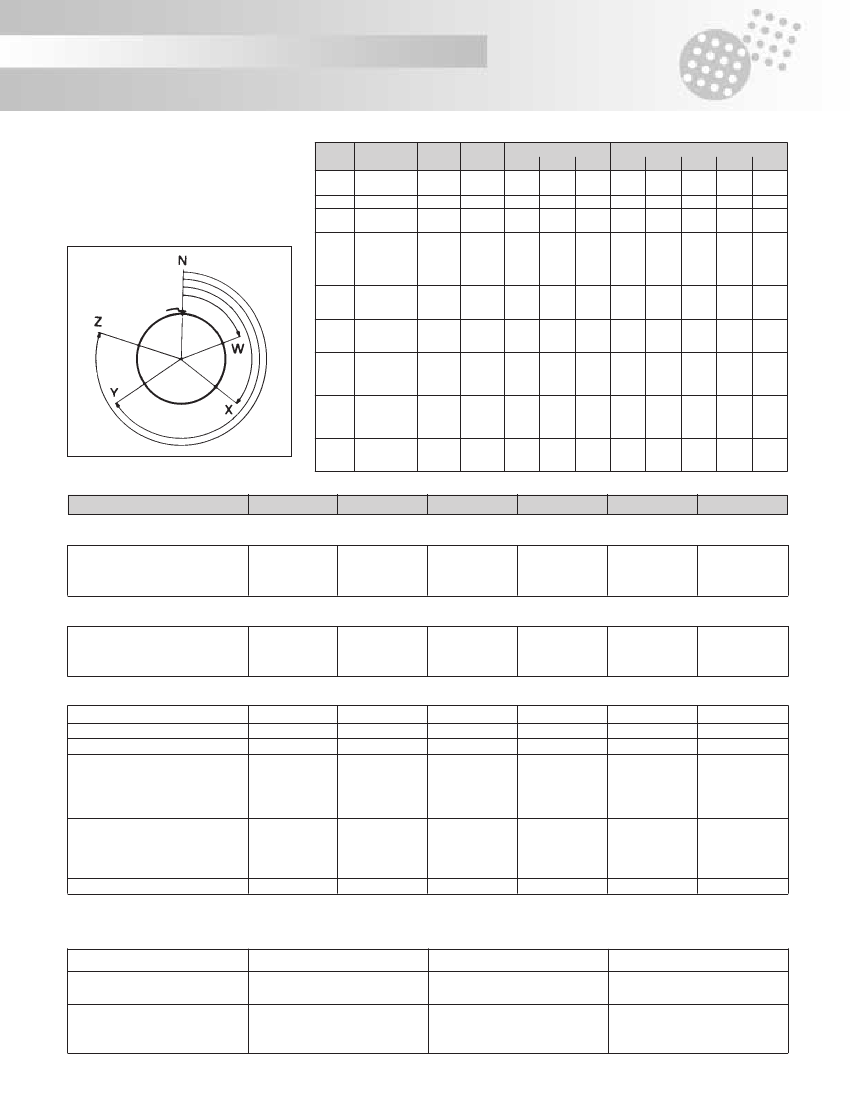

W, X, Y, Z

- see table p 46

- 3 rear teeth at 120 degrees

- rear teeth over 360 degrees

- connector supplied without backshell, without specification

- connector supplied without contact

008

- connector supplied with special contacts # 20 for 0.38 to 0.93 mm

cable or # 16 for 0.93 to 1.91 mm

cable

068

- mixed contact layouts (# 20 and # 16)

connector supplied with special contacts # 20 for 0.38 to 0.93 mm

cable, and standard contacts # 16

009

- receptacle 10 or 17 with straight spills contacts size 20 - Ø 0.60 mm - size 16 - Ø 1.00 mm - length max 7.30 mm

connector supplied with backshells

001

- backnut

007

- backshell for heatshrink sleeving

002

- straight cable clamp

057

- backnut for heatshrink sleeving

003

- elbow cable clamp

012

- straight cable clamp*

011

- backnut*

017

- backshell for heatshrink sleeving*

013

- elbow cable clamp*

018

- backshell for solder shield termination*

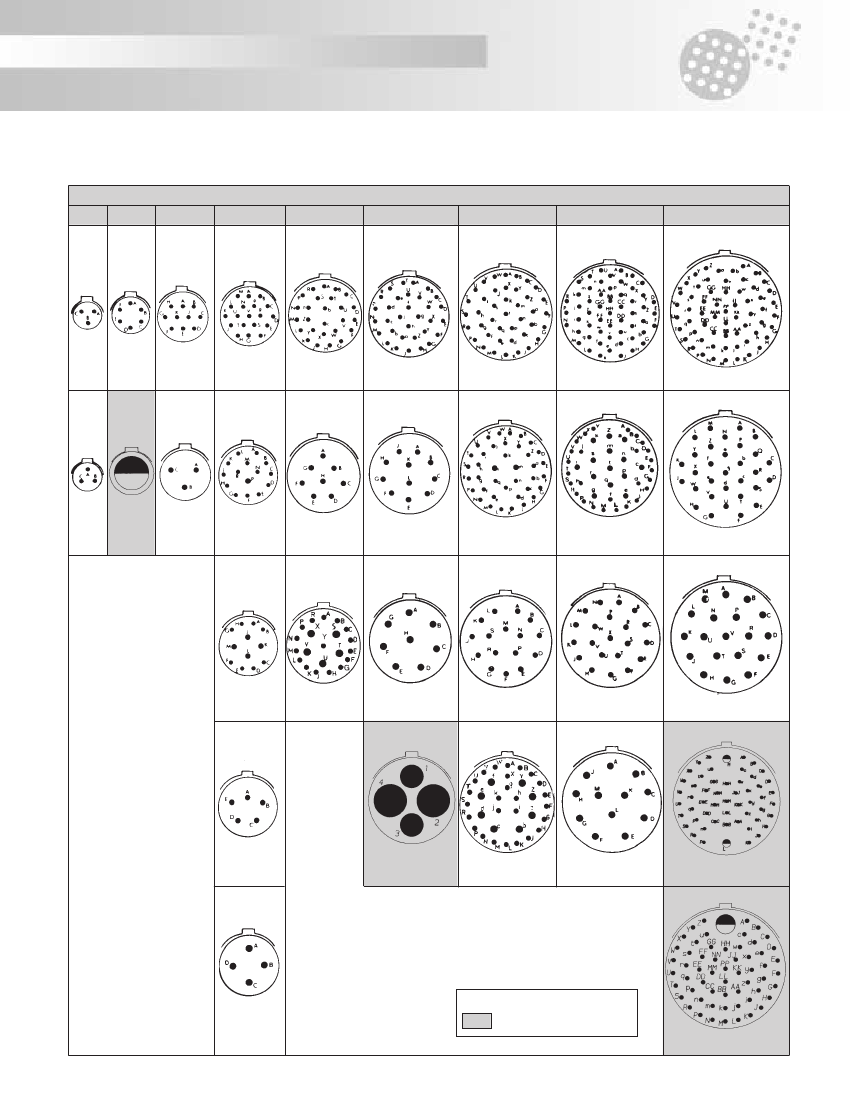

contact layout

contact type

orientation

obligatory suffix

specification

*Connector supplied with special contacts (large barrel)
