07102GOD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> 07102GOD

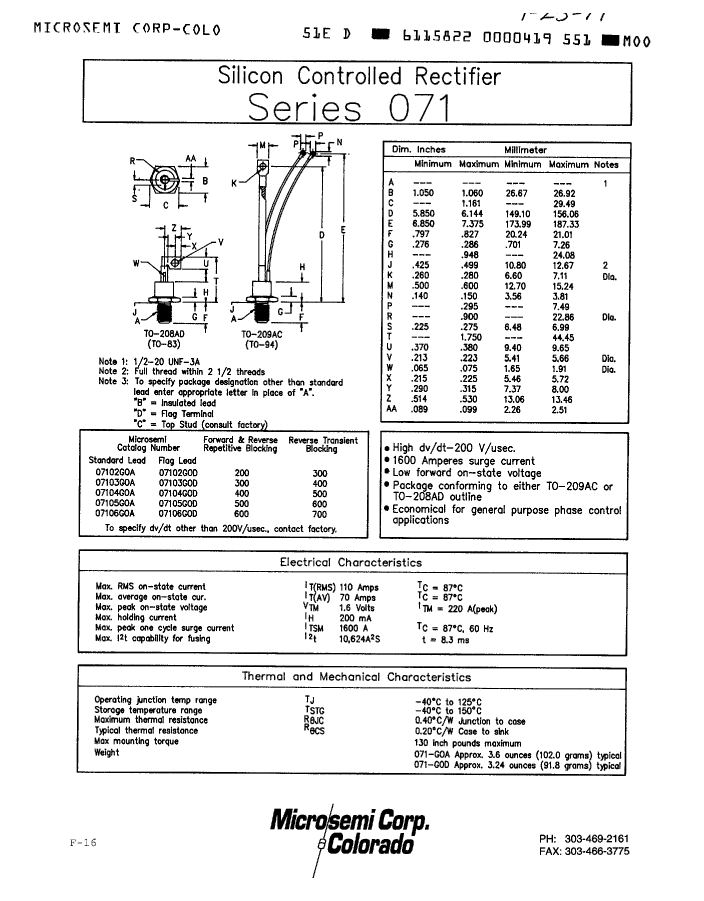

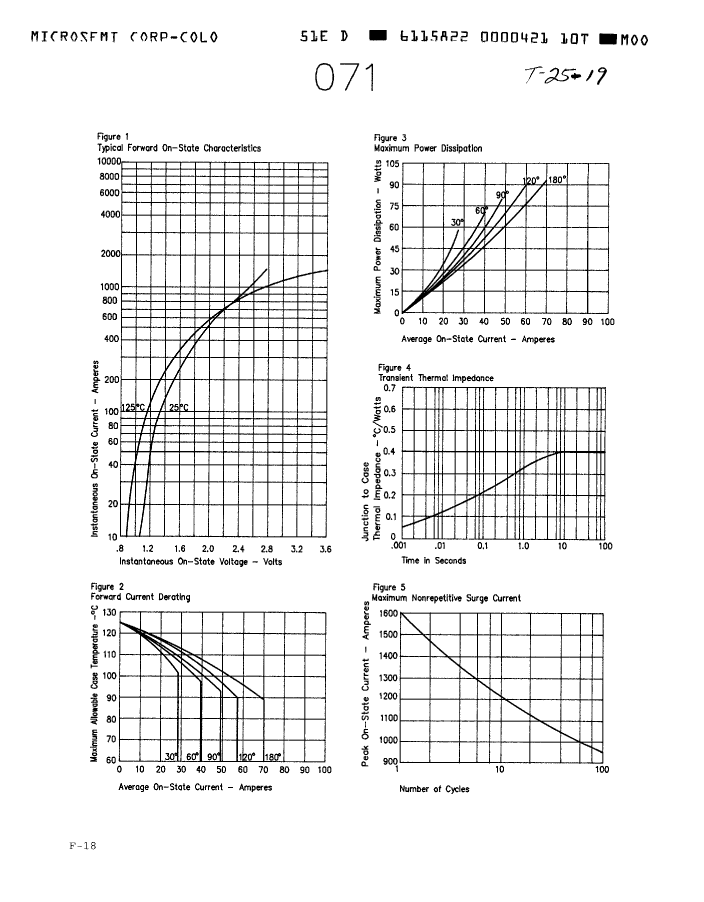

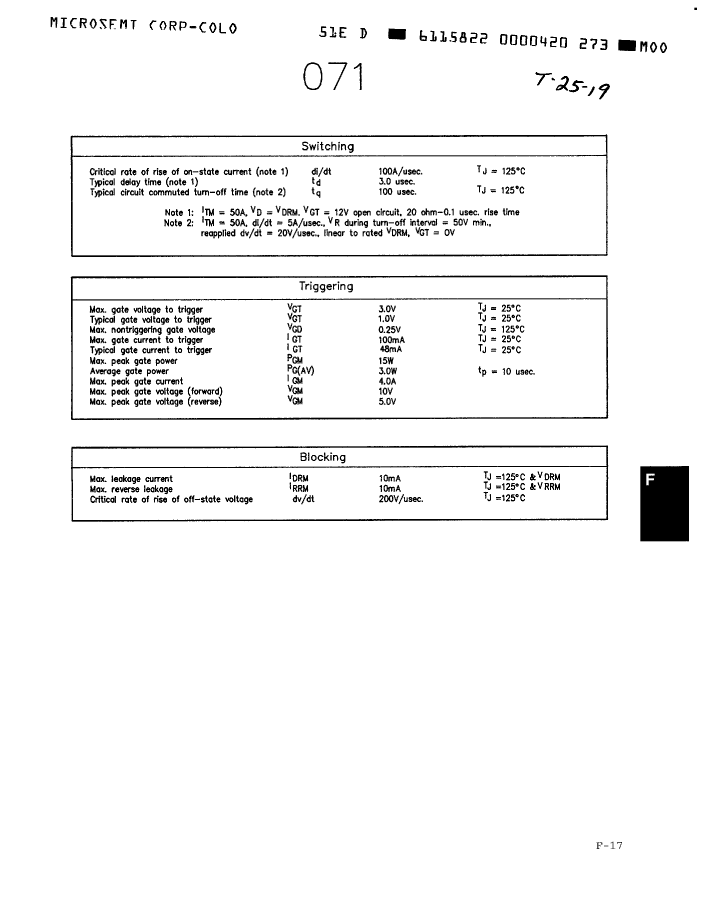

07102GOD: DescriptionSilicon Controlled Rectifier, 110A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-208AD, TO-83, 2 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size100KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

07102GOD Overview

Silicon Controlled Rectifier, 110A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-208AD, TO-83, 2 PIN

07102GOD Parametric

Parameter Name	Attribute value
Parts packaging code	TO-83
package instruction	POST/STUD MOUNT, O-MUPM-D2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Nominal circuit commutation break time	100 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	200 mA
JEDEC-95 code	TO-208AD
JESD-30 code	O-MUPM-D2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	110 A
Maximum repetitive peak off-state leakage current	10000 µA
Off-state repetitive peak voltage	200 V
Repeated peak reverse voltage	200 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

07102GOD Related Products

	07102GOD	07103GOD	07102GOA	07103GOA
Description	Silicon Controlled Rectifier, 110A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-208AD, TO-83, 2 PIN	Silicon Controlled Rectifier, 110A I(T)RMS, 300V V(DRM), 300V V(RRM), 1 Element, TO-208AD, TO-83, 2 PIN	Silicon Controlled Rectifier, 110A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN	Silicon Controlled Rectifier, 110A I(T)RMS, 300V V(DRM), 300V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN
Parts packaging code	TO-83	TO-83	TO-94	TO-94
package instruction	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3
Contacts	2	2	3	3
Reach Compliance Code	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Nominal circuit commutation break time	100 µs	100 µs	100 µs	100 µs
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us	200 V/us	200 V/us
Maximum DC gate trigger current	100 mA	100 mA	100 mA	100 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V
Maximum holding current	200 mA	200 mA	200 mA	200 mA
JEDEC-95 code	TO-208AD	TO-208AD	TO-209AC	TO-209AC
JESD-30 code	O-MUPM-D2	O-MUPM-D2	O-MUPM-H3	O-MUPM-H3
JESD-609 code	e0	e0	e0	e0
Number of components	1	1	1	1
Number of terminals	2	2	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	110 A	110 A	110 A	110 A
Maximum repetitive peak off-state leakage current	10000 µA	10000 µA	10000 µA	10000 µA
Off-state repetitive peak voltage	200 V	300 V	200 V	300 V
Repeated peak reverse voltage	200 V	300 V	200 V	300 V
surface mount	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	SOLDER LUG	SOLDER LUG	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER	UPPER
Trigger device type	SCR	SCR	SCR	SCR
Maker	-	Microsemi	Microsemi	Microsemi
