50-20SN-13 datasheet, PDF - EEWORLD Datasheet

50-20SN-13: DescriptionCard Edge Connector, 40 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, #4-40, Black Insulator, Receptacle,; CategoryThe connector; File Size102KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

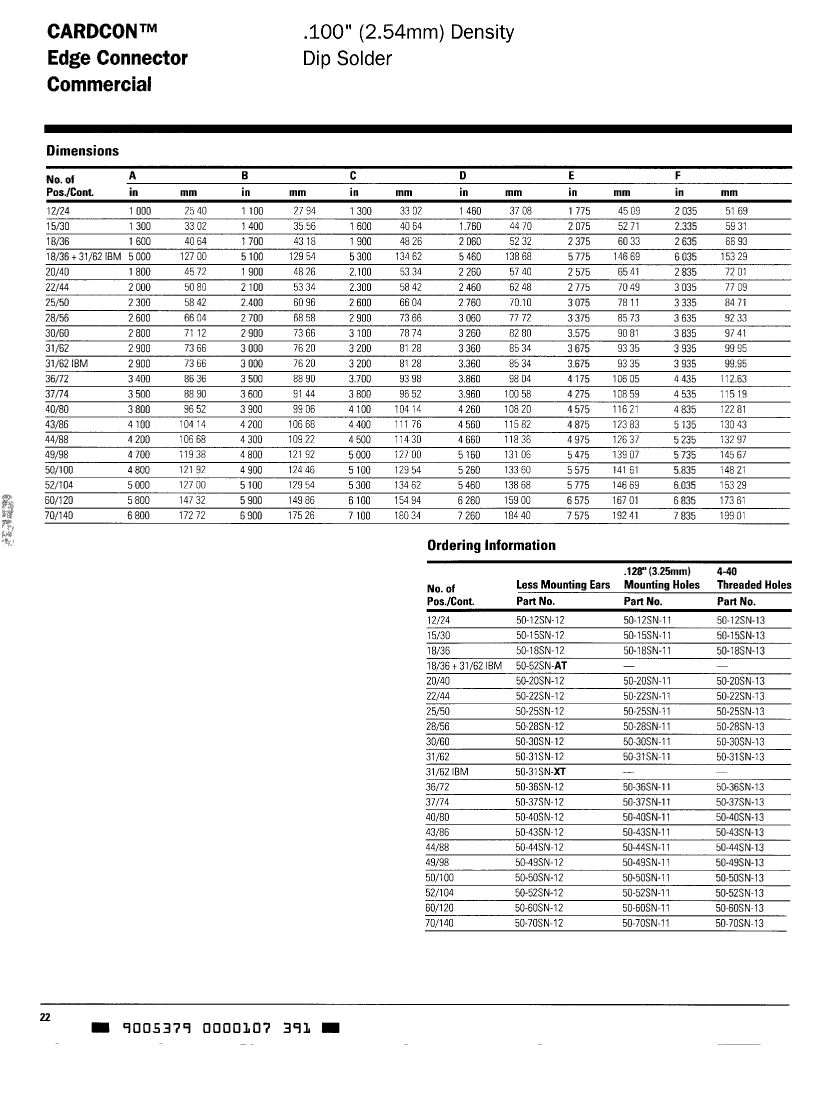

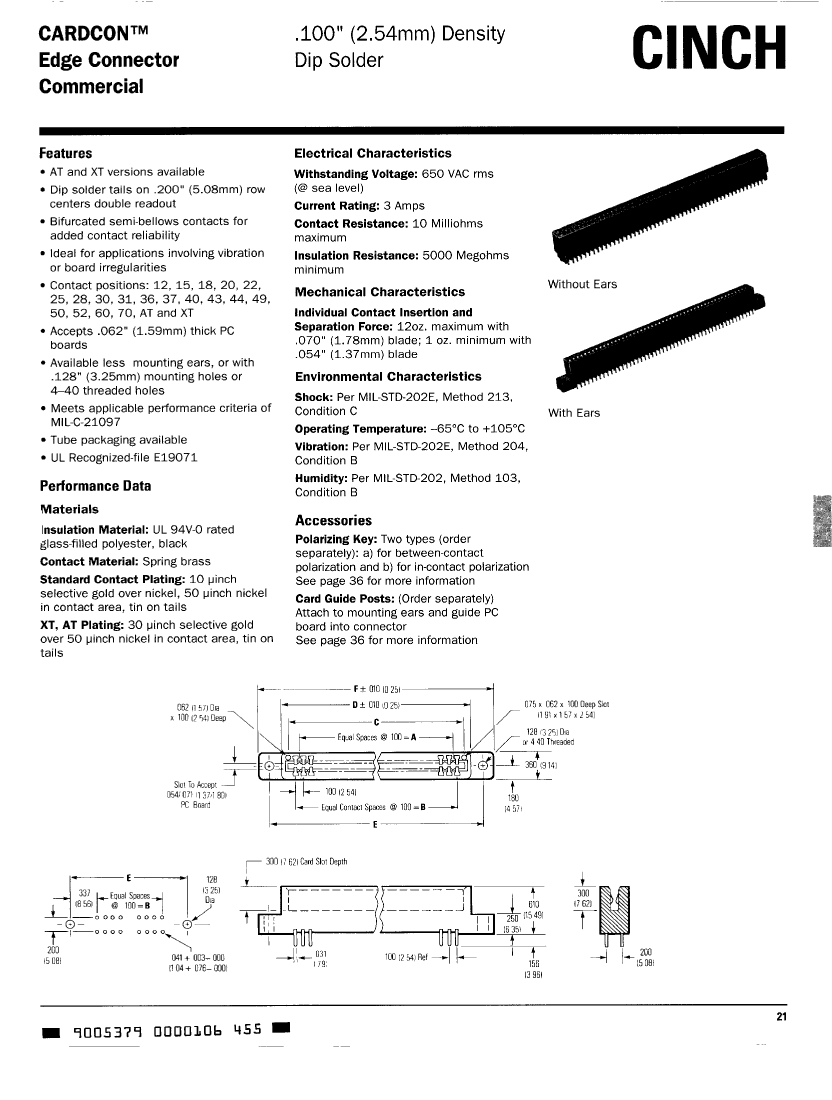

50-20SN-13 Overview

Card Edge Connector, 40 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, #4-40, Black Insulator, Receptacle,

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
Other features	NONE
body width	0.36 inch
subject depth	0.61 inch
body length	2.835 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	650VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	YES
Manufacturer's serial number	50-XXSN-X
Plug contact pitch	0.1 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	MIL-C-21097
Terminal length	0.156 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
Evacuation force-minimum value	.278 N
Base Number Matches	1
