1N4007GPHE3TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N4007GPHE3TR

1N4007GPHE3TR: DescriptionRectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size276KB，4 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric View All

1N4007GPHE3TR Overview

Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN

1N4007GPHE3TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	DO-41, 2 PIN
Reach Compliance Code	compli
ECCN code	EAR99
Other features	FREE WHEELING DIODE, HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-204AL
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

1N4001GP ........ 1N4007GP

1.0 Amp. Glass Passivated Junction Rectifier

Voltage

50V to 1000 V

Current

1.0 A at 75º C

DO-204AL (DO-41)

FEATURES

Glass passivated chip junction

Hyperectifier structure for high reliability

Cavity-free glass-passivated junction

Low forward voltage drop

Low leakage current, typical IR less than 0.1 µA

High forward surge capability

Solder dip 260ºC, 10s

Component in accordance to RoHS 2011/65/EU

and WEEE 2002/96/EC

MECHANICAL DATA

Case

DO-204AL (DO-41)

Epoxy meets UL 94V-0 flammability rating.

Polarity

Color band denotes cathode end

Terminals

Matte tin plated leads, solderable per

MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.

Consumer grade, meets JESD 201 class 1A whisker test.

HE3 suffix for high reliability grade (AEC Q101 qualified),

meets JESD 201 class 2 whisker test.

TYPICAL APPLICATIONS

Used in general purpose rectification of power supplies,

inverters, converters and freewheeling diodes for consumer,

automotive and telecommunication.

Maximun Ratings and Electrical Characteristics at 25°C

4001GP 4002GP 4003GP 4004GP 4005GP 4006GP 4007GP

RRM

F(AV)

FRM

FSM

t *

stg

RSM

Peak Recurrent Reverse Voltage (V)

Forward Current at Tamb = 75 °C

Recurrent Peak Forward Current

8.3 ms. Peak Forward Surge Current

(Jedec Method)

100

200

400

1.0 A

10 A

30 A

3.7 A

600

800

1000

Rating for fusing (t < 8.3ms)

Operating Temperature Range

Storage Temperature Range

Maximum non Repetitive Peak

Reverse Avalanche energy.

= 0.5 A; T

= 25 °C

-65 to +175°C

20 mJ

Electrical Characteristics at Tamb = 25 °C

th(j-a)

Maximum Forward Voltage Drop at I

= 1 A

Maximum Reverse Current at V

RRM

Thermal Resistance (I = 10mm.)

at 25 °C

at 125 °C

Max.

Typ.

1.1 V

5 µA

50 µA

60 °C/W

45 °C/W

* For device using on bridge rectifier application

www.fagorelectronica.com

Document Name: 1n4000gp

Version: Nov-12

Page Number: 1/4

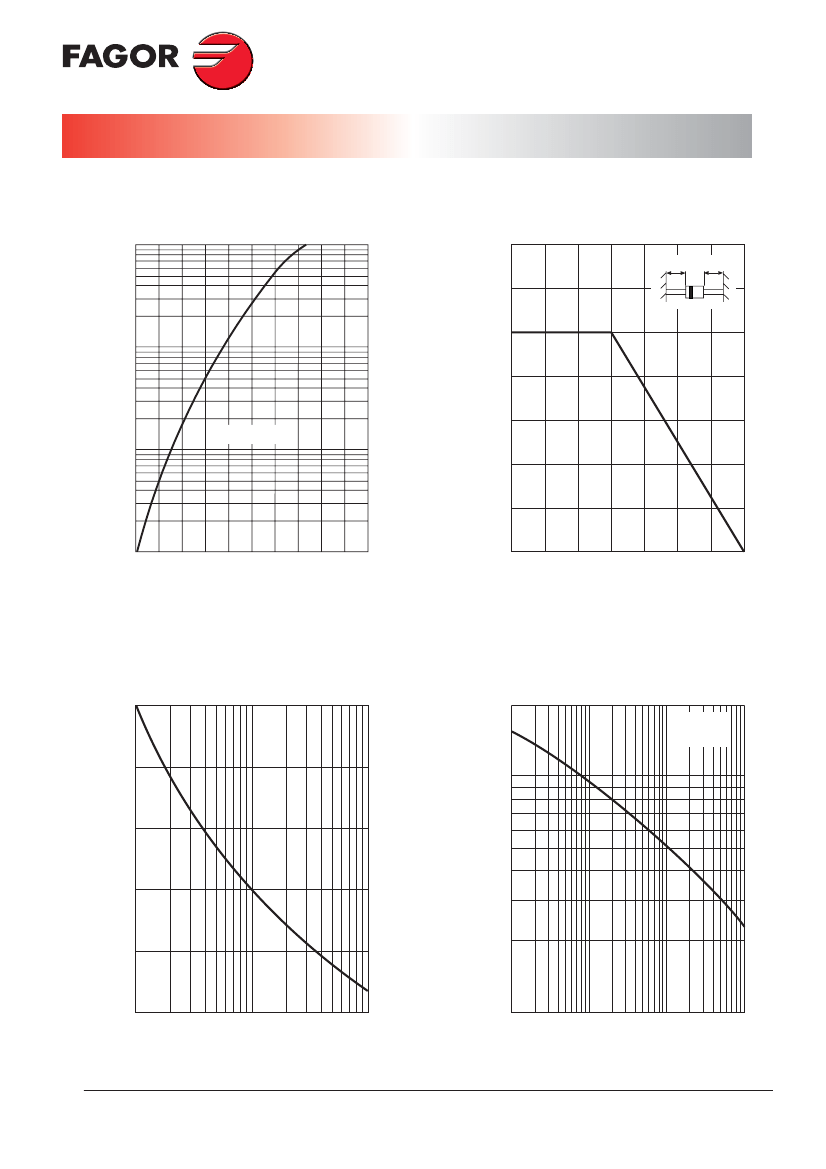

1N4001GP ........ 1N4007GP

1.0 Amp. Glass Passivated Junction Rectifier

Disclaimer

All product, product specifications and data are subject to change without notice to improve reliability,

function or design or otherwise.

Fagor Electrónica, S.Coop., its affiliates, agents, and employees, and all persons acting on its or their

behalf (collectively, "Fagor"), disclaim any and all liability for any errors, inaccuracies or incompleteness contained

in any datasheet or in any other disclosure relating to any product.

Fagor makes no warranty, representation or guarantee regarding the suitability of the products for any particular

purpose or the continuing production of any product. To the maximum extent permitted by applicable law,

Fagor disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all

liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied

warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Fagor's knowledge

of typical requirements that are often placed on Fagor products in generic applications. Such statements are not

binding statements about the suitability of products for a particular application. It is the customer's responsibility

to validate that a particular product with the properties described in the product specification is suitable for use in a

particular application. Parameters provided in datasheets and/or specifications may vary in different applications

and performance may vary over time. All operating parameters, including typical parameters, must be validated

for each customer application by the customer's technical experts. Product specifications do not expand or

otherwise modify Fagor's terms and conditions of purchase, including but nos limited to the warranty expressed

therein.

Except as expressly indicated in writing. Fagor products are not designed for use in medical, life-saving, or

life-sustaining applications or for any other application in which the failure of the Fagor product could result in

personal injury or death. Customers using or selling Fagor products not expressly indicated for use in such

applications do so at their own risk and agree to fully indemnify and hold Fagor and its distributors harmless from

and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use

or sale, including attomeys fees, even if such claim alleges that Fagor or its distributor was negligent regarding

the design or manufacture of the part. Please contact authorized Fagor personnel to obtain written terms and

conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this

document or by any conduct of Fagor, Product names and markings noted herein may be trademarks of their

respective owners.

www.fagorelectronica.com

Document Name: 1n4000gp

Version: Nov-12

Page Number: 4/4
