8403602ZX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> 8403602ZX

8403602ZX: DescriptionStandard SRAM, 2KX8, 90ns, CMOS, CQCC32, CERAMIC, CC-32; Categorystorage; File Size224KB，9 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

8403602ZX Overview

Standard SRAM, 2KX8, 90ns, CMOS, CQCC32, CERAMIC, CC-32

8403602ZX Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	QCCN,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	90 ns
JESD-30 code	R-CQCC-N32
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2KX8
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Filter level	MIL-STD-883
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

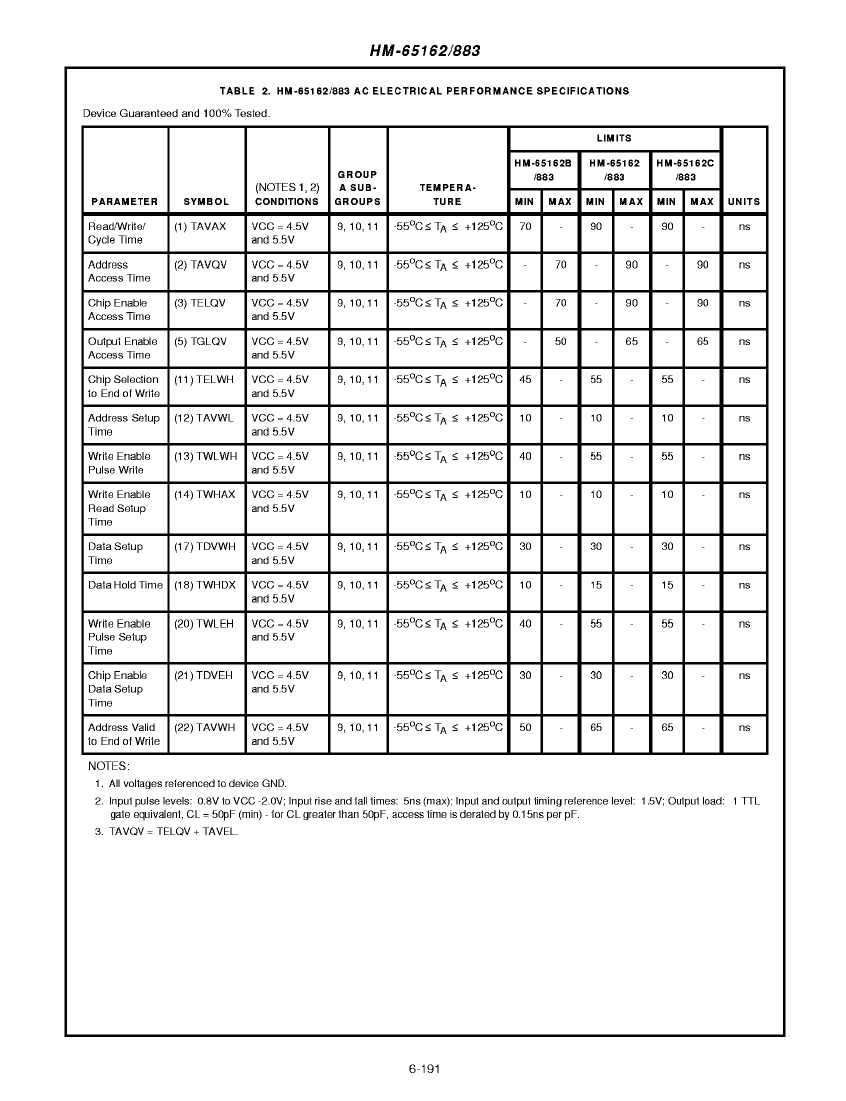

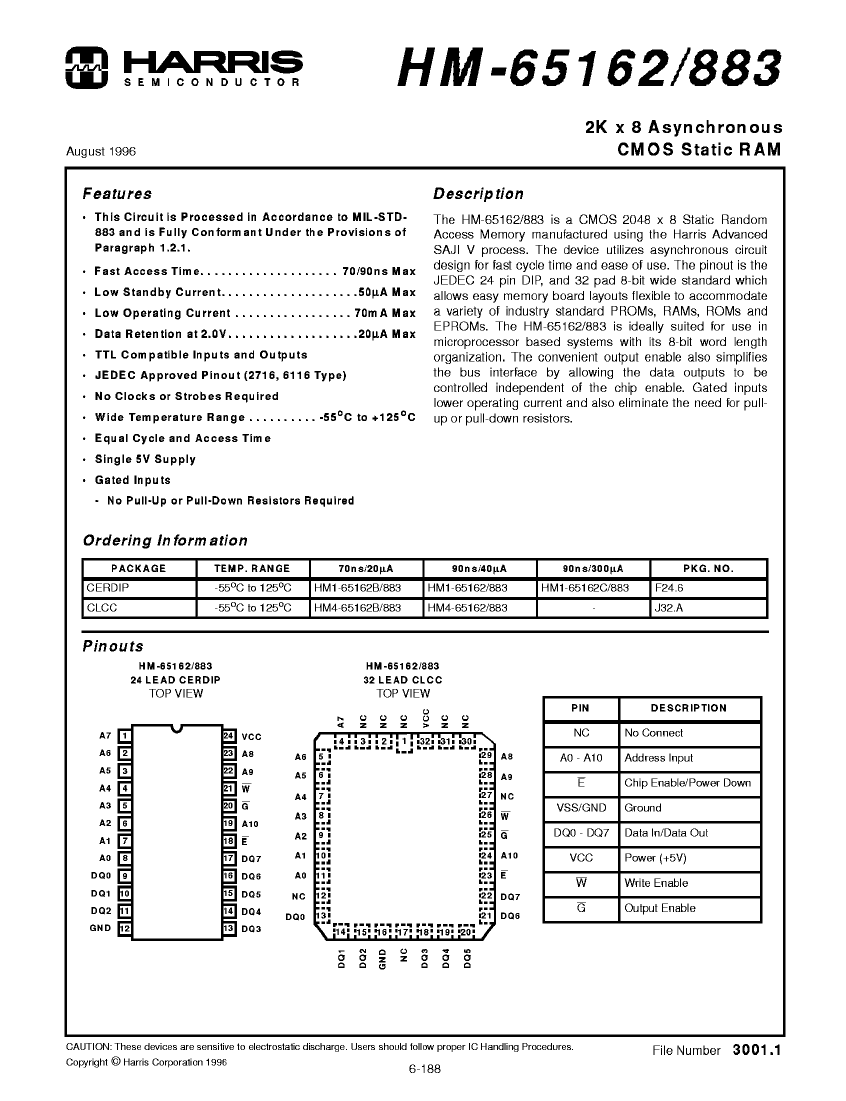

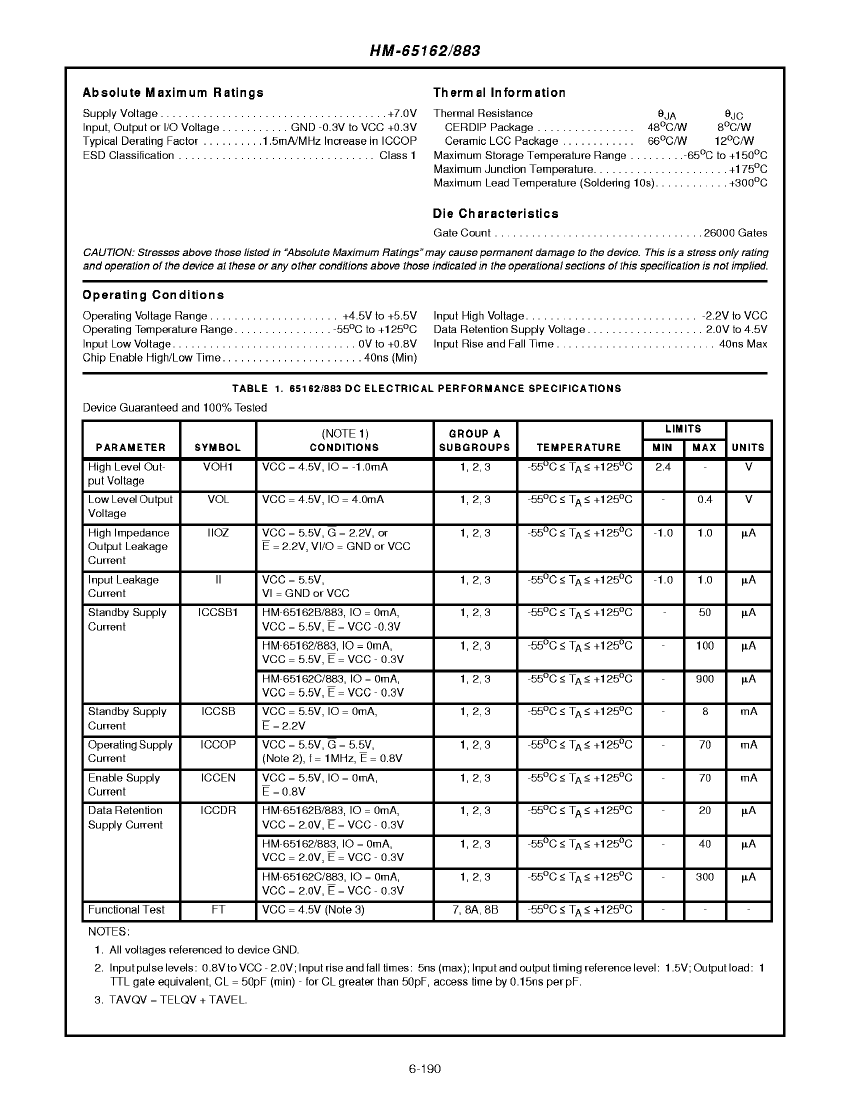

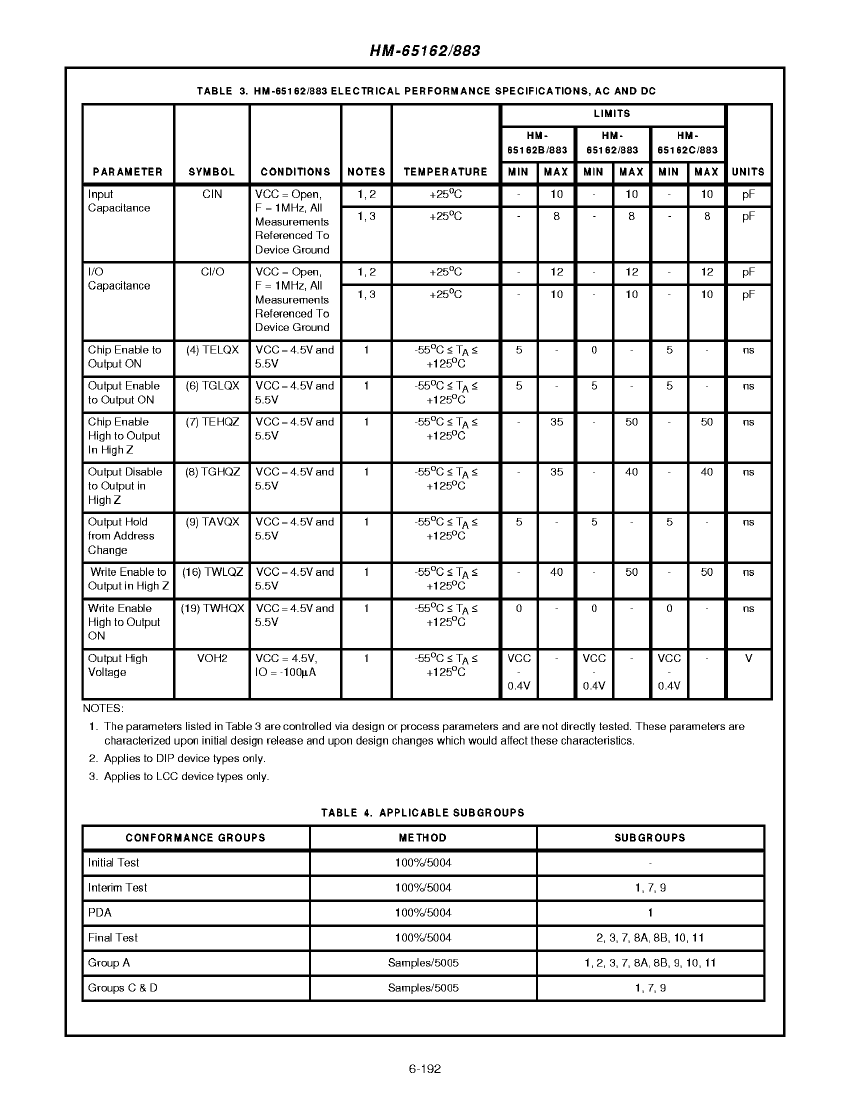

Preview

Download Datasheet

View All

8403602ZX Related Products

	8403602ZX	8403606ZX	8403602ZA	8403606ZA
Description	Standard SRAM, 2KX8, 90ns, CMOS, CQCC32, CERAMIC, CC-32	Standard SRAM, 2KX8, 70ns, CMOS, CQCC32, CERAMIC, CC-32	Standard SRAM, 2KX8, 90ns, CMOS, CQCC32, CERAMIC, CC-32	Standard SRAM, 2KX8, 70ns, CMOS, CQCC32, CERAMIC, CC-32
Maker	Harris	Harris	Harris	Harris
package instruction	QCCN,	QCCN,	QCCN,	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	90 ns	70 ns	90 ns	70 ns
JESD-30 code	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32	R-CQCC-N32
memory density	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	32	32	32	32
word count	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
organize	2KX8	2KX8	2KX8	2KX8
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN	QCCN
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	QUAD	QUAD	QUAD	QUAD
length	-	13.97 mm	13.97 mm	13.97 mm
Certification status	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	3.05 mm	3.05 mm	3.05 mm
Terminal pitch	-	1.27 mm	1.27 mm	1.27 mm
width	-	11.43 mm	11.43 mm	11.43 mm
