85C92/W datasheet, PDF - EEWORLD Datasheet

85C92/W: Description512 X 8 I2C/2-WIRE SERIAL EEPROM, UUC8; Categorystorage; File Size227KB，7 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

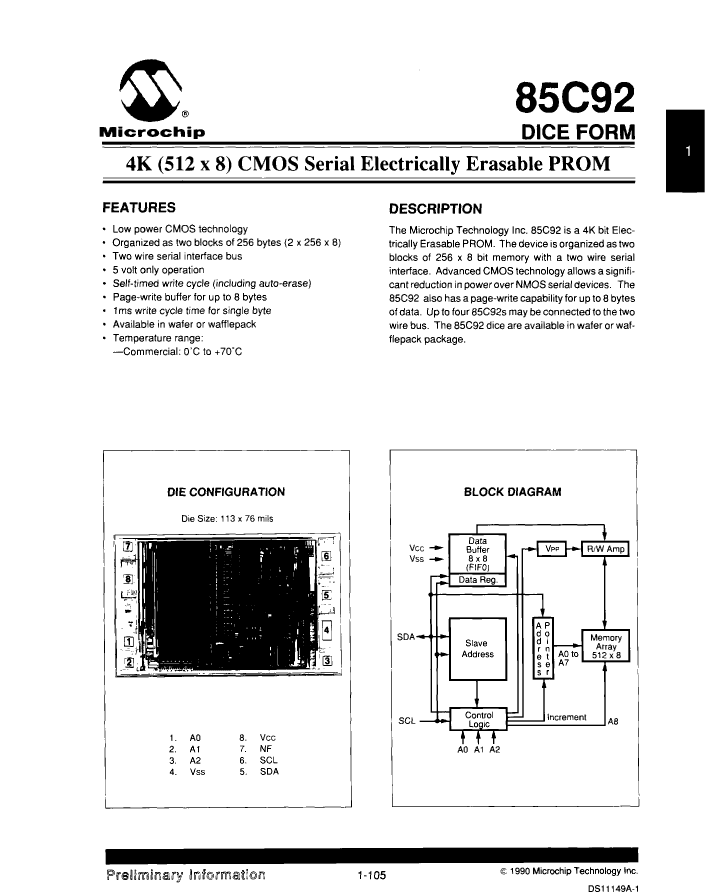

85C92/W Overview

512 X 8 I2C/2-WIRE SERIAL EEPROM, UUC8

Parameter Name	Attribute value
Maker	Microchip
package instruction	DIE, WAFER
Reach Compliance Code	unknown
ECCN code	EAR99

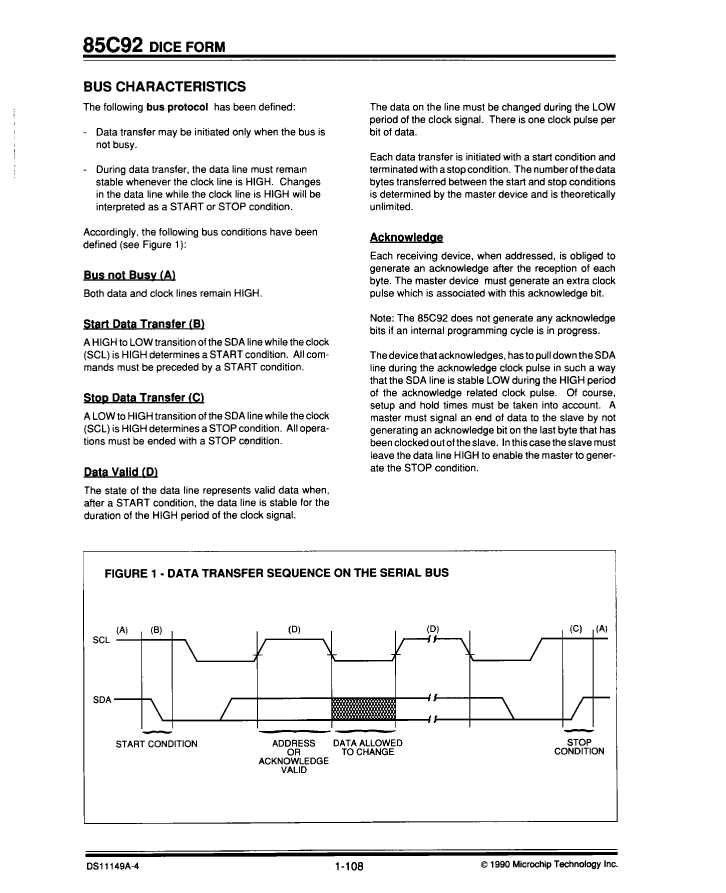

Other features	AUTOMATIC WRITE; 2 WIRE INTERFACE

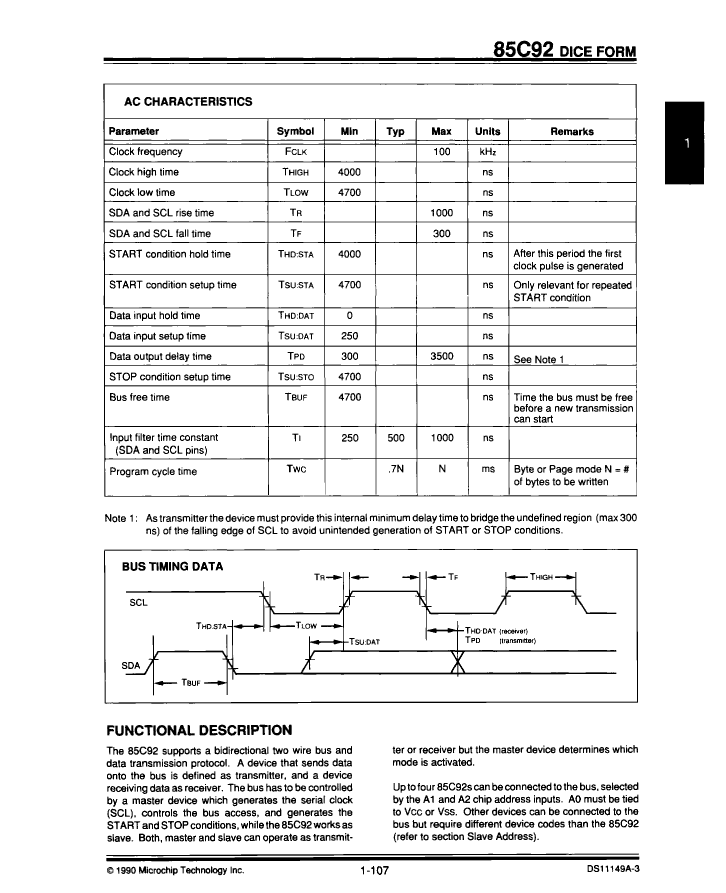

Maximum clock frequency (fCLK)	0.1 MHz
Data retention time - minimum	200
Durability	1000000 Write/Erase Cycles

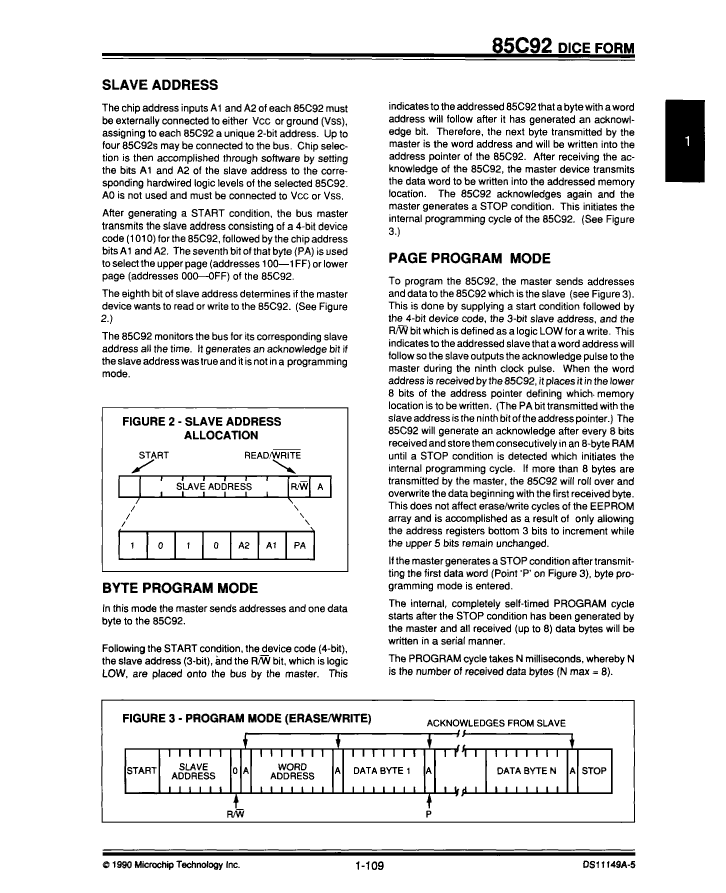

I2C control byte	1010DDMR
JESD-30 code	X-XUUC-N8
memory density	4096 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	512 words
character code	512
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512X8
Output characteristics	OPEN-DRAIN
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	WAFER
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
Parallel/Serial	SERIAL

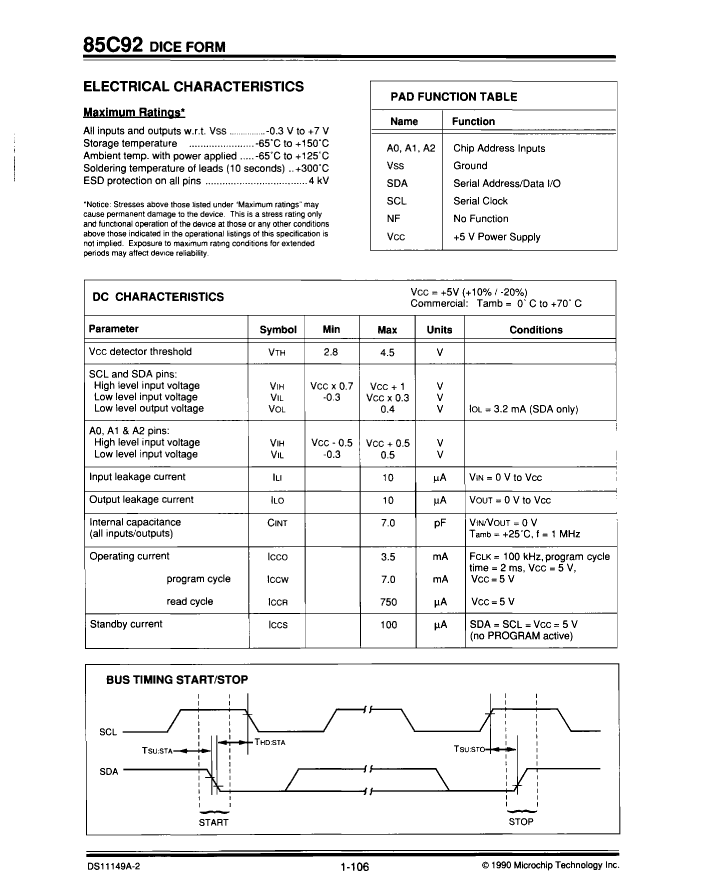

power supply	5 V
Certification status	Not Qualified
Serial bus type	I2C
Maximum standby current	0.0001 A
Maximum slew rate	0.007 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	UPPER
Maximum write cycle time (tWC)	1 ms
Base Number Matches	1

	85C92/W	85C92/S
Description	512 X 8 I2C/2-WIRE SERIAL EEPROM, UUC8	512 X 8 I2C/2-WIRE SERIAL EEPROM, UUC8
Maker	Microchip	Microchip
package instruction	DIE, WAFER	DIE, DIE OR CHIP
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	AUTOMATIC WRITE; 2 WIRE INTERFACE	AUTOMATIC WRITE; 2 WIRE INTERFACE
Maximum clock frequency (fCLK)	0.1 MHz	0.1 MHz
Data retention time - minimum	200	200
Durability	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles
I2C control byte	1010DDMR	1010DDMR
JESD-30 code	X-XUUC-N8	X-XUUC-N8
memory density	4096 bit	4096 bit
Memory IC Type	EEPROM	EEPROM
memory width	8	8
Number of functions	1	1
Number of terminals	8	8
word count	512 words	512 words
character code	512	512
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	512X8	512X8
Output characteristics	OPEN-DRAIN	OPEN-DRAIN
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE
Encapsulate equivalent code	WAFER	DIE OR CHIP
Package shape	UNSPECIFIED	UNSPECIFIED
Package form	UNCASED CHIP	UNCASED CHIP
Parallel/Serial	SERIAL	SERIAL
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Serial bus type	I2C	I2C
Maximum standby current	0.0001 A	0.0001 A
Maximum slew rate	0.007 mA	0.007 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4 V	4 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER
Maximum write cycle time (tWC)	1 ms	1 ms
Base Number Matches	1	1
