5FF25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > diode> Rectifier diode> 5FF25

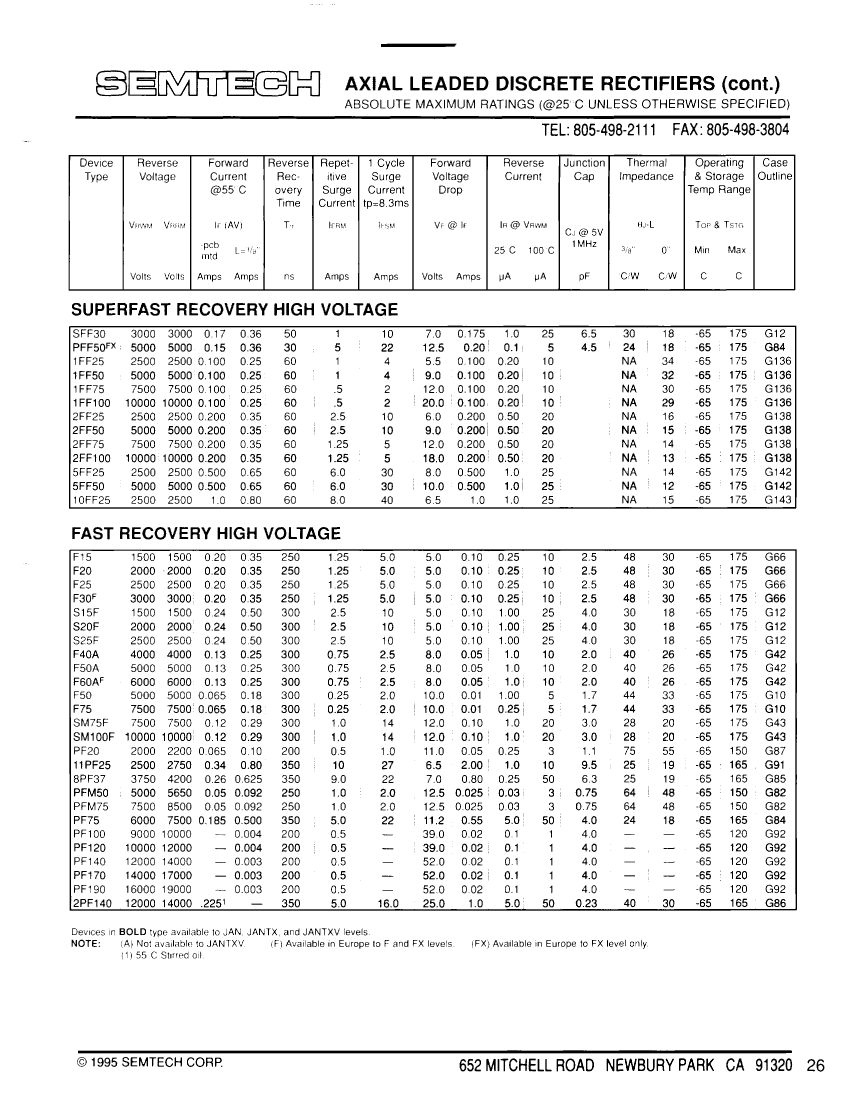

5FF25: DescriptionRectifier Diode, 1 Element, 0.65A, 2500V V(RRM), Silicon, G142, 2 PIN; Categorydiode Rectifier diode; File Size66KB，1 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

5FF25 Overview

Rectifier Diode, 1 Element, 0.65A, 2500V V(RRM), Silicon, G142, 2 PIN

5FF25 Parametric

Parameter Name	Attribute value
Maker	SEMTECH
package instruction	G142, 2 PIN
Contacts	2
Manufacturer packaging code	G142
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	0.65 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	2500 V
Maximum reverse recovery time	0.06 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

5FF25 Related Products

	5FF25	2FF75	2FF100	2FF25	5FF50	10FF25	1FF100	1FF25	1FF50	1FF75
Description	Rectifier Diode, 1 Element, 0.65A, 2500V V(RRM), Silicon, G142, 2 PIN	Rectifier Diode, 1 Element, 0.35A, 7500V V(RRM), Silicon, G138, 2 PIN	Rectifier Diode, 1 Element, 0.35A, 10000V V(RRM), Silicon, G138, 2 PIN	Rectifier Diode, 1 Element, 0.35A, 2500V V(RRM), Silicon, G138, 2 PIN	Rectifier Diode, 1 Element, 0.65A, 5000V V(RRM), Silicon, G142, 2 PIN	Rectifier Diode, 1 Element, 0.8A, 2500V V(RRM), Silicon, G143, 2 PIN	Rectifier Diode, 1 Element, 0.25A, 10000V V(RRM), Silicon, G136, 2 PIN	Rectifier Diode, 1 Element, 0.25A, 2500V V(RRM), Silicon, G136, 2 PIN	Rectifier Diode, 1 Element, 0.25A, 5000V V(RRM), Silicon, G136, 2 PIN	Rectifier Diode, 1 Element, 0.25A, 7500V V(RRM), Silicon, G136, 2 PIN
package instruction	G142, 2 PIN	G138, 2 PIN	G138, 2 PIN	G138, 2 PIN	O-LALF-W2	O-LALF-W2	G136, 2 PIN	G136, 2 PIN	G136, 2 PIN	G136, 2 PIN
Contacts	2	2	2	2	2	2	2	2	2	2
Manufacturer packaging code	G142	G138	G138	G138	G142	G143	G136	G136	G136	G136
Reach Compliance Code	unknown	unknow	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	0.65 A	0.35 A	0.35 A	0.35 A	0.65 A	0.8 A	0.25 A	0.25 A	0.25 A	0.25 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	2500 V	7500 V	10000 V	2500 V	5000 V	2500 V	10000 V	2500 V	5000 V	7500 V
Maximum reverse recovery time	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maker	SEMTECH	-	-	-	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH
