82S191A/B3A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> 82S191A/B3A

82S191A/B3A: DescriptionOTP ROM, 2KX8, 55ns, Bipolar, CQCC28,; Categorystorage; File Size131KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

82S191A/B3A Overview

OTP ROM, 2KX8, 55ns, Bipolar, CQCC28,

82S191A/B3A Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	55 ns
JESD-30 code	S-CQCC-N28
memory density	16384 bit
Memory IC Type	OTP ROM
memory width	8
Number of functions	1
Number of terminals	28
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2KX8
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

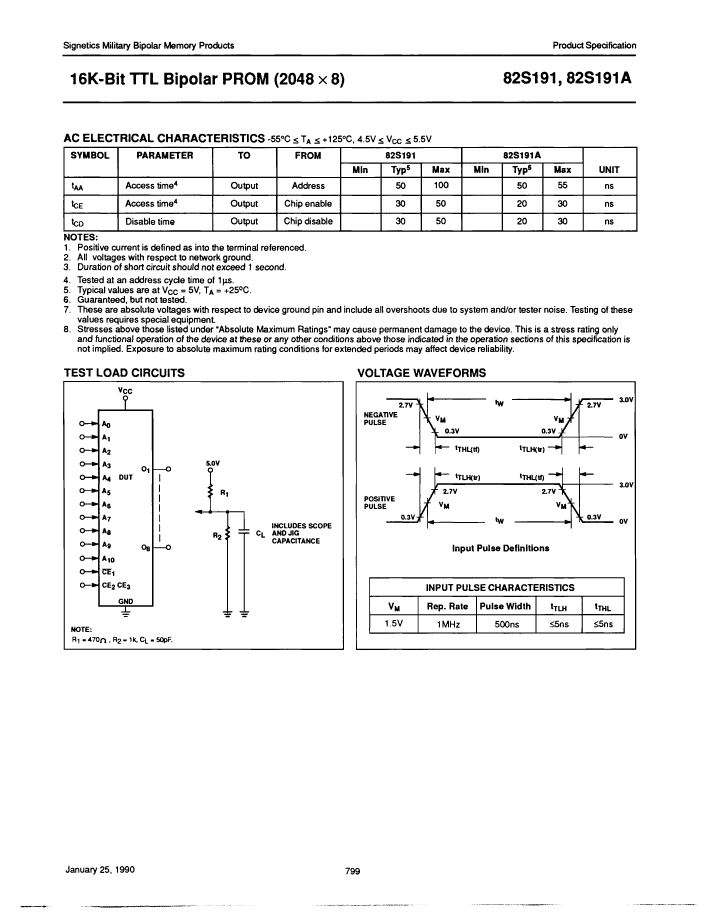

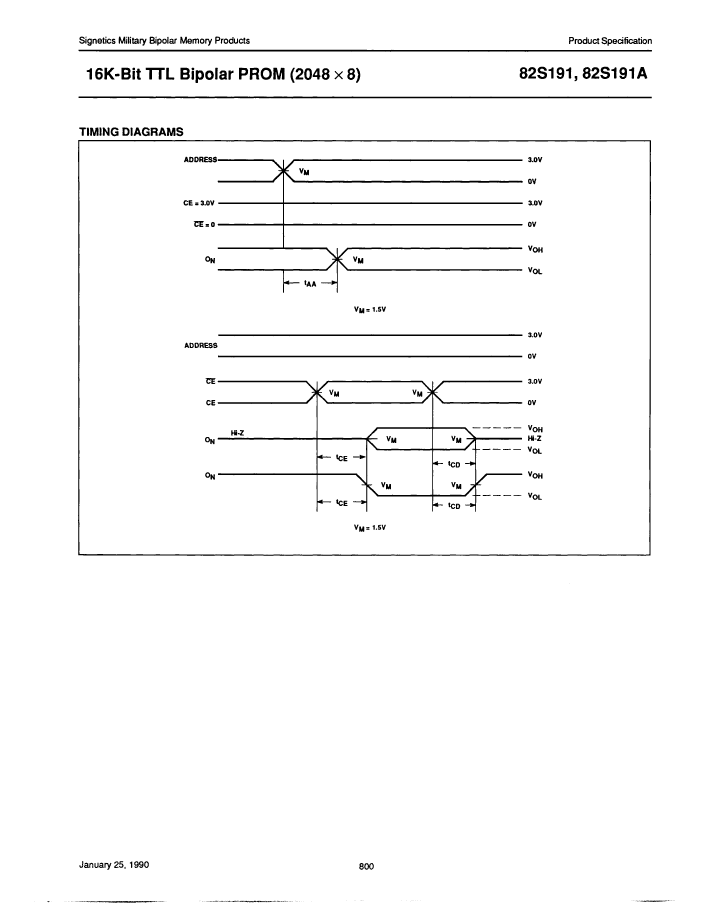

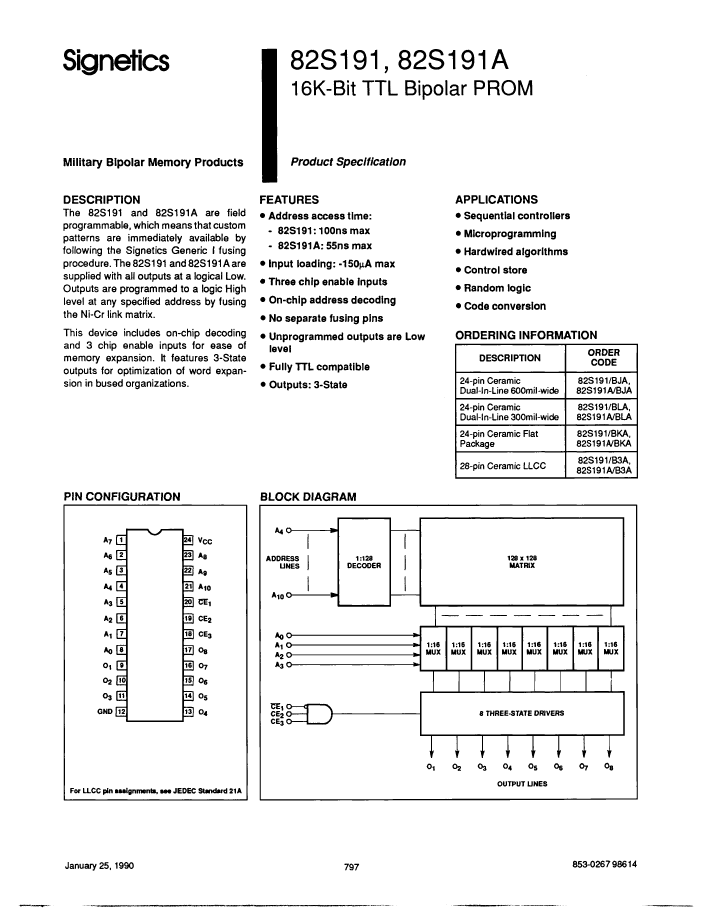

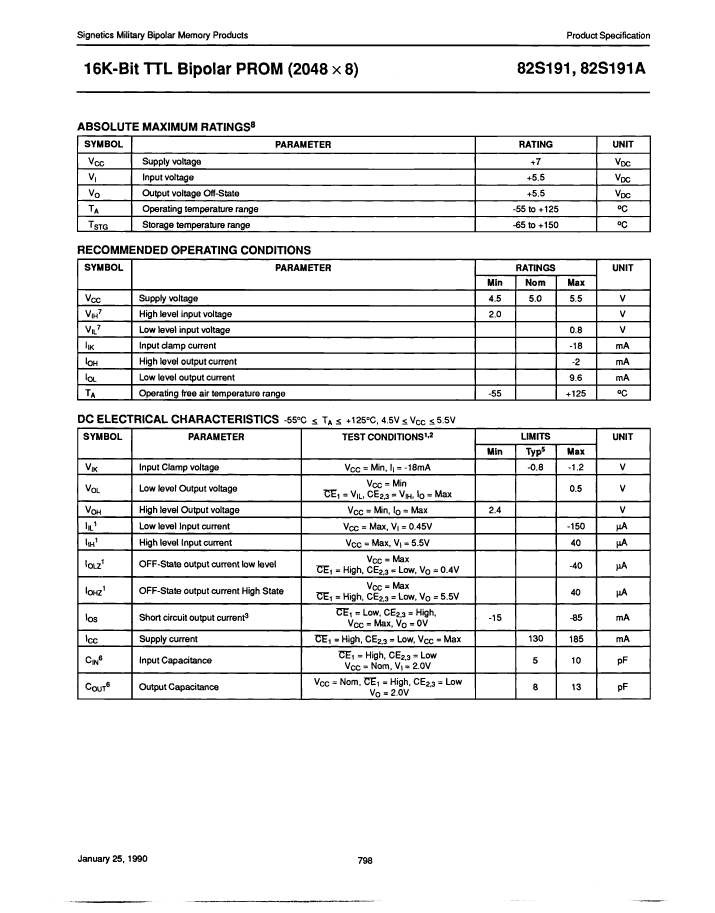

Preview

Download Datasheet

View All

82S191A/B3A Related Products

	82S191A/B3A	82S191A/BKA	82S191A/BJA	82S191/B3A	82S191/BLA	82S191A/BLA	82S191/BKA	82S191/BJA
Description	OTP ROM, 2KX8, 55ns, Bipolar, CQCC28,	OTP ROM, 2KX8, 55ns, Bipolar, CDFP24	OTP ROM, 2KX8, 55ns, Bipolar, CDIP24	OTP ROM, 2KX8, 100ns, Bipolar, CQCC28,	OTP ROM, 2KX8, 100ns, Bipolar, CDIP24	OTP ROM, 2KX8, 55ns, Bipolar, CDIP24	OTP ROM, 2KX8, 100ns, Bipolar, CDFP24	OTP ROM, 2KX8, 100ns, Bipolar, CDIP24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	55 ns	55 ns	55 ns	100 ns	100 ns	55 ns	100 ns	100 ns
JESD-30 code	S-CQCC-N28	R-CDFP-F24	R-CDIP-T24	S-CQCC-N28	R-CDIP-T24	R-CDIP-T24	R-CDFP-F24	R-CDIP-T24
memory density	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	28	24	24	28	24	24	24	24
word count	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000	2000	2000	2000	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	FLATPACK	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	NO	NO	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL
Maker	YAGEO	YAGEO	-	-	YAGEO	YAGEO	YAGEO	YAGEO
