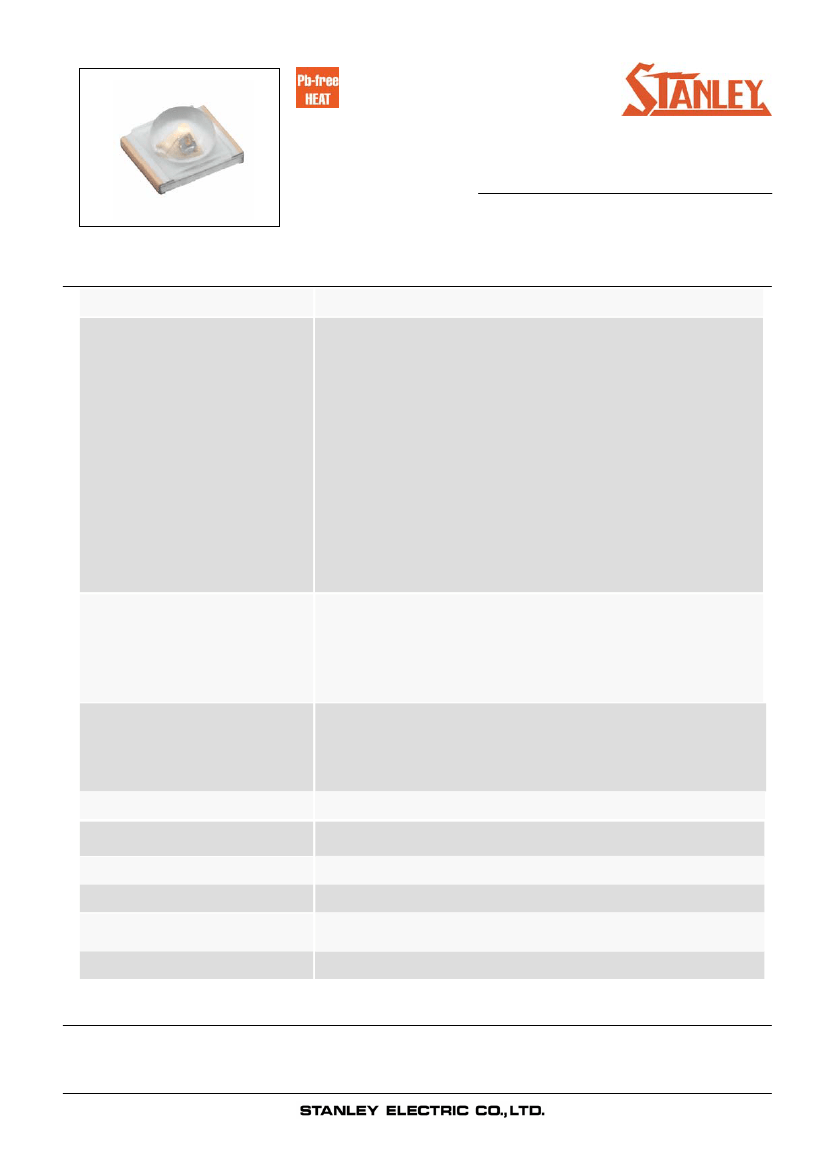

U□1106W Series
Single Color Super Wide Angle Type (h=1.3 mm)
Features
Package
Product features
Super Wide Angle Type (h=1.3 mm), Water Clear resin
・Outer
Dimension 2.5 x 2.0 x 1.3mm ( L x W x H )
・Temperature
range
Storage Temperature : -40℃½120℃
Operating Temperature : -40℃½100℃
・Lead–free
soldering compatible
・RoHS
compliant
Dominant wavelength
Blue
Green
Red
: 470nm(UB)
: 525nm(UG)
: 630nm(UR)
Half Intensity Angle
UB, UG : 128 deg.
UR
: 140 deg.
Die materials
Rank grouping parameter
Assembly method
Soldering methods
Taping and reel
ESD
UB, UG : InGaN,
UR : AlGaInP
Sorted by luminous intensity and wavelength per rank taping
Auto pick & place machine (Auto Mounter)
Reflow soldering and manual soldering
2,500pcs per reel in a 8mm width tape. (Standard)
Reel diameter:φ180mm
InGaN : 1kV(HBM),
AlGaInP : More than 2kV(HBM)
Recommended Applications
Amusement Equipment, Electric Household Appliances, OA/FA, Other General Applications
2007.8.31
Page 1
U□1106W Series
Single Color Super Wide Angle Type (h=1.3 mm)
Absolute Maximum Ratings
Absolute Maximum Ratings
UB
84
20
100
0.45
2.22
5
UG
84
20
100
0.45
2.22
5
-40½+100
-40½+120
UR
87
30
100
1.00
※
2
3.33
※
2
5
(Ta=25℃)
Item
Power Dissipation
Forward Current
Pulse Forward
Current
※
1
Symbol
P
d
I
F
I
FRM
⊿I
F
⊿I
FRM
V
R
T
opr
T
stg
Unit
mW
mA
mA
mA/℃
mA/℃
V
℃
℃
Derating
(Ta=60℃ or higher)
Reverse Voltage
Operating
Temperature
Storage Temperature
※1
I
FRM
Measurement condition : Pulse Width≦1ms., Duty≦1/20.
※2
Temperature Condition : Ta=85℃ or higher.
2006.11.13
Page 3
U□1106W Series
Single Color Super Wide Angle Type (h=1.3 mm)
Electro-Optical Characteristics(UB,UG)
Item
Symbol
TYP.
Forward Voltage
I
F
=10mA
V
F
MAX.
Reverse Current
Peak Wavelength
Dominant
Wavelength
Spectral Line Half
Width
Half Intensity Angle
V
R
=5V
I
F
=10mA
I
F
=10mA
I
F
=10mA
I
F
=10mA
I
R
λ
p
λ
d
⊿λ
2θ1/2
MAX.
TYP.
TYP.
TYP.
TYP.
3.8
100
465
470
26
128
3.8
100
522
525
35
128
μA
nm
nm
nm
deg.
Characteristics
UB
3.3
UG
3.3
V
Unit
(Ta=25℃)
Conditions
Electro-Optical Characteristics（UR)
Item
Symbol
Characteristics
UR
TYP.
Forward Voltage
I
F
=20mA
V
F
MAX.
Reverse Current
Peak Wavelength
Dominant
Wavelength
Spectral Line Half
Width
Half Intensity Angle
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
R
λ
p
λ
d
⊿λ
2θ1/2
MAX.
TYP.
TYP.
TYP.
TYP.
2.8
100
636
630
15
140
μA
nm
nm
nm
deg.
2.2
V
Unit
(Ta=25℃)
Conditions
2006.11.13
Page 4
U□1106W Series
Single Color Super Wide Angle Type (h=1.3 mm)
Luminous Intensity Rank
I
V
（mcd）
UG
I
F
=10mA
MIN. MAX.
(Ta=25℃)
Intensity Tolerance each Rank : +/- 10%
Rank
BA
BB
BC
BD
BE
BF
CA
CB
CC
CD
UB
I
F
=10mA
MIN. MAX.
10
15
15
22
22
33
33
47
47
68
UR
I
F
=20mA
MIN. MAX.
33
47
68
100
150
220
47
68
100
150
220
330
47
68
100
150
220
330
68
100
150
220
330
470
※
Please contact our sales staff concerning rank designation.
