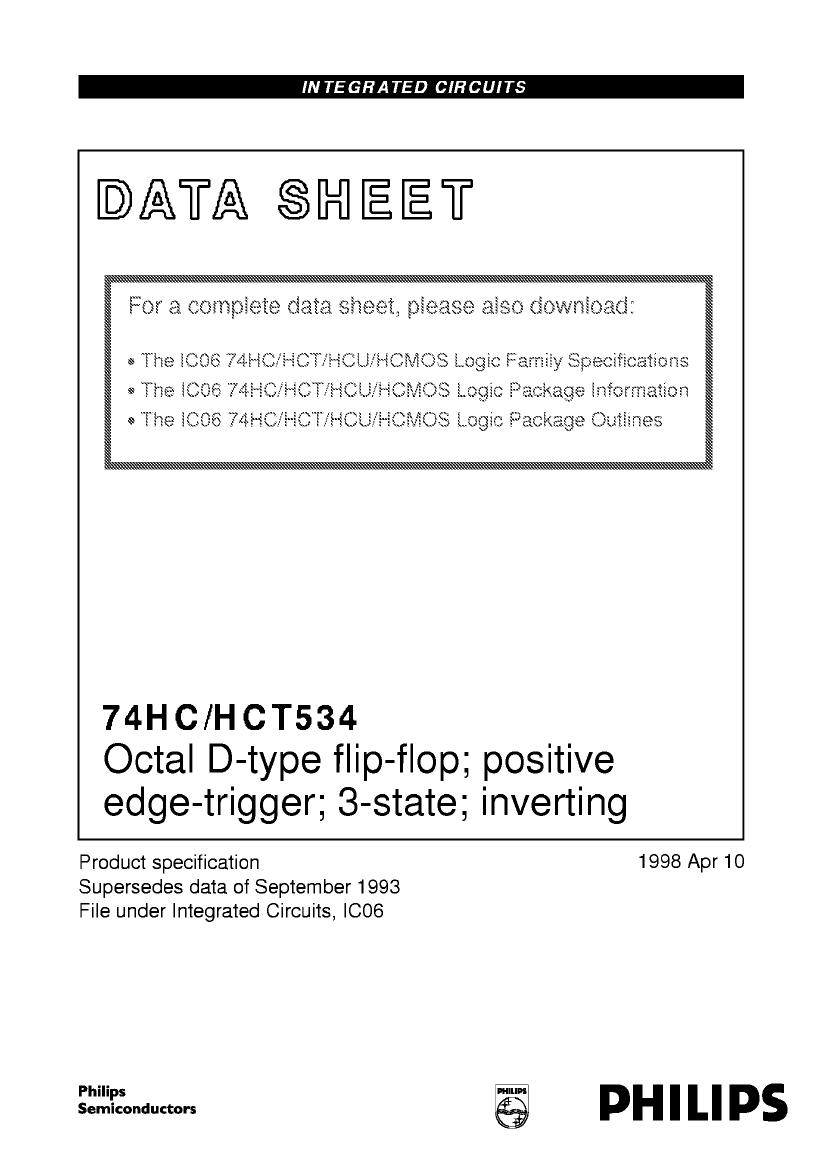

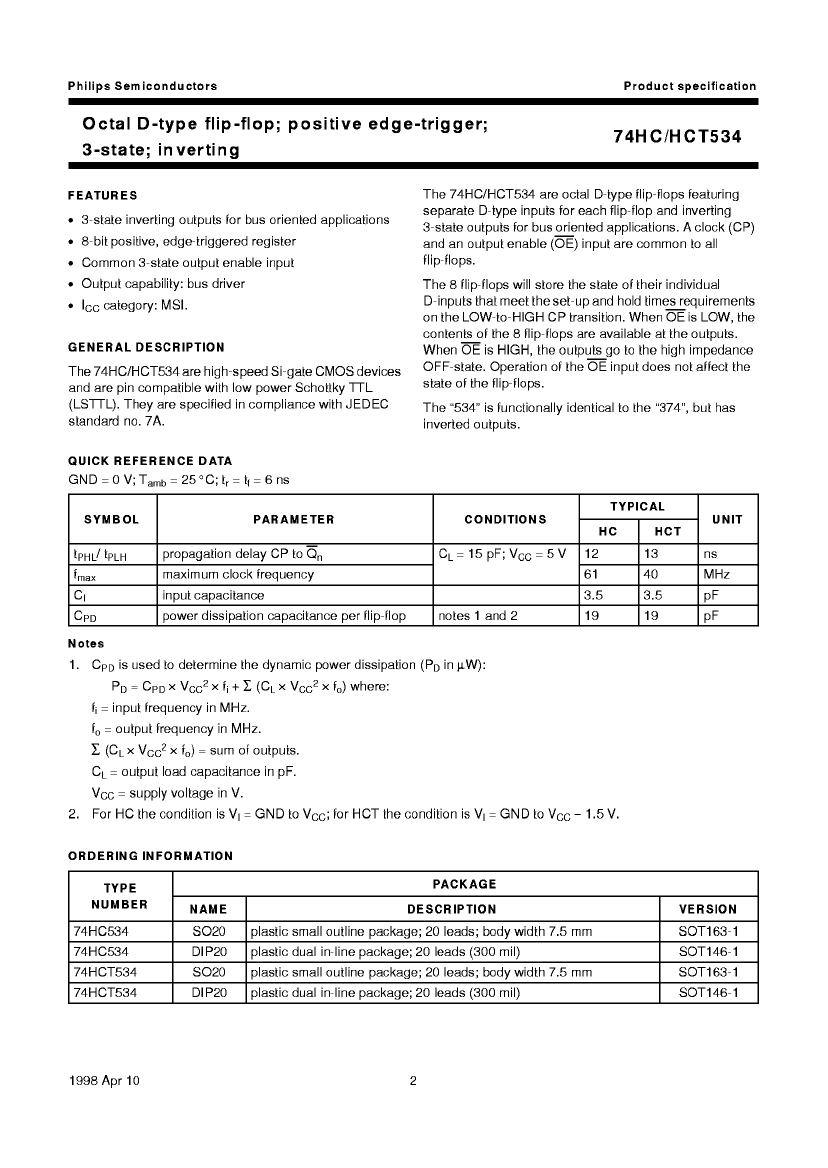

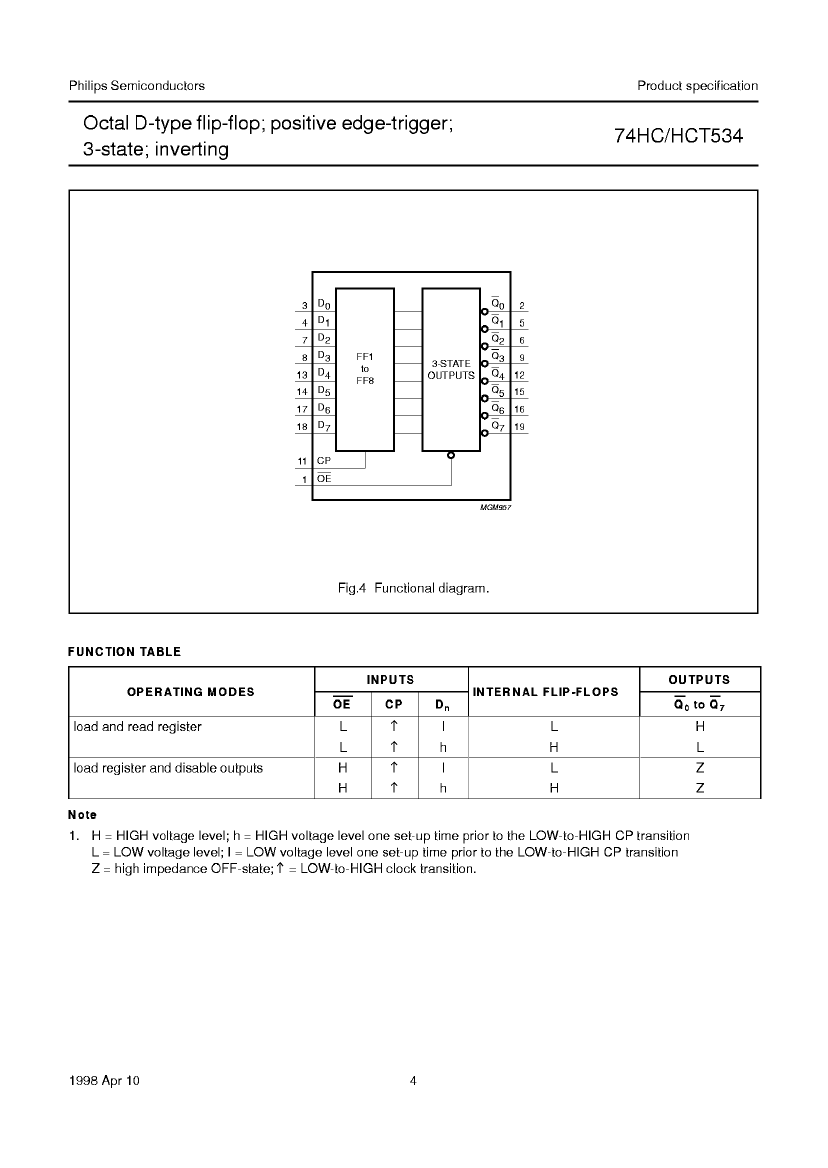

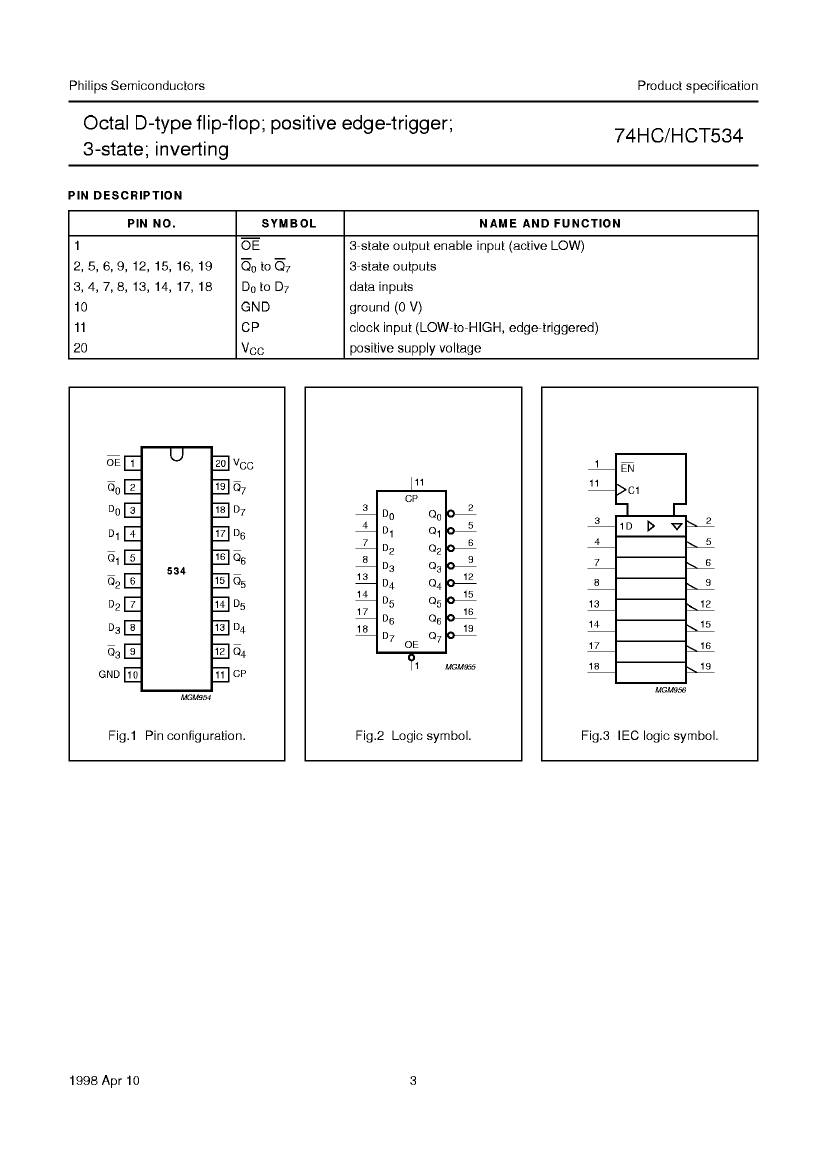

74HC534N,652

Description
74HC534N
Categorylogic
File Size236KB,13 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

74HC534N,652 Overview

74HC534N

74HC534N,652 Parametric

Parameter NameAttribute value
Brand NameNXP Semiconductor
MakerNXP
Parts packaging codeDIP
package instructionDIP,
Contacts20
Reach Compliance Codeunknown
seriesHC/UH
JESD-30 codeR-PDIP-T20
length26.73 mm
Logic integrated circuit typeBUS DRIVER
Number of digits8
Number of functions1
Number of ports2
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityINVERTED
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
propagation delay (tpd)250 ns
Certification statusNot Qualified
Maximum seat height4.2 mm
Maximum supply voltage (Vsup)6 V
Minimum supply voltage (Vsup)2 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelAUTOMOTIVE
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
width7.62 mm
Base Number Matches1
