74F83D-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74F83D-T

74F83D-T: DescriptionAdder/Subtractor, F/FAST Series, 4-Bit, TTL, PDSO16; Categorylogic; File Size139KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

74F83D-T Overview

Adder/Subtractor, F/FAST Series, 4-Bit, TTL, PDSO16

74F83D-T Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
Other features	FULL ADDER
series	F/FAST
JESD-30 code	R-PDSO-G16
Load capacitance (CL)	50 pF
Logic integrated circuit type	ADDER/SUBTRACTOR
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	55 mA
propagation delay (tpd)	10.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

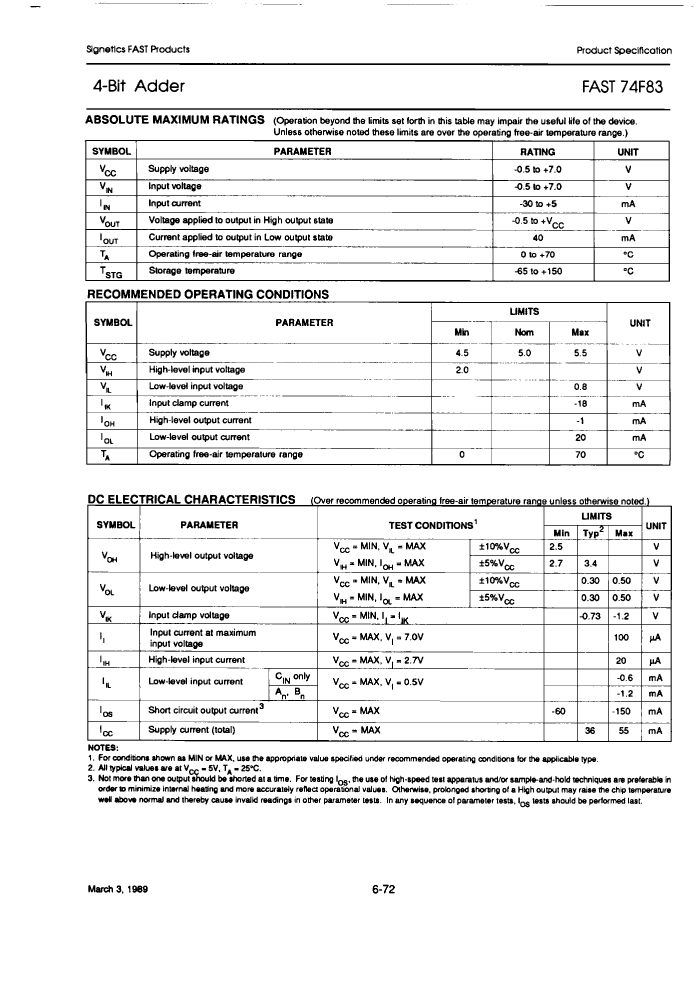

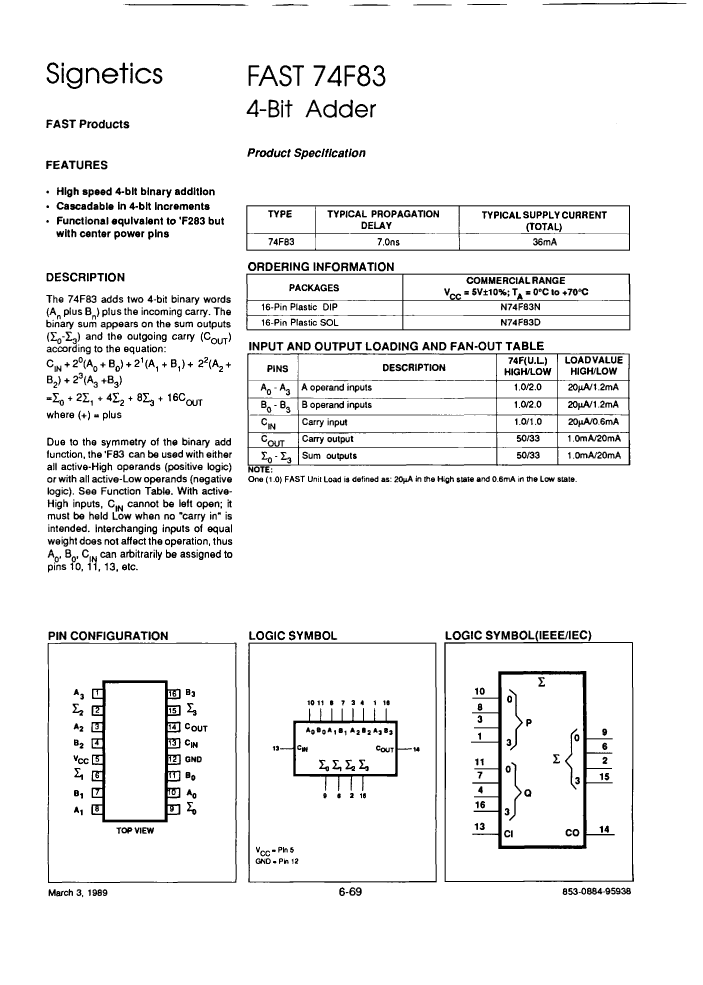

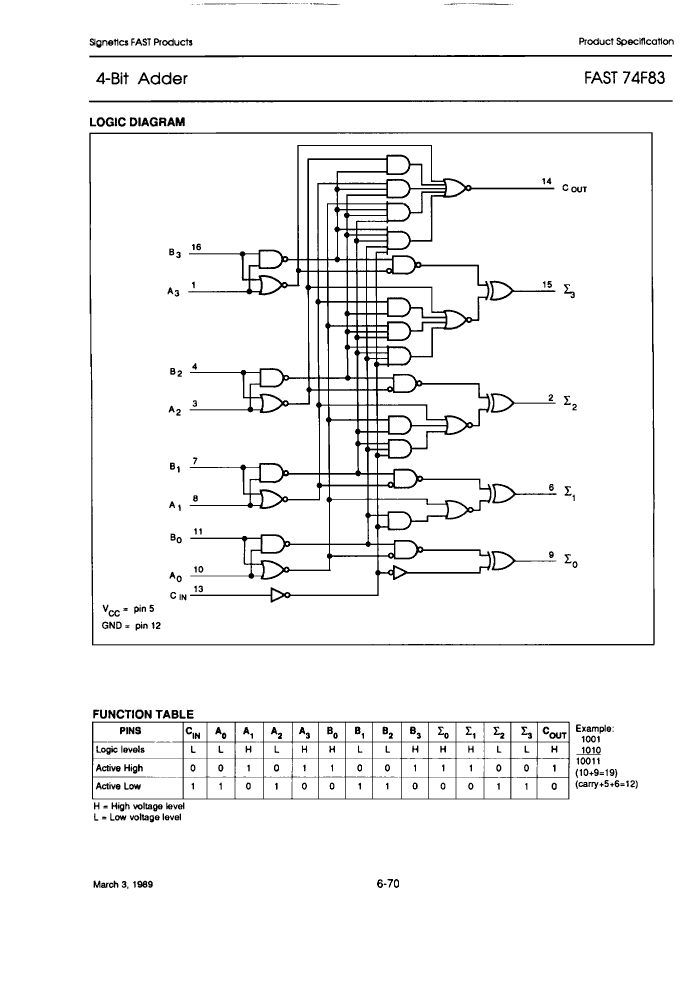

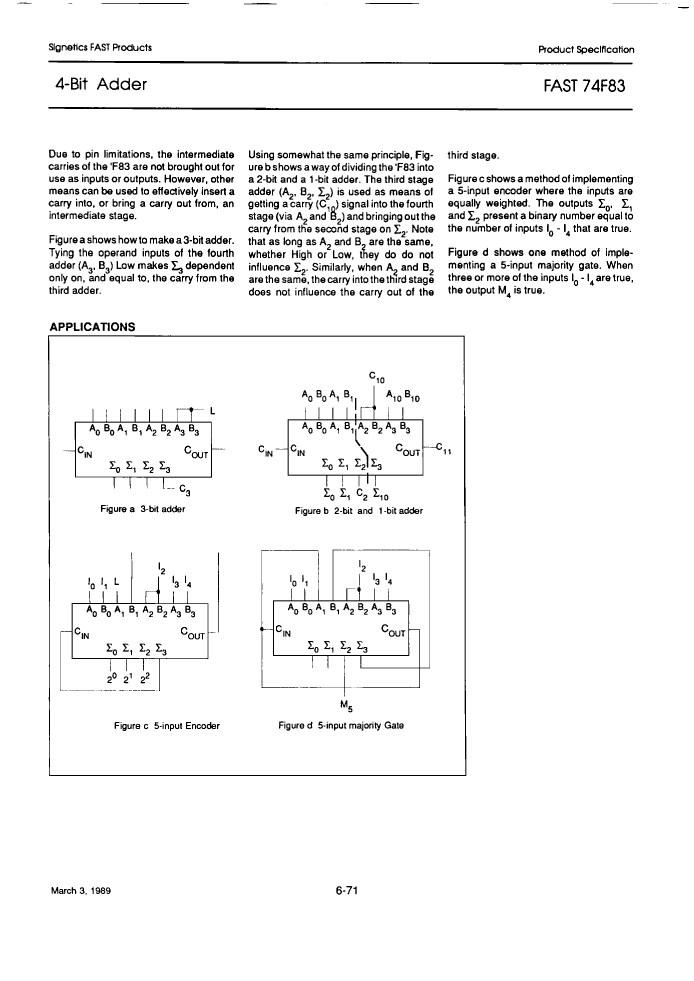

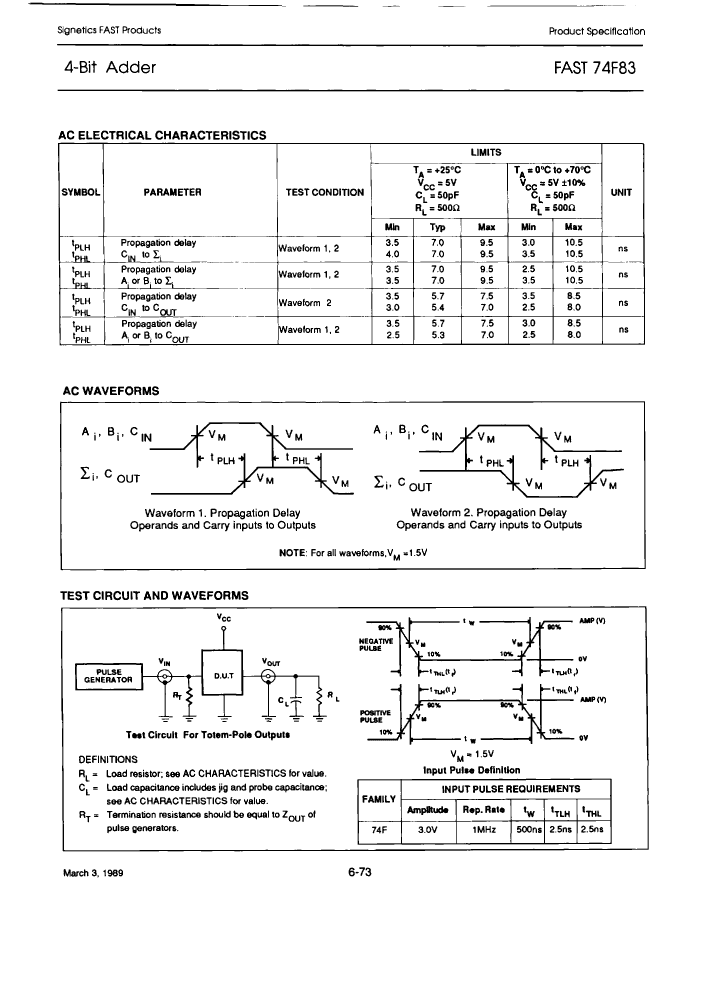

Preview

Download Datasheet

View All

74F83D-T Related Products

	74F83D-T	N74F83D-T	74F83N	N74F83N	N74F83D	74F83D
Description	Adder/Subtractor, F/FAST Series, 4-Bit, TTL, PDSO16	Adder/Subtractor, F/FAST Series, 4-Bit, TTL, PDSO16	Adder/Subtractor, F/FAST Series, 4-Bit, TTL, PDIP16	Adder/Subtractor, F/FAST Series, 4-Bit, TTL, PDIP16	Adder/Subtractor, F/FAST Series, 4-Bit, TTL, PDSO16	Adder/Subtractor, F/FAST Series, 4-Bit, TTL, PDSO16
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	FULL ADDER	FULL ADDER	FULL ADDER	FULL ADDER	FULL ADDER	FULL ADDER
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR
Number of digits	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Maximum supply current (ICC)	55 mA	55 mA	55 mA	55 mA	55 mA	55 mA
propagation delay (tpd)	10.5 ns	10.5 ns	10.5 ns	10.5 ns	10.5 ns	10.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	-	-
