Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, Silicon, PLASTIC, PRM2-SL, 3 PIN
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | SENSITRON |
| package instruction | R-PSSO-G2 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | HIGH RELIABILITY, FREE WHEELING DIODE |
| application | GENERAL PURPOSE |
| Shell connection | CATHODE |
| Configuration | COMMON CATHODE, 2 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JESD-30 code | R-PSSO-G2 |
| Humidity sensitivity level | 1 |
| Maximum non-repetitive peak forward current | 900 A |
| Number of components | 2 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -55 °C |
| Maximum output current | 40 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| surface mount | YES |
| technology | SCHOTTKY |
| Terminal form | GULL WING |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
• • !" •
*
" "
* "* '
* ( '" * ( "."
!

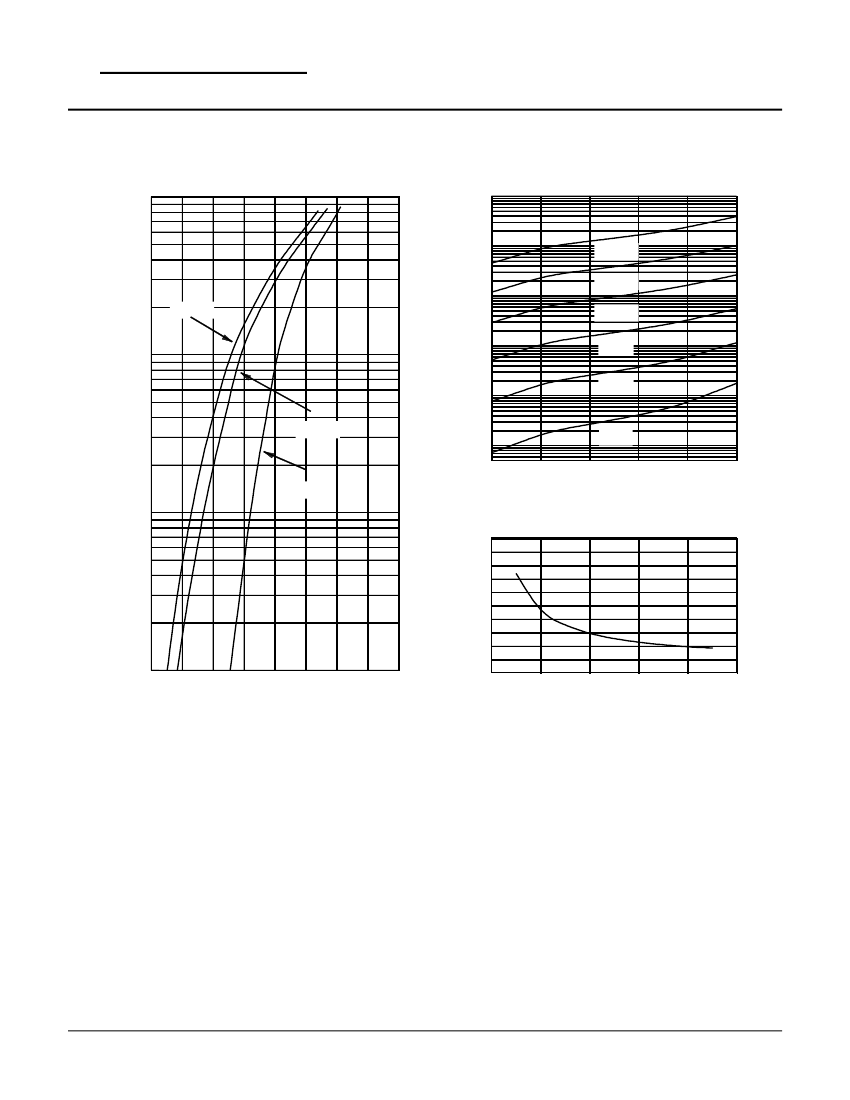

! 631
$ % &'%()*++,,,- %
-./•01%$"
$2 %
-./•
| 80CNQ035SL | 80CNQ040SL | 80CNQ040SM | 80CNQ035 | 80CNQ035SM | 80CNQ045SL | 80CNQ045SM | |
|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, Silicon, PLASTIC, PRM2-SL, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, Silicon, PLASTIC, PRM2-SL, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, Silicon, PLASTIC, PRM2-SM, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, Silicon, PLASTIC, PRM2, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, Silicon, PLASTIC, PRM2-SM, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, Silicon, PLASTIC, PRM2-SL, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 2 Element, 40A, Silicon, PLASTIC, PRM2-SM, 3 PIN |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | SENSITRON | SENSITRON | SENSITRON | SENSITRON | SENSITRON | SENSITRON | SENSITRON |
| package instruction | R-PSSO-G2 | R-PSSO-G2 | R-PSIP-T3 | R-PSFM-T3 | R-PSIP-T3 | R-PSSO-G2 | R-PSIP-T3 |
| Contacts | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | HIGH RELIABILITY, FREE WHEELING DIODE | HIGH RELIABILITY, FREE WHEELING DIODE | HIGH RELIABILITY, FREE WHEELING DIODE | HIGH RELIABILITY, FREE WHEELING DIODE | HIGH RELIABILITY, FREE WHEELING DIODE | HIGH RELIABILITY, FREE WHEELING DIODE | HIGH RELIABILITY, FREE WHEELING DIODE |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE | CATHODE |
| Configuration | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JESD-30 code | R-PSSO-G2 | R-PSSO-G2 | R-PSIP-T3 | R-PSFM-T3 | R-PSIP-T3 | R-PSSO-G2 | R-PSIP-T3 |
| Humidity sensitivity level | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum non-repetitive peak forward current | 900 A | 900 A | 900 A | 900 A | 900 A | 900 A | 900 A |
| Number of components | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 3 | 3 | 3 | 2 | 3 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Maximum output current | 40 A | 40 A | 40 A | 40 A | 40 A | 40 A | 40 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | FLANGE MOUNT | IN-LINE | SMALL OUTLINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | NO | NO | NO | YES | NO |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal form | GULL WING | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | GULL WING | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - | - |
