83CNQ100SM-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > diode> Rectifier diode> 83CNQ100SM-G

83CNQ100SM-G: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 80A, Silicon, GREEN, PLASTIC, PRM2-SM, 3 PIN; Categorydiode Rectifier diode; File Size264KB，5 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

83CNQ100SM-G Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, Silicon, GREEN, PLASTIC, PRM2-SM, 3 PIN

83CNQ100SM-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SENSITRON
package instruction	R-PSIP-T3
Contacts	3
Manufacturer packaging code	PRM2-SM
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE WHEELING DIODE, HIGH RELIABILITY
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSIP-T3
Maximum non-repetitive peak forward current	860 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	80 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

Technical Data

Data Sheet 3768, Rev. A

S-G

Green Products

0-G0-G

•

• • !" •

•

#$%&

" '

( '" ) "" * " '" " "

' "

*, "

-" * " " ' "!

* "*'

* ( '" * ( "."

Green Products in Compliance with the RoHS Directive

•

Case styles

/01...-G

PRM2

/012L-G

PRM2-SL

/012M-G

PRM2-SM

4" " ' 5 6 ''

•

!631

!"#631•

•

$ % &'%()*++,,,- %

-./•01%$"

$2 %

-./•

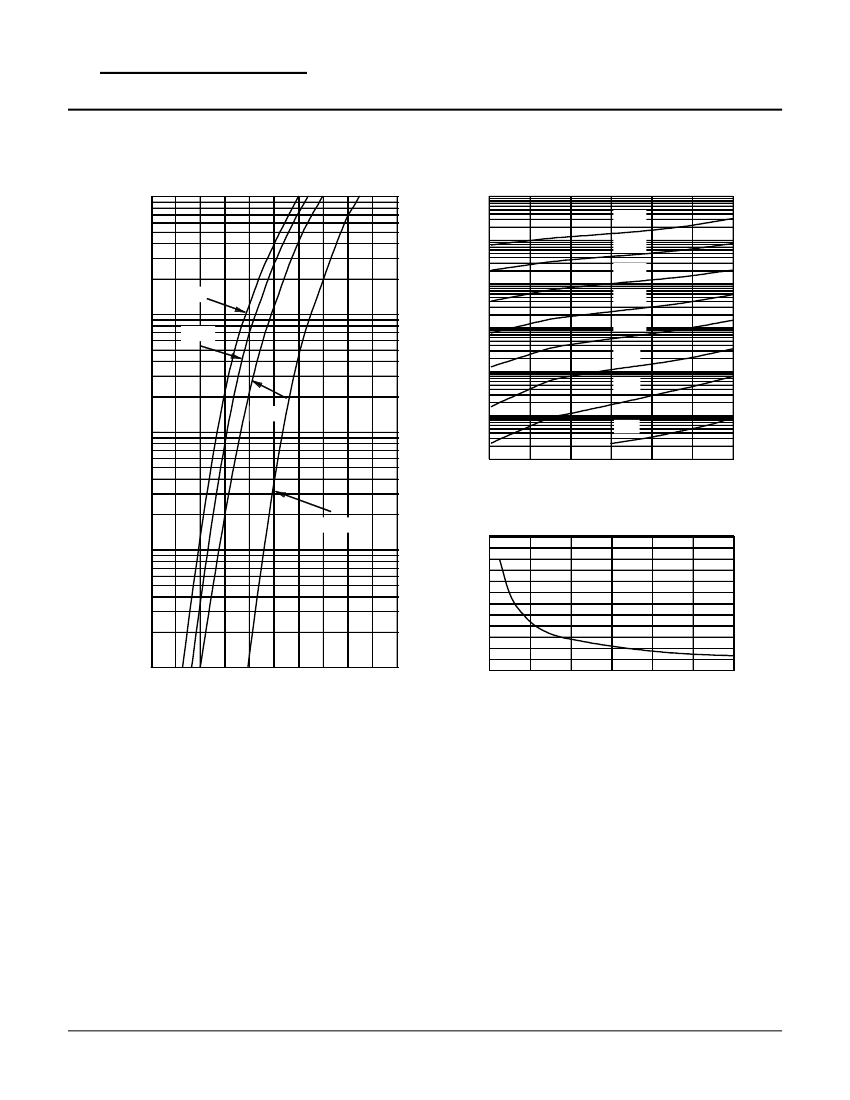

SENSITRON

SEMICONDUCTOR

Data Sheet 3768, Rev. -

S-G

Green Products

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior not ice to improve

product characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest

version of the datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,

medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by

means of users’ fail-safe precautions or other arrangement .

3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during

operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual

property claims or any other problems that may result from applications of information, products or circuits described in the datasheets.

4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from

use at a value exceeding the absolute maximum rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.

6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed writ ten permission of

Sensitron Semiconductor.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will

hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third

party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and

regulations.

•

221 West Industry Court

Deer Park, NY 11729-4681

(631) 586-7600 FAX (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•
