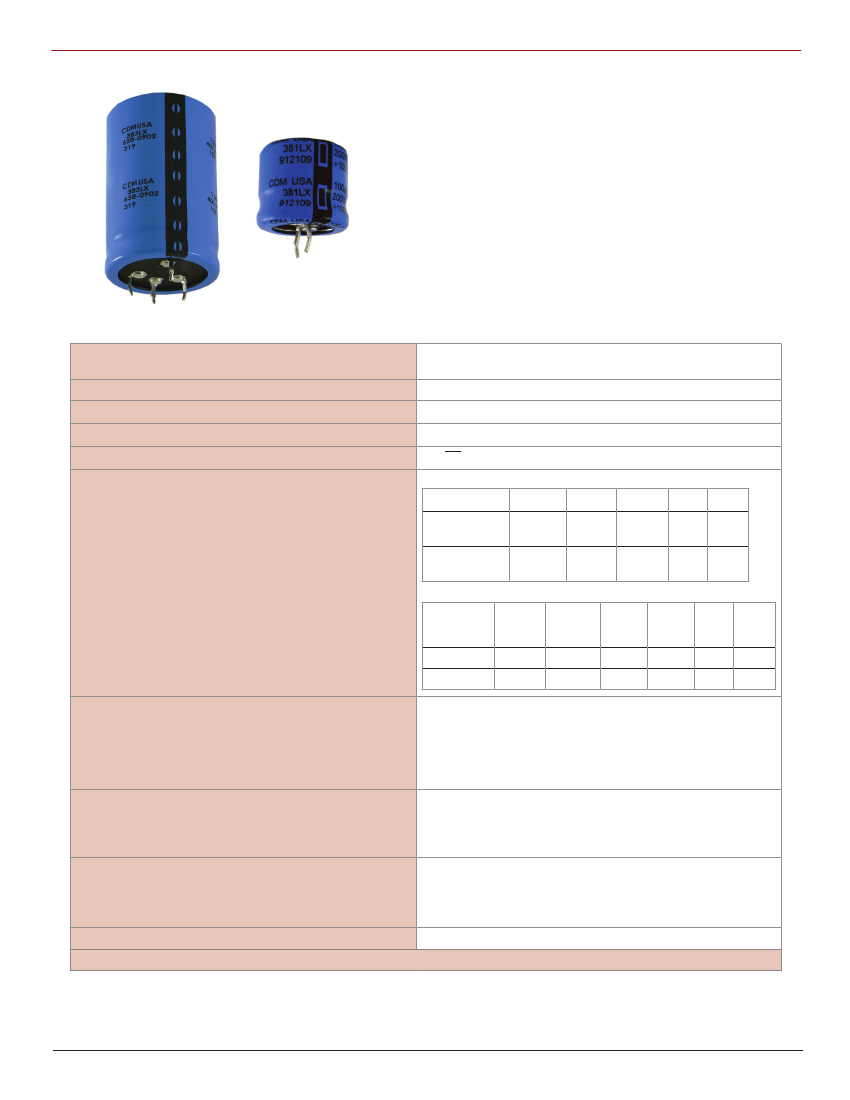

Type 381LX / 383LX 105 °C High Ripple, Snap-In Aluminum
High Ripple, Long Life, 2, 4 and 5 pin styles available
Adding longer-life and more ripple capability to the excellent
value of Type 380L/LX capacitors, the 381L/LX readily handles
tough switching power supply input and output circuits and
motor-drive bus capacitor applications where the high surface
area of multiple units in parallel equals the ripple capability of our
Type 520C inverter-grade capacitor. Type 381LX delivers more
capacitance per can size while Type 381L gives lower ESR for the
same capacitance rating. Type 383L/LX has 4 or 5 leads for stable,
reverse-proof mounting.
Highlights
- Top performance in power supplies and motor drives
- 4 times the life of Type 380L/LX
- 2, 4 and 5 leads available
- Big selection of 42 case sizes
–40 °C to + 105 °C ≤ 315 Vdc
–25 °C to + 105 °C ≥ 350 Vdc
10 Vdc to 450 Vdc
33 µF to 150,000 µF
± 20%
≤3 √CV µA, 4 mA max, 5 minutes
Ambient Temperature
45 °C
381L
383L
381LX,
383 LX
Frequency
50 Hz
10-100 Vdc
160-450 Vdc
Low Temperature Characteristics
0.93
0.75
60 Hz
0.95
0.80
120 Hz
1.00
1.00
500 Hz
1.05
1.20
1 kHz
1.08
1.25
5 kHz
& up
1.15
1.40
2.70
2.35
60 °C
2.60
2.20
70 °C
2.50
2.00
85 °C 105°C
2.10
1.70
1.00
1.00
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
Impedance ratio: Z
–20⁰C
∕ Z
+25⁰C
≤ 10 (10 Vdc)
≤ 8 (16–50 Vdc)
≤ 4 (63–100 Vdc)
≤ 3 (150–450 Vdc)
3000 h at full load at 105 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
1000 h at 105 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
10 to 55 Hz, 0.06” and 10 g max, 2 h each plane
RoHS Compliant
Endurance Life Test
Shelf Life Test
Vibration
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 381LX / 383LX 105 °C High Ripple, Snap-In Aluminum
High Ripple, Long Life, 2,4 and 5 pin styles available
383LX
272
M
200
N08
Case
Type
381L / LX
(2 pins)
Cap
Tolerance
Voltage
200
= 200 Vdc
Code
Insulation
2
= PVC
# of pins
Blank
= 2 pins / 4 pins snap-in 6.3mm L
A
= 2 pins / 4 pins snap-in 4.0mm L
VS
= 5 pins snap-in 6.3mm L
V
= 5 pins standoff
100
= 10 µF
M =
±20%
272
= 2700 µF
2
V
+D
Blank =
no end disk if <250 V
D =
end disk, any voltage
383L / LX
(4 or 5 pins)
101
= 100 µF

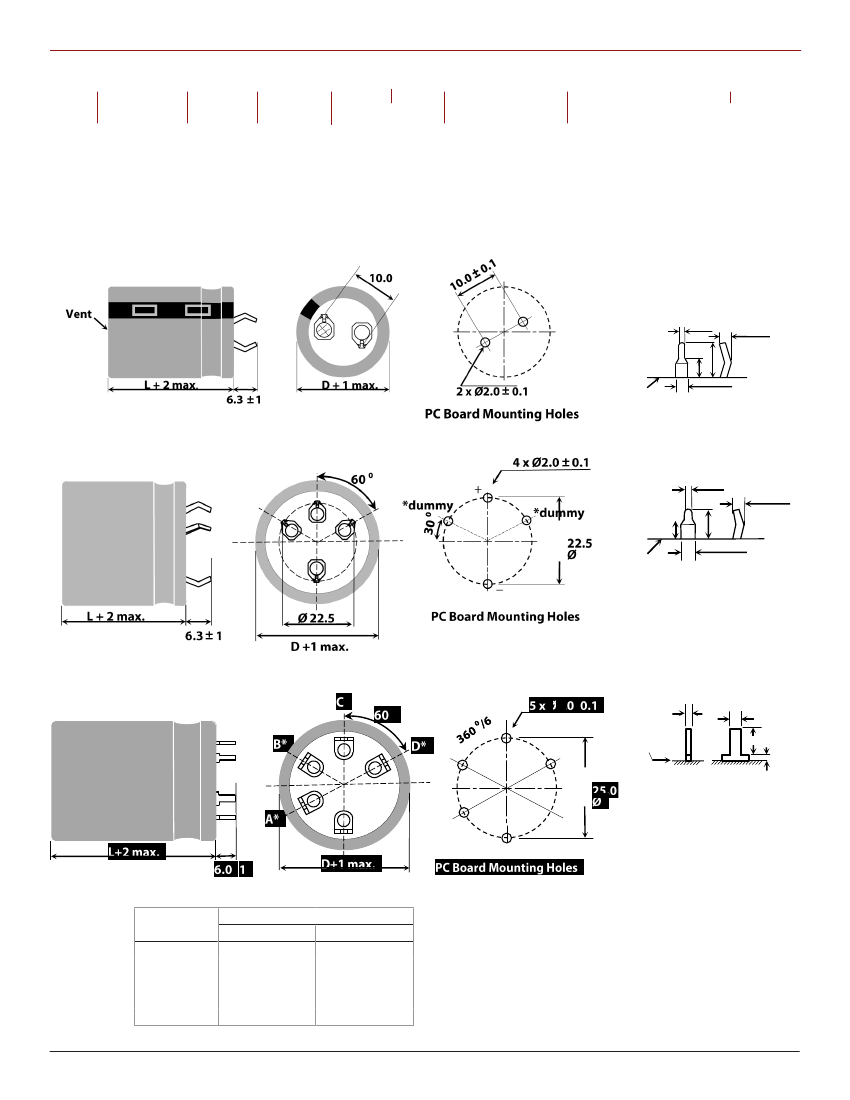

Outline Drawings
Two Pins
381L/LX (22 through 40 mm diameter)
Available in 2, 4 and 5 pins
+0.2
0.8 -0.1
6.3 1
2.0max.
4.0
Top of
Capacitor
Body
1.5 0.2
Four Pins
383L/LX (35 and 40 mm diameter)
6.3 mm pin length
Available in 2 and 4 pins
+0.2
0.8 -0.1
2.0max.
4.0
1.5 0.2
0.7
3.5
Top of
Capacitor
Body
4.0 mm pin length
option (add “A” to end
of part#)
Five Pins
383L/LX (40 and 50 mm diameter)
Available in 5 pins
1.5 0.1
3.75 0.1
Top of
Capacitor
Body
0.6 min.
5 pin Standoff pin
style (add “V” to end
of part#)
Note that for 200 volts and under the insulating end disc is optional - If one is needed add a (+D) to the end of the part numbering system.
Connection
Terminal
A
B
C
D
–
40 mm Dia.
dummy
dummy
positive (+)
dummy
negative (–)
50 mm Dia.
negative (–)
dummy
positive (+)
positive (+)
negative (–)
Notes:
* Use dummy terminals for mechanical support only. Make no
electrical connection because they resistively connect through
the electrolyte to the negative terminal.
** Safety Vent may be on the bottom or on the side of the can.
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 381LX / 383LX 105 °C High Ripple, Snap-In Aluminum
High Ripple, Long Life, 2,4 and 5 pin styles available
LENGTH
DIAMETER “D”
“L”
Case Code mm inches
mm inches
H20
H01
H02
H03
H04
H45
H05
J20
J01
J02
J03
J04
J045
J05
K20
K01
K02
K03
K04
K45
K05
22
22
22
22
22
22
22
25
25
25
25
25
25
25
30
30
30
30
30
30
30
0.87
0.87
0.87
0.87
0.87
0.87
0.87
0.98
0.98
0.98
0.98
0.98
0.98
0.98
1.18
1.18
1.18
1.18
1.18
1.18
1.18
20
25
30
35
40
45
50
20
25
30
35
40
45
50
20
25
30
35
40
45
50
0.79
0.98
1.18
1.38
1.57
1.77
1.97
0.79
0.98
1.18
1.38
1.57
1.77
1.97
0.79
0.98
1.18
1.38
1.57
1.77
1.97
Typical
Weight
(grams)
14
16
19
22
24
28
31
16
20
24
27
31
35
38
25
30
35
40
44
48
53
Typical
Weight
(grams)
35
42
48
54
62
67
74
80
88
98
112
144
82
105
130
185
265
136
168
239
241
325
DIAMETER “D” LENGTH “L”
Case Code mm inches
mm inches
A20
A01
A02
A03
A04
A45
A05
A55
A06
A07
A08
A10
N04
N05
N06
N08
N10
B05
B06
B08
B09
B10
35
35
35
35
35
35
35
35
35
35
35
35
40
40
40
40
40
50
50
50
50
50
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.57
1.57
1.57
1.57
1.57
1.97
1.97
1.97
1.97
1.97
20
25
30
35
40
45
50
55
63
70
80
105
40
50
63
80
105
50
63
80
92
105
0.79
0.98
1.18
1.38
1.57
1.77
1.97
2.17
2.48
2.76
3.15
4.13
1.57
1.97
2.48
3.15
4.13
1.97
2.48
3.15
3.62
4.13
Typical Performance Curves
60
50
Life Test Data 381LX680M450J022 Capacitance, DF, Leakage Current
140
120
100
60
50
Life Test Data 381LX221M250J012 Capacitance, DF, Leakage Current
200
180
160
140
120
100
80
Δ Capacitance and DF (%)
40
30
20
10
0
30
20
10
0
60
DF
C
40
20
0
DF
C
60
40
20
0
1500
2000
-10
0
Hours @ Rated Max Temp, Voltage, Ripple
500
1000
1500
2000
-10
0
Hours @ Rated Max Temp, Voltage, Ripple
500
1000
1000
Type 381L/LX Operating Life in Kilohours vs Ripple Current
45 ºC
55 ºC
Expected Operating Life, kh
100
65 ºC
75 ºC
85 ºC
95 ºC
10
105 ºC
1
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
1.5
Rated Ripple-Current Multiple
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
DCL (uA)
DCL (µA)
DCL
80
Δ Capacitance and DF (%)
DCL (µA)
DCL (µA)
40
DCL
Type 381LX / 383LX 105 °C High Ripple, Snap-In Aluminum
High Ripple, Long Life, 2,4 and 5 pin styles available
Ratings
Cap.
µF Catalog Part Number 120 Hz 20 kHz 120 Hz 20 kHz D x L (mm)
10 Vdc (13 Vdc Surge)
4700
6800
10000
12000
15000
15000
18000
18000
22000
22000
22000
27000
27000
27000
27000
33000
33000
33000
39000
39000
39000
47000
47000
56000
56000
68000
68000
82000
82000
100000
120000
120000
150000
3300
3300
4700
4700
6800
6800
8200
10000
10000
10000
381LX472M010H012
381LX682M010H012
381LX103M010H012
381LX123M010H022
381LX153M010H032
381LX153M010J012
381LX183M010H042
381LX183M010J022
381LX223M010H452
381LX223M010J032
381LX223M010K012
381LX273M010H052
381LX273M010J042
381LX273M010K022
381LX273M010A012
381LX333M010J452
381LX333M010K032
381LX333M010A022
381LX393M010J052
381LX393M010K042
381LX393M010A022
381LX473M010K452
381LX473M010A032
381LX563M010K052
381LX563M010A042
381LX683M010A052
383LX683M010N042
381L823M010A062
383LX823M010N052
381L104M010A072
381L124M010A082
383L124M010N062
383L154M010N082
381LX332M016H202
381LX332M016H012
381LX472M016H012
381LX472M016J202
381LX682M016H012
381LX682M016K202
381LX822M016H022
381LX103M016H022
381LX103M016J012
381LX103M016A202
0.159
0.111
0.075
0.061
0.055
0.055
0.044
0.044
0.040
0.040
0.040
0.033
0.033
0.033
0.033
0.030
0.030
0.030
0.025
0.025
0.025
0.023
0.023
0.022
0.022
0.021
0.023
0.013
0.018
0.011
0.010
0.012
0.009
0.216
0.176
0.123
0.150
0.088
0.105
0.070
0.120
0.120
0.120
0.135
0.093
0.063
0.053
0.045
0.045
0.038
0.038
0.032
0.032
0.032
0.028
0.028
0.028
0.028
0.023
0.023
0.023
0.020
0.020
0.020
0.020
0.020
0.019
0.019
0.020
0.022
0.008
0.017
0.007
0.006
0.008
0.006
0.170
0.141
0.099
0.120
0.067
0.080
0.055
0.086
0.086
0.086
.85
1.30
1.80
2.20
2.30
2.30
2.40
2.40
2.60
2.60
2.60
3.10
3.10
3.10
3.10
3.40
3.40
3.40
3.70
3.70
3.70
4.20
4.20
5.00
5.00
5.50
5.40
6.30
7.40
7.30
8.20
7.10
8.90
1.30
1.30
1.52
1.60
2.20
1.80
2.40
2.60
2.60
2.40
.98
1.50
2.10
2.50
2.60
2.60
2.80
2.80
3.00
3.00
3.00
3.60
3.60
3.60
3.60
3.90
3.90
3.90
4.30
4.30
4.30
4.80
4.80
5.80
5.80
6.30
6.20
7.90
8.50
9.00
10.00
8.60
10.60
1.50
1.50
1.75
1.80
2.50
2.10
2.80
3.00
3.00
2.80
22 x 25
22 x 25
22 x 25
22 x 30
22 x 35
25 x 25
22 x 40
25 x 30
22 x 45
25 x 35
30 x 25
22 x 50
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 50
40 x 40
35 x 63
40 x 50
35 x 70
35 x 80
40 x 63
40 x 80
22 x 20
22 x 25
22 x 25
25 x 20
22 x 25
30 x 20
22 x 30
22 x 30
25 x 25
35 x 20
2200
2200
3300
3300
4700
4700
5600
Max ESR
Ω
@ 25 °C
Ripple Amps Nominal
Max @ 105 °C
Size
Max ESR
Ω
@ 25 °C
12000
12000
12000
15000
15000
15000
18000
18000
18000
18000
22000
22000
22000
27000
27000
27000
33000
33000
39000
39000
47000
47000
56000
68000
68000
68000
82000
82000
100000
120000
120000
120000
150000
150000
180000
220000
250000
381LX123M016H032
381LX123M016J022
381LX123M016K012
381LX153M016H042
381LX153M016J032
381LX153M016K022
381LX183M016H452
381LX183M016J042
381LX183M016K022
381LX183M016A012
381LX223M016J452
381LX223M016K032
381LX223M016A022
381LX273M016J052
381LX273M016K042
381LX273M016A022
381LX333M016K452
381LX333M016A032
381LX393M016K052
381LX393M016A042
381LX473M016A452
383LX473M016N042
381LX563M016A052
381LX683M016A062
381L683M016A072
383LX683M016N052
381L823M016A082
383LX823M016N062
381LX104M016A082
381LX124M016A102
383LX124M016N082
383LX124M016B052V
383LX154M016N102
383LX154M016B062V
383LX184M016B082V
383LX224M016B092V
383LX254M016B102V
381LX222M025H202
381LX222M025H012
381LX332M025H012
381LX332M025J202
381LX472M025H012
381LX472M025K202
381LX562M025H022
0.055
0.055
0.055
0.080
0.080
0.080
0.040
0.040
0.040
0.040
0.033
0.033
0.033
0.045
0.030
0.030
0.023
0.023
0.022
0.022
0.020
0.020
0.019
0.017
0.012
0.015
0.010
0.017
0.015
0.014
0.014
0.015
0.013
0.014
0.013
0.012
0.011
0.240
0.240
0.160
0.160
0.105
0.110
0.090
0.044
0.044
0.044
0.064
0.064
0.064
0.034
0.034
0.034
0.034
0.028
0.028
0.028
0.034
0.025
0.025
0.020
0.020
0.020
0.020
0.018
0.018
0.017
0.015
0.007
0.014
0.007
0.013
0.013
0.012
0.012
0.014
0.012
0.013
0.012
0.011
0.010
0.180
0.180
0.120
0.120
0.080
0.085
0.070
Ripple Amps Nominal
Max @ 105 °C
Size
2.90
2.90
2.90
3.20
3.20
3.20
3.50
3.50
3.50
3.50
3.80
3.80
3.80
4.20
4.20
4.20
4.70
4.70
5.10
5.10
5.50
5.50
6.00
6.60
7.10
7.30
8.00
7.70
8.00
8.71
8.80
9.02
9.88
10.15
11.02
11.71
12.31
1.30
1.30
1.60
1.60
2.00
1.80
2.20
3.30
3.30
3.30
3.70
3.70
3.70
4.00
4.00
4.00
4.00
4.40
4.40
4.40
4.80
4.80
4.80
5.40
5.40
5.90
5.90
6.30
6.33
6.90
7.60
9.00
8.40
10.00
8.80
9.20
10.02
10.10
10.37
11.36
11.67
12.67
13.47
14.16
1.50
1.50
1.80
1.80
2.30
2.10
2.50
22 x 35
25 x 30
30 x 25
22 x 40
25 x 35
30 x 30
22 x 45
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
40 x 40
35 x 50
35 x 63
35 x 70
40 x 50
35 x 80
40 x 63
35 x 80
35 x 105
40 x 80
50 x 50
40 x 105
50 x 63
50 x 80
50 x 92
50 x 105
22 x 20
22 x 25
25 x 20
25 x 20
22 x 25
30 x 20
22 x 30
Cap. µF Catalog Part Number 120 Hz 20 kHz 120 Hz 20 kHz D x L (mm)
16 Vdc (20 Vdc Surge)
25 Vdc (32 Vdc Surge)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 381LX / 383LX 105 °C High Ripple, Snap-In Aluminum
High Ripple, Long Life, 2,4 and 5 pin styles available
Cap.
µF Catalog Part Number 120 Hz 20 kHz 120 Hz 20 kHz D x L (mm)
6800
6800
6800
8200
8200
8200
10000
10000
10000
12000
12000
12000
12000
15000
15000
15000
18000
18000
18000
22000
22000
27000
27000
33000
33000
39000
39000
47000
47000
47000
47000
56000
56000
68000
82000
82000
82000
100000
381LX682M025H022
381LX682M025J012
381LX682M025A202
381LX822M025H032
381LX822M025J022
381LX822M025K012
381LX103M025H042
381LX103M025J032
381LX103M025K022
381LX123M025H452
381LX123M025J042
381LX123M025K022
381LX123M025A012
381LX153M025J452
381LX153M025K032
381LX153M025A022
381LX183M025J052
381LX183M025K042
381LX183M025A032
381LX223M025K452
381LX223M025A032
381LX273M025A452
383L273M025N042
381LX333M025A052
383LX333M025N042
381L393M025A062
383L393M025N052
381LX473M025A062
381L473M025A072
383LX473M025N052
383L473M025N062
381L563M025A082
383LX563M025N062
383L683M025N082
381LX823M025A102
383LX823M025N082
383LX823M025B052V
383LX104M025N102
0.070
0.070
0.080
0.060
0.060
0.060
0.103
0.103
0.103
0.044
0.044
0.044
0.044
0.069
0.069
0.069
0.057
0.057
0.057
0.025
0.025
0.038
0.020
0.018
0.018
0.014
0.015
0.017
0.012
0.015
0.012
0.010
0.015
0.009
0.013
0.014
0.016
0.012
0.015
0.013
0.012
0.010
0.287
0.287
0.055
0.055
0.060
0.045
0.045
0.045
0.082
0.082
0.082
0.033
0.033
0.033
0.033
0.059
0.059
0.059
0.049
0.049
0.049
0.022
0.022
0.034
0.013
0.016
0.016
0.009
0.010
0.015
0.008
0.014
0.008
0.007
0.012
0.007
0.012
0.011
0.015
0.010
0.013
0.012
0.011
0.009
0.216
0.216
2.40
2.40
2.30
2.70
2.70
2.70
3.00
3.00
3.00
3.20
3.20
3.20
3.20
3.60
3.60
3.60
3.90
3.90
3.90
4.30
4.30
4.80
4.60
5.50
5.50
6.10
5.80
6.50
7.10
6.50
6.90
7.90
7.20
8.70
8.58
8.70
9.20
9.76
10.02
10.93
11.70
12.42
1.10
1.10
2.80
2.80
2.60
3.10
3.10
3.10
3.50
3.50
3.50
3.68
3.70
3.70
3.70
4.10
4.10
4.10
4.50
4.50
4.50
4.90
4.90
5.50
5.60
6.30
6.33
7.60
7.00
7.50
8.70
7.40
8.30
9.70
8.25
10.20
9.87
10.00
10.58
11.22
11.52
12.57
13.46
14.28
1.30
1.30
22 x 30
25 x 25
35 x 20
22 x 35
25 x 30
30 x 25
22 x 40
25 x 35
30 x 30
22 x 45
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 35
30 x 45
35 x 35
35 x 45
40 x 40
35 x 50
40 x 40
35 x 63
40 x 50
35 x 63
35 x 70
40 x 50
40 x 63
35 x 80
40 x 63
40 x 80
35 x 105
40 x 80
50 x 50
40 x 105
50 x 63
50 x 80
50 x 92
50 x 105
22 x 20
22 x 25
Max ESR
Ω
@ 25 °C
Ripple Amps Nominal
Max @ 105 °C
Size
Cap.
µF
2200
2200
3300
3300
3900
4700
4700
4700
5600
5600
5600
6800
6800
6800
8200
8200
8200
8200
10000
10000
10000
12000
12000
12000
15000
15000
18000
22000
22000
27000
27000
33000
33000
39000
47000
47000
47000
56000
68000
68000
82000
100000
1000
1000
Max ESR
Ω
@ 25 °C
381LX222M035H012
381LX222M035J202
381LX332M035H012
381LX332M035K202
381LX392M035H022
381LX472M035H032
381LX472M035J012
381LX472M035A202
381LX562M035H032
381LX562M035J022
381LX562M035K012
381LX682M035H042
381LX682M035J032
381LX682M035K022
381LX822M035H052
381LX822M035J042
381LX822M035K022
381LX822M035A012
381LX103M035J452
381LX103M035K032
381LX103M035A022
381LX123M035J052
381LX123M035K042
381LX123M035A022
381LX153M035K452
381LX153M035A032
381LX183M035A042
381LX223M035A052
383LX223M035N042
381LX273M035A062
383LX273M035N052
381L333M035A072
383L333M035N062
381LX393M035A082
381LX473M035A102
383L473M035N082
383LX473M035B052V
383LX563M035B062V
383LX683M035N102
383LX683M035B082V
383LX823M035B092V
383LX104M035B102V
381LX102M050H202
381LX102M050H012
0.200
0.200
0.121
0.130
0.110
0.090
0.090
0.095
0.071
0.071
0.071
0.088
0.088
0.088
0.049
0.049
0.049
0.049
0.040
0.040
0.040
0.05
0.05
0.05
0.030
0.030
0.030
0.023
0.023
0.025
0.020
0.014
0.019
0.019
0.017
0.018
0.021
0.019
0.016
0.017
0.015
0.013
0.260
0.230
0.150
0.150
0.091
0.100
0.080
0.070
0.070
0.070
0.054
0.054
0.054
0.067
0.067
0.067
0.037
0.037
0.037
0.037
0.030
0.030
0.030
0.038
0.038
0.038
0.020
0.020
0.021
0.017
0.017
0.018
0.015
0.009
0.014
0.014
0.013
0.013
0.016
0.014
0.012
0.013
0.011
0.010
0.200
0.170
Ripple Amps Nominal
Max @ 105 °C
Size
1.40
1.40
1.90
1.70
2.00
2.20
2.20
2.00
2.40
2.40
2.40
2.60
2.60
2.60
2.90
2.90
2.90
2.90
3.20
3.20
3.20
3.50
3.50
3.50
3.90
3.90
4.30
5.00
5.00
5.50
5.45
6.40
6.60
6.50
8.07
7.80
8.25
9.07
9.27
10.07
10.89
11.75
.90
.90
1.60
1.60
2.20
2.00
2.30
2.50
2.50
2.30
2.80
2.80
2.80
3.00
3.00
3.00
3.30
3.30
3.30
3.30
3.70
3.70
3.70
4.00
4.00
4.00
4.50
4.50
4.90
5.80
5.75
6.40
6.25
8.10
7.60
7.50
9.28
9.00
9.49
10.43
10.66
11.58
12.52
13.51
1.00
1.00
22 x 25
25 x 20
22 x 25
30 x 20
22 x 30
22 x 35
25 x 25
35 x 20
22 x 35
25 x 30
30 x 25
22 x 40
25 x 35
30 x 30
22 x 50
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
35 x 40
35 x 50
40 x 40
35 x 63
40 x 50
35 x 70
40 x 63
35 x 80
35 x 105
40 x 80
50 x 50
50 x 63
40 x 105
50 x 80
50 x 92
50 x 105
22 x 20
22 x 20
Catalog Part Number 120 Hz 20 kHz 120 Hz 20 kHz D x L (mm)
100000 383LX104M025B062V
120000 383LX124M025B082V
150000 383LX154M025B092V
180000 383LX184M025B102V
1500
1500
381LX152M035H202
381LX152M035H012
35 Vdc (44 Vdc Surge)
50 Vdc (63 Vdc Surge)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Analog electronics
京公网安备 11010802033920号
EEWORLD
