7022-1502-000: DescriptionRF Connector Adapter, SSMC-SSMB, Panel Mount, Cable Mount, Male-Male, Jack; CategoryThe connector Rf adapter; File Size86KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric Compare View All

7022-1502-000 Overview

RF Connector Adapter, SSMC-SSMB, Panel Mount, Cable Mount, Male-Male, Jack

7022-1502-000 Parametric

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
Factory Lead Time	6 weeks 1 day
Is Samacsys	N
Adapter type	SSMC-SSMB
Other features	INSERTION LOSS MAX AT 1.5 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact completed and terminated	GOLD
Contact point gender	MALE-MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	7022-1502-000
Installation type	CABLE
Maximum operating frequency	12.4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Base Number Matches	1

Preview

Download Datasheet

View All

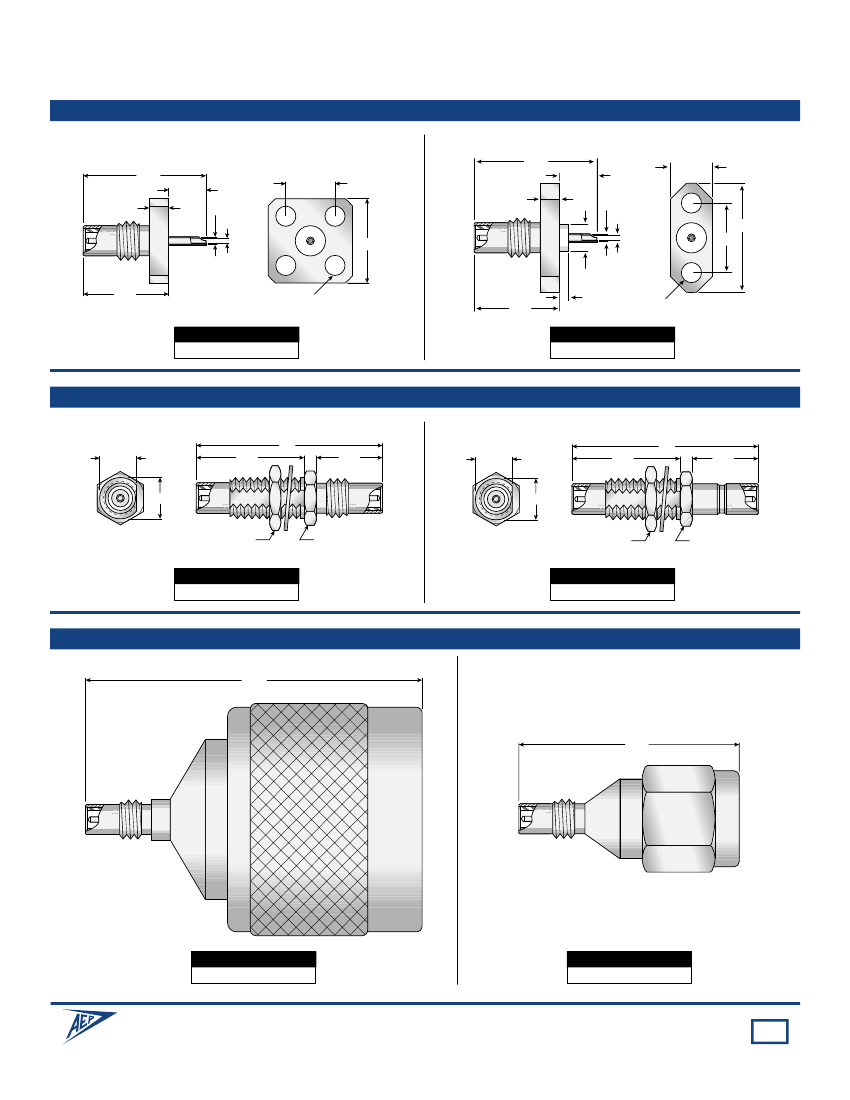

SSMC Receptacles and Adapters

Straight Panel Jack Receptacle

(Stainless steel bodies)

4-hole ﬂange

.500

.125

.065

.026 dia.

.281 sq.

.017 dia.

.080 dia.

.375

.067 dia. (typ.)

.375

.035

.067 dia. (typ.)

.017 dia.

.500

.125

.065

.026 dia.

.362

.232

2-hole ﬂange

.140

.164 (typ.)

AEP P/N

7198-1513-000

AEP P/N

7199-1513-000

Bulkhead Mounted Adapters

SSMC jack to SSMC jack

.62

.126

§

.360

.220

.126

§

.360

SSMC jack to SSMB jack

.62

.200

.140 dia.

§

§ Recommended

mounting hole size,

tolerance +.003, -.000

.140 dia.

§

Hex 5/32 A. F.

§ Recommended

mounting hole size,

tolerance +.003, -.000

Hex 3/16 A. F.

Hex 5/32 A. F.

AEP P/N

7122-1502-000

AEP P/N

7022-1502-000

Adapters Between Series

N plug to SSMC jack

1.22

SMA plug to SSMC jack

.78

AEP P/N

5013-1503-000

AEP P/N

5938-1503-000

APPLIED ENGINEERING PRODUCTS

(203) 776-2813 • FAX (203) 776-8294

www.aepconnectors.com • aepsales@aepconnectors.com

27

7022-1502-000 Related Products

	7022-1502-000	12DA-24S09N	7199-1513-000	5013-1503-000
Description	RF Connector Adapter, SSMC-SSMB, Panel Mount, Cable Mount, Male-Male, Jack	DC-DC Converter	RF SSMC Connector, Male, Panel Mount, Solder Terminal, Receptacle	RF Connector Adapter, N-SSMC, Male-Female, Plug-jack
Maker	Radiall	-	Radiall	Radiall
Reach Compliance Code	unknown	-	unknown	unknown
Other features	INSERTION LOSS MAX AT 1.5 GHZ	-	STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 1.5 GHZ	INSERTION LOSS MAX AT 1.5 GHZ
Body/casing type	JACK	-	RECEPTACLE	PLUG-JACK
Characteristic impedance	50 Ω	-	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	-	RF SSMC CONNECTOR	RF CONNECTOR ADAPTER
Contact completed and terminated	GOLD	-	GOLD	GOLD
Contact point gender	MALE-MALE	-	MALE	MALE-FEMALE
Coupling type	SNAP	-	THREADED	SNAP-THREADED
DIN compliance	NO	-	NO	NO
Filter function	NO	-	NO	NO
IEC compliance	NO	-	NO	NO
Insertion loss	0.3 dB	-	0.3 dB	0.3 dB
insulator material	POLYTETRAFLUORO ETHYLENE	-	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	-	e4	e4
MIL compliance	NO	-	YES	NO
Manufacturer's serial number	7022-1502-000	-	SSMC	BETWEEN
Maximum operating frequency	12.4 GHz	-	12.4 GHz	12.4 GHz
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	-	YES	NO
