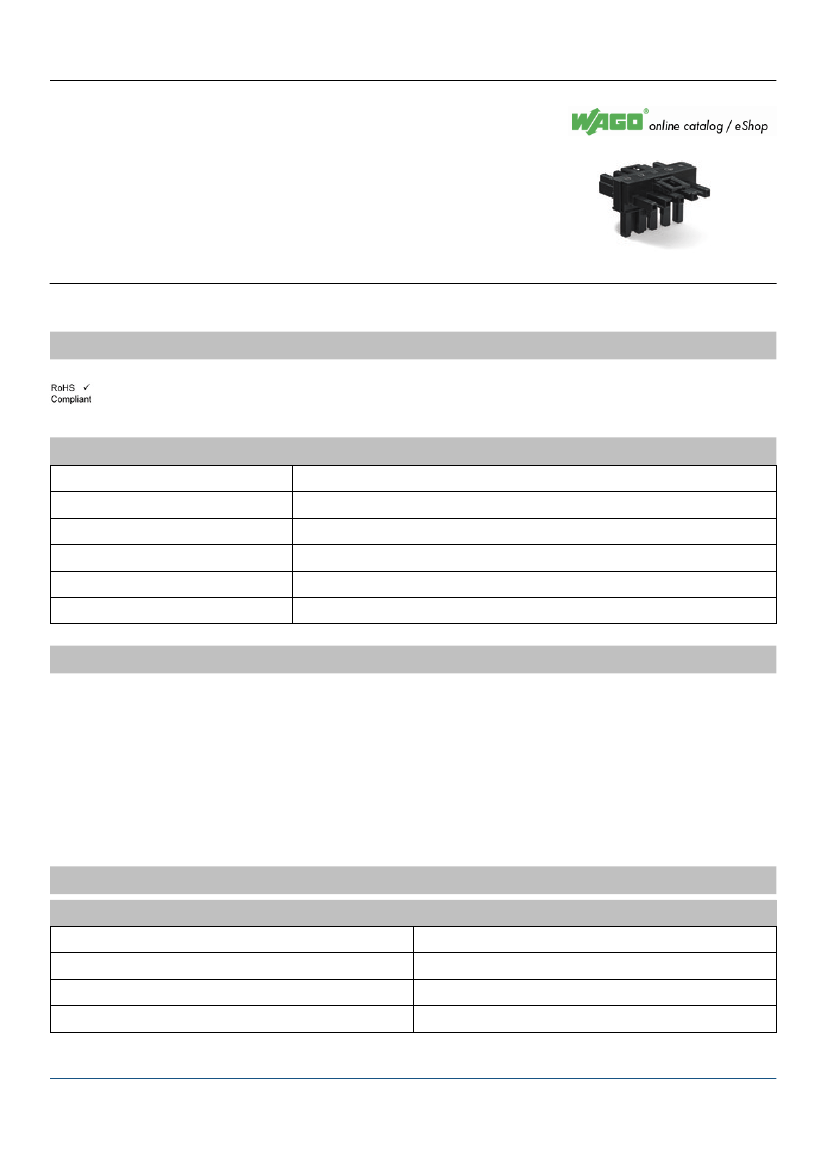

Printview: T-distribution connector; 1 x plug / 2 x socket; 5-pole; 100% protected against mismating;
pluggable - Item No.: 770-621
.
T-distribution connector; 1 x plug / 2 x socket; 5-pole; 100%
protected against mismating; pluggable
Item No.: 770-621
.
T-distribution connector; 1 x plug / 2 x socket; 5-pole; 100% protected against mismating; pluggable
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
770-621
4044918935005
1
50
Note:All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and
distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked.
Additional locking levers are only required for “flying leads” (plug/socket).All WINSTA® components are 100%
protected against mismating in terms of:a.) plugging different number of polesb.) plugging when turned by 180°c.)
plugging when laterally staggeredd.) plugging one poleNote on Continuous Service Temperature:-35 °C … +85
°CPVC cable for temperatures 70 °C (including halogen-free)Insulating parts for temperatures 105 °CMating cycles:
100, with resistive load IN = 25A, tested (4 mm2/AWG 12)
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of potentials
Potential marking
5
10 mm / 0.394 in %
5
N ⏚ L1 L2 L3
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: T-distribution connector; 1 x plug / 2 x socket; 5-pole; 100% protected against mismating;
pluggable - Item No.: 770-621
Technical data
Color
Coding
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Nominal current [A]
Mating cycles
Mating force of a plug-in connection
Unmating force of a plug-in connection
Retention force of a plug-in connection
Insulating material
Flammability rating per UL 94
Contact material
Processing temperature
Fire load [MJ]
Weight [g]
Width
Height
Length
Marking
black
A
400 [V]
6 [kV]
25 [A]
200, without resistive load
approx. 20 … 70 N (depending on pole number)
when unlocked: approx. 20 … 70 N (depending on pole
number)
when locked: > 80N
Polyamide 66 (PA 66)
V0
Copper or copper alloy, surface-treated
-5°C ... +40°C
0.425 [MJ]
25.4 [g]
54 mm / 2.126 in
35.9 mm / 1.413 in
48.9 mm / 1.925 in
N ⏚ L1 L2 L3
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: T-distribution connector; 1 x plug / 2 x socket; 5-pole; 100% protected against mismating;
pluggable - Item No.: 770-621

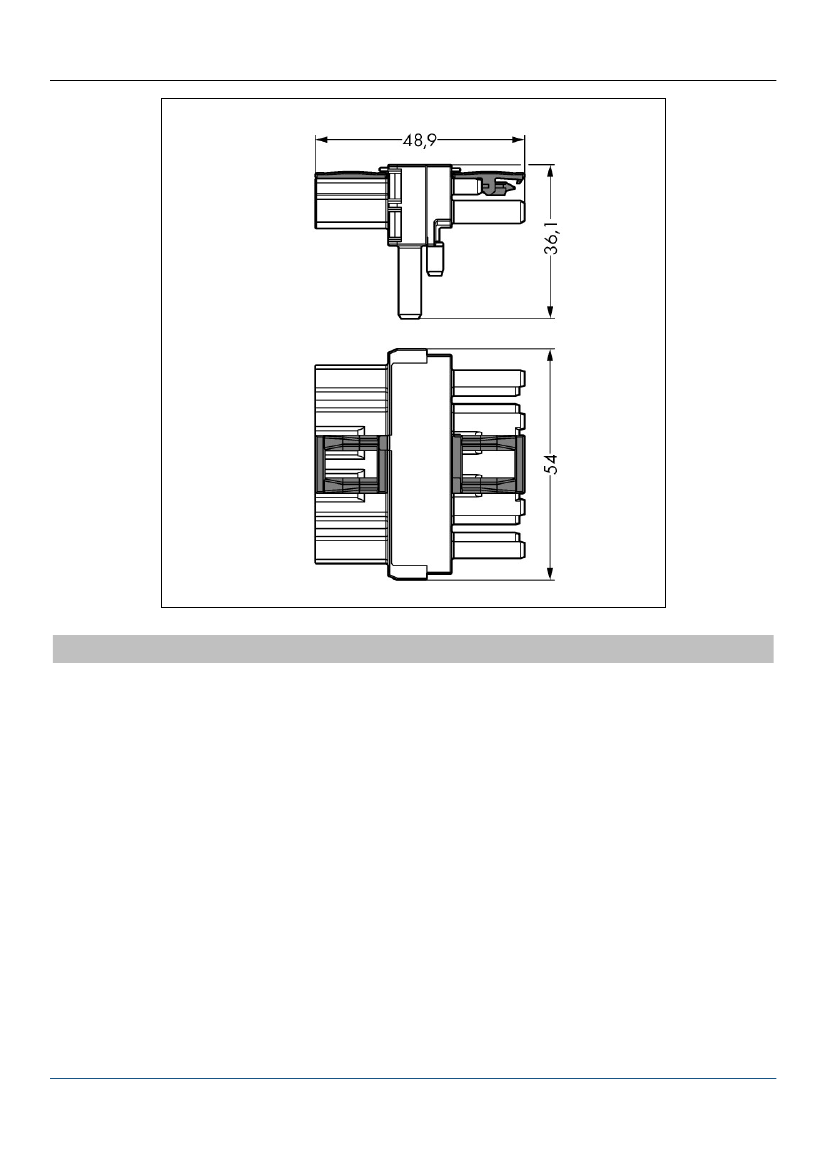

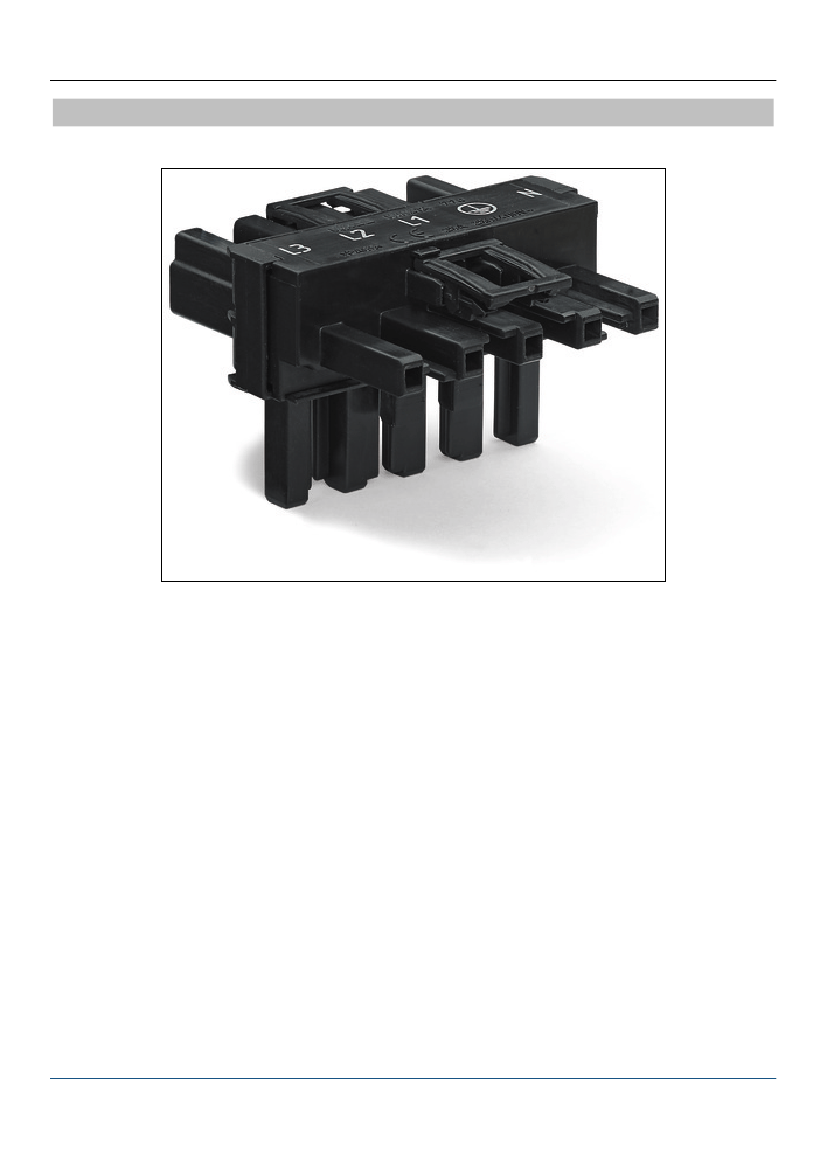

Images & drawings
