84140-3: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,50 CONTACTS,SKT,0.08 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector; File Size50KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

84140-3 Overview

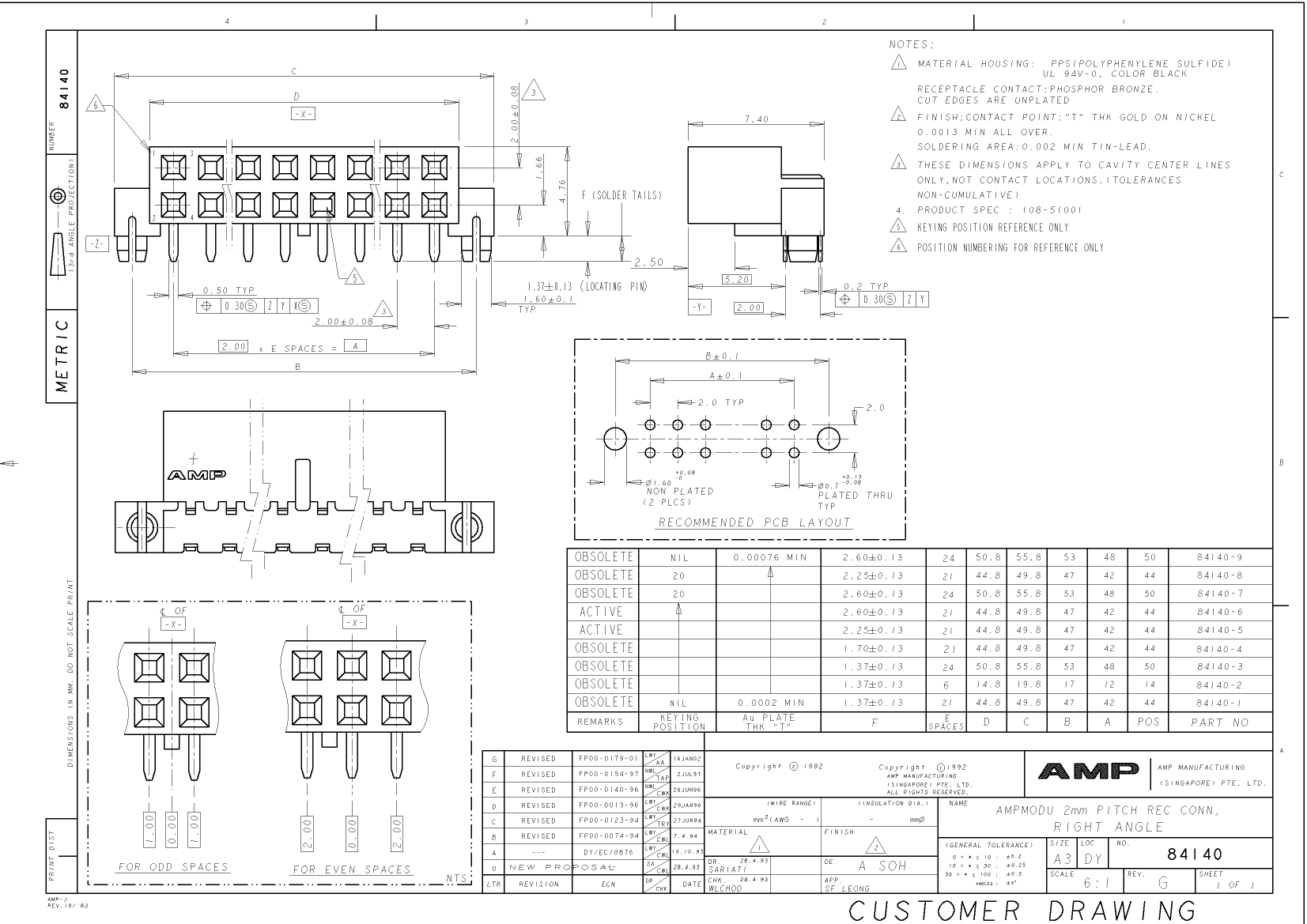

HEADER CONNECTOR,PCB MNT,PLUG,50 CONTACTS,SKT,0.08 PITCH,PC TAIL TERMINAL,BLACK

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
Board mount options	SPLIT BOARD LOCK
body width	0.187 inch
subject depth	0.29 inch
body length	2.197 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	650VAC V
Durability	50 Cycles
maximum insertion force	1.668 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	84140
Plug contact pitch	0.08 inch
Match contact row spacing	0.08 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.032 mm
Plating thickness	20u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.054 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	50
Evacuation force-minimum value	.1946 N
Base Number Matches	1
