REVISION V
DO NOT
SCALE FROM
THIS PRINT
XX.XX 50.80 ±.125[3.18]
HCSD-XX-X-XX.XX-01-XXX-XXX
No OF POSITIONS
-02 THRU -36
(STANDARD COLOR
CODED CABLE)
(-32 & -36 ONLY AVAILABLE
WITH -G OPTION)
CB-XX-28-7/36-050-G
END ASSEMBLY
-S: SINGLE END
-D: DOUBLE END
-G: GRAY CABLE
(DIFFERENT AS SHOWN, OTHERWISE
SAME AS FIG1)
OPTION #2
(SEE FIG 3 THRU FIG 19
FOR AVAILABLE OPTIONS)
OPTION #1
(SEE FIG 3 THRU FIG 19 FOR
AVAILABLE OPTIONS)
LEAD STYLE
ASSEMBLY LENGTH
(2 INCH MINIMUM)

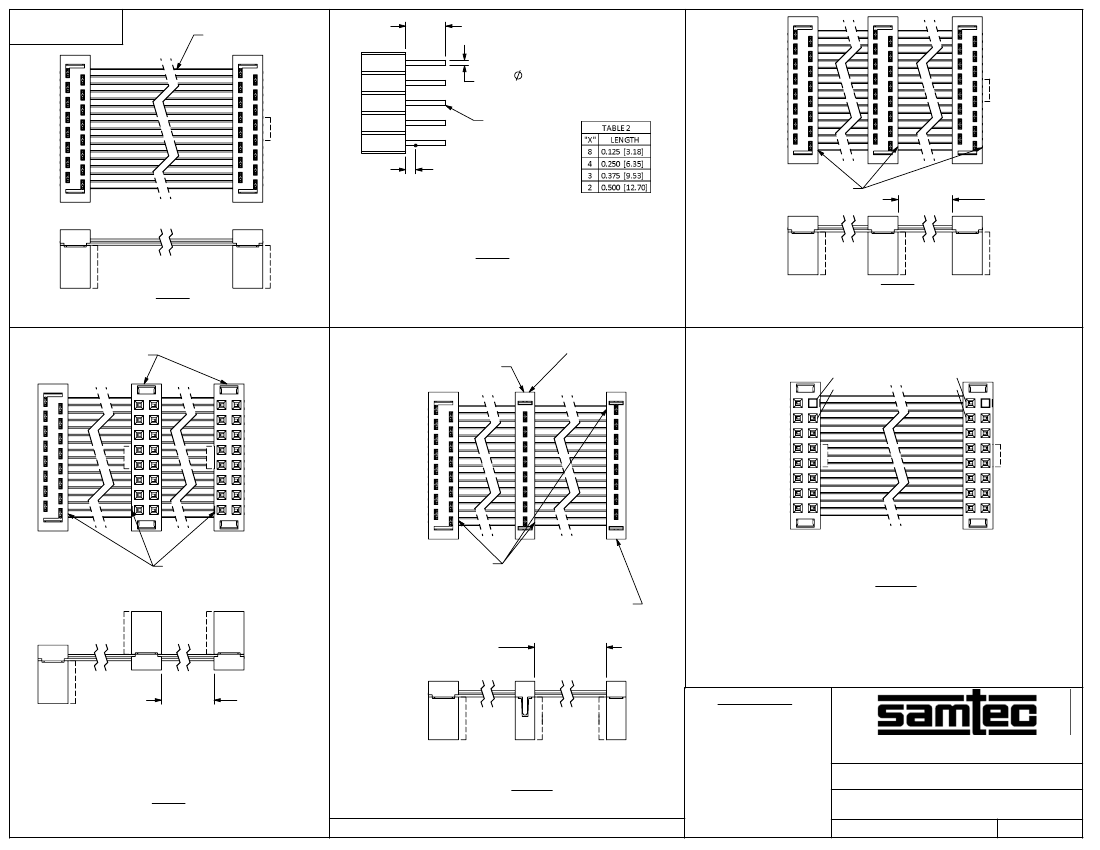

FIG 3
HCSD-08-S-XX.XX-01 SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG1)
C
XX.XX 50.80 ±.125[3.18]
.200 5.08 REF
FIG 2
-T: BRIGHT ACID TIN ON ENTIRE PIN
(USE HCSD-XX-01-TX)
LEAVE BLANK FOR 10µ" SELECTIVE GOLD IN
CONTACT AREA, BRIGHT ACID TIN ON TAIL.
-T: TIN PLATING
FIG 4
02
01
(NO OF POS x .100[2.54] + .180[4.57] REF
.150 3.81 REF
HCSD-XX-01-N
BROWN OR RED WIRE
INDICATES POS #1
CB-XX-28-7/36-050-C
.390 9.91 REF
(SEE NOTE 5)
.050 1.27 REF
.010[0.25] MAX
CABLE OVERHANG
(TYP)
-N: NOTCH
(NOT AVAILABLE ON -02 POSITION)
(DIFFERENT AS SHOWN, OTHERWISE
SAME AS FIG1)
FIG 5
HCSD-XX-01-X
HCSD-08-D-XX.XX-01 SHOWN

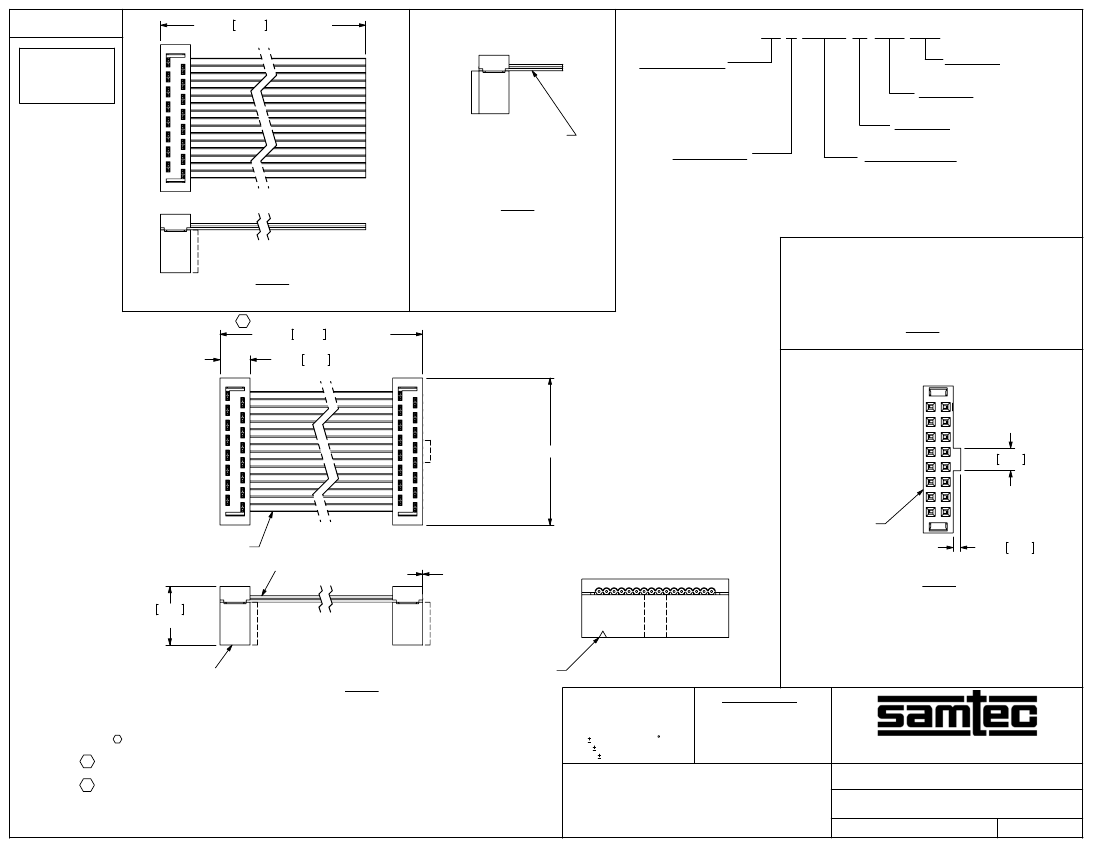

FIG 1
NOTCH DENOTES
FIRST POSITION
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. HIDDEN LINES ARE USED TO SHOW POLARIZATION WHEN USING -N OPTION.
C
3. ALL ASSEMBLIES TO BE 100% ELECTRICALLY TESTED FOR SHORTS AND OPENS
4. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 1000V.
C
5. HCSD-XX-01-X TO BE PRESSED TOGETHER WITH NO GAPS BETWEEN CABLE & BODIES.
6. CONDUCTORS SHALL BE CONSISTENT IN APPEARANCE, SOLDER MUST MAINTAIN
CABLE STRANDS WITHIN THE MAX DIA. TOLERANCE.
7. USE 80/40 TIN/LEAD SOLDER ONLY.
F:\DWG\MISC\MKTG\HCSD-XX-X-XX.XX-01-XXX-XXX-MKT.SLDDRW
.XX: .01 [.3]
1
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 3:2
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOS BRONZE
CABLE: COLOR-CODED OR GRAY PVC/TIN PLATED COPPER
.100 CL MOLD TO POS DOUBLE
ROW FEMALE ASSEMBLY
HCSD-XX-X-XX.XX-01-XXX-XXX
08/03/1990
SHEET
1
OF
4
BY:
KOLB
REVISION V
BROWN OR RED WIRE
LENGTH ±.0625[1.588]
.030[0.76] MAX
(AFTER STRIPPED AND TINNED)
SEE NOTES 6 & 7
.0625[1.588] MAX FLAT
WIRE ALLOWED
FIRST POSITION INDICATOR
XX±.125[3.18]
MIN 2.00[50.80]
-RW: REVERSE WIRING
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG1)
BOTH SOCKETS REVERSED
WHEN DAISY CHAINED
HCSS-XX-01-X
FIG 6
-ST"X": STRIPPED AND TINNED
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG1)
(NOT AVAILABLE IN 28 POS AND UP)
FIG 7
-D"XX": DAISY CHAIN DOUBLE
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG1)
(2 INCH MIN WITH 1 INCH INCREMENTS)
FIG 8
MIDDLE SINGLE TO TERMINATE
TO CONDUCTOR #1
02
04
01
03
02
04
01
03
FIRST POSITION INDICATOR
FIRST POSITION INDICATOR
END SINGLE TO TERMINATE
TO CONDUCTOR #2
XX±.125[3.18]
MIN 2.00[50.80]
-P"XX": POLARIZED MATING
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG1)
XX = POSITION NO
INSERT POLARIZING KEY PART NO PK-06-N
INTO SPECIFIED POSITION -XX (BOTH ENDS)
FIG 11
XX±.125[3.18]
MIN 2.00[50.80]
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.

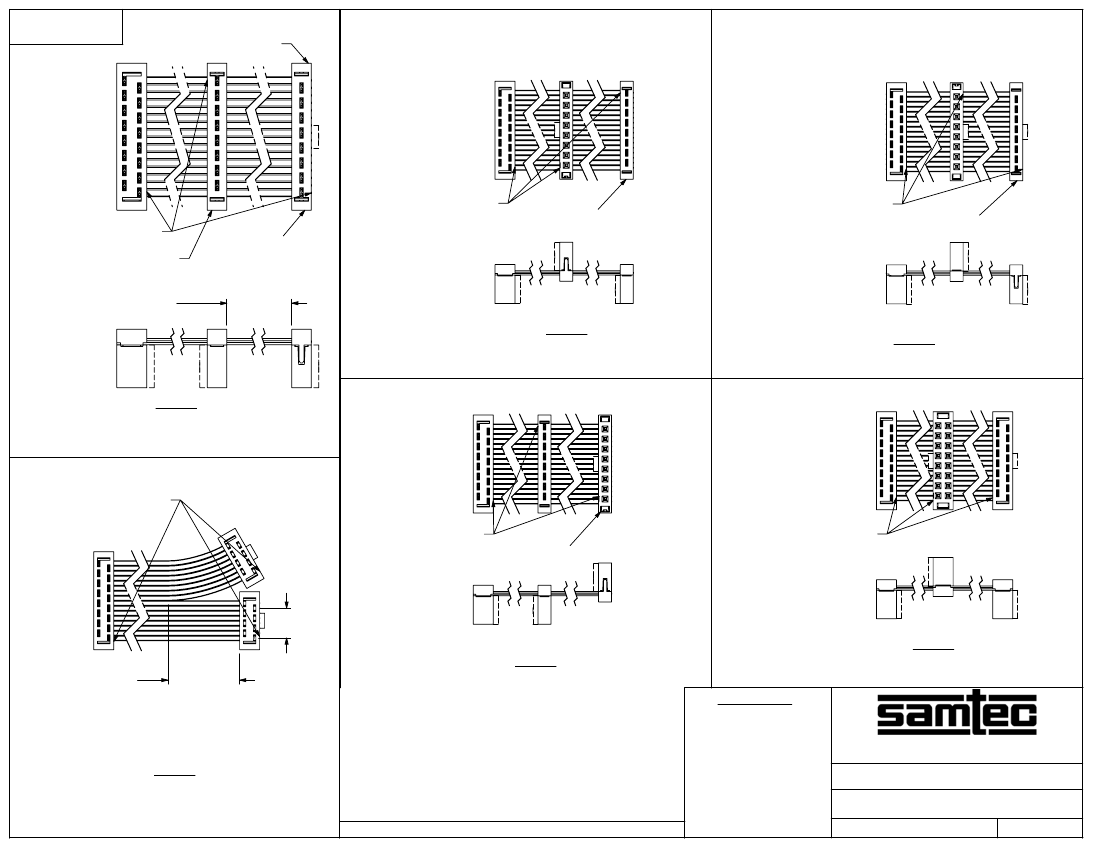

-R: REVERSE CONNECTOR
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG1)
FIG 9
-W"XX": WIRING REVERSED
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG1)
F:\DWG\MISC\MKTG\HCSD-XX-X-XX.XX-01-XXX-XXX-MKT.SLDDRW
FIG 10
DO NOT SCALE DRAWING
SHEET SCALE: 3:2
.100 CL MOLD TO POS DOUBLE
ROW FEMALE ASSEMBLY
HCSD-XX-X-XX.XX-01-XXX-XXX
08/03/1990
SHEET
2
OF
4
BY:
KOLB
REVISION V
END SINGLE TO TERMINATE
TO CONDUCTOR #2
FIRST POSITION INDICATOR
FIRST POSITION INDICATOR
MIDDLE SINGLE TO TERMINATE
TO CONDUCTOR #1
XX±.125[3.18]
MIN 2.00[50.80]
HCSS-XX-01-X
HCSS-XX-01-X
FIRST POSITION INDICATOR
HCSS-XX-01-X
-W"XX"-M: MIDDLE REVERSED
(SAME AS FIG 1, DIFFERENT AS SHOWN)
FIG 13
-S"XX"-M: MIDDLE REVERSED
(SAME AS FIG 1, DIFFERENT AS SHOWN)
FIG 14
-S"XX": DAISY CHAIN SINGLE
(SAME AS FIG 1, DIFFERENT AS SHOWN)
(2 INCH MIN WITH 1 INCH INCREMENTS)
SCALE: 3:2
FIG 12
FIRST POSITION INDICATOR
FIRST POSITION INDICATOR
FIRST POSITION INDICATOR
HCSS-XX-01-X
"XX"
5.000[127.00] MAX
2.000[50.80] MIN
-S"XX"-O: OUTSIDE REVERSED
(SAME AS FIG 1, DIFFERENT AS SHOWN)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 16
-D"XX"-M: MIDDLE REVERSED
(SAME AS FIG 1, DIFFERENT AS SHOWN)
FIG 17

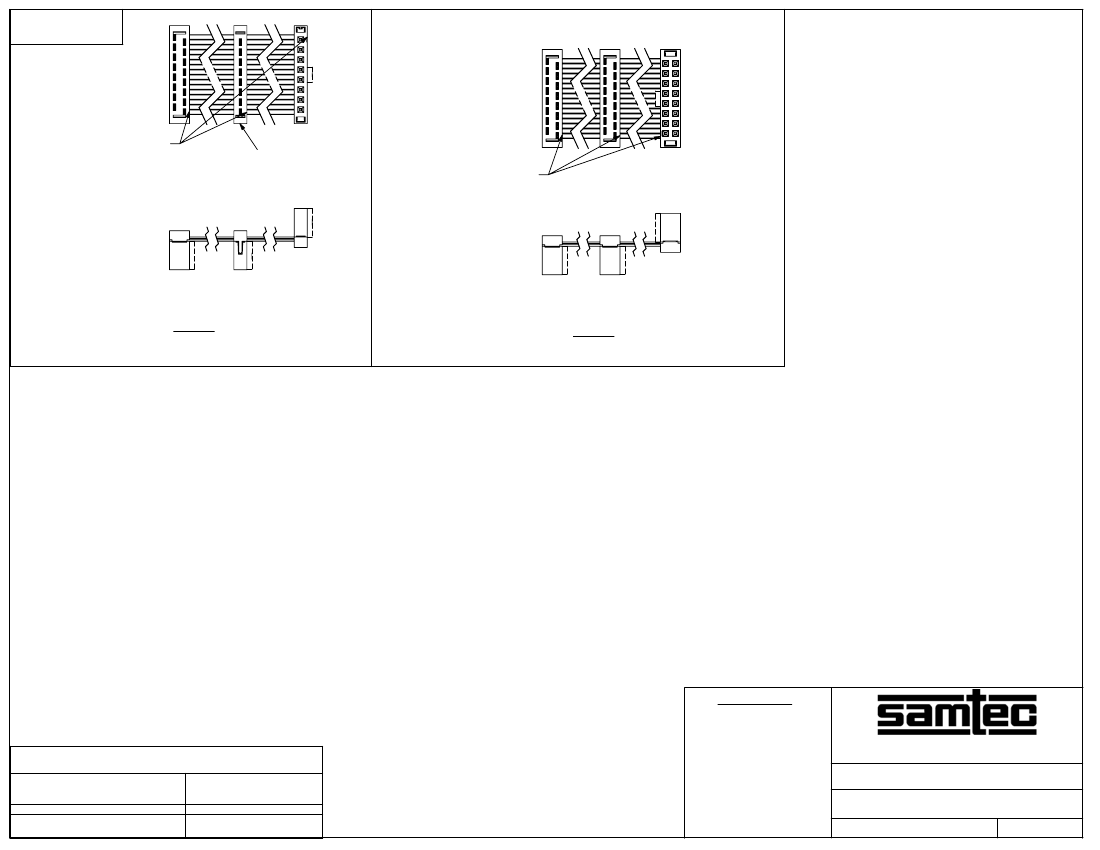

-BXX: BREAKOUT OPTION
(SAME AS FIG 1, DIFFERENT AS SHOWN)
"XX" = NO OF CONDUCTORS BROKEN
OUT FROM THE FIRST POSITION
(HCSD-08-XX.XX-01-N-B04 SHOWN)
FIG 15
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
.100 CL MOLD TO POS DOUBLE
ROW FEMALE ASSEMBLY
HCSD-XX-X-XX.XX-01-XXX-XXX
08/03/1990
SHEET
3
OF
4
F:\DWG\MISC\MKTG\HCSD-XX-X-XX.XX-01-XXX-XXX-MKT.SLDDRW
BY:
KOLB
REVISION V
FIRST POSITION INDICATOR
HCSS-XX-01-X
FIRST POSITION INDICATOR
-W"XX"-O: OUTSIDE REVERSED
(SAME AS FIG 1, DIFFERENT AS SHOWN)
FIG 18
-D"XX"-O: OUTSIDE REVERSED
(SAME AS FIG 1, DIFFERENT AS SHOWN)
FIG 19
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
CRITICAL DIMENSION INSPECTION INSTRUCTION TABLE
ASSEMBLY OPERATION
IN-PROCESS INSPECTION
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
.100 CL MOLD TO POS DOUBLE
ROW FEMALE ASSEMBLY
ASSEMBLE CB-XX-28-7/36-050-C
C1, C2
HCSD-XX-X-XX.XX-01-XXX-XXX
08/03/1990
F:\DWG\MISC\MKTG\HCSD-XX-X-XX.XX-01-XXX-XXX-MKT.SLDDRW
BY:
KOLB
SHEET
4
OF
4
