810F-11-208-01: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector; File Size83KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

810F-11-208-01 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle

810F-11-208-01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	NONE
body width	0.161 inch
subject depth	0.059 inch
body length	0.63 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	8100
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N
Base Number Matches	1

Preview

Download Datasheet

View All

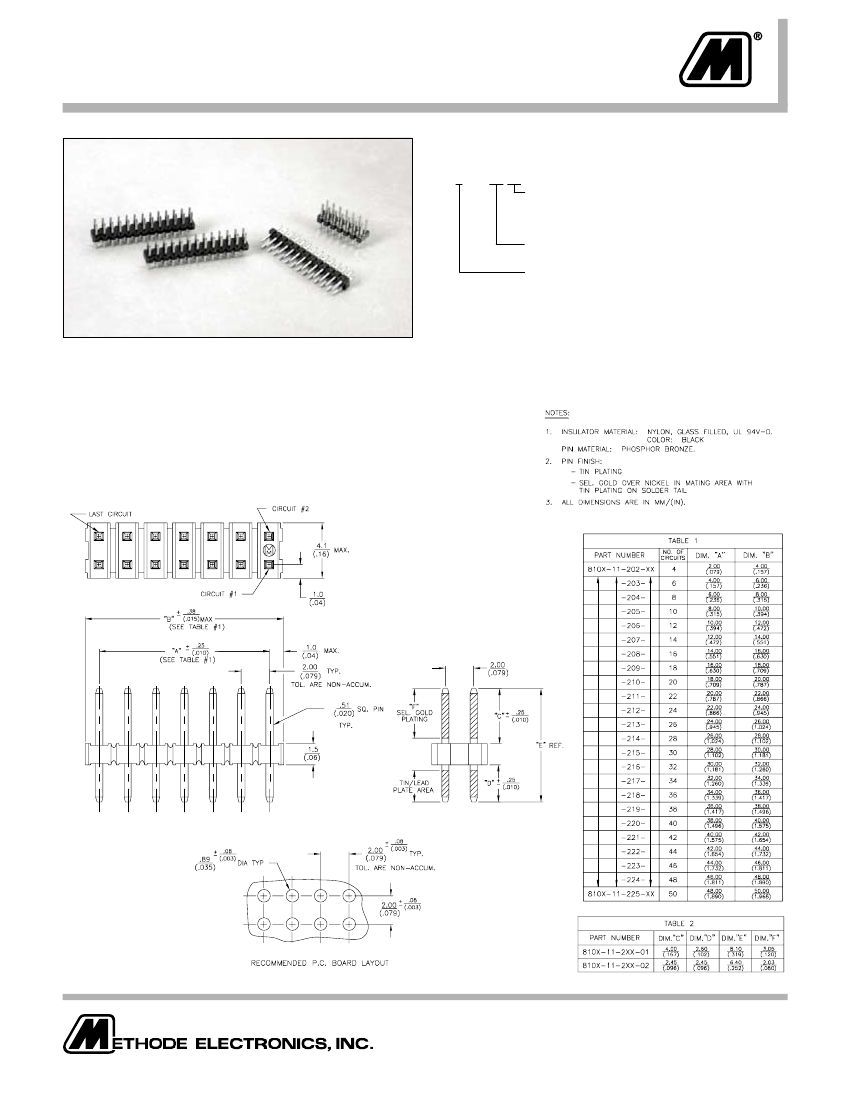

.079” (2mm) Dual Row

Through Hole Vertical Headers

8100 SERIES “POST/BOXE”

PART NUMBER LEGEND

810X-11-2XX-XX

PIN LENGTH

DIM C

1 =4.00 (1.57)

7 =.050 (1.27)

2 - 25

DIM D

2.60 (.102)

2.45 (.096)

DIM E

8.10 (.319)

6.40 (.252)

NUMBER OF POSITIONS PER ROW

CONTACT FINISH

0 =TIN/LEAD

8 =.000030 SELECTIVE GOLD

F =.000015 SELECTIVE GOLD

MATING CONNECTORS: 8000 SERIES

(REF.)

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
