BD6383EFV: DescriptionBipolar stepping motor driver; CategoryOther integrated circuit (IC) The signal circuit; File Size290KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BD6383EFV Overview

Bipolar stepping motor driver

BD6383EFV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	TSSOP
package instruction	HVSSOP, TSSOP40,.3
Contacts	40
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DUMMY VAL
Analog Integrated Circuits - Other Types	STEPPER MOTOR CONTROLLER
JESD-30 code	R-PDSO-G40
JESD-609 code	e2
length	13.6 mm
Number of functions	1
Number of terminals	40
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
encapsulated code	HVSSOP
Encapsulate equivalent code	TSSOP40,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	24 V
Certification status	Not Qualified
Maximum seat height	1 mm
Maximum supply current (Isup)	10 mA
Maximum supply voltage (Vsup)	28 V
Minimum supply voltage (Vsup)	10 V
Nominal supply voltage (Vsup)	24 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	5.4 mm
Base Number Matches	1

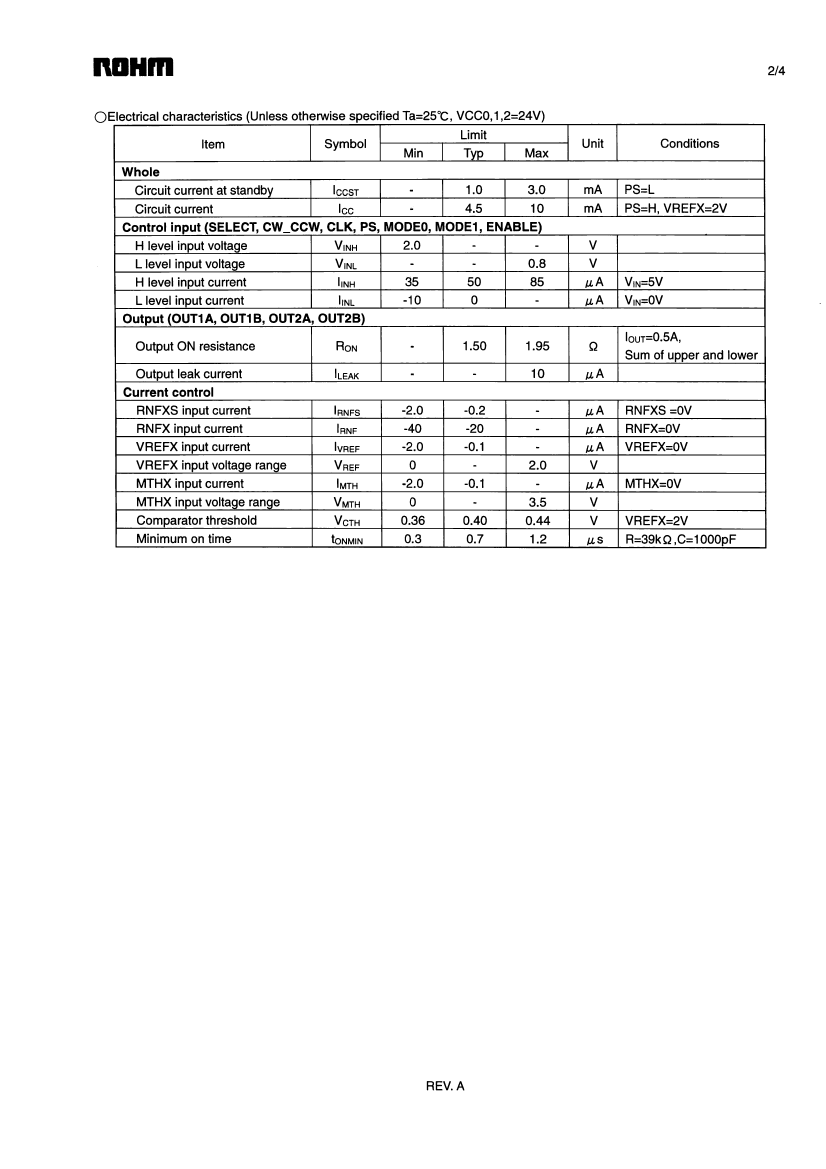

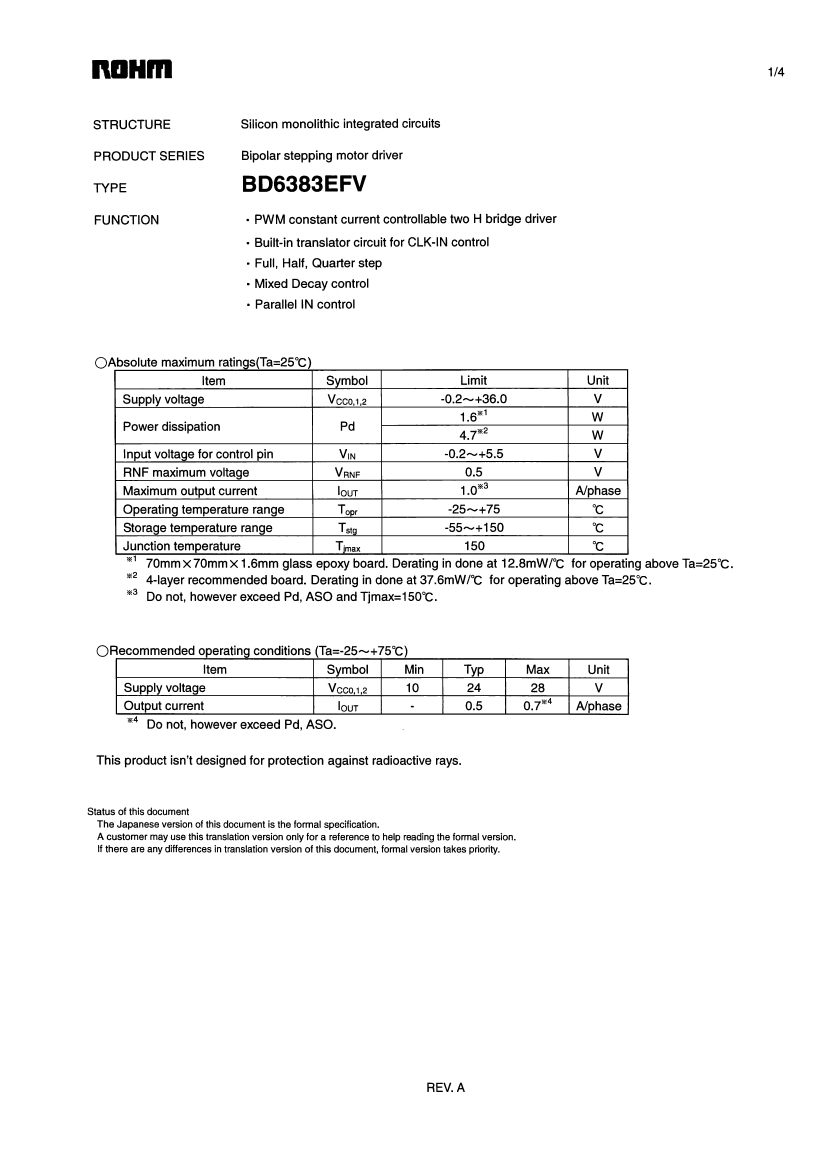

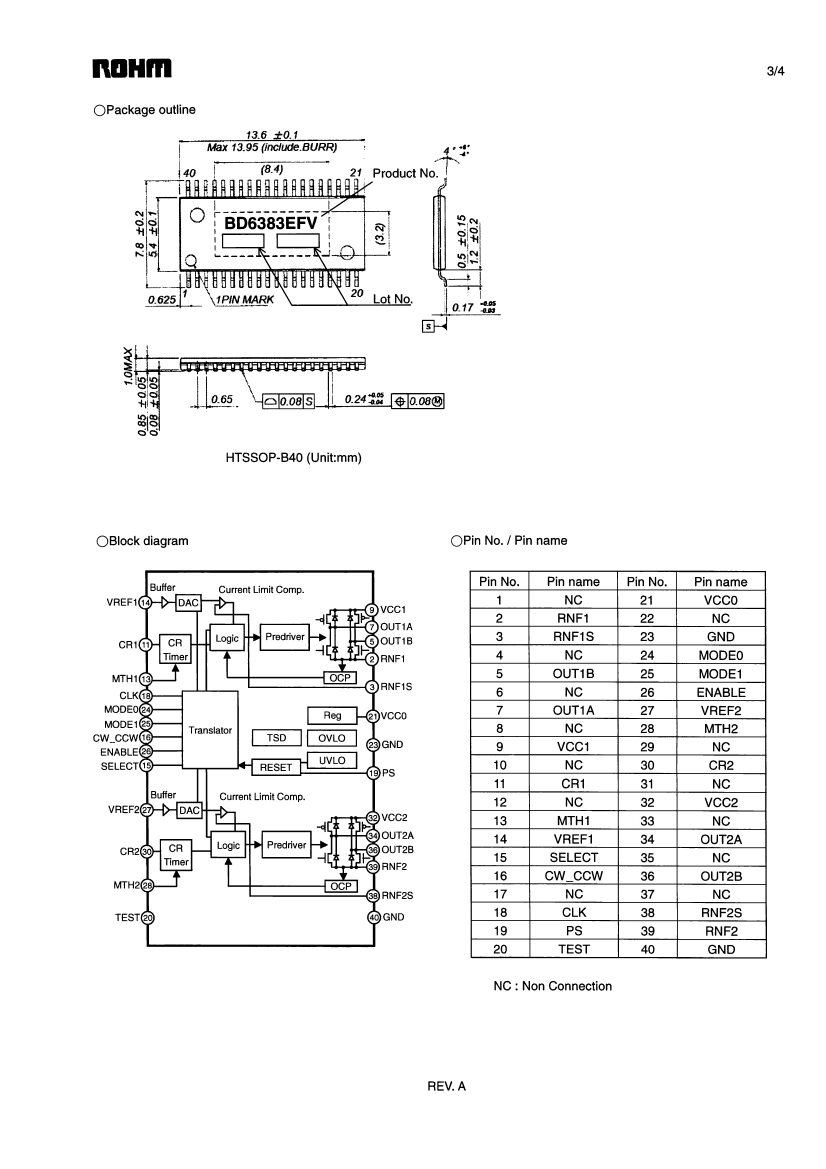

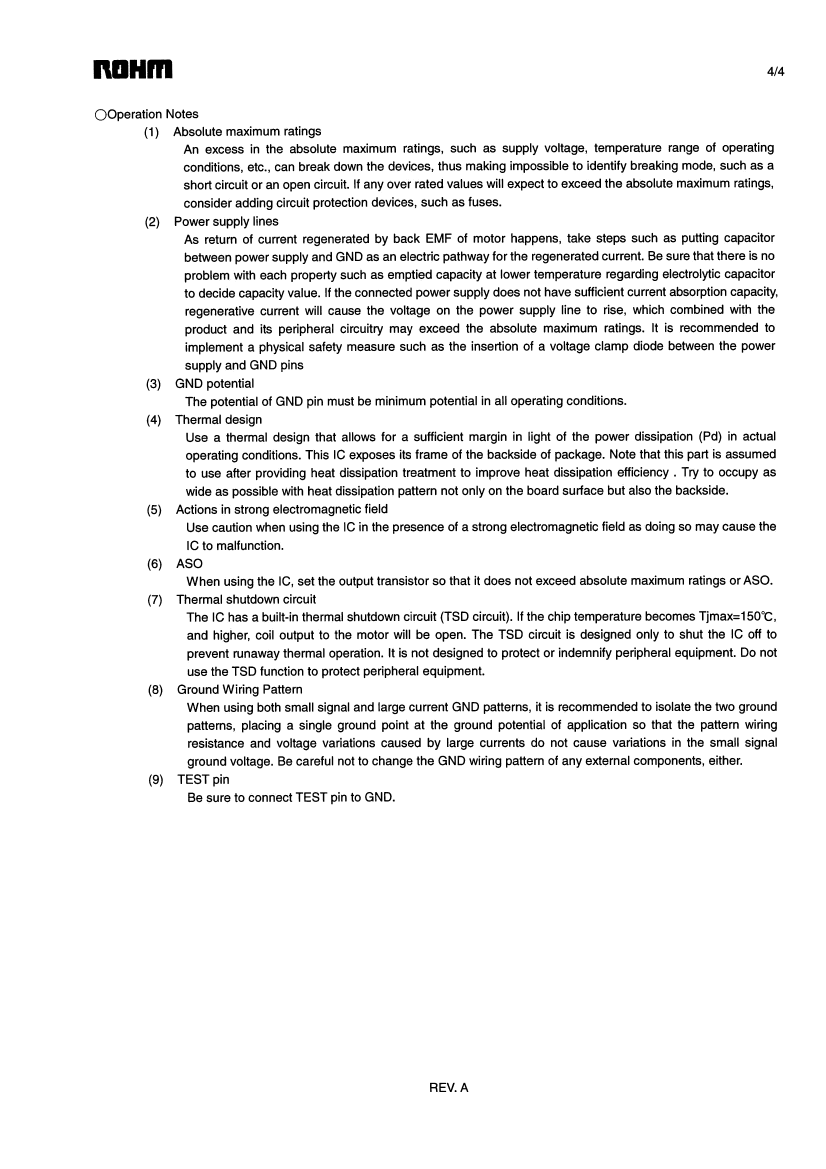

Preview

Download Datasheet

View All

Appendix

Notes

No technical content pages of this document may be reproduced in any form or transmitted by any

means without prior permission of ROHM CO.,LTD.

The contents described herein are subject to change without notice. The specifications for the

product described in this document are for reference only. Upon actual use, therefore, please request

that specifications to be separately delivered.

Application circuit diagrams and circuit constants contained herein are shown as examples of standard

use and operation. Please pay careful attention to the peripheral conditions when designing circuits

and deciding upon circuit constants in the set.

Any data, including, but not limited to application circuit diagrams information, described herein

are intended only as illustrations of such devices and not as the specifications for such devices. ROHM

CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any

third party's intellectual property rights or other proprietary rights, and further, assumes no liability of

whatsoever nature in the event of any such infringement, or arising from or connected with or related

to the use of such devices.

Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or

otherwise dispose of the same, no express or implied right or license to practice or commercially

exploit any intellectual property rights or other proprietary rights owned or controlled by

ROHM CO., LTD. is granted to any such buyer.

Products listed in this document are no antiradiation design.

The products listed in this document are designed to be used with ordinary electronic equipment or devices

(such as audio visual equipment, office-automation equipment, communications devices, electrical

appliances and electronic toys).

Should you intend to use these products with equipment or devices which require an extremely high level of

reliability and the malfunction of with would directly endanger human life (such as medical instruments,

transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other

safety devices), please be sure to consult with our sales representative in advance.

About Export Control Order in Japan

Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control

Order in Japan.

In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause)

on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction.

Appendix1-Rev1.1
