BD9560MUV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BD9560MUV

BD9560MUV: DescriptionStep down DC/DC converter controller for mobile PC; CategoryPower/power management The power supply circuit; File Size384KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BD9560MUV Overview

Step down DC/DC converter controller for mobile PC

BD9560MUV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	QFN
package instruction	HVQCCN, LCC32,.2SQ,20
Contacts	32
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ALSO OPERATES IN ADJUSTABLE MODE FROM 0.412V TO 1.2875V
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Maximum input voltage	25 V
Minimum input voltage	4.5 V
Nominal input voltage	12 V
JESD-30 code	S-XQCC-N32
JESD-609 code	e2
length	5 mm
Number of functions	1
Number of terminals	32
Maximum operating temperature	100 °C
Minimum operating temperature	-10 °C
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Encapsulate equivalent code	LCC32,.2SQ,20
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1 mm
surface mount	YES
Switch configuration	PUSH-PULL
Maximum switching frequency	600 kHz
Temperature level	OTHER
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	10
width	5 mm
Base Number Matches	1

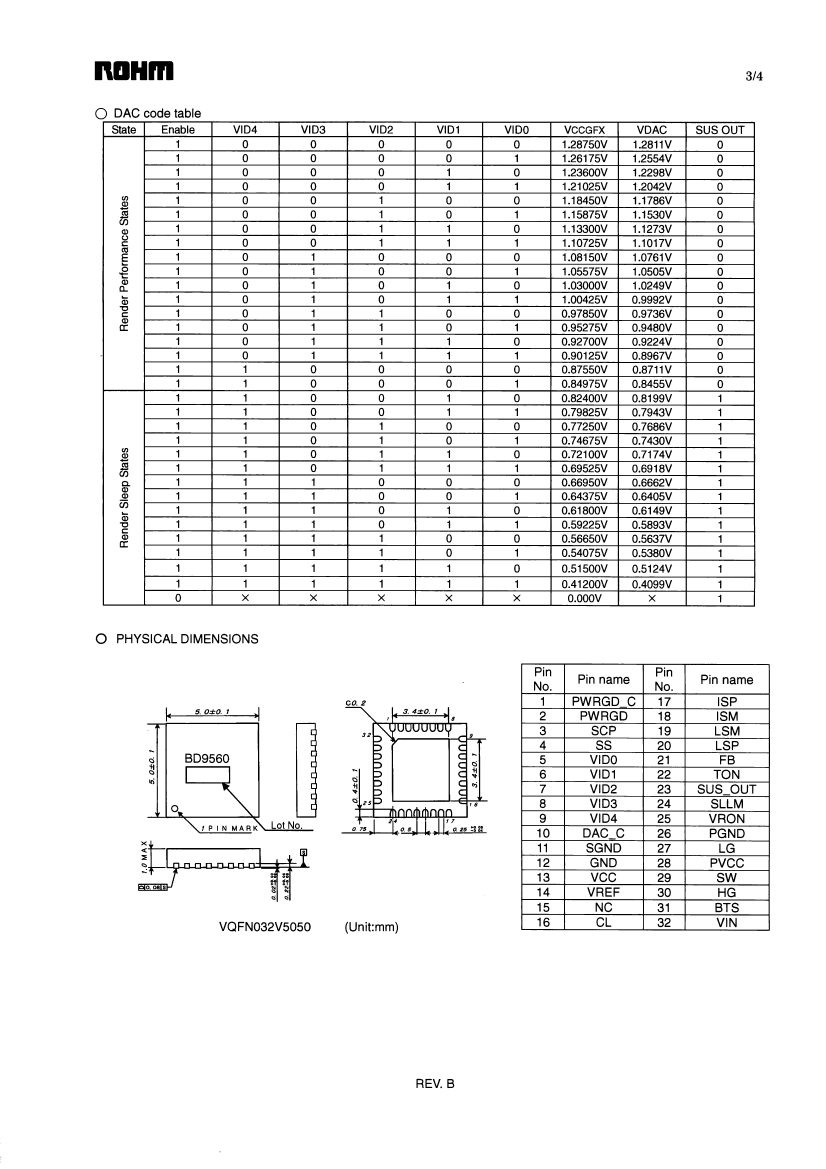

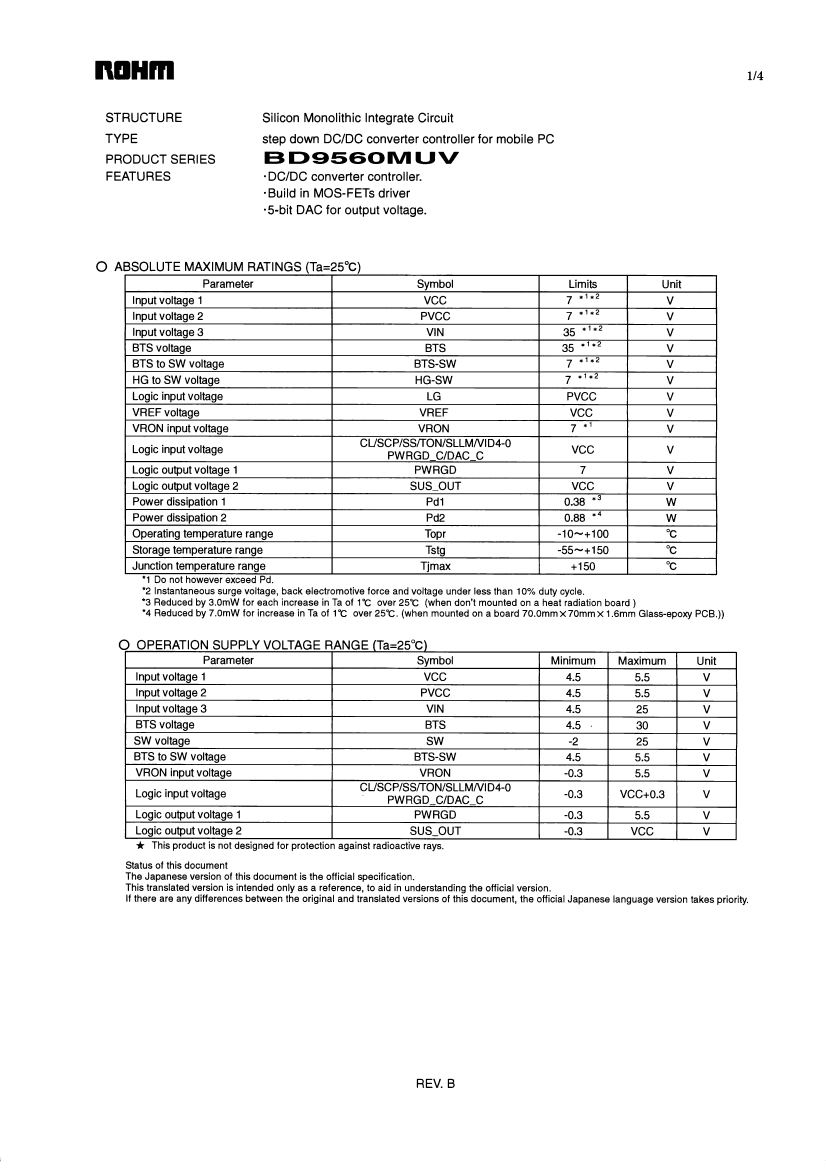

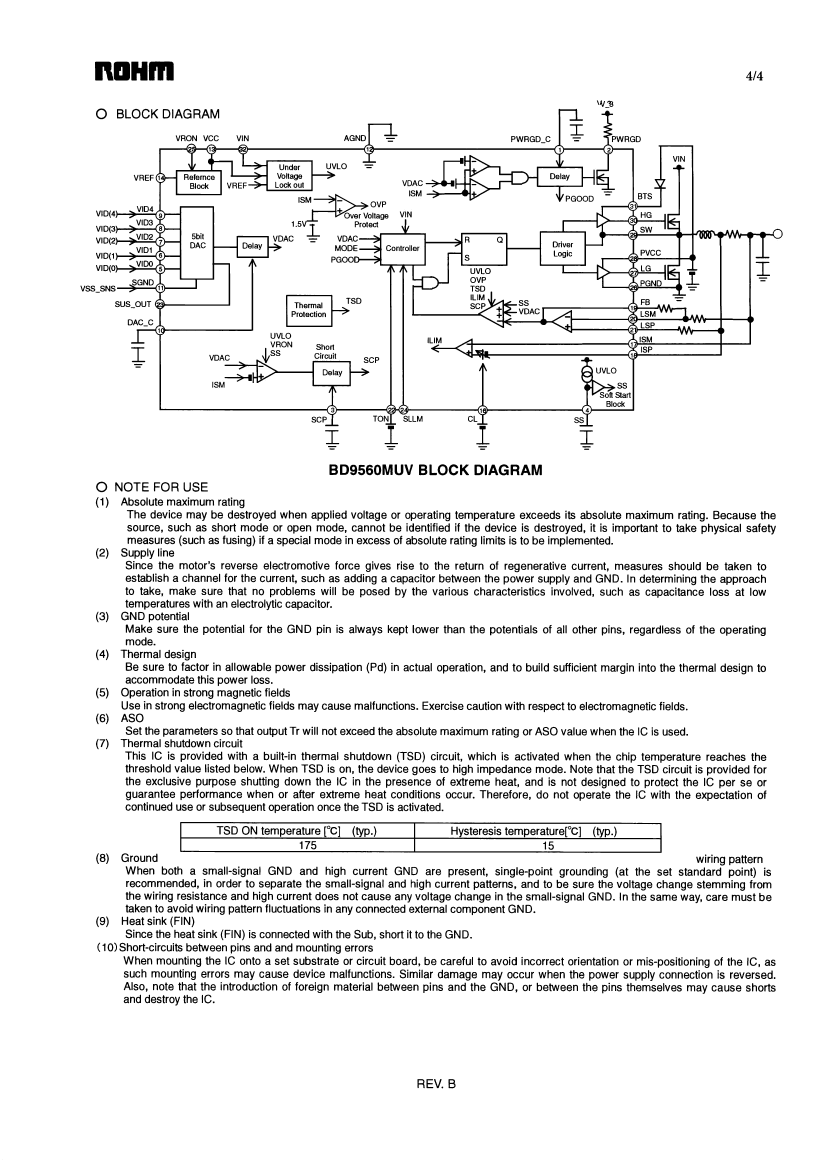

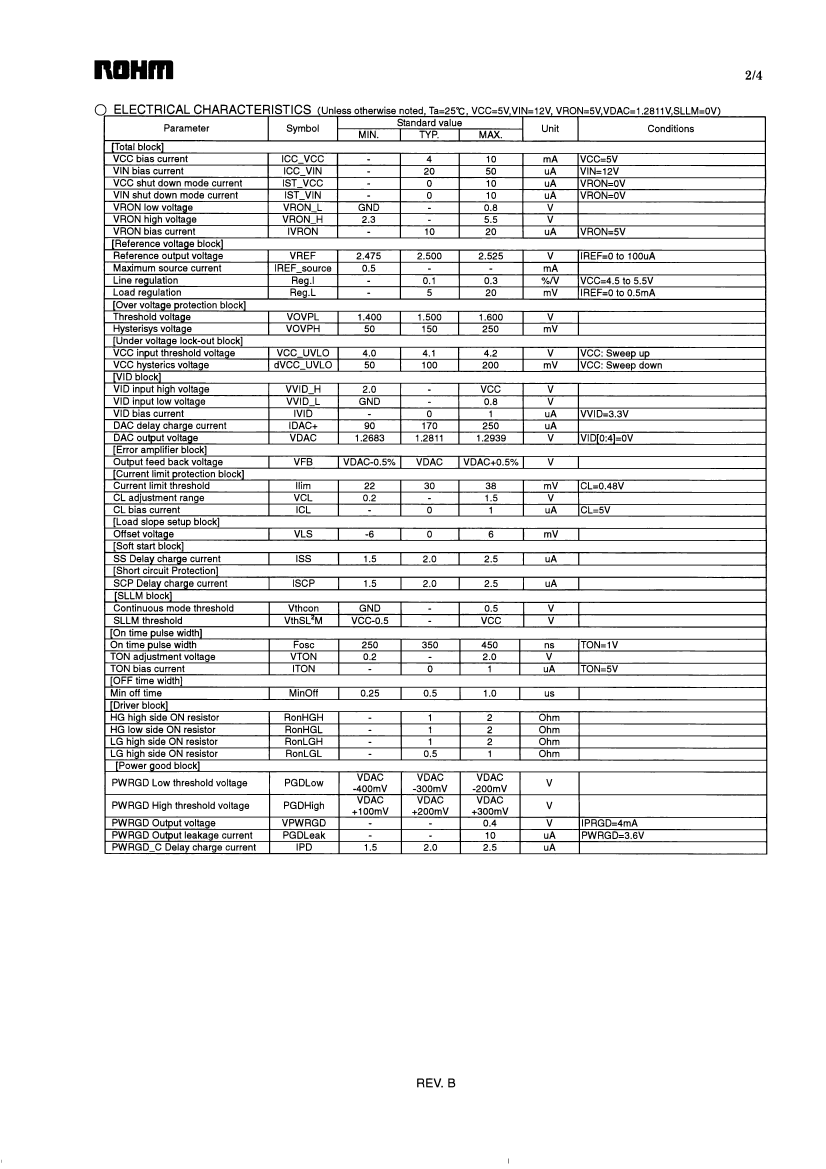

Preview

Download Datasheet

View All

Appendix

Notes

No technical content pages of this document may be reproduced in any form or transmitted by any

means without prior permission of ROHM CO.,LTD.

The contents described herein are subject to change without notice. The specifications for the

product described in this document are for reference only. Upon actual use, therefore, please request

that specifications to be separately delivered.

Application circuit diagrams and circuit constants contained herein are shown as examples of standard

use and operation. Please pay careful attention to the peripheral conditions when designing circuits

and deciding upon circuit constants in the set.

Any data, including, but not limited to application circuit diagrams information, described herein

are intended only as illustrations of such devices and not as the specifications for such devices. ROHM

CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any

third party's intellectual property rights or other proprietary rights, and further, assumes no liability of

whatsoever nature in the event of any such infringement, or arising from or connected with or related

to the use of such devices.

Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or

otherwise dispose of the same, no express or implied right or license to practice or commercially

exploit any intellectual property rights or other proprietary rights owned or controlled by

ROHM CO., LTD. is granted to any such buyer.

Products listed in this document are no antiradiation design.

The products listed in this document are designed to be used with ordinary electronic equipment or devices

(such as audio visual equipment, office-automation equipment, communications devices, electrical

appliances and electronic toys).

Should you intend to use these products with equipment or devices which require an extremely high level of

reliability and the malfunction of with would directly endanger human life (such as medical instruments,

transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other

safety devices), please be sure to consult with our sales representative in advance.

About Export Control Order in Japan

Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control

Order in Japan.

In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause)

on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction.

Appendix1-Rev1.1
