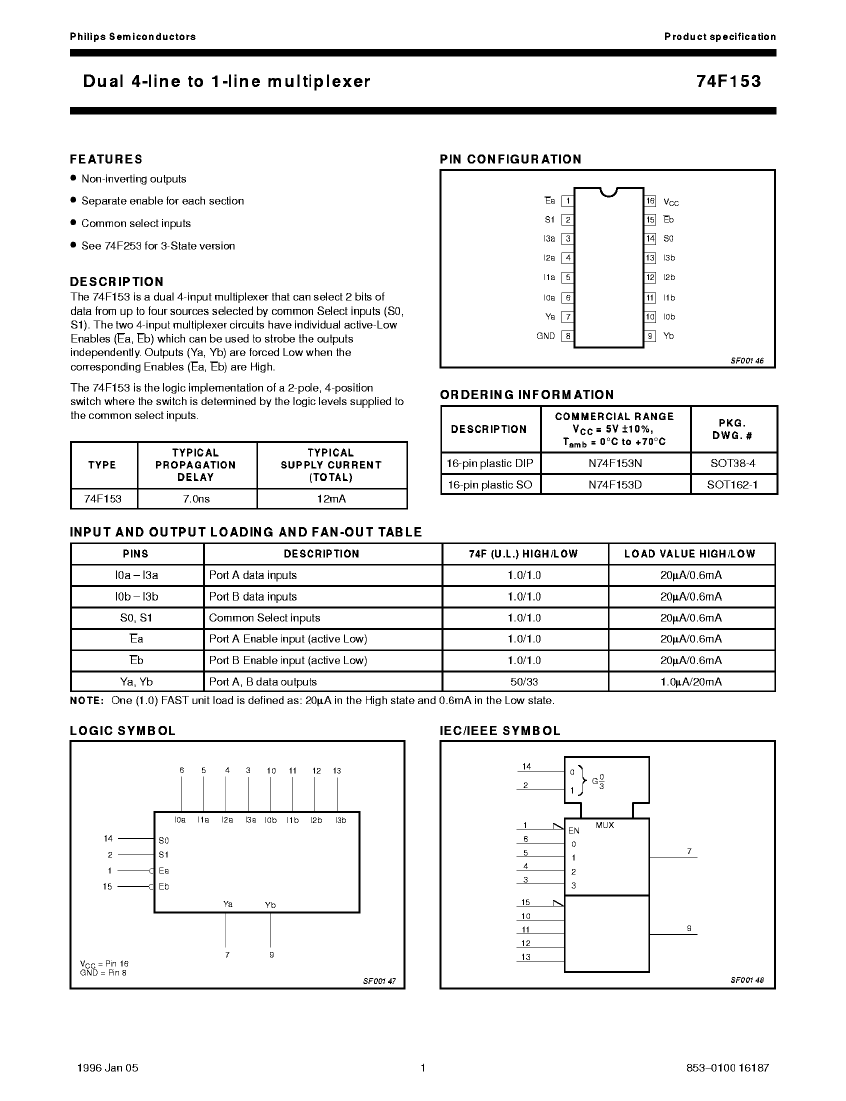

IC F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDIP16, Multiplexer/Demultiplexer

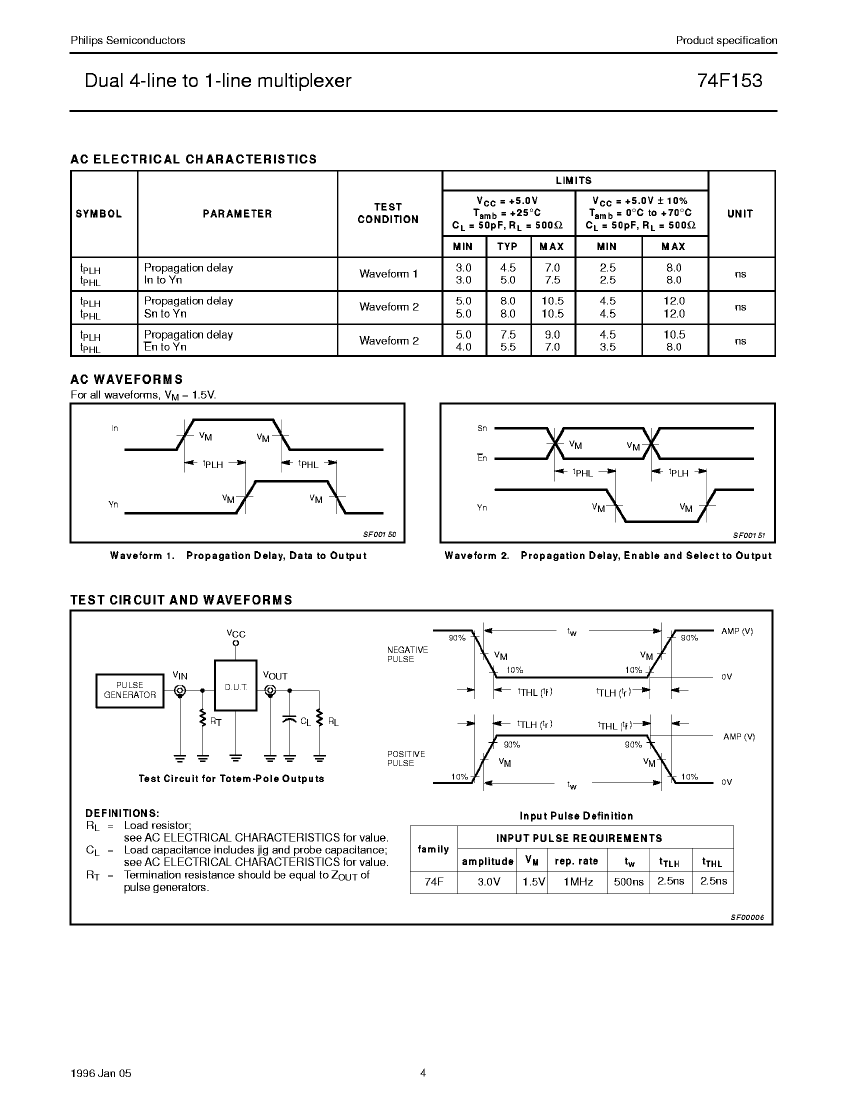

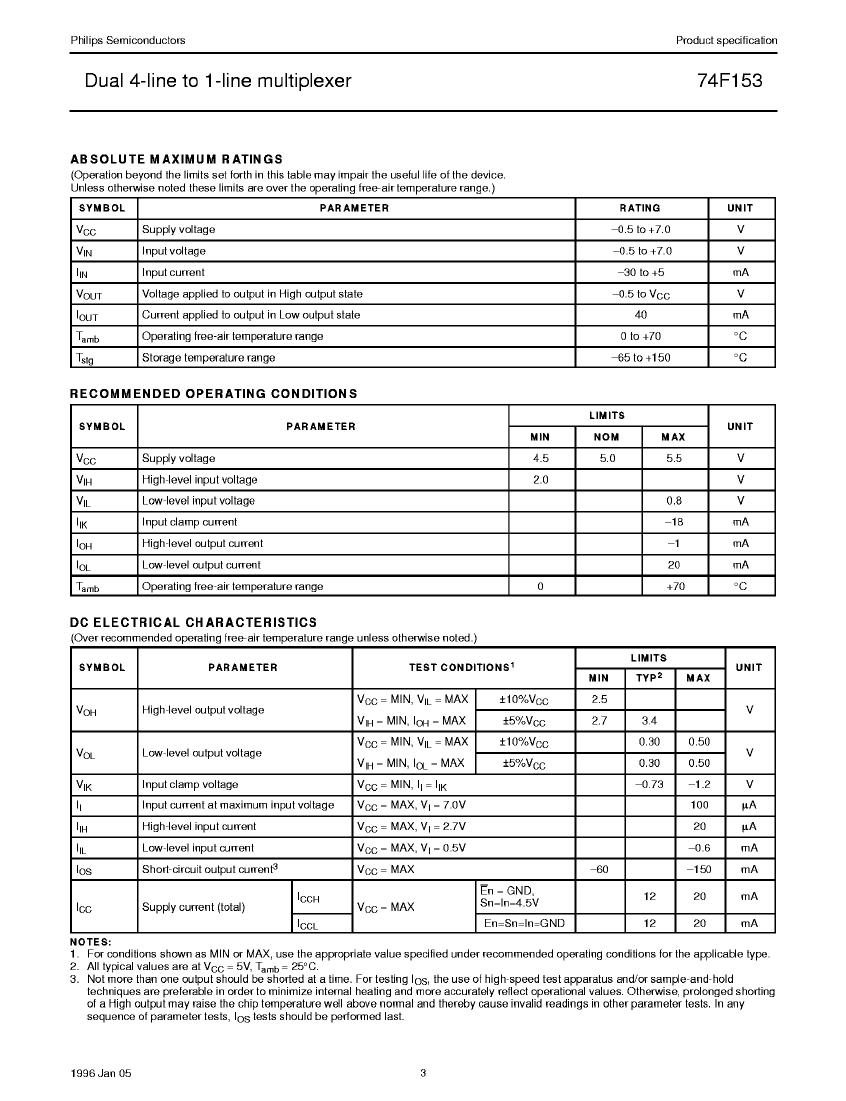

| Parameter Name | Attribute value |
| Maker | NXP |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| series | F/FAST |
| JESD-30 code | R-PDIP-T16 |
| length | 19.025 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | MULTIPLEXER |
| Number of functions | 2 |
| Number of entries | 4 |
| Output times | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Maximum supply current (ICC) | 20 mA |
| propagation delay (tpd) | 12 ns |
| Certification status | Not Qualified |
| Maximum seat height | 4.2 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 74F153N | 74F153D | 74F153D-T | |
|---|---|---|---|
| Description | IC F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDIP16, Multiplexer/Demultiplexer | IC F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, Multiplexer/Demultiplexer | IC F/FAST SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, Multiplexer/Demultiplexer |
| Maker | NXP | NXP | NXP |
| Reach Compliance Code | unknown | unknown | unknown |
| series | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-PDIP-T16 | R-PDSO-G16 | R-PDSO-G16 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| Number of functions | 2 | 2 | 2 |
| Number of entries | 4 | 4 | 4 |
| Output times | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Output polarity | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE |
| Maximum supply current (ICC) | 20 mA | 20 mA | 20 mA |
| propagation delay (tpd) | 12 ns | 12 ns | 12 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL |
| package instruction | - | SOP, | SOP, |
