SN54LS138J datasheet, PDF - EEWORLD Datasheet

SN54LS138J: DescriptionDecoder/Driver, TTL, CDIP16; Categorylogic; File Size208KB，4 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

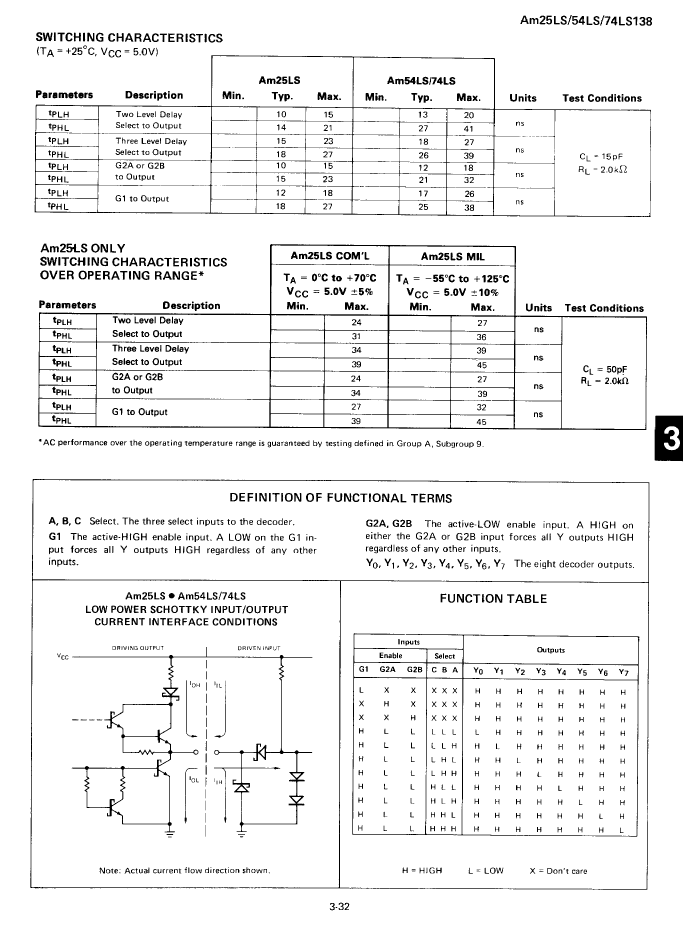

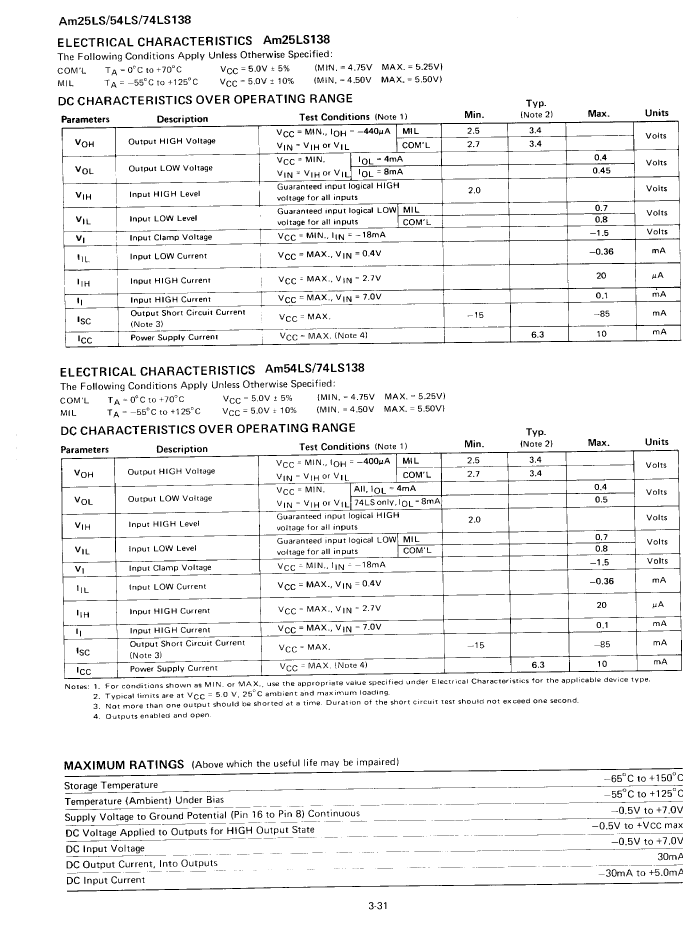

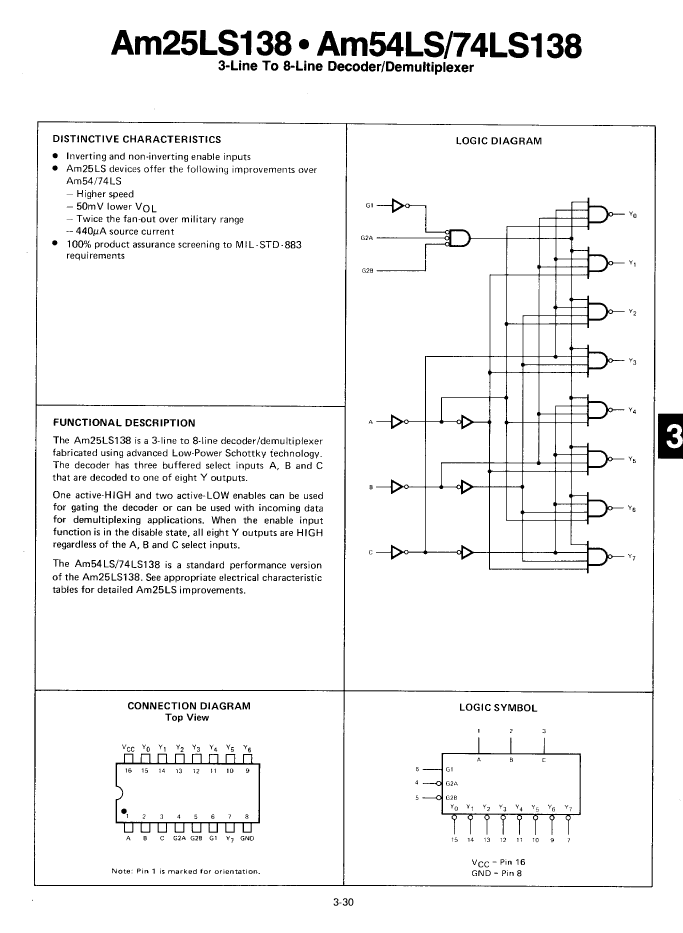

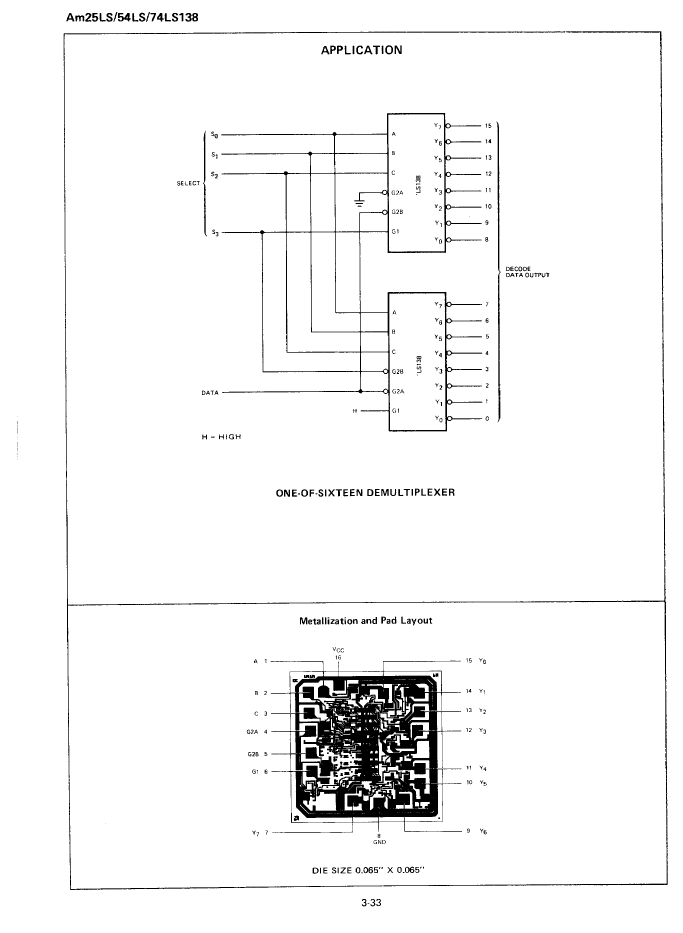

SN54LS138J Overview

Decoder/Driver, TTL, CDIP16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class C
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	SN54LS138J	SN54LS138JB	SN74LS138JT	SN54LS138W
Description	Decoder/Driver, TTL, CDIP16	Decoder/Driver, LS Series, Inverted Output, TTL, CDIP16, DIP-16	Decoder/Driver, TTL, CDIP16	Decoder/Driver, TTL, CDFP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T16	R-CDIP-T16	R-XDIP-T16	-
JESD-609 code	e0	e0	e0	-
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	-
Number of functions	1	1	1	-
Number of terminals	16	16	16	-
Maximum operating temperature	125 °C	125 °C	70 °C	-
Package body material	CERAMIC	CERAMIC, METAL-SEALED COFIRED	CERAMIC	-
encapsulated code	DIP	DIP	DIP	-
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	IN-LINE	IN-LINE	-
power supply	5 V	5 V	5 V	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-
surface mount	NO	NO	NO	-
technology	TTL	TTL	TTL	-
Temperature level	MILITARY	MILITARY	COMMERCIAL	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-
Terminal location	DUAL	DUAL	DUAL	-
Base Number Matches	1	1	1	-
package instruction	-	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3
