54AC05 Hex Inverter with Open Drain Outputs
September 1998
54AC05
Hex Inverter with Open Drain Outputs
General Description
The ’AC05 contains six inverters.
Features
n
Outputs sink 24 mA
n
Open drain for wired NOR function
n
Standard Microcircuit Drawing (SMD) 5962-9059001
Logic Symbol
IEEE/IEC
DS100981-1
Connection Diagrams
Pin Assignment
for DIP and Flatpak
Pin Assignment
for LCC
DS100981-3
DS100981-2
Pin Names
A
n
O
n
Description
Inputs
Outputs
FACT
™
is a trademark of Fairchild Semiconductor Corporation.
© 1998 National Semiconductor Corporation
DS100981
www.national.com
Absolute Maximum Ratings
(Note 1)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage (V
CC
)
DC Input Diode Current (I
IK
)
V
I
= −0.5V
V
I
= V
CC
+ 0.5V
DC Input Voltage (V
I
)
DC Output Diode Current (I
OK
)
V
O
= −0.5V
V
O
= V
CC
+ 0.5V
DC Output Voltage (V
O
)
DC Output Source
or Sink Current (I
O
)
DC V
CC
or Ground Current
per Output Pin (I
CC
or I
GND
)
−0.5V to +7.0V
−20 mA
+20 mA
−0.5V to V
CC
+ 0.5V
−20 mA
+20 mA
−0.5V to to V
CC
+ 0.5V
Storage Temperature (T
STG
)
Junction Temperature (T
J
)
CDIP
−65˚C to +150˚C
175˚C
Recommended Operating
Conditions
Supply Voltage (V
CC
)
’AC
Input Voltage (V
I
)
Output Voltage (V
O
)
Operating Temperature (T
A
)
54AC
Minimum Input Edge Rate (∆V/∆t)
V
IN
from 30% to 70% of V
CC
V
CC
@
3.3V, 4.5V, 5.5V
2.0V to 6.0V
0V to V
CC
0V to V
CC
−55˚C to +125˚C
±
50 mA
±
50 mA
125 mV/ns
Note 1:
Absolute maximum ratings are those values beyond which damage
to the device may occur. The databook specifications should be met, without
exception, to ensure that the system design is reliable over its power supply,
temperature, and output/input loading variables. National does not recom-
mend operation of FACT
®
circuits outside databook specifications.
DC Characteristics for ’AC Family Devices
54AC
Symbol
Parameter
V
CC
(V)
Guaranteed Limits
V
IH
Minimum High Level
Input Voltage
V
IL
Maximum Low Level
Input Voltage
V
OL
Maximum Low Level
Output Voltage
3.0
4.5
5.5
3.0
4.5
5.5
3.0
4.5
5.5
3.0
4.5
5.5
I
IN
I
OHC
I
OLD
I
CC
Maximum Input
Leakage Current
Output Leakage Current
High
Minimum Dynamic Output
Current
Maximum Quiescent
Supply Current
Note 2:
All outputs loaded; thresholds on input associated with output under test.
Note 3:
Maximum test duration 2.0 ms, one output loaded at a time.
T
A
= −55˚C to +125˚C
Units
Conditions
2.1
3.15
3.85
0.9
1.35
1.65
0.1
0.1
0.1
V
V
V
V
OUT
= 0.1V
or V
CC
− 0.1V
V
OUT
= 0.1V
or V
CC
− 0.1V
I
OUT
= 50 µA
(Note 2) V
IN
= V
IL
or V
IH
0.5
0.5
0.5
V
µA
µA
mA
µA
V
I
= V
CC
, GND
V
IN
= V
CC
V
OLD
= 1.65V Max (Note 3)
V
IN
= V
CC
or GND
12 mA
I
OL
24 mA
24 mA
5.5
5.5
5.5
5.5
±
1.0
−10.0
50.0
80.0
www.national.com
2
AC Electrical Characteristics
V
CC
Symbol
Parameter
(V)
(Note 4)
Min
t
PLH
t
PHL
Propagation Delay
Propagation Delay
3.3
5.0
3.3
5.0
Note 4:
Voltage Range 3.3 is 3.3V
±
0.3V
Voltage Range 5.0 is 5.0V
±
0.5V
54AC
T
A
= −55˚C
to +125˚C
C
L
= 50 pF
Max
15.5
15.5
8.0
6.0
ns
ns
1.0
1.0
1.0
1.5
Units
Fig.
No.
Capacitance
Symbol
C
IN
C
PD
Parameter
Input Capacitance
Power Dissipation
Capacitance
Max
10.0
50.0
Units
pF
pF
Conditions
V
CC
= Open
V
CC
= 5.0V
3
www.national.com

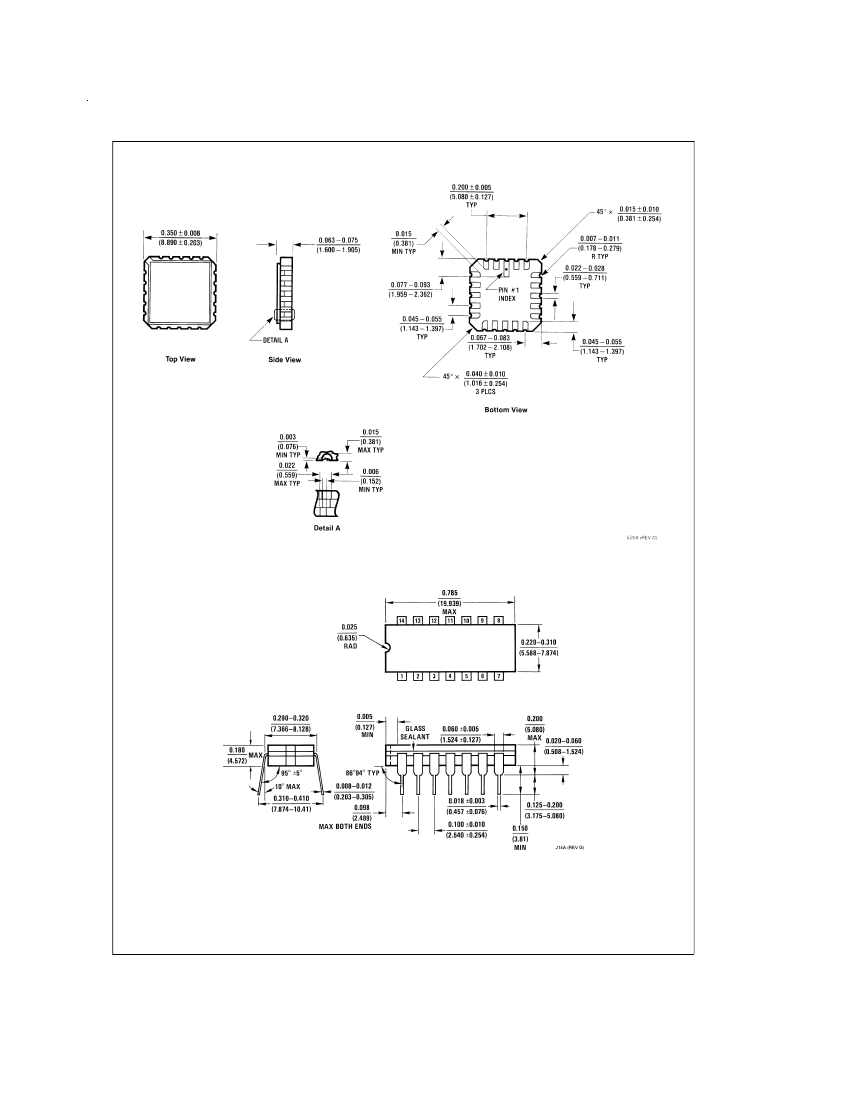

Physical Dimensions
inches (millimeters) unless otherwise noted
20 Terminal Ceramic Leadless Chip Carrier (L)
NS Package Number E20A
14 Lead Ceramic Dual-In-Line Package (D)
NS Package Number J14A
5
www.national.com
