0861-2306: DescriptionRocker Switch, DPDT, Latched And Momentary, Quick Connect Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size110KB，2 Pages; ManufacturerTherm-O-Disc (Emerson)

Download Datasheet Parametric View All

0861-2306 Overview

Rocker Switch, DPDT, Latched And Momentary, Quick Connect Terminal, Rocker Actuator, Panel Mount

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	ROCKER
body width	24.38 mm
body height	37.41 mm
Body length or diameter	43.18 mm
Contact (AC) maximum rated R load	15A@277VAC
Maximum contact current (AC)	15 A
Maximum contact voltage (AC)	277 V
illumination	RED LAMP
Installation features	PANEL MOUNT
surface mount	NO
Switch action	LATCHED AND MOMENTARY
switch function	DPDT
Switch type	ROCKER SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

McGILL

®

0851, 0861 Series

Traditional Style Rocker Switches

The McGill

®

0851, 0861 series feature a traditional rocker design with a variety of circuits,

terminations and lamp configurations with ratings up to 20A @ 277VAC. The 0851 or 0861 series

offer angle or curved rockers in a wide selection of colors and finishes to fit your application

requirements.

Specifications

• UL recognized, CSA certified

— 15A, 277VAC

— 3/4 HP, 125-277VAC

• VDE approval available

• 125V and 250VAC neon lamps available

• 14V and 28VDC incandescent lamps available

Panel Opening

Construction

• .250 x .032 spade terminals

• .187 spade terminals, screw terminals, solder terminals and 16-gauge wire leads are also available.

Consult factory for other circuits, colors or custom designs.

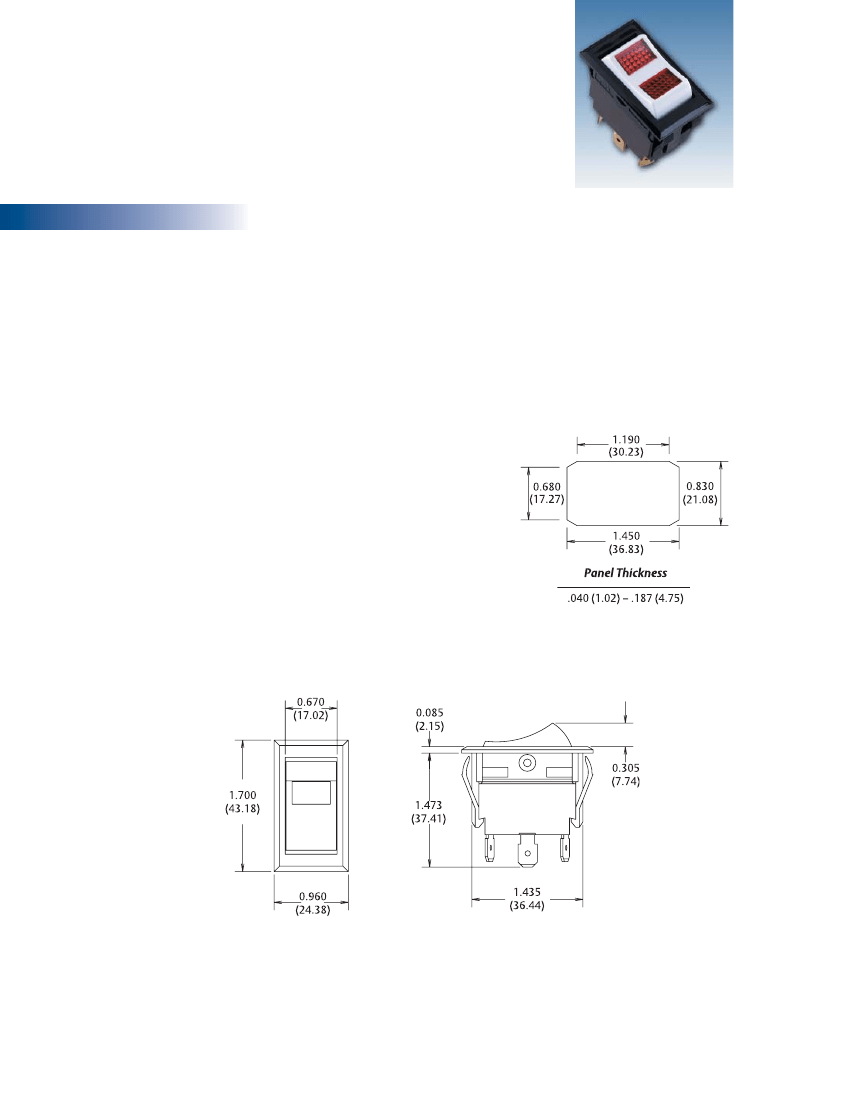

Approximate dimensions in inches and (millimeters).

6
