TC74LVQ14FELP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> TC74LVQ14FELP

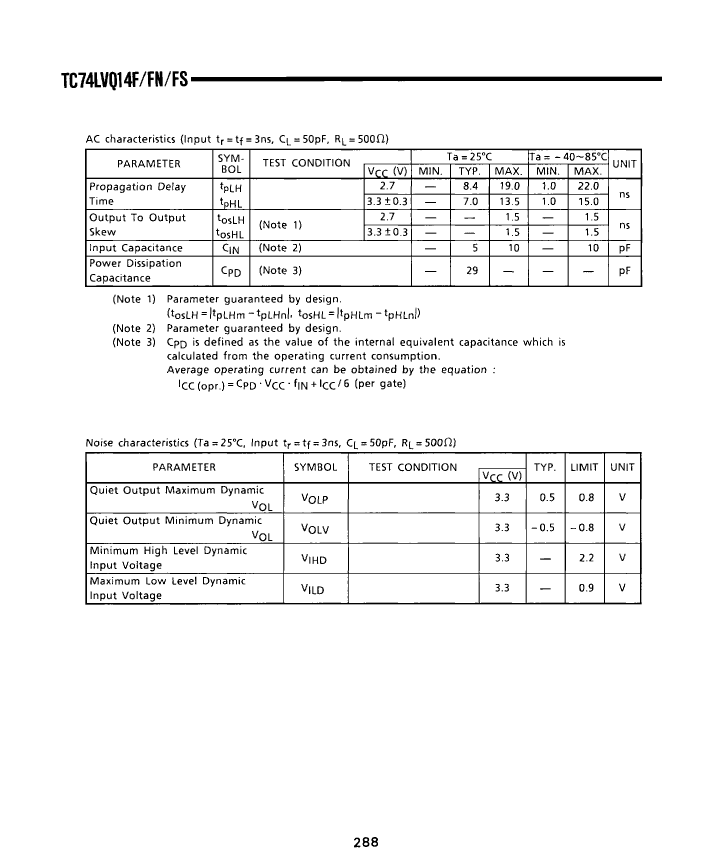

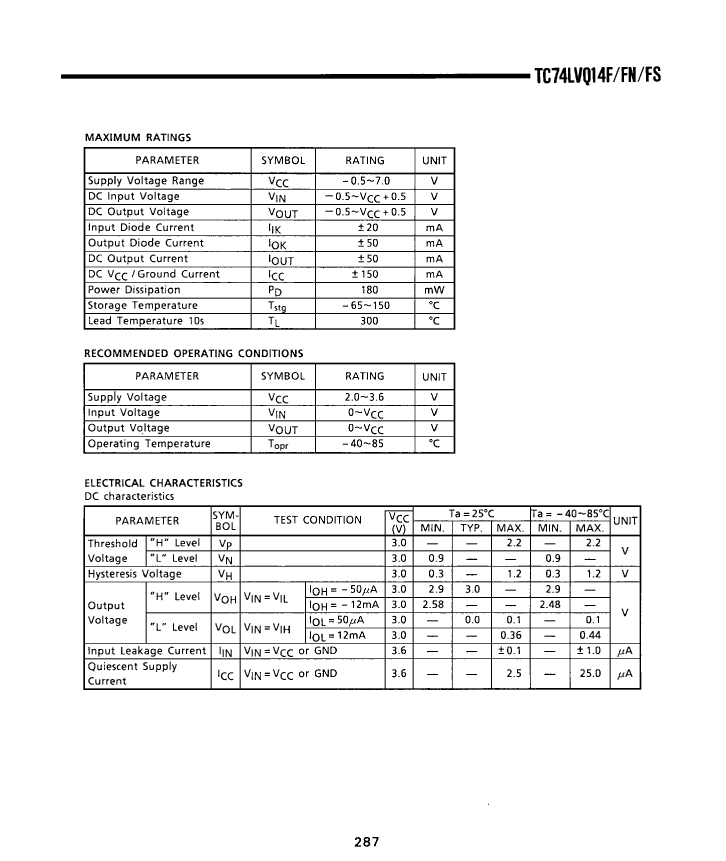

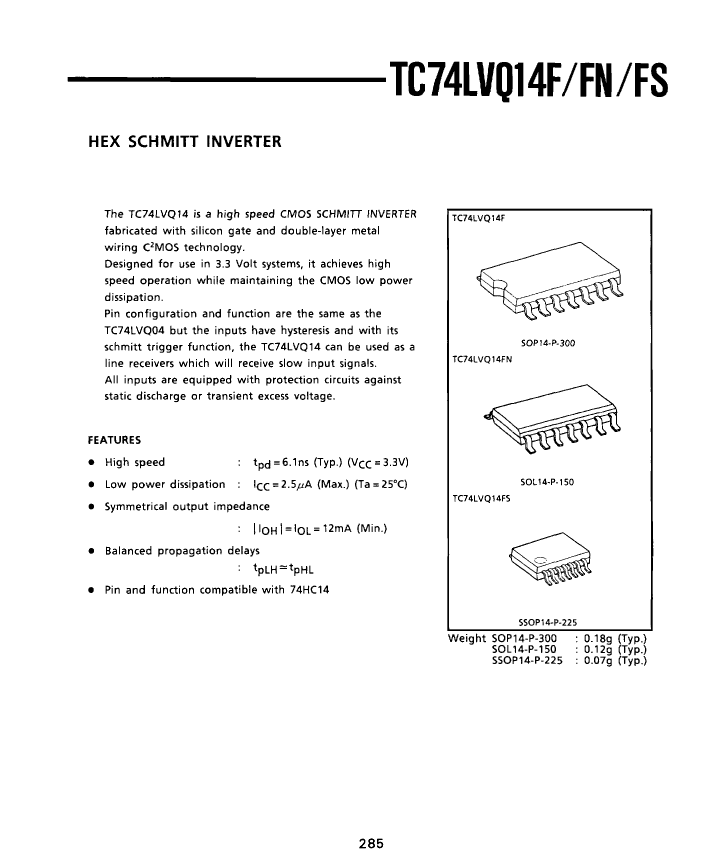

TC74LVQ14FELP: DescriptionIC LVQ SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.300 INCH, EIAJ TYPE2, PLASTIC, SOP-14, Gate; Categorylogic; File Size70KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74LVQ14FELP Overview

IC LVQ SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.300 INCH, EIAJ TYPE2, PLASTIC, SOP-14, Gate

TC74LVQ14FELP Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
Is Samacsys	N
series	LVQ
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	10.3 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

TC74LVQ14FELP Related Products

	TC74LVQ14FELP	TC74LVQ14FEL	TC74LVQ14FSEL	TC74LVQ14FSELP	TC74LVQ14FNEL	TC74LVQ14FNELP	TC74LVQ14F
Description	IC LVQ SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.300 INCH, EIAJ TYPE2, PLASTIC, SOP-14, Gate	IC LVQ SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.300 INCH, EIAJ TYPE2, PLASTIC, SOP-14, Gate	IC LVQ SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.225 INCH, EIAJ TYPE1, PLASTIC, SSOP-14, Gate	IC LVQ SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.225 INCH, EIAJ TYPE1, PLASTIC, SSOP-14, Gate	IC LVQ SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.150 INCH, PLASTIC, MS-012AB, SOP-14, Gate	IC LVQ SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.150 INCH, PLASTIC, MS-012AB, SOP-14, Gate	IC LVQ SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.300 INCH, EIAJ TYPE2, PLASTIC, SOP-14, Gate
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SOIC	SSOP	SSOP	SOIC	SOIC	SOIC
Contacts	14	14	14	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	LSSOP	LSSOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	0.65 mm	0.65 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Toshiba Semiconductor	Toshiba Semiconductor	-	-	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
package instruction	SOP,	SOP,	LSSOP,	LSSOP,	SOP,	0.150 INCH, PLASTIC, MS-012AB, SOP-14	-
Is Samacsys	N	N	N	N	-	-	-
series	LVQ	LVQ	LVQ	LVQ	LVQ	LVQ	-
JESD-609 code	e0	e0	e0	e0	-	-	e0
length	10.3 mm	10.3 mm	5 mm	5 mm	8.65 mm	8.65 mm	-
Number of functions	6	6	6	6	6	6	-
Number of entries	1	1	1	1	1	1	-
Peak Reflow Temperature (Celsius)	240	240	240	240	240	240	-
propagation delay (tpd)	15 ns	15 ns	15 ns	15 ns	15 ns	15 ns	-
Maximum seat height	1.9 mm	1.9 mm	1.6 mm	1.6 mm	1.75 mm	1.75 mm	-
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	-
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	2 V	2 V	-
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	-	-	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
width	5.3 mm	5.3 mm	4.4 mm	4.4 mm	3.9 mm	3.9 mm	-
Base Number Matches	1	1	1	1	-	-	-
