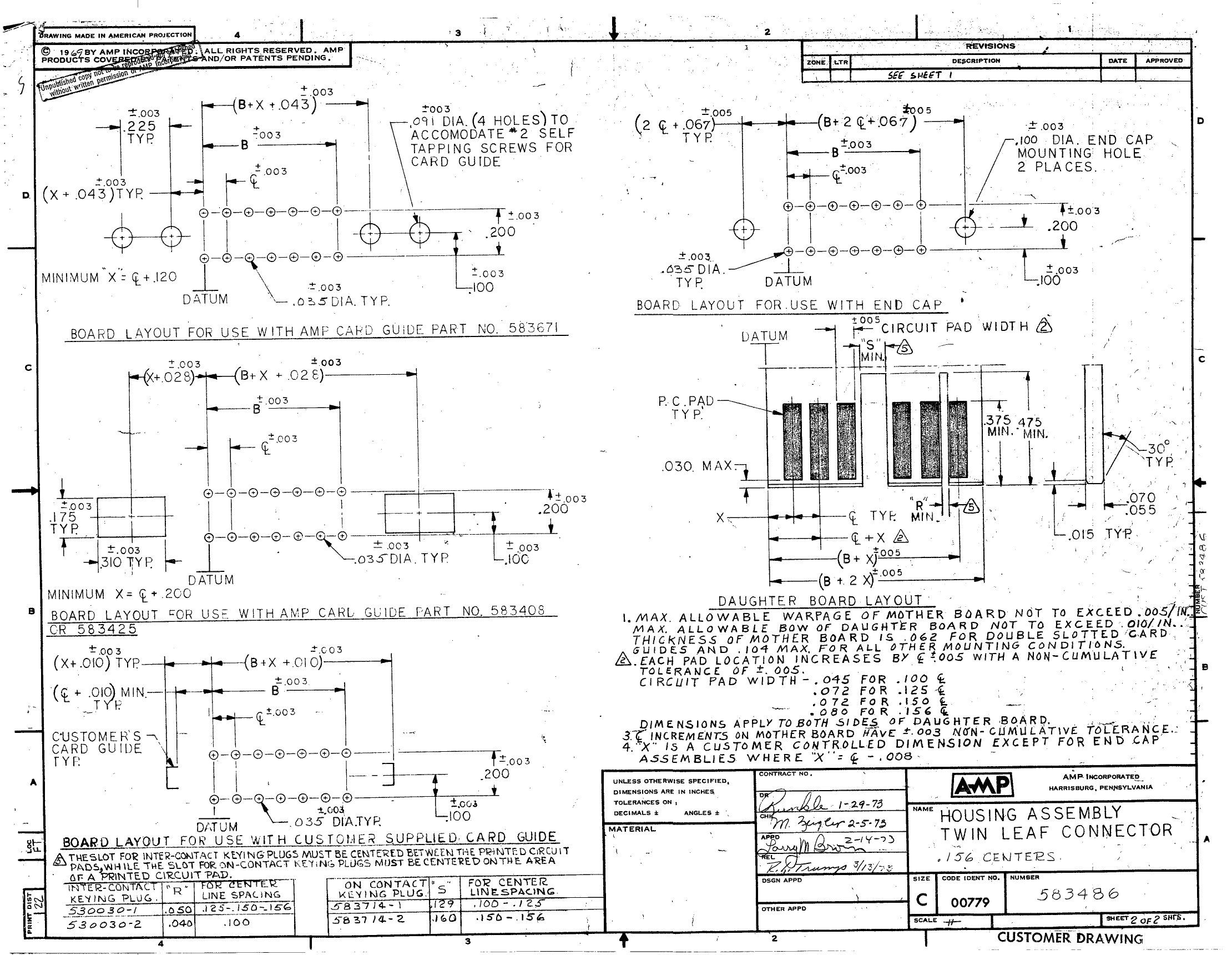

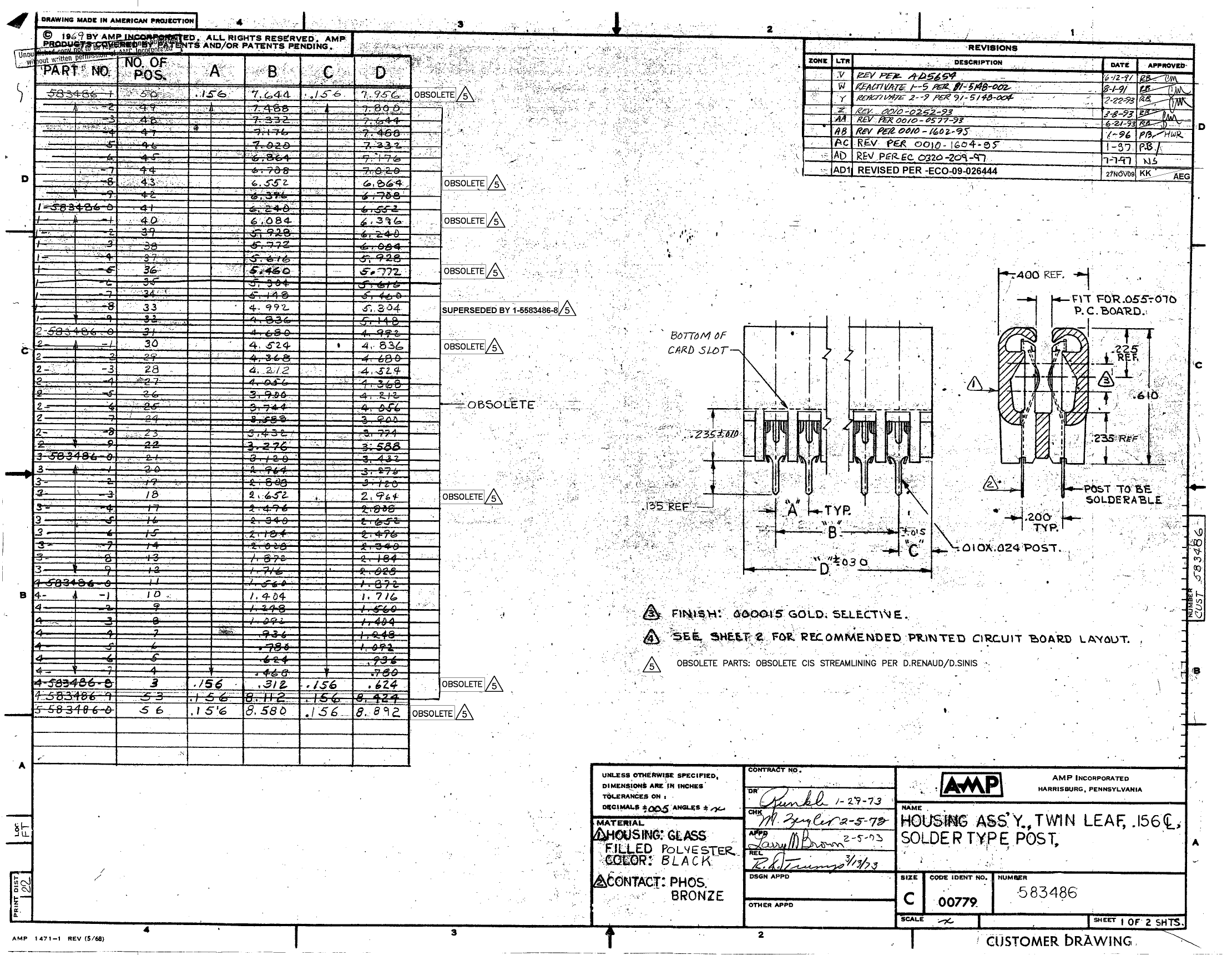

EDGE CONNECTOR,PCB MNT,RECEPT,86 CONTACTS,0.156 PITCH,PC TAIL TERMINAL
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| Is Samacsys | N |
| Other features | NONE |
| body width | 0.4 inch |
| subject depth | 0.61 inch |
| body length | 6.864 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | LEAF |
| Durability | 100 Cycles |
| Insulation resistance | 5000000000 Ω |
| insulator material | GLASS FILLED POLYESTER |
| Manufacturer's serial number | 583 |
| Plug contact pitch | 0.156 inch |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.08 mm |
| Plating thickness | 15u inch |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.135 inch |
| Terminal pitch | 3.9624 mm |
| Termination type | SOLDER |
| Total number of contacts | 86 |
| Base Number Matches | 1 |
| 583486-8 | 1-583486-8 | |
|---|---|---|
| Description | EDGE CONNECTOR,PCB MNT,RECEPT,86 CONTACTS,0.156 PITCH,PC TAIL TERMINAL | EDGE CONNECTOR,PCB MNT,RECEPT,66 CONTACTS,0.156 PITCH,PC TAIL TERMINAL |
| Is it Rohs certified? | incompatible | incompatible |
| Reach Compliance Code | compliant | compliant |
| Other features | NONE | NONE |
| body width | 0.4 inch | 0.4 inch |
| subject depth | 0.61 inch | 0.61 inch |
| body length | 6.864 inch | 5.304 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR |
| Contact resistance | 10 mΩ | 10 mΩ |
| Contact style | LEAF | LEAF |
| Durability | 100 Cycles | 100 Cycles |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω |
| insulator material | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER |
| Manufacturer's serial number | 583 | 583 |
| Plug contact pitch | 0.156 inch | 0.156 inch |
| Installation method | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| PCB row number | 2 | 2 |
| Number of rows loaded | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 5.08 mm | 5.08 mm |
| Plating thickness | 15u inch | 15u inch |
| Rated current (signal) | 3 A | 3 A |
| Guideline | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.135 inch | 0.135 inch |
| Terminal pitch | 3.9624 mm | 3.9624 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 86 | 66 |
