74ACT841DC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74ACT841DC

74ACT841DC: DescriptionBus Driver, ACT Series, 1-Func, 10-Bit, True Output, CMOS, CDIP24, CERAMIC, DIP-24; Categorylogic; File Size326KB，7 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

74ACT841DC Overview

Bus Driver, ACT Series, 1-Func, 10-Bit, True Output, CMOS, CDIP24, CERAMIC, DIP-24

74ACT841DC Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Is Samacsys	N
series	ACT
JESD-30 code	R-GDIP-T24
Logic integrated circuit type	BUS DRIVER
Number of digits	10
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum seat height	5.715 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

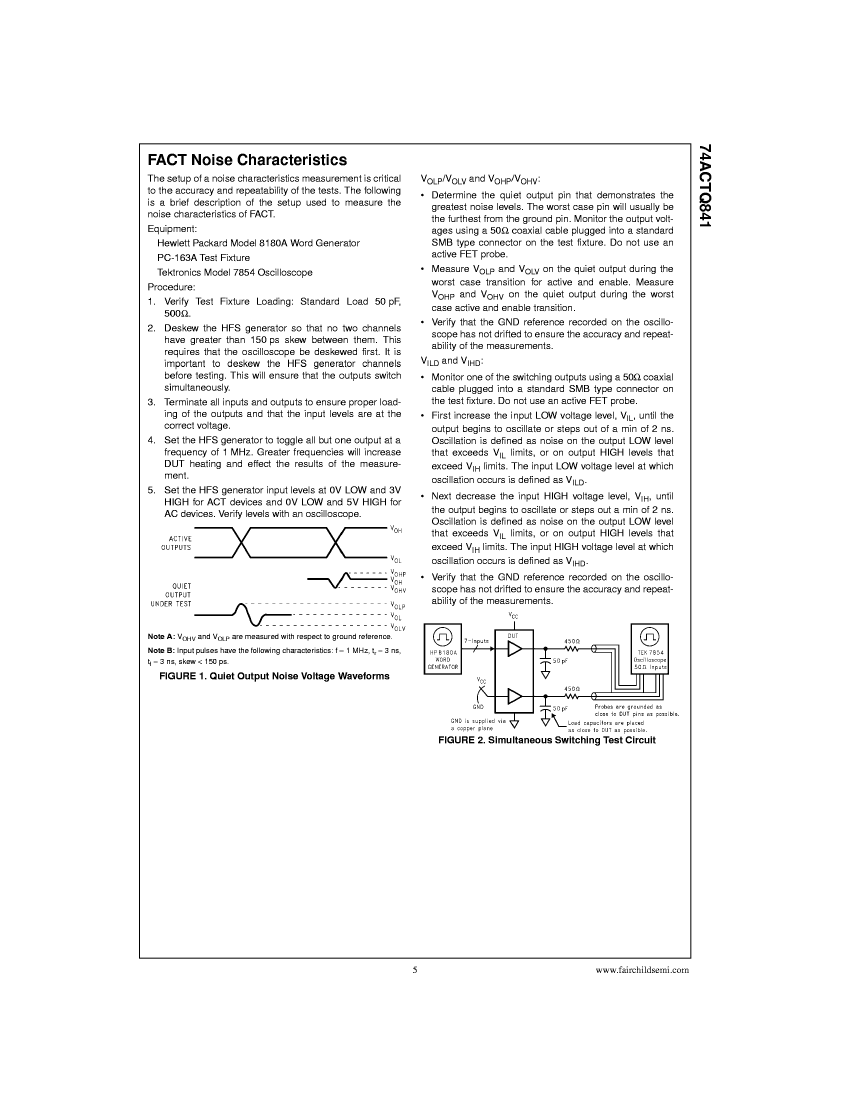

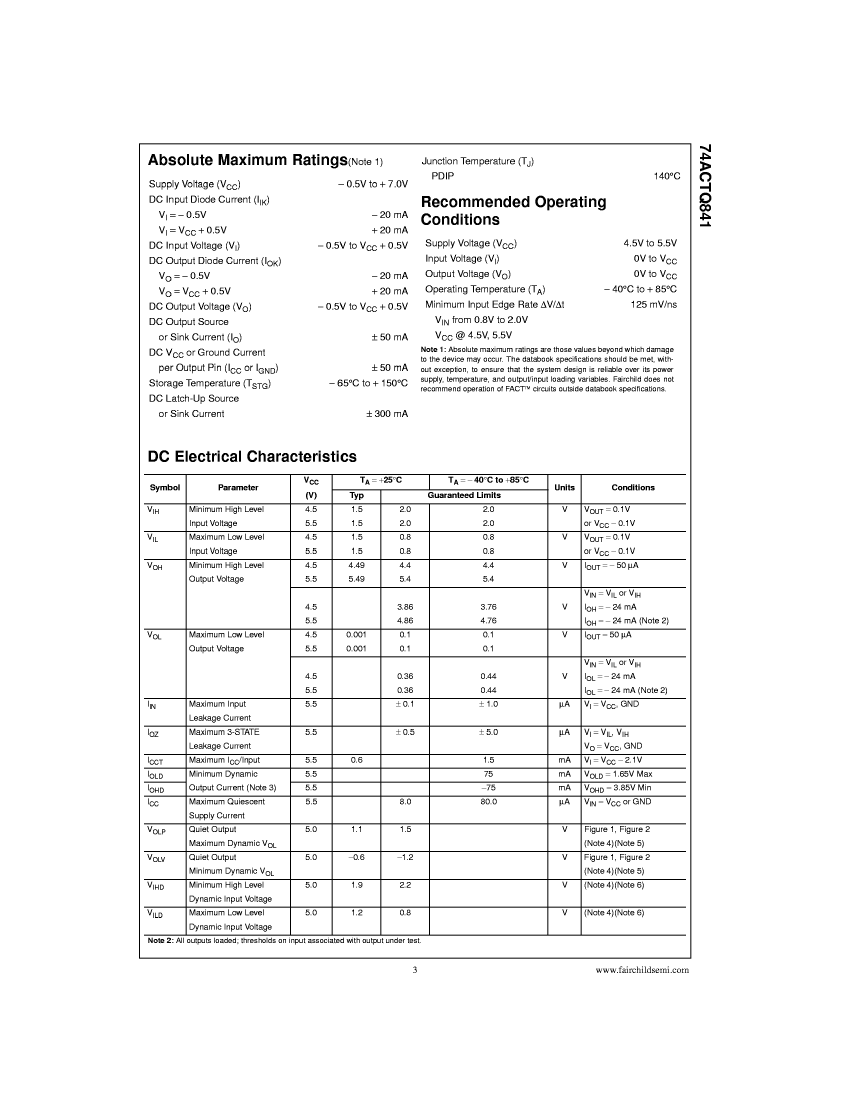

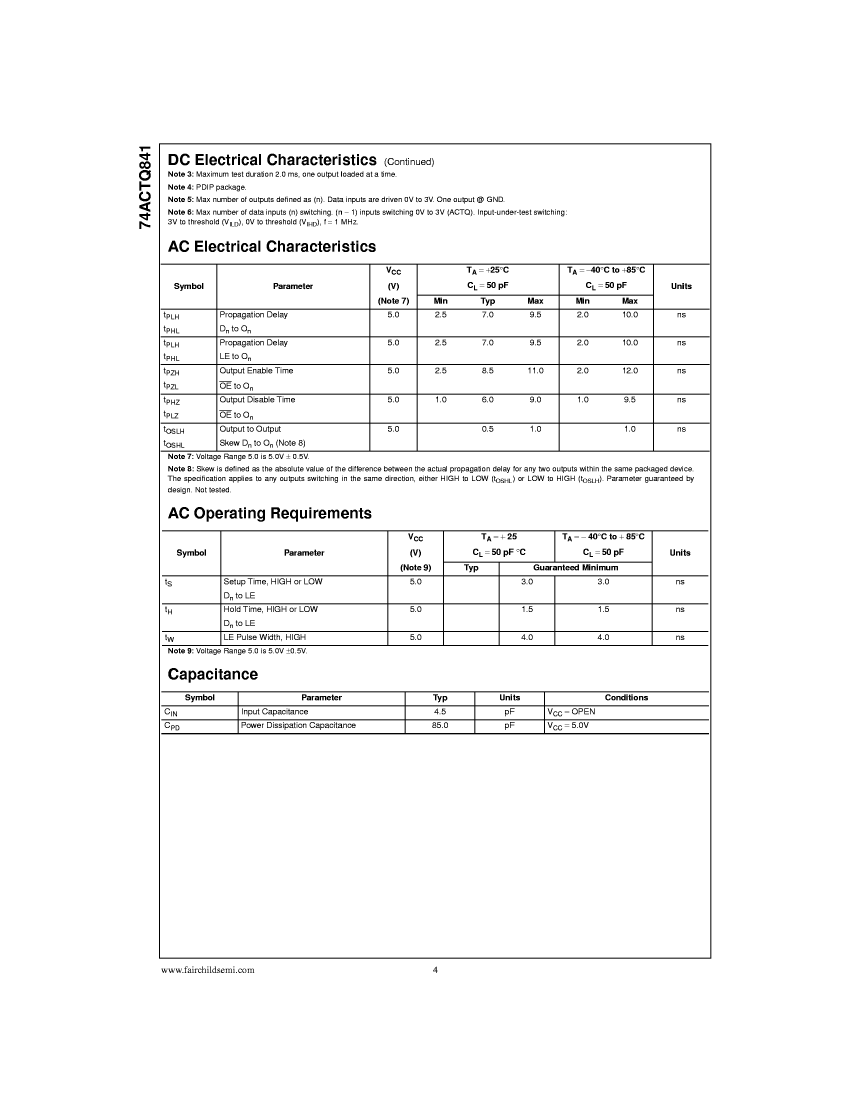

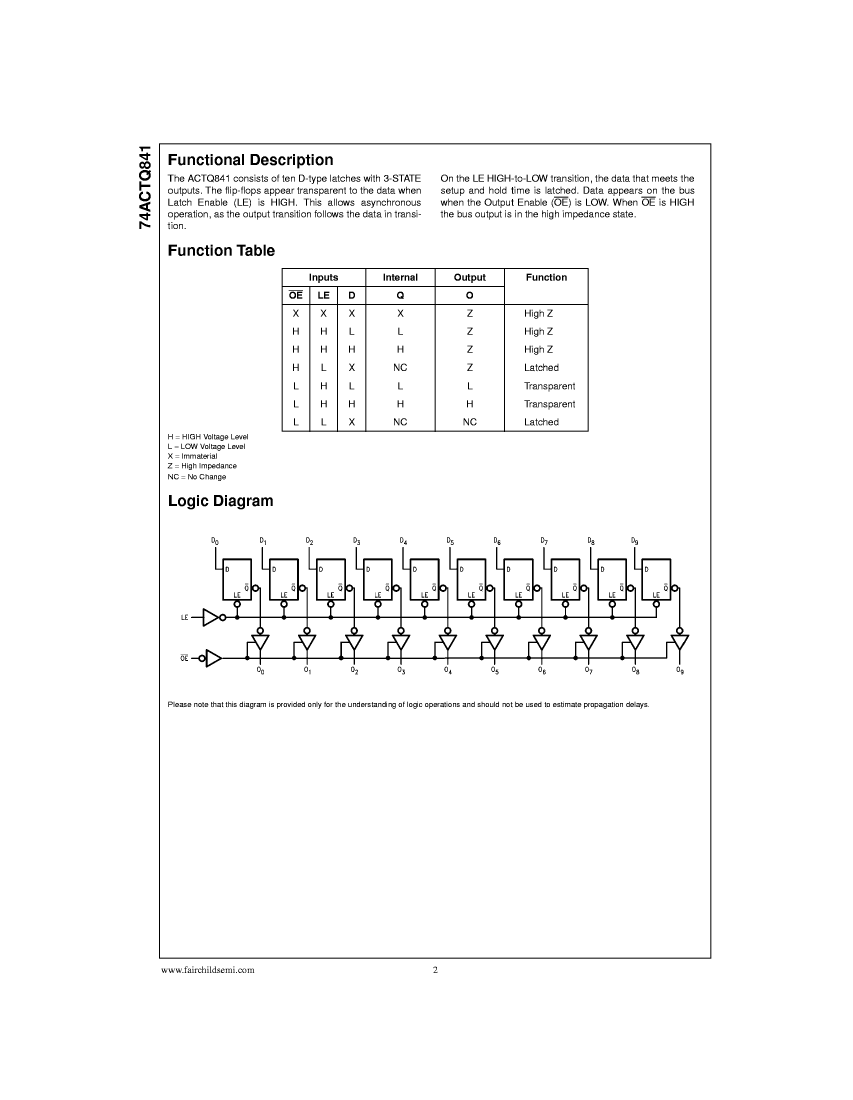

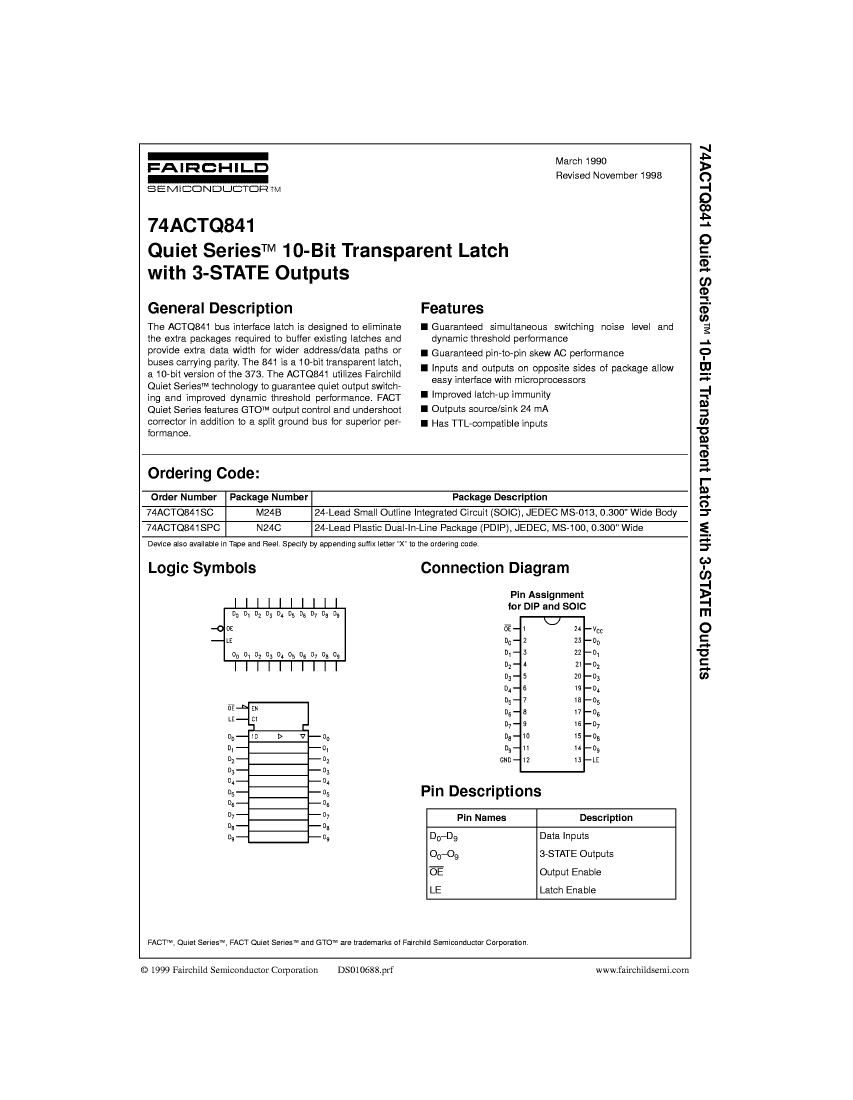

Preview

Download Datasheet

View All

74ACT841DC Related Products

	74ACT841DC	74ACT841PCQR	74ACT841DCQR	74ACT841PC
Description	Bus Driver, ACT Series, 1-Func, 10-Bit, True Output, CMOS, CDIP24, CERAMIC, DIP-24	Bus Driver, ACT Series, 1-Func, 10-Bit, True Output, CMOS, PDIP24, PLASTIC, DIP-24	Bus Driver, ACT Series, 1-Func, 10-Bit, True Output, CMOS, CDIP24, CERAMIC, DIP-24	Bus Driver, ACT Series, 1-Func, 10-Bit, True Output, CMOS, PDIP24, PLASTIC, DIP-24
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	DIP,	DIP,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown
series	ACT	ACT	ACT	ACT
JESD-30 code	R-GDIP-T24	R-PDIP-T24	R-GDIP-T24	R-PDIP-T24
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	10	10	10	10
Number of functions	1	1	1	1
Number of ports	2	2	2	2
Number of terminals	24	24	24	24
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum seat height	5.715 mm	5.08 mm	5.715 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm
Base Number Matches	1	1	1	1
Is Samacsys	N	N	N	-
