5126A

Description
Audio/RCA Connector, 5 Pole(s), Solder Terminal
CategoryThe connector
File Size179KB,2 Pages
ManufacturerFluke
Websitehttps://www.fluke.com
Environmental Compliance
Download Datasheet Parametric View All

5126A Online Shopping

Suppliers Part Number Price MOQ In stock
5126A - - View Buy Now

5126A Overview

Audio/RCA Connector, 5 Pole(s), Solder Terminal

5126A Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerFluke
Reach Compliance Codeunknown
Is SamacsysN
Connector typeAUDIO/RCA CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
DIN complianceNO
IEC complianceNO
MIL complianceNO
Installation typeCABLE
Number of poles5
Number of ports1
OptionsGENERAL PURPOSE
Termination typeSOLDER
Base Number Matches1
Models 5126A

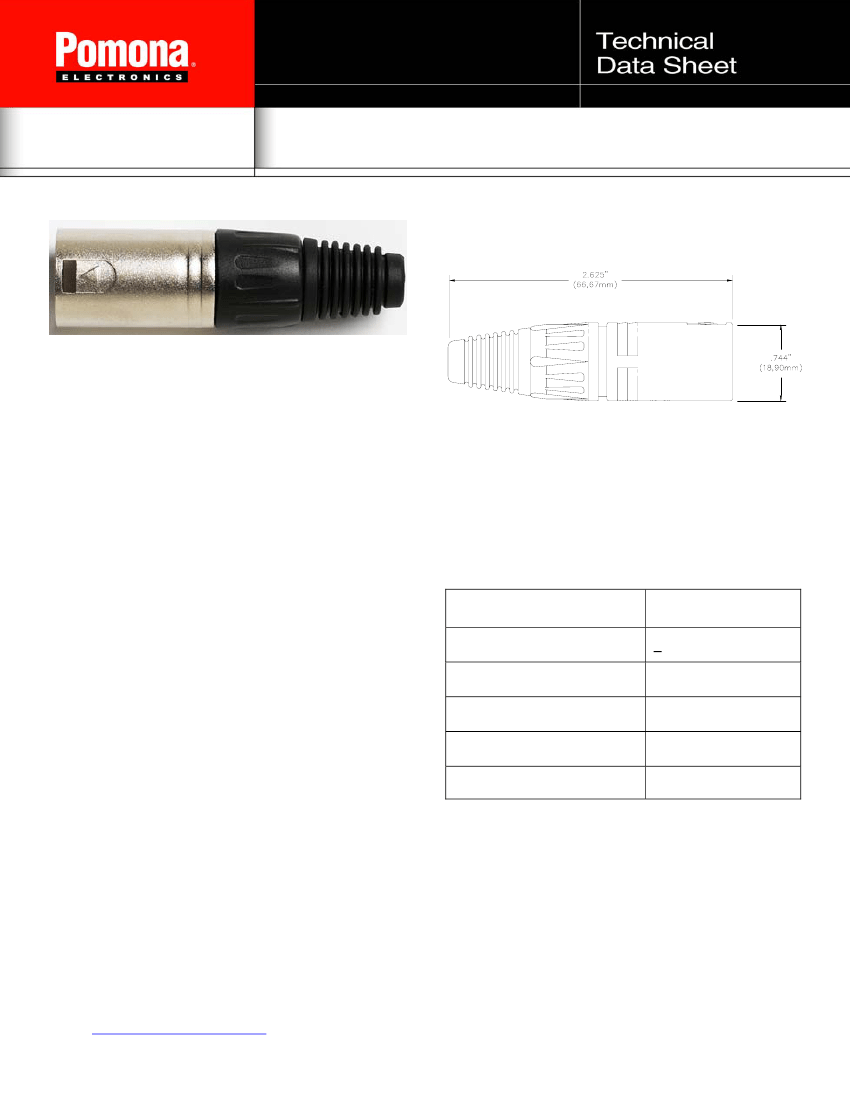

5-Pin XLR (M), Bronze Contacts, Nickel Shell
Model 5126A 5-Pin XLR (M), bronze contacts, nickel shell
Use in audio applications.
Features
Audio XLR cable connector available with 5
contacts.
Handles 18 AWG (2.0 mm
2
max.) cable.
Black and silver streamlined profile with compact
shell.

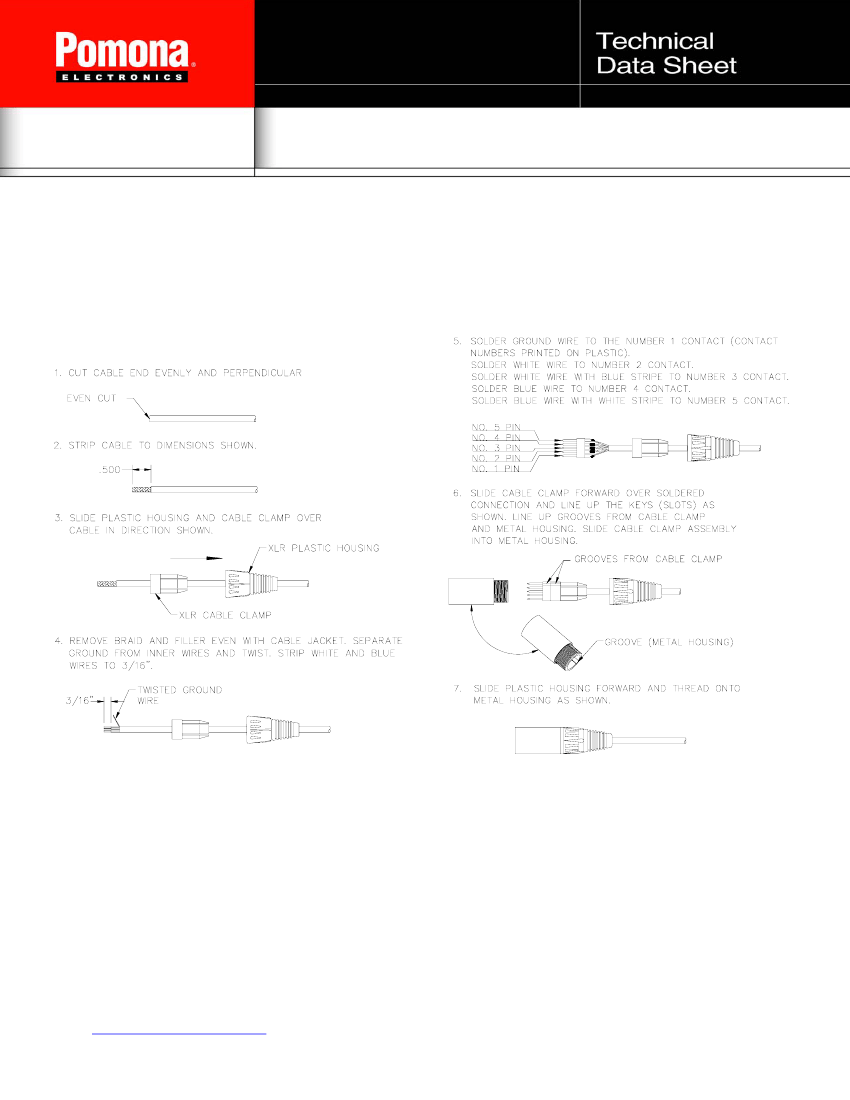

Time saving assembly (3 parts).
No set screws. Solderable.
Specifications
Number of contacts
Contact resistance
Dielectric strength
5
< 3 mΩ
1500 V dc
18 AWG / 2.0 mm
2
max.
45 lbs. typical
3.0 mm – 6.5 mm
(0.118” to 0.255”)
Materials
Body is die-cast zinc alloy with tarnish resistant
nickel finish.
Contacts are tin-plated bronze.
Strain relief clamp designed for durability: POM
(Polyoxymethylene).
AWG
Pull strength
Cable O.D. range
Ordering
Information
Model: 5126A
USA:
Sales: 800-490-2361 Technical Support: 800-241-
2060 Fax: 888-403-3360
Europe:
31-(0) 40 2675 150
International:
425-446-5500
e-mail:
technicalsupport@pomonatest.com
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks
are the property of their respective companies.
Copyright © 2004 11/2004 2415797 D-ENG-N Rev A
