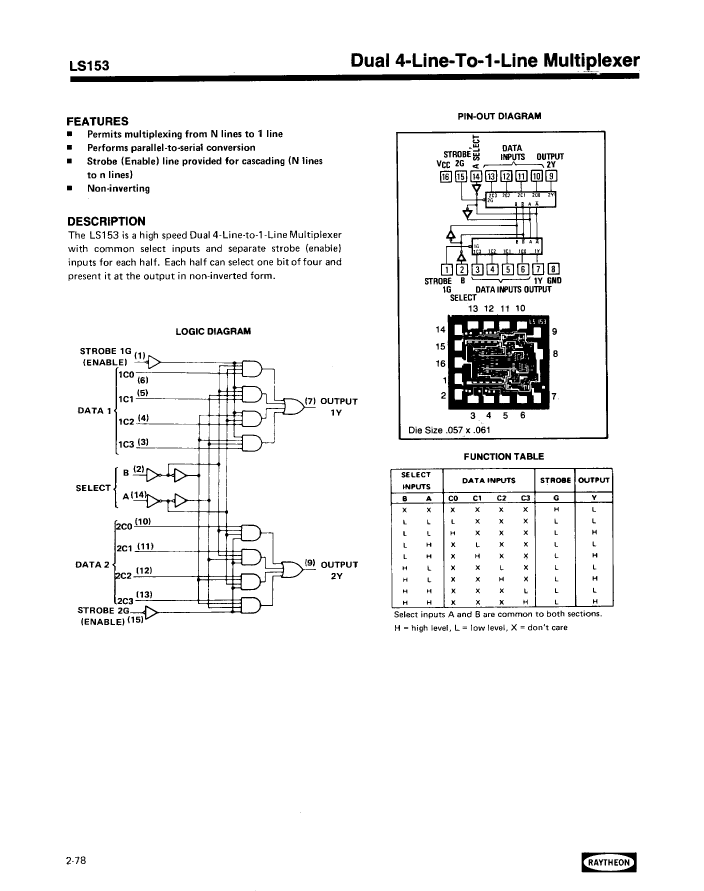

Multiplexer, 2-Func, 4 Line Input, TTL, CDFP16,

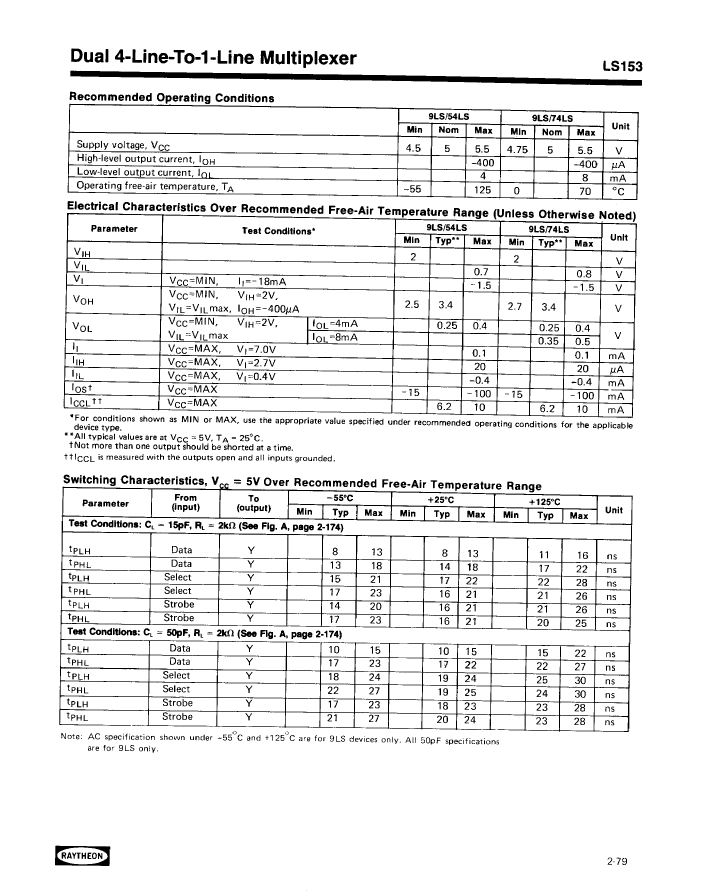

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Objectid | 100825308 |
| package instruction | DFP, FL16,.3 |
| Reach Compliance Code | unknown |
| JESD-30 code | R-XDFP-F16 |
| JESD-609 code | e0 |
| Logic integrated circuit type | MULTIPLEXER |
| Number of functions | 2 |
| Number of entries | 4 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL16,.3 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| power supply | 5 V |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| 54LS153W03 | 74LS153NA+1 | 74LS153N | 74LS153NA+2 | 54LS153W | 54LS153J | 54LS153J03 | |
|---|---|---|---|---|---|---|---|
| Description | Multiplexer, 2-Func, 4 Line Input, TTL, CDFP16, | Multiplexer, 2-Func, 4 Line Input, TTL, PDIP16, | Multiplexer/Demultiplexer, | Multiplexer, 2-Func, 4 Line Input, TTL, PDIP16, | Multiplexer, 2-Func, 4 Line Input, TTL, CDFP16, | Multiplexer/Demultiplexer, | Multiplexer, 2-Func, 4 Line Input, TTL, CDIP16, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| JESD-30 code | R-XDFP-F16 | R-PDIP-T16 | - | R-PDIP-T16 | R-XDFP-F16 | - | R-XDIP-T16 |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | - | MULTIPLEXER | MULTIPLEXER | - | MULTIPLEXER |
| Number of functions | 2 | 2 | - | 2 | 2 | - | 2 |
| Number of entries | 4 | 4 | - | 4 | 4 | - | 4 |
| Number of terminals | 16 | 16 | - | 16 | 16 | - | 16 |
| Maximum operating temperature | 125 °C | 70 °C | - | 70 °C | 125 °C | - | 125 °C |
| Package body material | CERAMIC | PLASTIC/EPOXY | - | PLASTIC/EPOXY | CERAMIC | - | CERAMIC |
| encapsulated code | DFP | DIP | - | DIP | DFP | - | DIP |
| Encapsulate equivalent code | FL16,.3 | DIP16,.3 | - | DIP16,.3 | FL16,.3 | - | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| Package form | FLATPACK | IN-LINE | - | IN-LINE | FLATPACK | - | IN-LINE |
| power supply | 5 V | 5 V | - | 5 V | 5 V | - | 5 V |
| Certification status | Not Qualified | Not Qualified | - | - | Not Qualified | - | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V | 5 V | - | 5 V | 5 V | - | 5 V |
| surface mount | YES | NO | - | NO | YES | - | NO |
| technology | TTL | TTL | - | TTL | TTL | - | TTL |
| Temperature level | MILITARY | COMMERCIAL | - | COMMERCIAL | MILITARY | - | MILITARY |
| Terminal form | FLAT | THROUGH-HOLE | - | THROUGH-HOLE | FLAT | - | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 2.54 mm | - | 2.54 mm | 1.27 mm | - | 2.54 mm |
| Terminal location | DUAL | DUAL | - | DUAL | DUAL | - | DUAL |
| Maker | - | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | 1 |
