TC74AC138FN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> TC74AC138FN

TC74AC138FN: DescriptionCMOS Digital Integrated Circuit Silicon Monolithic 3-to-8 Line Decoder; Categorylogic logic; File Size272KB，10 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TC74AC138FN Overview

CMOS Digital Integrated Circuit Silicon Monolithic 3-to-8 Line Decoder

TC74AC138FN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP, SOP16,.25
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	3 ENABLE INPUTS
series	AC
JESD-30 code	R-PDSO-G16
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
MaximumI(ol)	0.012 A
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/5.5 V
Prop。Delay @ Nom-Su	16.3 ns
propagation delay (tpd)	16.3 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

TC74AC138P/F/FN/FT

TOSHIBA CMOS Digital Integrated Circuit

Silicon Monolithic

TC74AC138P,TC74AC138F,TC74AC138FN,TC74AC138FT

3-to-8 Line Decoder

The TC74AC138 is an advanced high speed CMOS 3-to-8 LINE

DECODER fabricated with silicon gate and double-layer metal

wiring C2MOS technology.

It achieves the high speed operation similar to equivalent

Bipolar Schottky TTL while maintaining the CMOS low power

dissipation.

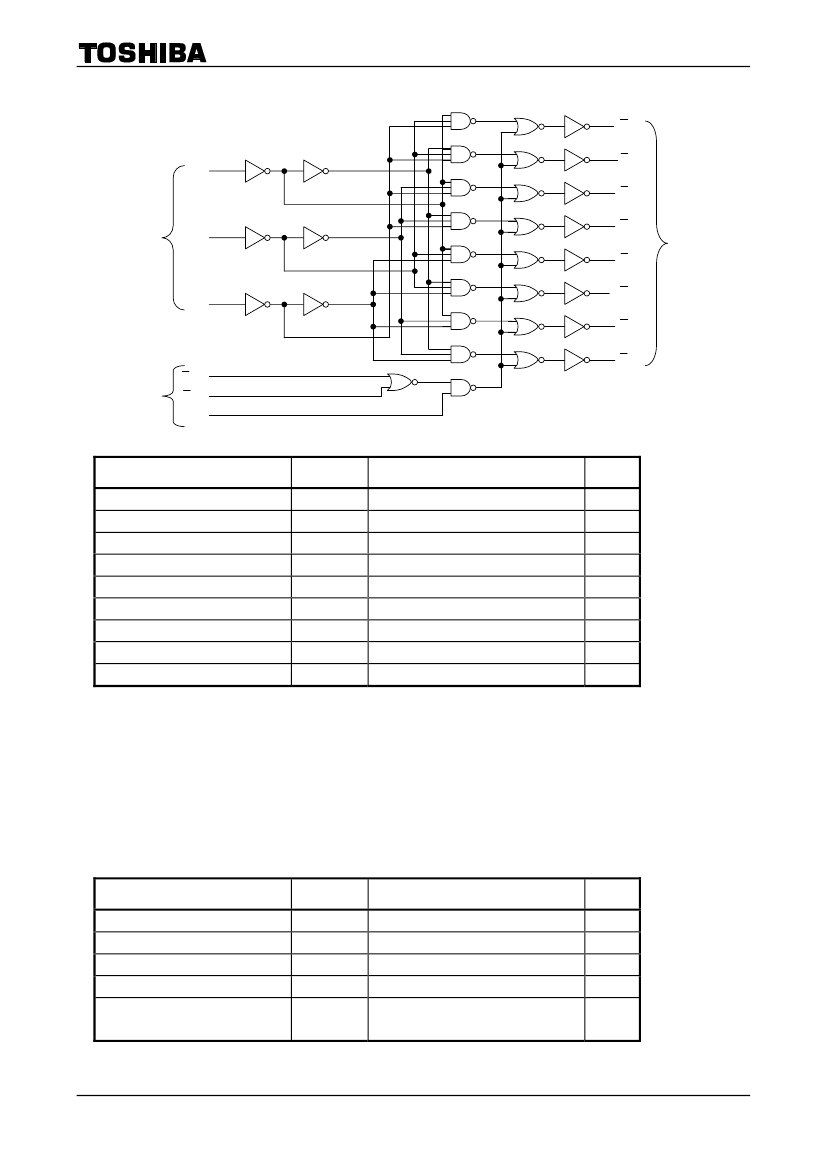

When the device is enabled, 3 Binary Select inputs (A, B and

C) determine which one of the outputs (

Y 0

) will go low.

When enable input G1 is held low or either

G 2 A

G2B

held high, decoding function is inhibited and all outputs go high.

G1,

G 2 A

, and

G2B

inputs are provided to ease cascade

connection and for use as an address decoder for memory

systems.

All inputs are equipped with protection circuits against static

discharge or transient excess voltage.

Note: xxxFN (JEDEC SOP) is not available in

Japan.

TC74AC138P

TC74AC138F

Features

•

High speed: t

= 5.9 ns (typ.) at V

= 5 V

Low power dissipation: I

= 8

μA

(max) at Ta = 25°C

High noise immunity: V

NIH

= V

NIL

= 28% V

(min)

Symmetrical output impedance: |I

| = I

= 24 mA (min)

Capability of driving 50

transmission lines.

∼

Balanced propagation delays: t

pLH

−

pHL

Wide operating voltage range: V

CC (opr)

= 2 to 5.5 V

Pin and function compatible with 74F138

TC74AC138FN

•

TC74AC138FT

Weight

DIP16-P-300-2.54A

SOP16-P-300-1.27A

SOL16-P-150-1.27

TSSOP16-P-0044-0.65A

: 1.00 g (typ.)

: 0.18 g (typ.)

: 0.13 g (typ.)

: 0.06 g (typ.)

2007-10-01

TC74AC138FN Related Products

	TC74AC138FN	TC74AC138F	TC74AC138P_07	TC74AC138FT
Description	CMOS Digital Integrated Circuit Silicon Monolithic 3-to-8 Line Decoder	CMOS Digital Integrated Circuit Silicon Monolithic 3-to-8 Line Decoder	CMOS Digital Integrated Circuit Silicon Monolithic 3-to-8 Line Decoder	CMOS Digital Integrated Circuit Silicon Monolithic 3-to-8 Line Decoder
Is it lead-free?	Lead free	Contains lead	-	Lead free
Is it Rohs certified?	conform to	conform to	-	conform to
Maker	Toshiba Semiconductor	Toshiba Semiconductor	-	Toshiba Semiconductor
Parts packaging code	SOIC	SOIC	-	TSSOP
package instruction	SOP, SOP16,.25	SOP, SOP16,.3	-	SOP, TSSOP16,.25
Contacts	16	16	-	16
Reach Compliance Code	unknow	unknow	-	unknow
ECCN code	EAR99	EAR99	-	EAR99
Other features	3 ENABLE INPUTS	3 ENABLE INPUTS	-	3 ENABLE INPUTS
series	AC	AC	-	AC
JESD-30 code	R-PDSO-G16	R-PDSO-G16	-	R-PDSO-G16
Load capacitance (CL)	50 pF	50 pF	-	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	-	OTHER DECODER/DRIVER
MaximumI(ol)	0.012 A	0.012 A	-	0.012 A
Number of functions	1	1	-	1
Number of terminals	16	16	-	16
Maximum operating temperature	85 °C	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C
Output polarity	INVERTED	INVERTED	-	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SOP	SOP	-	SOP
Encapsulate equivalent code	SOP16,.25	SOP16,.3	-	TSSOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
power supply	2/5.5 V	2/5.5 V	-	2/5.5 V
Prop。Delay @ Nom-Su	16.3 ns	16.3 ns	-	16.3 ns
propagation delay (tpd)	16.3 ns	16.3 ns	-	16.3 ns
Certification status	Not Qualified	Not Qualified	-	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	2 V	2 V	-	2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	-	3.3 V
surface mount	YES	YES	-	YES
technology	CMOS	CMOS	-	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL
Terminal form	GULL WING	GULL WING	-	GULL WING
Terminal pitch	1.27 mm	1.27 mm	-	0.635 mm
Terminal location	DUAL	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
