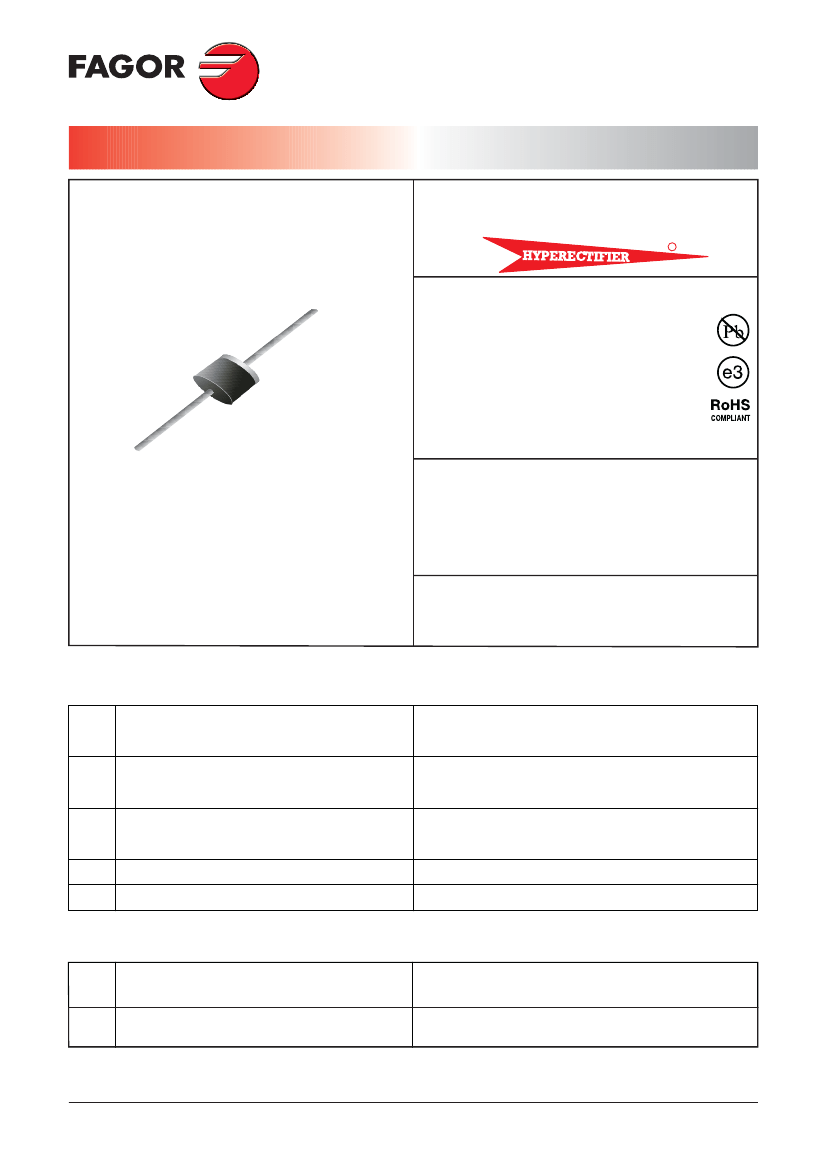

5KP7.5....5KP180A
5KP7.5C....5KP180C
5000W Unidirectional and Bidirectional Load Dump Glass Passivated Automotive T.V.S.
Developped to suppress transient in the automative
system, protecting mobile transceivers, radios and
tape decks from overvoltages (width pulses).
R
P-6
FEATURES
Glass passivated chip junction
Hyperectifier structure for high reliability
5000 W peak pulse power capability with a 10/1000 µs
waveform, repetitive rate (duty cycle): 0.01 %
Solder dip 260ºC, 10s
AEC-Q101 qualified
Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
Excellent clamping capability
Very fast response time
Low incremental surge resistance
Available in uni-directional and bi-directional
MECHANICAL DATA
Case
:
P-6.
Epoxy meets UL 94V-0 flammability rating.
Polatity
:
For uni-directional types the color band
denotes cathode end, no marking on bi-directional types
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test.
TYPICAL APPLICATIONS
Used in sensitive electronics protection against voltage transients
induced by inductive load switching and lighting on ICs, MOSFET,
signal lines of sensor units for consumer, computer, industrial,
automotive and telecommunication.
Maximun Ratings and Electrical Characteristics at 25 °C
P
pp
P
M(AV)
I
FSM
T
j
T
stg
Peak pulse power with 10/1000 µs
exponential pulse
Steady State Power Dissipation at T
L
= 75 °C
Mounted in copper leaf area of 20 mm
2
Non repetitive surge peak forward
current (t = 10 msec.)
Operating temperature range
Storage temperature range
(Note 1)
5000 W
8W
500 A
65 to + 175 °C
65 to + 175 °C
Electrical Characteristics at Tamb = 25 °C
V
F
R
thj-l
Max. forward voltage drop at I
F
= 100A
(Note 1)
3.5 V
10 °C/W
Max. thermal resistance (l = 10 mm.)
Note 1: Valid only for Unidirectional.
www.fagorelectronica.com
Document Name: 5kp
Revision: 1
Version: Jul-16
Page Number: 1/8
