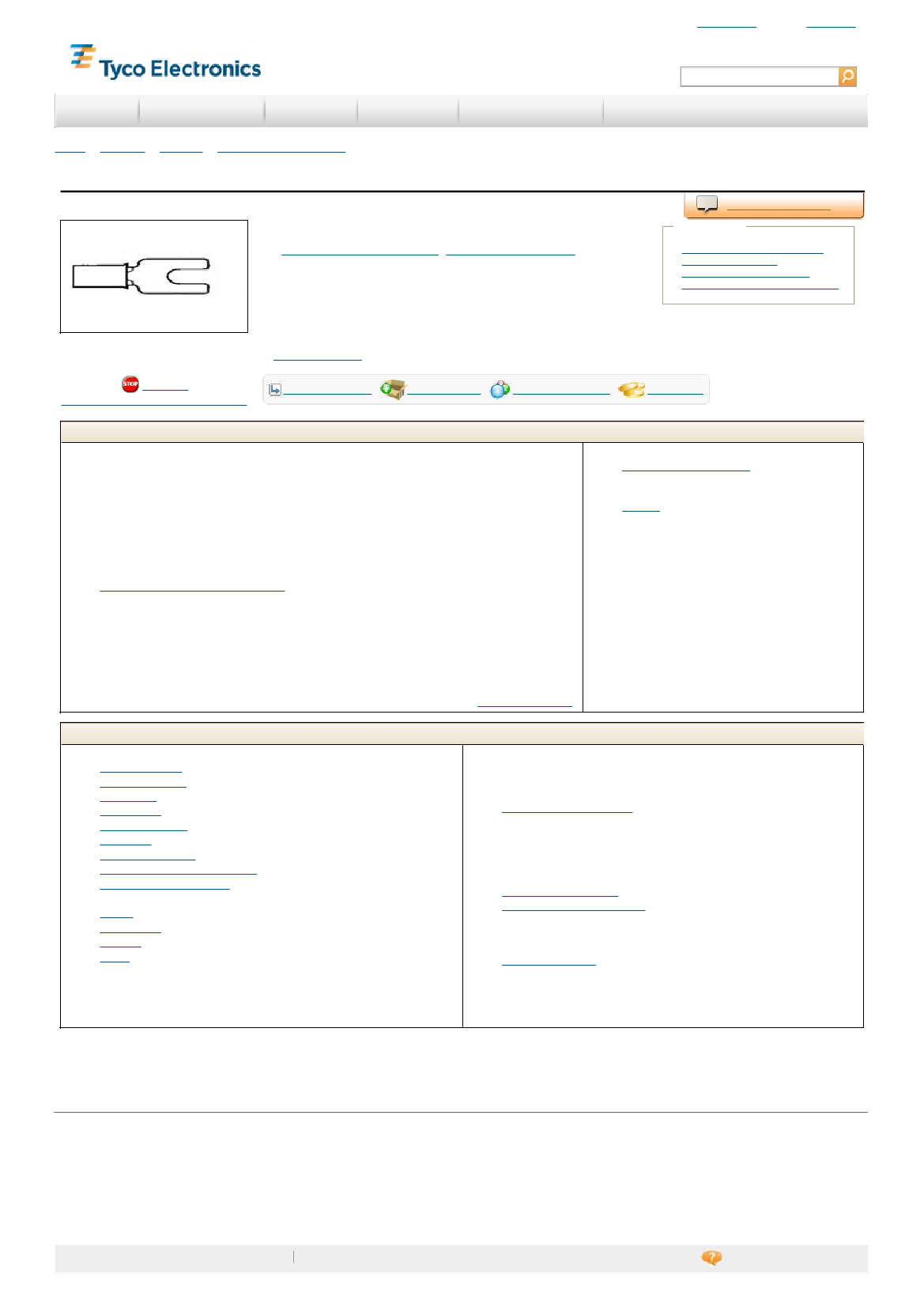

696007-1 Product Details
Live Product Chat
Ring and Spade Tongue Terminals
Always EU R oHS/ELV C om plia nt
(
Sta te m e nt of C om plia nce
)
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
696007-1
T E I nternal N umber: 6 9 6 0 0 7 - 1
Product Highlights:
l
Terminal Shape = Spade Tongue
l
Receptacle Style = Straight
l
Body Style = PLASTI-GRIP
l
Barrel Type = C losed Barrel
l
Wire/C able Type = Regular Wire
View all Features
Obsolete
C ontact Product Information C enter
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
PLASTI-GRIP Terminals and Splices
(PDF, English)
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Terminal Shape
= Spade Tongue
l
Receptacle Style
= Straight
l
Body Style
= PLASTI-GRIP
l
Barrel Type
= C losed Barrel
l
Wire/C able Type
= Regular Wire
l
Insulation
= Yes
l
Insulation Support
= Insulation Support
l
Insulation Diameter (mm [in])
= 3.81-5.84 [.150-.230]
l
Stud Diameter (mm [in])
= 3.35 [0.132]
l
Stud Size = 5 [M3]
l
Shape
= SPADE-021
l
Heavy Duty
= No
l
Material
= C opper
l
Finish
= Tin
l
Tongue Material Thickness (mm [in]) = 1.02 [0.040]
l
C olor = Yellow
l
Insulation Material = Vinyl
Electrical Characteristics:
l
Voltage (VAC ) = 600
Body Related Features:
l
Wire Range (mm [AWG])
= 3.00-6.00² [12-10]
l
Wire Range (C MA) = 5,180 – 13,100
l
Stock Thickness (mm [in]) = 1.02 [0.040]
Industry Standards:
l
Government/Industry Qualification = No
l
RoHS/ELV C ompliance
= RoHS compliant, ELV compliant
l
Lead Free Solder Processes
= Not relevant for lead free process
l
RoHS/ELV C ompliance History = Always was RoHS compliant
Packaging Related Features:
l
Packaging Method
= Loose Piece
Other:
l
Brand = AMP
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
