TC74HC592AF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> TC74HC592AF

TC74HC592AF: DescriptionCMOS Digital Integrated Circuit Silicon Monolithic 8 Bit Binary Counter with Input Register; Categorylogic logic; File Size571KB，11 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HC592AF Overview

CMOS Digital Integrated Circuit Silicon Monolithic 8 Bit Binary Counter with Input Register

TC74HC592AF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP16,.3
Contacts	16
Reach Compliance Code	unknow
Counting direction	UP
series	HC/UH
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.3 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Su	18000000 Hz
MaximumI(ol)	0.004 A
Operating mode	ASYNCHRONOUS
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/6 V
propagation delay (tpd)	425 ns
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	5.3 mm
minfmax	21 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

TC74HC592AP/AF

TOSHIBA CMOS Digital Integrated Circuit

Silicon Monolithic

TC74HC592AP

TC74HC592AF

8 Bit Binary Counter with Input Register

The TC74HC592A is high speed CMOS 8-BIT REGISTER

COUNTER fabricated with silicon gate C

MOS technology.

It achieves the high speed operation similar to equivalent

LSTTL while maintaining the CMOS low power dissipation.

The internal counter counts at positive edge of Counter Clock

(CCK) when Counter Clock Enable (

CCKEN

) is held “L” level. If

Counter clear (

CCLR

) is held “L”, the internal counter is cleared

asynchronously to clock.

Input A to H are loaded to register at positive edge of Register

Clock (RCK), and the register outputs are loaded to Counter

when Counter Load (

CLOAD

) is held “L” level.

All inputs are equipped with protection circuits against static

discharge or transient excess voltage.

TC74HC592AP

TC74HC592AF

Features

•

High speed: f

max

35 MHz (typ.) at V

5 V

Low power dissipation: I

μA

(max) at Ta

25°C

High noise immunity: V

NIH

NIL

28% V

(min)

Output drive capability: 10 LSTTL loads for QA to QH

Symmetrical output impedance: |I

4 mA (min)

Balanced propagation delays: t

pLH

∼

pHL

−

Wide operating voltage range: V

(opr)

2 to 6 V

Pin and function compatible with 74LS592

Weight

DIP16-P-300-2.54A

SOP16-P-300-1.27A

: 1.00 g (typ.)

: 0.18 g (typ.)

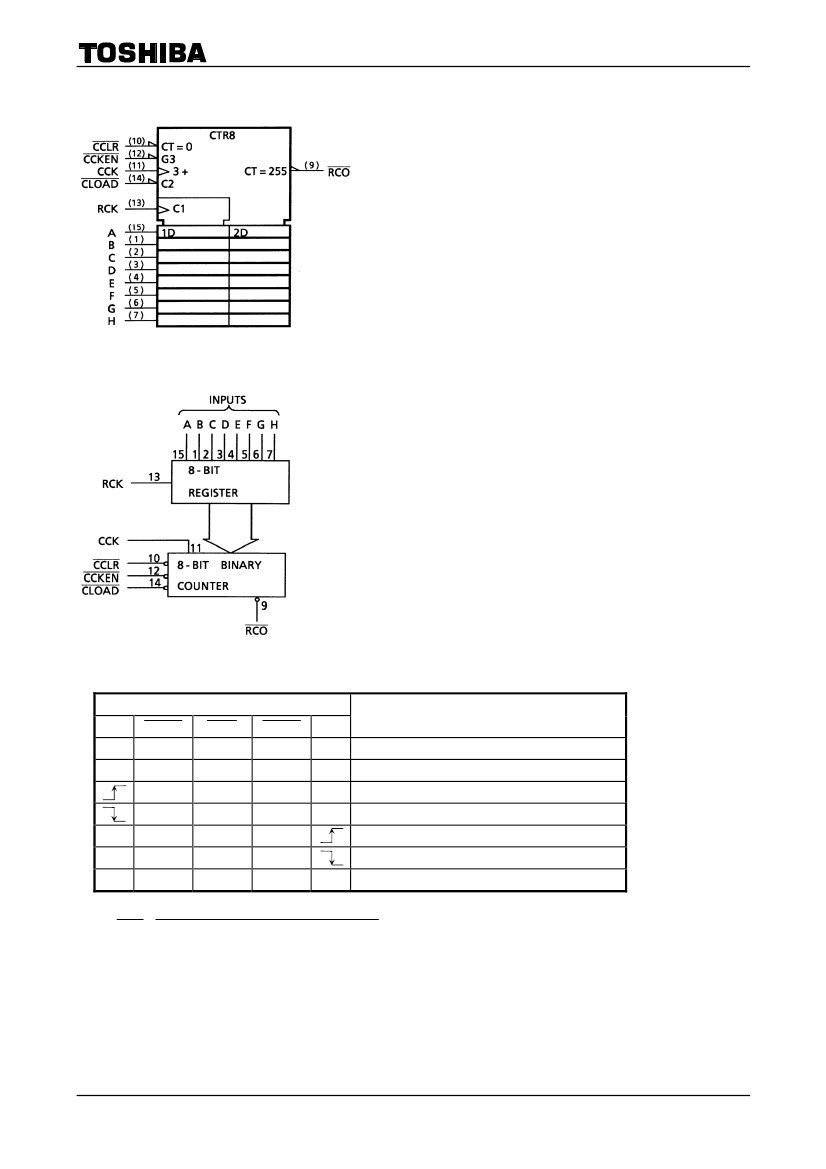

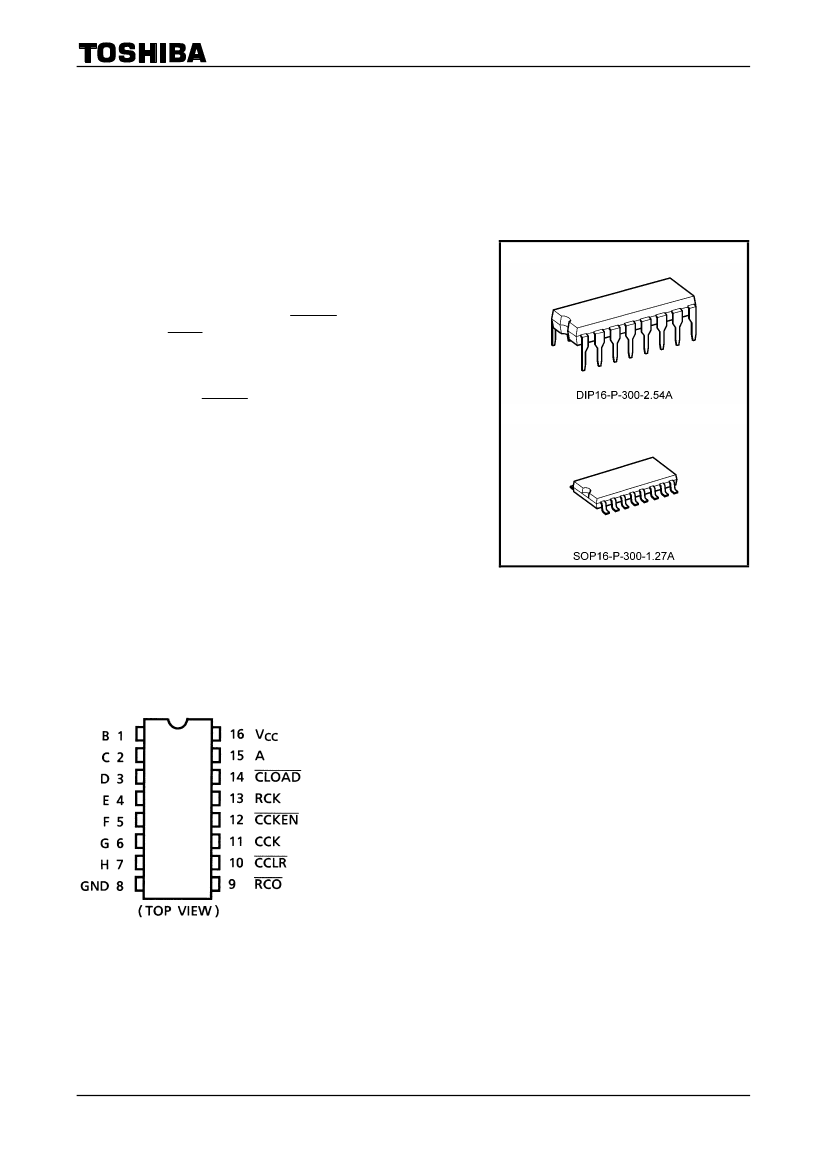

Pin Assignment

2007-10-01
