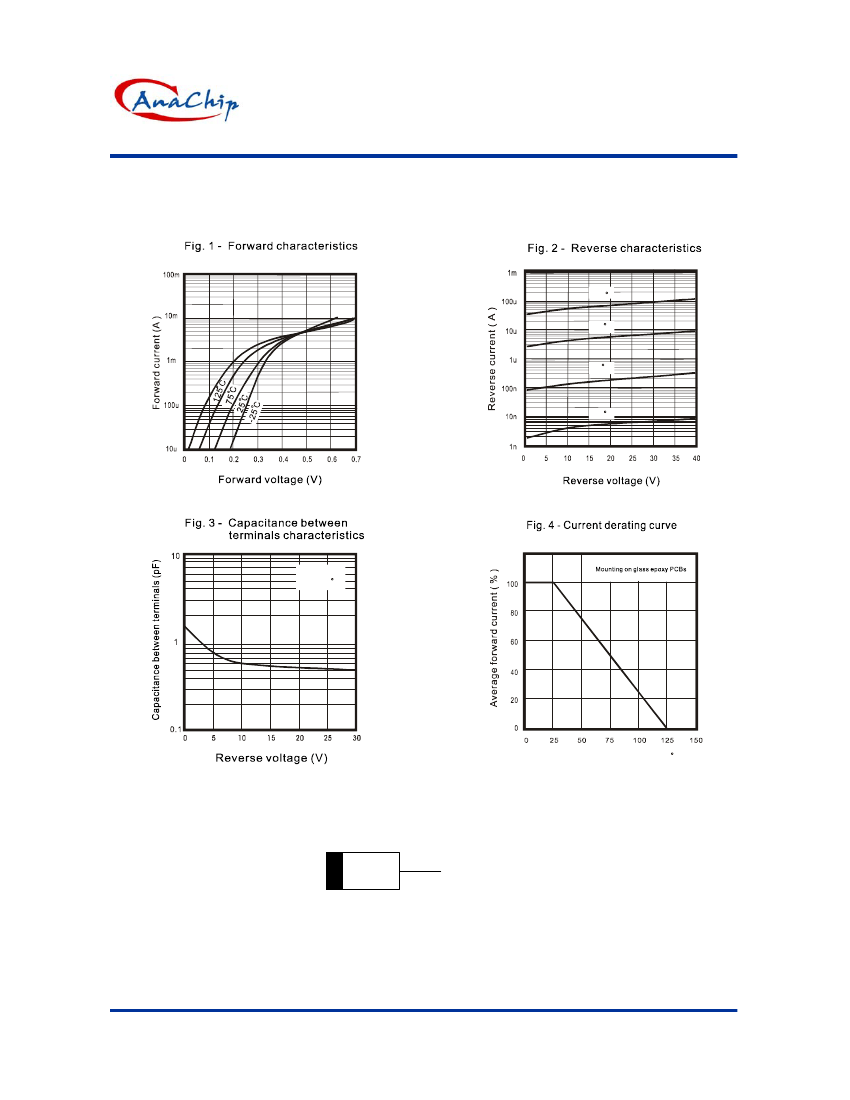

ASB00340BD-0603 Overview

SMD Schottky Barrier Diode

Preview

Download Datasheet

View All

ASB00340

SMD Schottky Barrier Diode

Features

30mA

40V

Designed for mounting on small surface.

- Extremely thin package.

- Low capacitance.

- Majority carrier conduction

- Lead-free device

0.010(0.25)Typ.

0.033(0.85)

0.028(0.70)

General Description

0603(1608)

0.071(1.80)

0.063(1.60)

0.039(1.00)

0.031(0.80)

0.012(0.30)Typ.

0.014(0.35)Typ.

Dimensions in inches and (millimeter)

1005(2512)

0.102(2.60)

0.095(2.40)

Mechanical Data

- Case :0603(1608) 1005(2512) standard package,

molded plastic.

- Terminals : Gold plated, solderable per

MIL-STD-750, method 2026.

- Polarity : Indicated by cathode band.

- Mounting position : Any.

Weight : BD:0.003gram (approximately)

0.014(0.35)Typ.

0.051(1.30)

0.043(1.10)

0.035(0.90)

0.027(0.70)

0.012(0.30)Typ.

Dimensions in inches and (millimeter)

BF:0.006gram (approximately)

Ordering information

XX XXX XX XX

Feature

SB : Schottky Barrier

Package type

BD-0603

BF-1005

This datasheet contains new product information. Anachip Corp. reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of

this product. No rights under any patent accompany the sale of the product.

Rev. 1.0 Aug 2, 2004

1/3
