76290-2010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 76290-2010

76290-2010: DescriptionBoard Connector, 120 Contact(s), 18 Row(s), Female, Right Angle, Press Fit Terminal,; CategoryThe connector; File Size320KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

76290-2010 Overview

Board Connector, 120 Contact(s), 18 Row(s), Female, Right Angle, Press Fit Terminal,

76290-2010 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	76290
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	18
Options	GENERAL PURPOSE
Terminal pitch	1.9 mm
Termination type	PRESS FIT
Total number of contacts	120
UL Flammability Code	94V-0
Base Number Matches	1

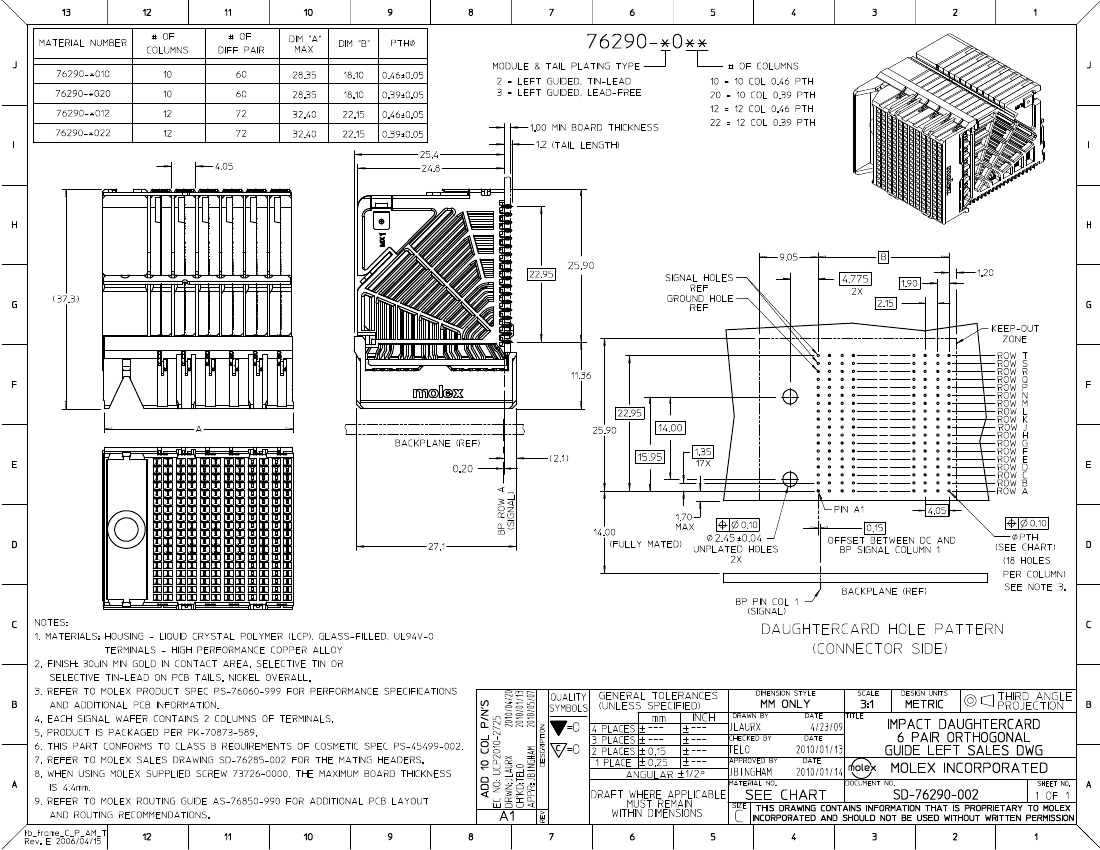

Preview

Download Datasheet

View All

76290-2010 Related Products

	76290-2010	76290-2012	76290-2020	76290-2022	76290-3010	76290-3012
Description	Board Connector, 120 Contact(s), 18 Row(s), Female, Right Angle, Press Fit Terminal,	Board Connector, 144 Contact(s), 18 Row(s), Female, Right Angle, Press Fit Terminal,	Board Connector, 120 Contact(s), 18 Row(s), Female, Right Angle, Press Fit Terminal,	Board Connector, 144 Contact(s), 18 Row(s), Female, Right Angle, Press Fit Terminal,	Board Connector, 120 Contact(s), 18 Row(s), Female, Right Angle, Press Fit Terminal, LEAD FREE	Board Connector, 144 Contact(s), 18 Row(s), Female, Right Angle, Press Fit Terminal, LEAD FREE
Maker	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N	N	N
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	76290	76290	76290	76290	76290	76290
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	18	18	18	18	18	18
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	120	144	120	144	120	144
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
